P-51D Mustang TW Shock Cyl Steering Declutch and Mount Brkts 3D Model Collection

Publication date: 2019-11-06

P-51D Mustang TW Shock Cyl Steering Declutch and Mount Brkts 3D Model Collection

$88

License: Editorial No Ai License

author:

historical-aviation

Description

This collection comprises all the sub-assemblies for the Tail Wheel Shock cylinder, Steering, Declutch mechanism, Pulley supports and mounting brackets. Full Size 1:1

Each sub-assembly includes Part Lists in PDF.

3D Model file formats are STL. STP, DWG and Parasolid X-B.

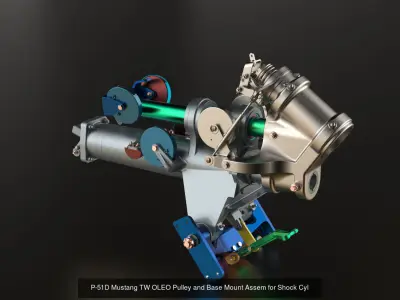

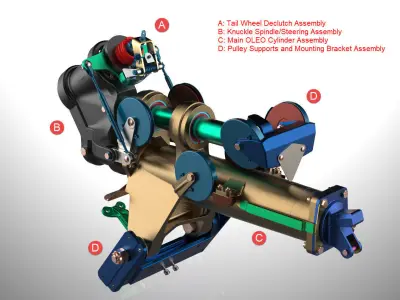

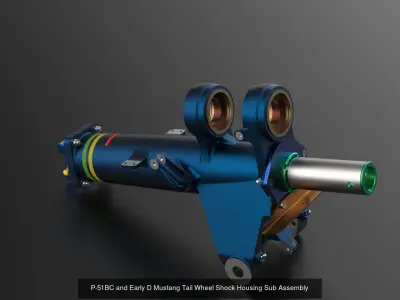

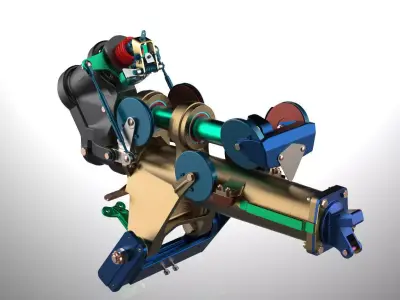

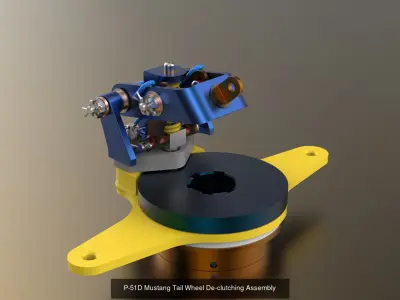

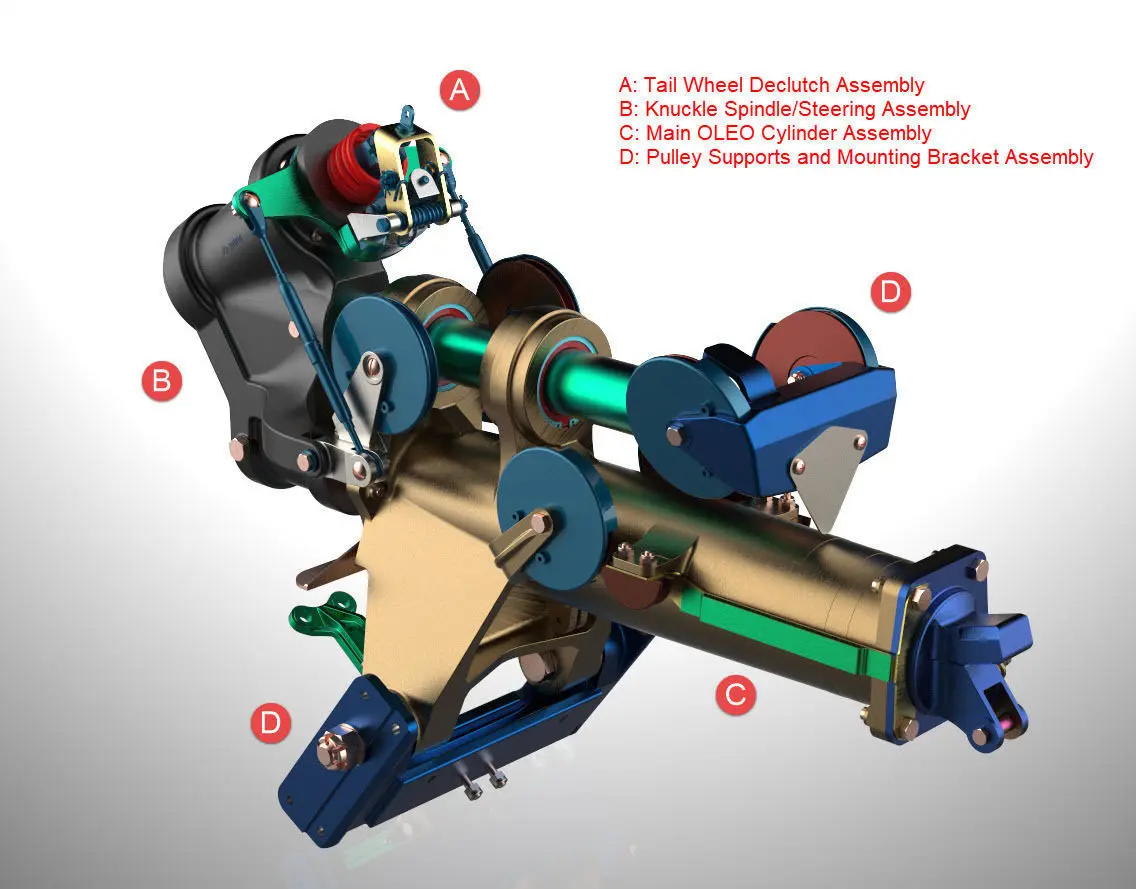

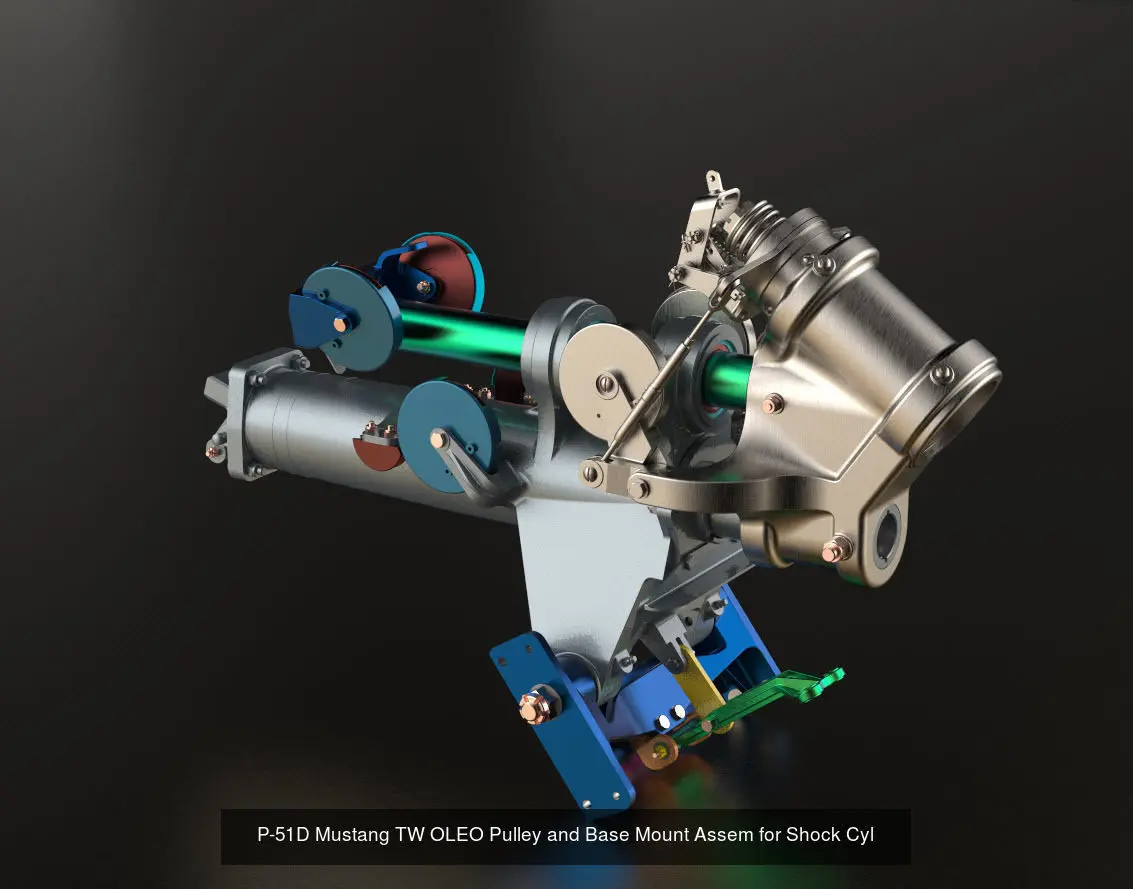

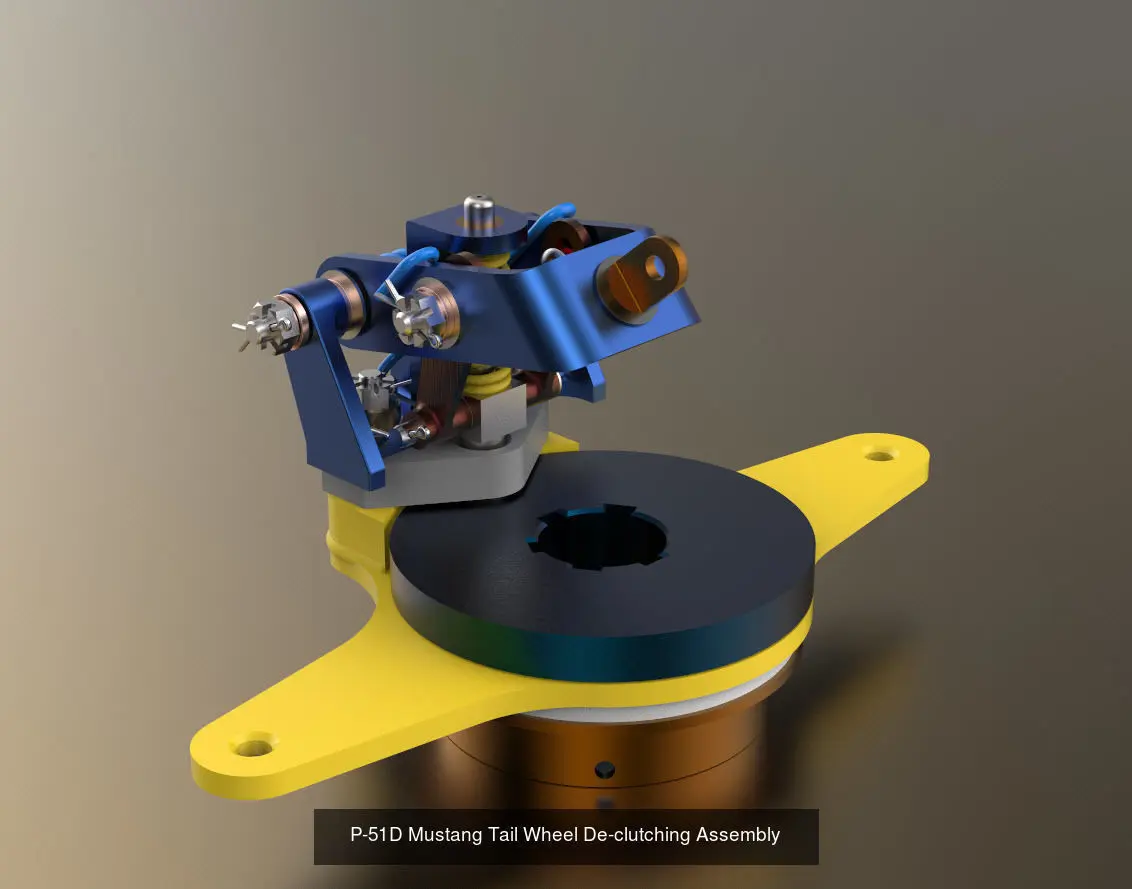

Collection comprises:Tail Wheel Declutch mechanism.Knuckle and Steering housing.Main OLEO Shock Cylinder.Pulley Supports and Mounting Brackets.

The P-51 Mustang Project:Our primary purpose is the review of methods applicable to the design and construction of historical aircraft. The P-51 Mustang has been one of our primary subjects for research in criteria of conic design. Inherent to this research we have developed a number of mechanical assemblies in CAD to ascertain positional relationships and study the construction methods.

The 3D CAD models are professionally developed; some of which are now being made available publicly for the first time. The Parts list drawings include important dimensional information to accurately locate components.

Features

Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: Unknown
Vertices: Unknown

Tags

Aircraft Mustang P 51 Airforce Part Air Mechanical Ww2 Inventor P 51d Raf Military Military aircraft Aircraft part
