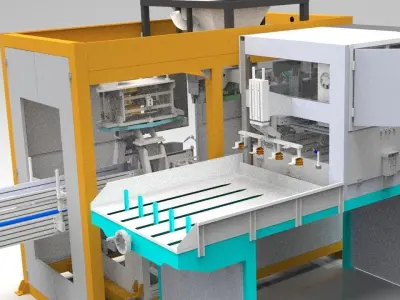

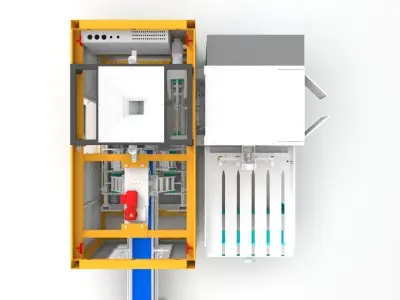

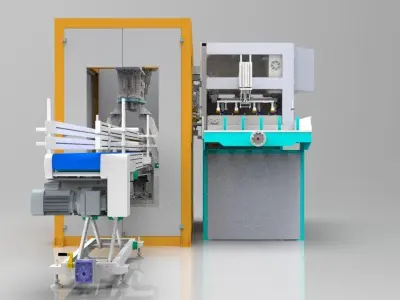

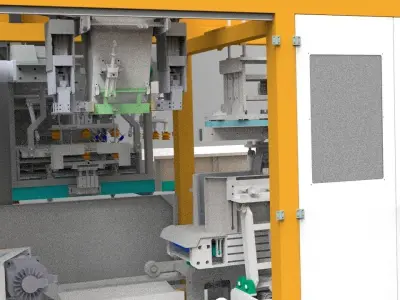

Buy Packaging scale and automatic bagging for open pocket woven bag 3D model

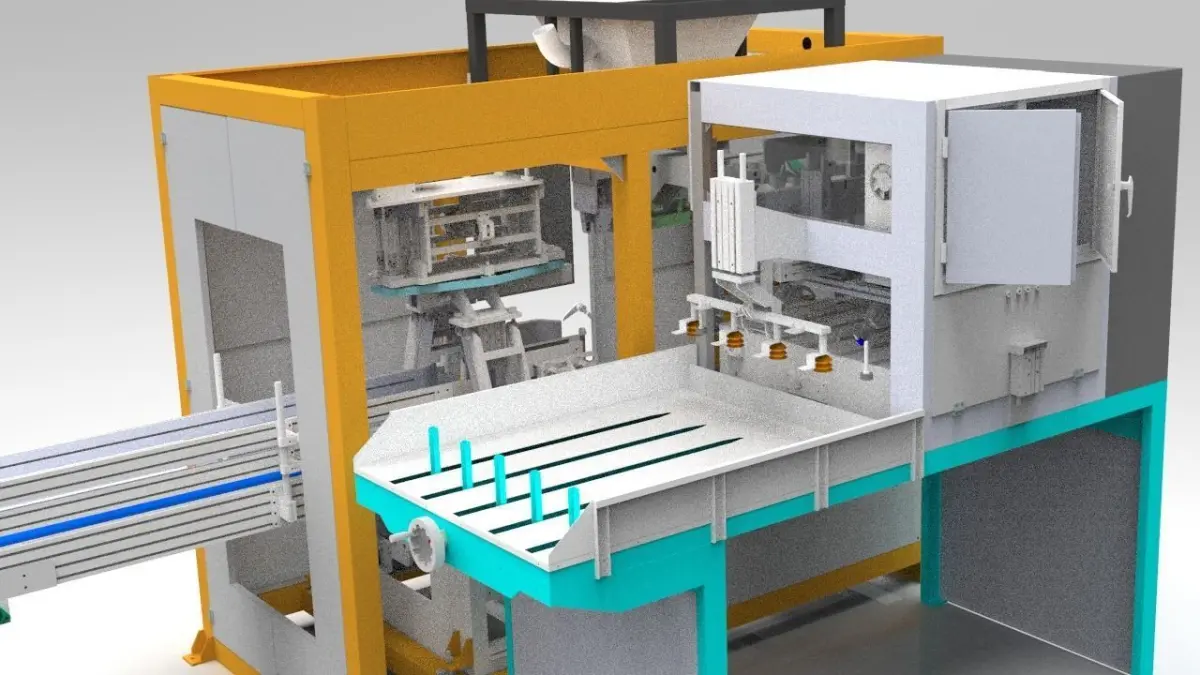

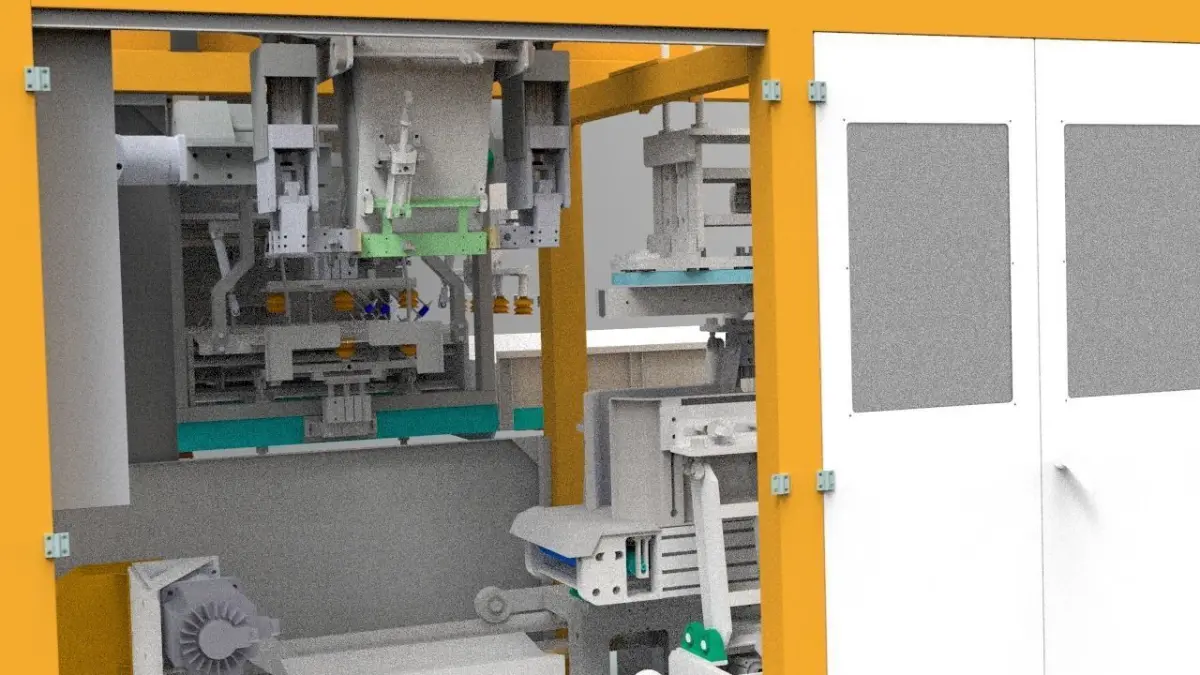

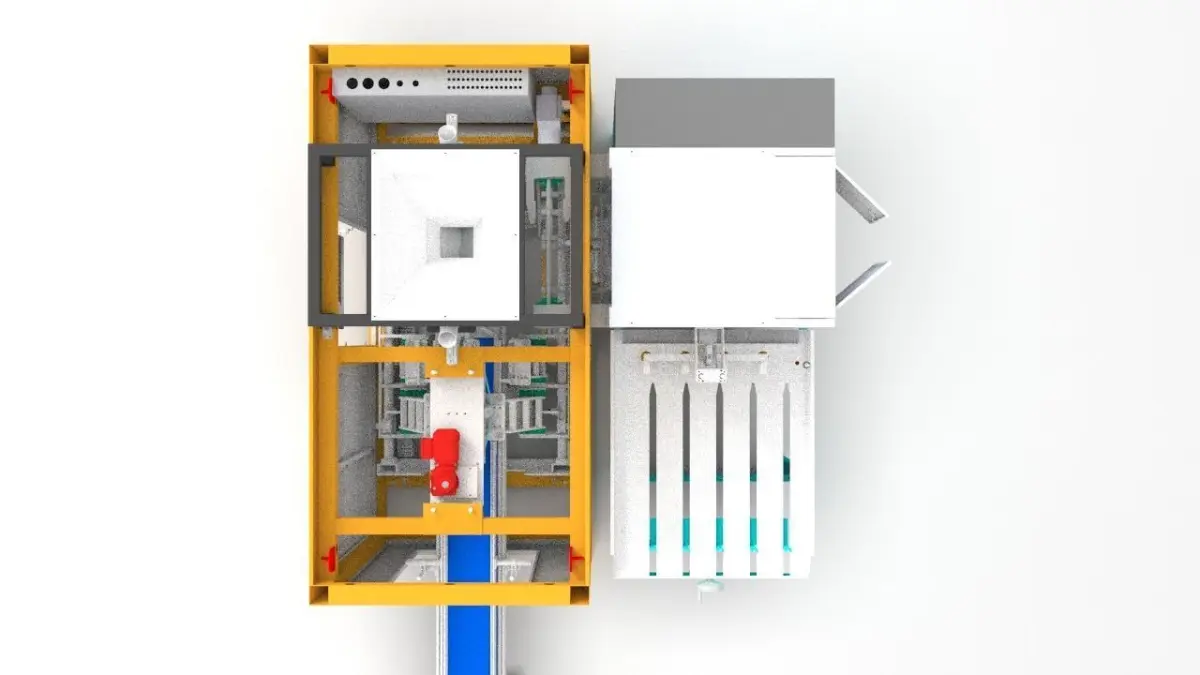

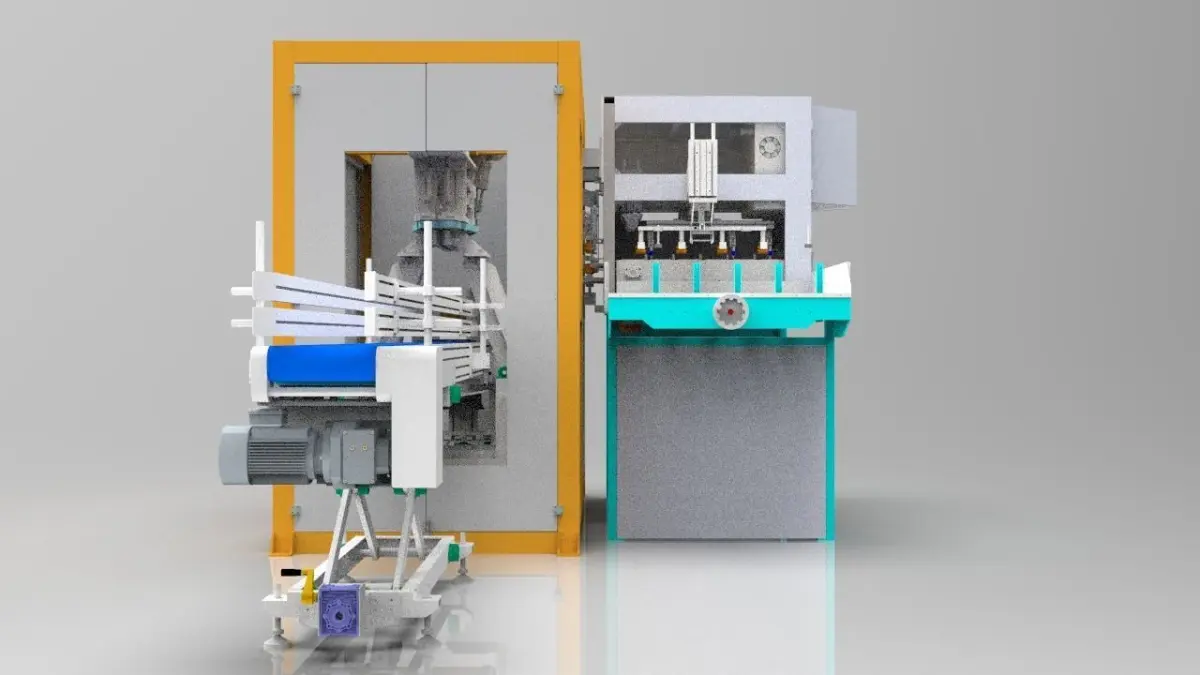

A fully automatic packaging equipment. The system integrates the functions of automatic bag loading, automatic label / certificate, automatic edge folding and automatic sewing, and can realize the automatic and unmanned packaging process of bagged materials. The equipment mainly includes: automatic quantitative scale (optional), automatic bag loading device, automatic bag warehouse, bag moving mechanism, bag guiding mechanism, automatic folding / sewing machine, automatic labeling machine (optional), finished product conveyor, etc. It mainly completes the automatic packaging process of automatic weighing, automatic bag loading, automatic filling, automatic folding and sealing.

Equipment features:

1. Low requirements for packaging materials: non breathable, non thermal cut woven bags, plastic bags, paper bags, non-woven bags, soft bags and hard bags.

2. The requirements for the uniformity of the placement position of the packaging bags are low: the allowable error of the accuracy in the length direction is 5-8cm, and the allowable error of the accuracy in the width direction is 3-5cm.

3. It can adapt to multi specification packaging bag: length range: 700cm-110cm, width range: 45cm-65cm.

4. The unique and reliable detection technology can completely prevent the materials from falling to the ground: the unique and reliable detection technology can ensure that the packaging bags are in place for detection, and prevent the materials from falling to the ground due to the packaging bags are not in place.

5. Perfect and practical detection and alarm reminder function: it has no packaging bag, no label, broken wire, broken needle, jumper and other detection and alarm reminder functions.

6. Fault location function: in case of equipment fault alarm, the man-machine interface will prompt the fault point at the same time, which can guide the operator to quickly diagnose and deal with it.

7. Manual auxiliary bagging function: “manual auxiliary bagging function” can be used for emergency discharge to meet the special process requirements of handling head and tail materials.

8. Remote diagnosis and maintenance function (optional): it can diagnose and maintain the use of field equipment remotely, and guide field personnel to quickly and accurately remove faults.

Power supply voltage (V / Hz)（V/HZ)：AC380/50Total power：3.5kwAir pressure：0.5-0.7mpaGas consumption：750nl/minOverall dimension (L * w * h)：4000mm*2800mm*2400mmPackaging speed：400-500 bags / h, 500-650 bags / hNet weight：2300kgPackaging scope：20-50kg bagged productsMaterial of packing bag：Paper bag, airtight woven bag (non thermal cut)
