Paper Cup Bottom Sealing Heating Mandrel Precision Component 3D print model

$35

License: Royalty Free No Ai Html

author:

alhusyn886

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «alhusyn886». CGhub does not claim copyright ownership over the content used.

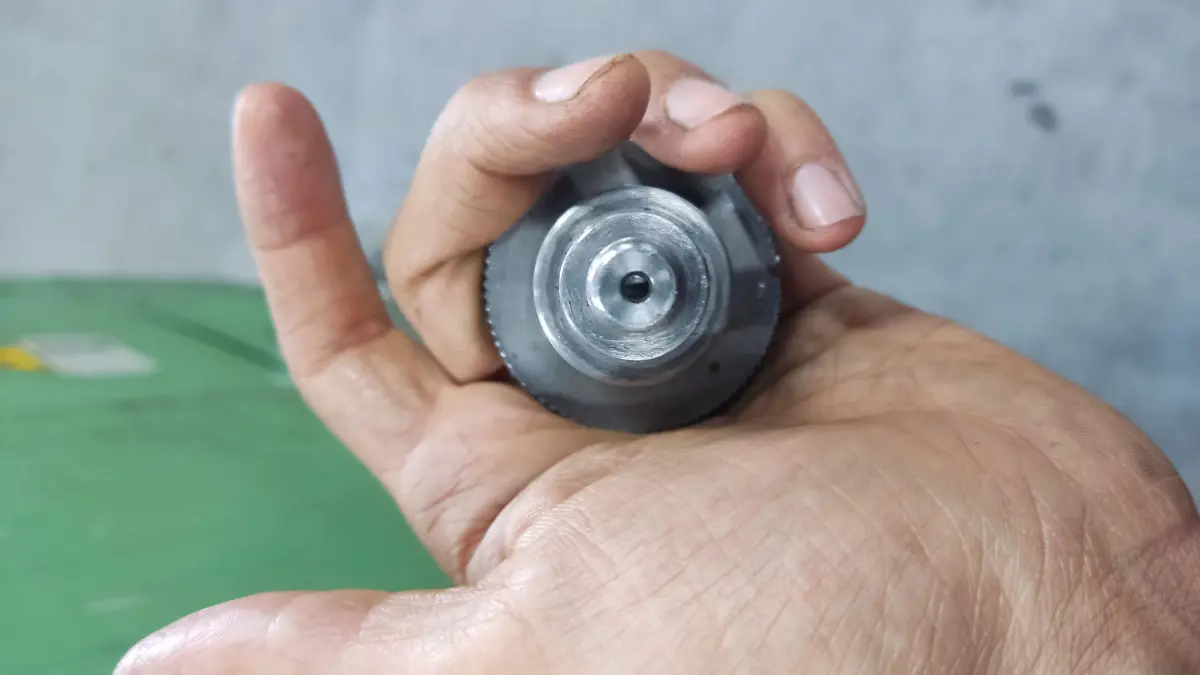

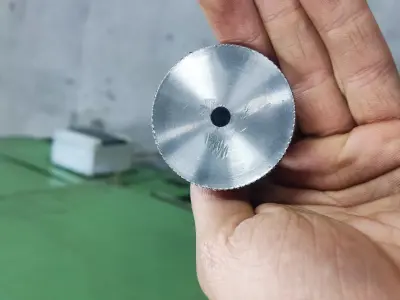

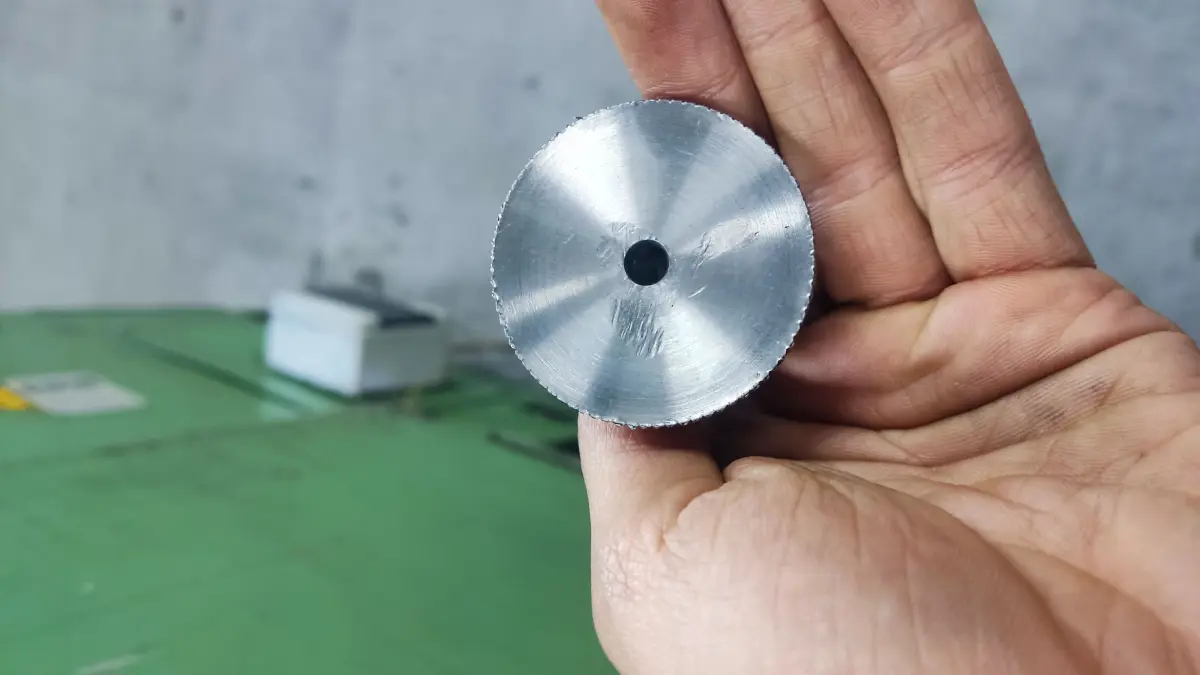

This is a high-precision 3D model of a bottom sealing heating mandrel, a critical component used in paper cup forming machines to bond the cup base to the cylindrical wall through heat and pressure. Designed with accurate geometry for realistic machine integration, this part is ideal for manufacturers, mechanical engineers, and simulation developers working with cup-making machinery.

Key Features:

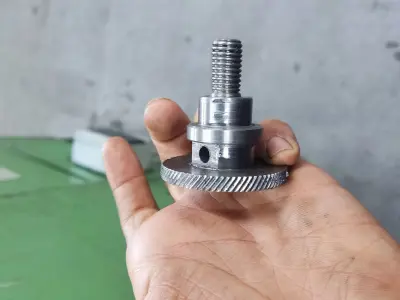

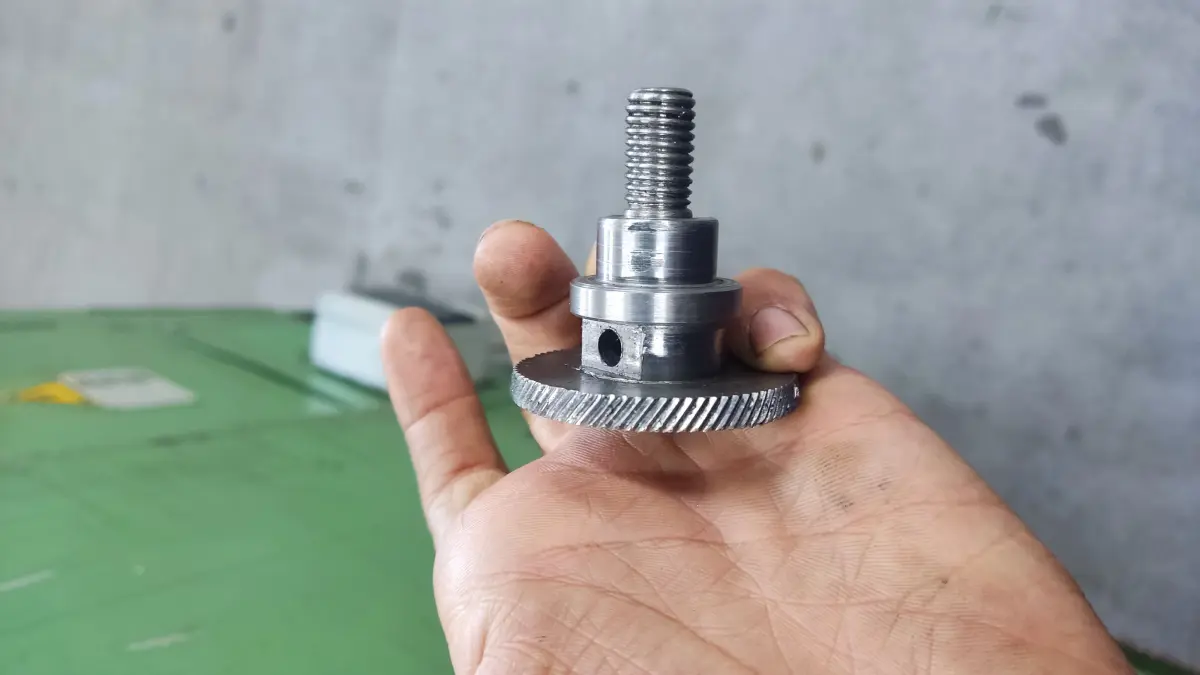

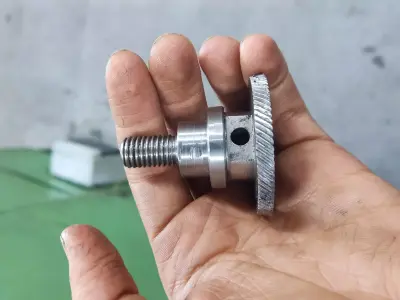

Detailed threading for proper assembly and torque adjustment

Central hole for pin or thermocouple integration

Knurled base for improved grip or heat dissipation

Optimized for heat transfer applications

Modeled in SolidWorks – exported as STL/STEP/IGES (contact for other formats)

Use Case:This component is typically installed in the base-sealing station of a paper cup forming machine. It heats and presses the bottom paper disc onto the cup body, ensuring a leak-proof thermal bond through controlled temperature and pressure.

Applications:

Paper cup manufacturing

Heat sealing stations

Machine simulation and testing

Industrial training visualizations

Note: Don't hesitate to contact me throu my email for further informationAlhusyn886@gmail.com
