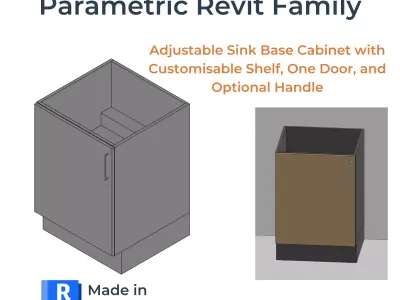

This fully parametric Revit family lets you create an adjustable sink base cabinet with a customisable shelf, one door, an optional handle, and full material control. Designed for kitchen, office, or storage spaces, it adapts easily to different dimensions and design needs.

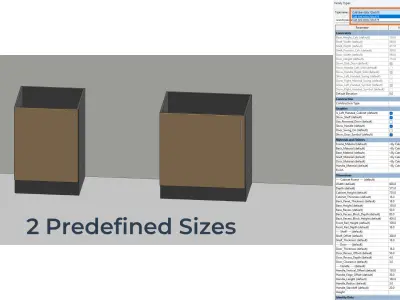

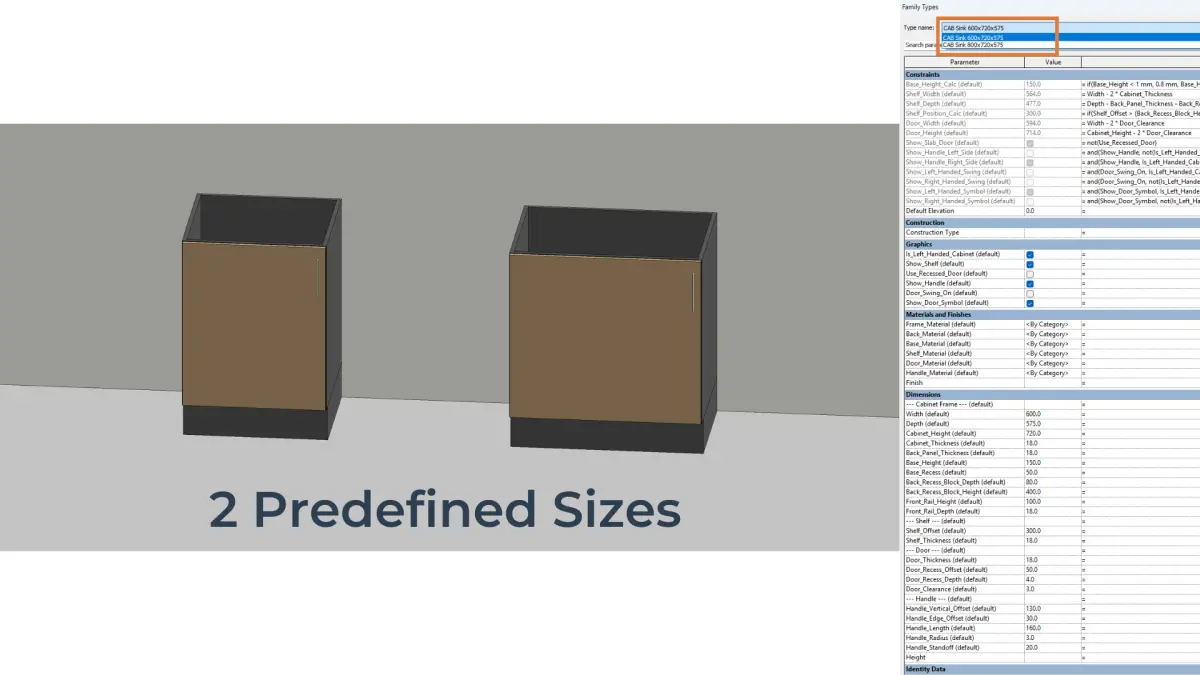

- Includes 2 predefined size variations compatible with standard kitchen and storage unit dimensions for quick placement.

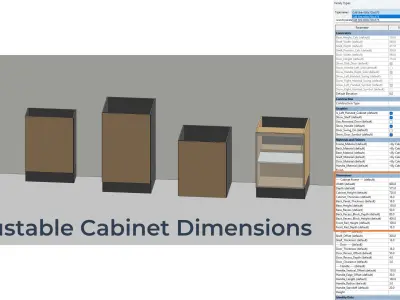

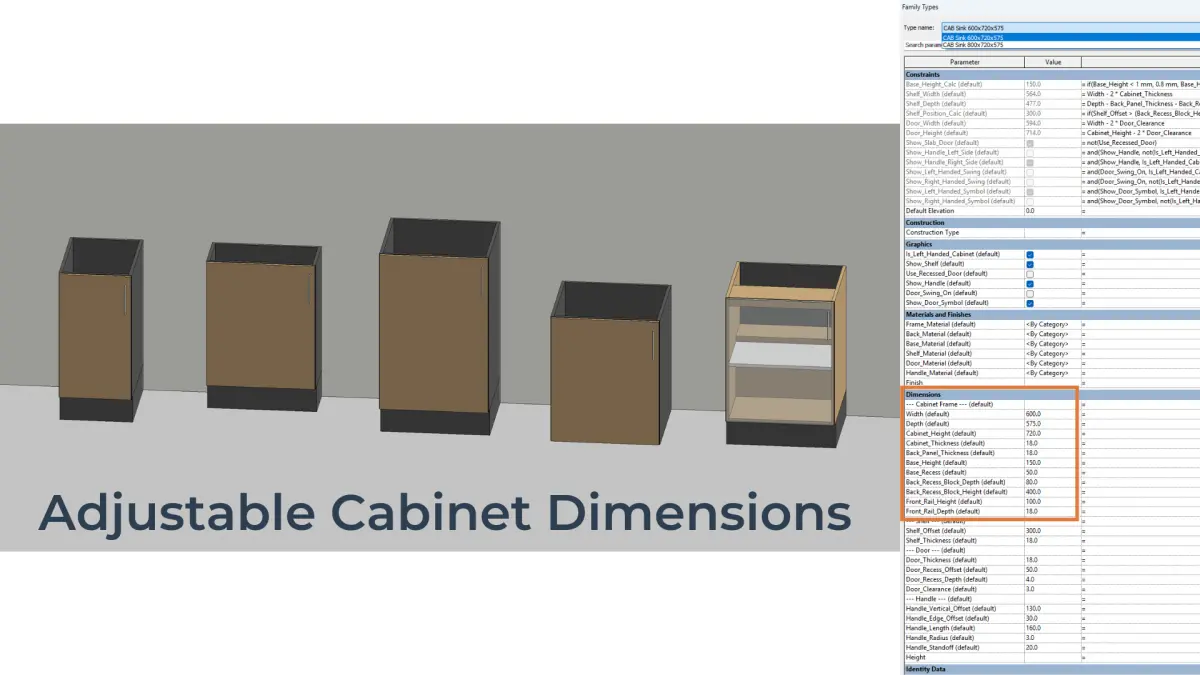

- Adjust cabinet frame dimensions: width, depth, cabinet height, base recess and height, top rail depth and height, and back recess block height and depth to fit your layout.

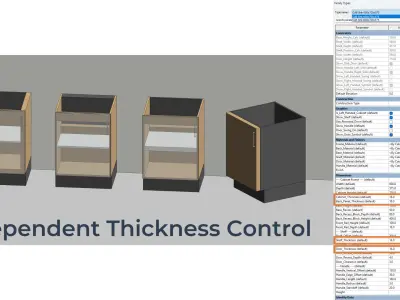

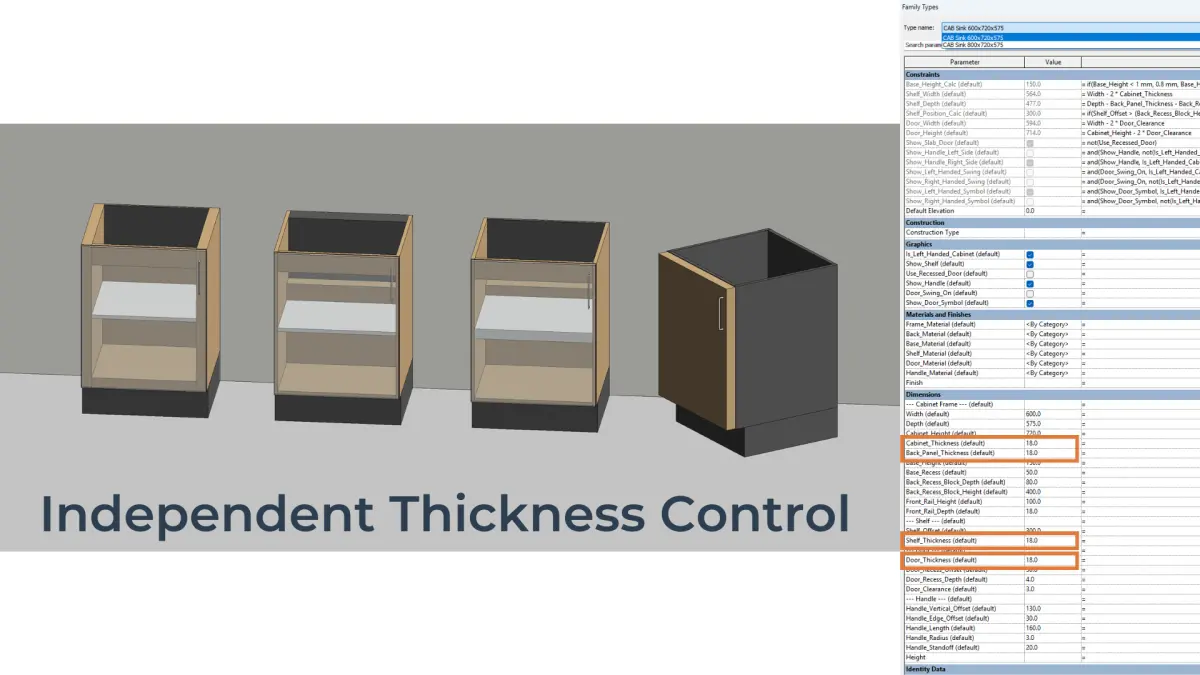

- Set individual thickness for frame, back panel, shelf, and door thicknesses to match brand requirements.

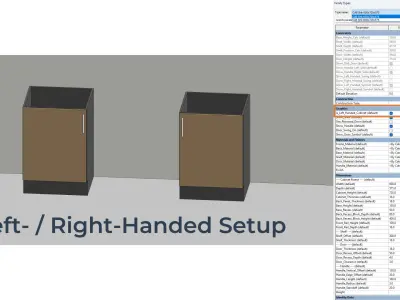

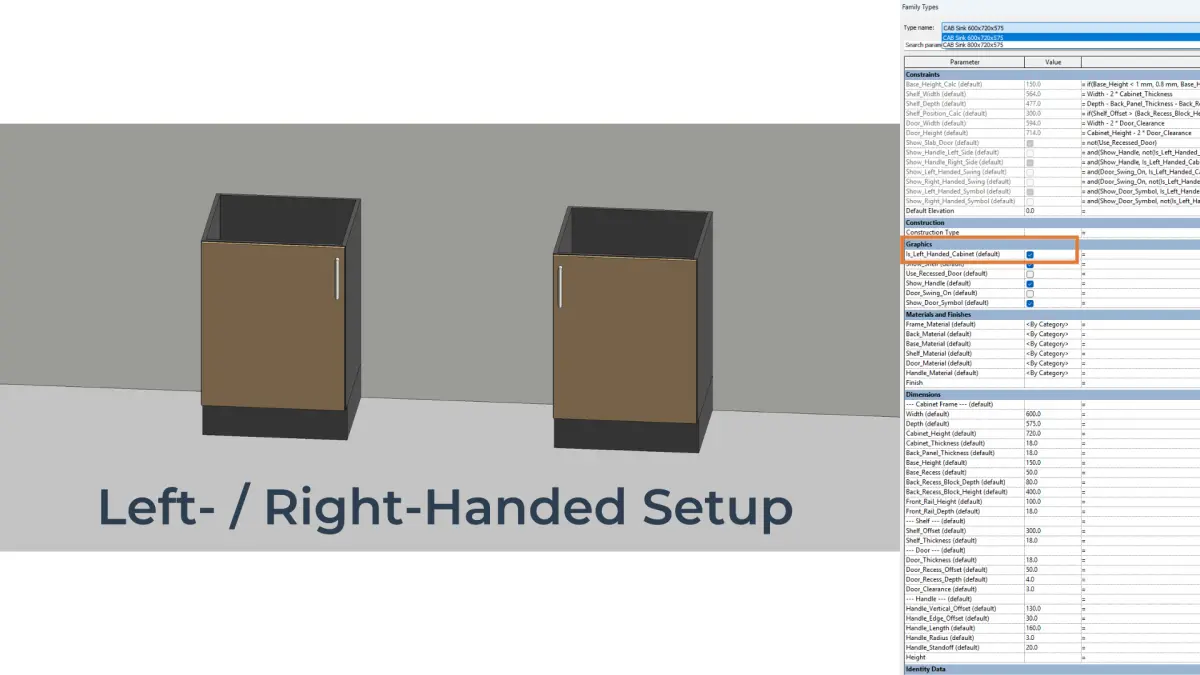

- Switch between left- and right-handed cabinet orientation with a single setting.
- Position the shelf manually, or toggle it off entirely.
- Choose between recessed and slab door fronts. When enabled, the recessed style automatically replaces the slab style. Customise recess offset and depth as needed.
- Enable or disable the cabinet handle as needed.
- Customise handle length, radius, standoff, edge offset, and vertical placement.
- Assign materials independently to the frame, back panel, base, shelf, door, and handle.
- Includes symbolic swing arcs and door side indicators for clear documentation in 2D views. Supports both left- and right-handed cabinet orientation.
- Designed for efficiency – lightweight and easy to work with in real projects.
Why This Family?
- Built from scratch using Revit best practices
- Designed for professional BIM workflows
- No cleanup required – just load and use it in your project
- Easy to modify in the Family Editor – with clean reference planes, named parameters, and tooltips for quick adjustments
- Includes a clear, concise user guide for fast setup
Compatibility & Details:
- Formats: .RFA (Revit Family)
- Family File Size: 868 KB
- Adjustable Sizes: All key dimensions are fully editable
- Revit Version: Created in Revit 2023 (not backward-compatible)
- Intended Use: Residential & commercial interior design
Looking for more Revit families? Explore my full collection:
https://www.cgtrader.com/designers/revitfams
Also available as part of a bundle:https://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-kitchen-base-cabinet-bundle-6-units
RFA (Autodesk Revit, filesize: 978 KB), PDF (PDF, filesize: 978 KB)
