This fully parametric Revit family lets you create an adjustable sink base cabinet with a customisable shelf, two doors, and optional handles. Designed for kitchen, office, or storage spaces, it adapts easily to different dimensions and design needs.

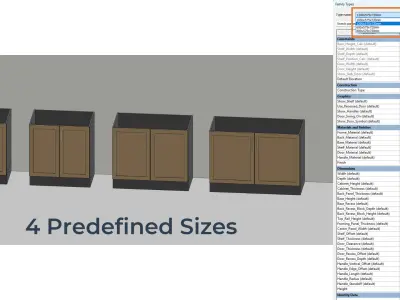

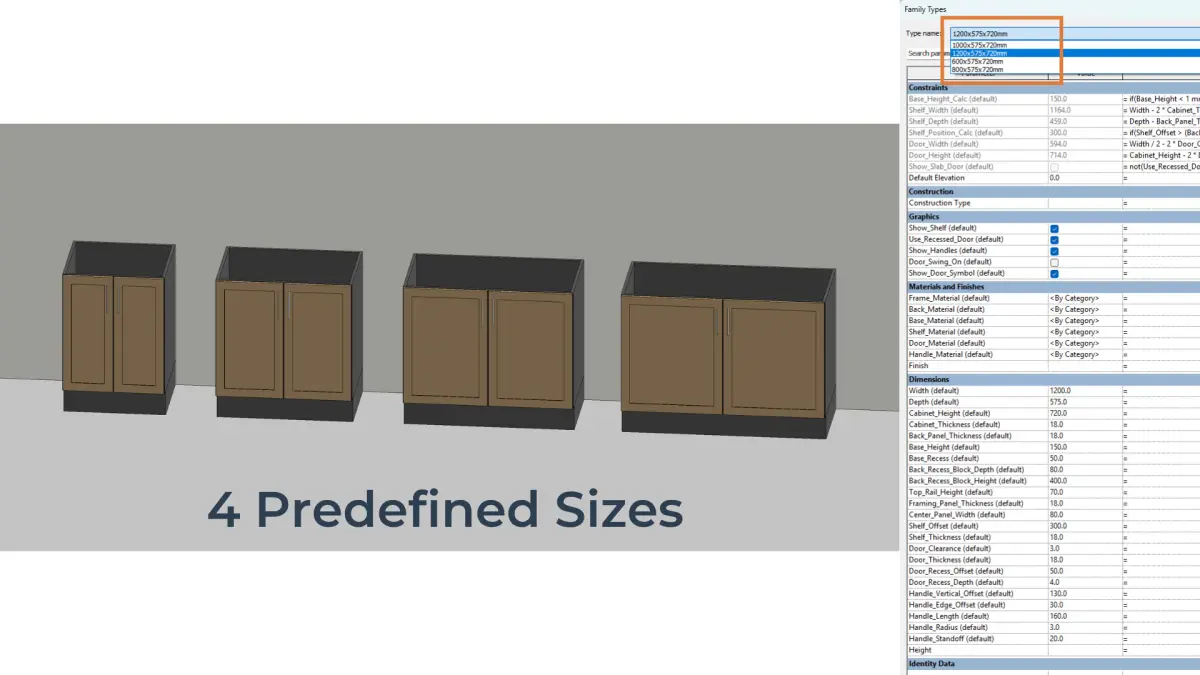

- Includes 4 predefined size variations compatible with standard kitchen and storage unit dimensions for quick placement.

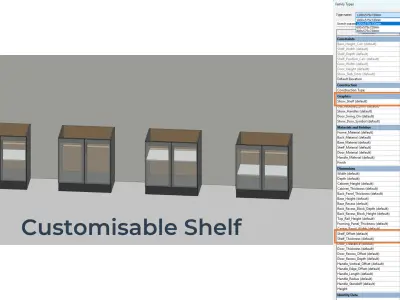

- Position the shelf for various storage needs, or toggle it off entirely.

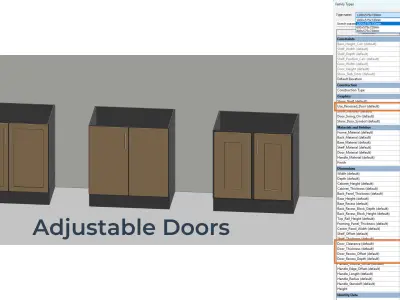

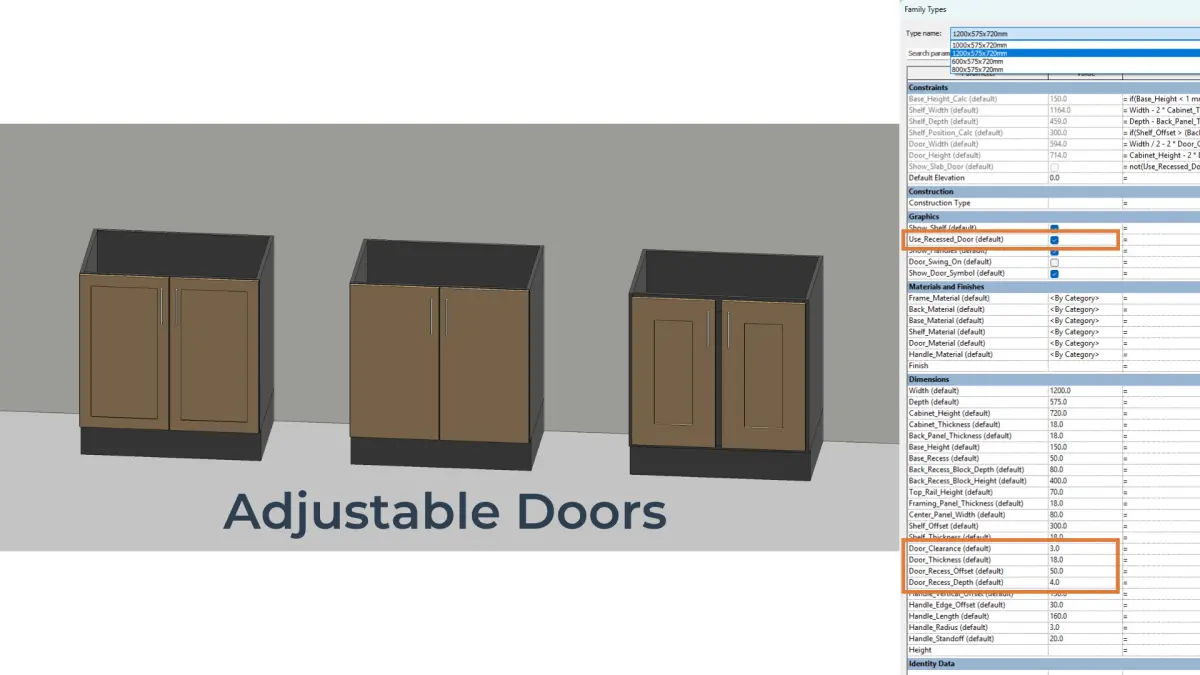

- Choose between recessed and slab door fronts. When enabled, the recessed style automatically replaces the slab version. Customise recess offset and depth as needed.
- Enable or disable the cabinet handles as needed.
- Customise handle length, radius, standoff, edge offset, and vertical placement.
- Assign materials independently to the frame, back panel, base, shelf, doors, and handles.
- Includes symbolic swing arcs and door side markers for clear documentation in 2D views.
- Designed for efficiency – lightweight and easy to work with in real projects.
Why This Family?
- Built from scratch using Revit best practices
- Designed for professional BIM workflows
- No cleanup required – just load and use it in your project
- Easy to modify in the Family Editor – with clean reference planes, named parameters, and tooltips for quick adjustments
- Includes a clear, concise user guide for fast setup
Compatibility & Details:
- Formats: .RFA (Revit Family)
- Family File Size: 774 KB

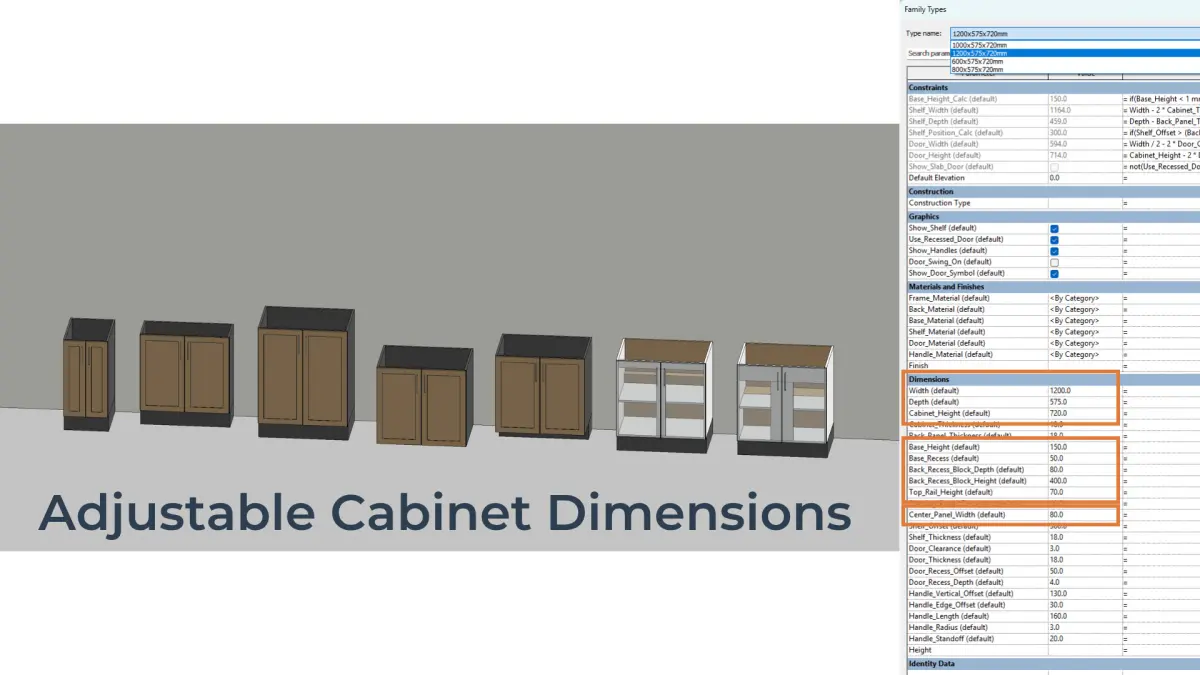

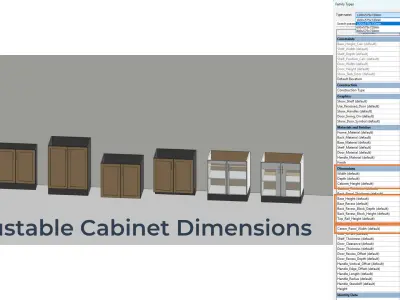

- Adjustable Sizes: All key dimensions are fully editable
- Revit Version: Created in Revit 2023 (not backward-compatible)
- Intended Use: Residential & commercial interior design
