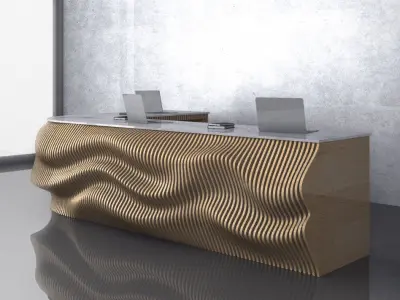

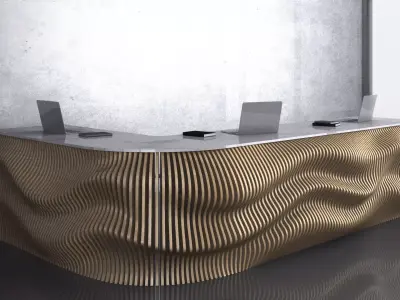

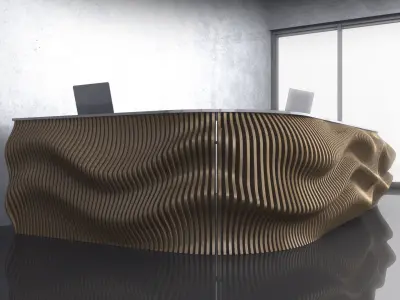

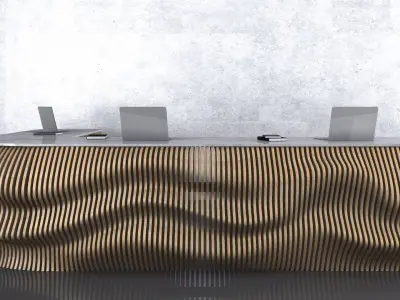

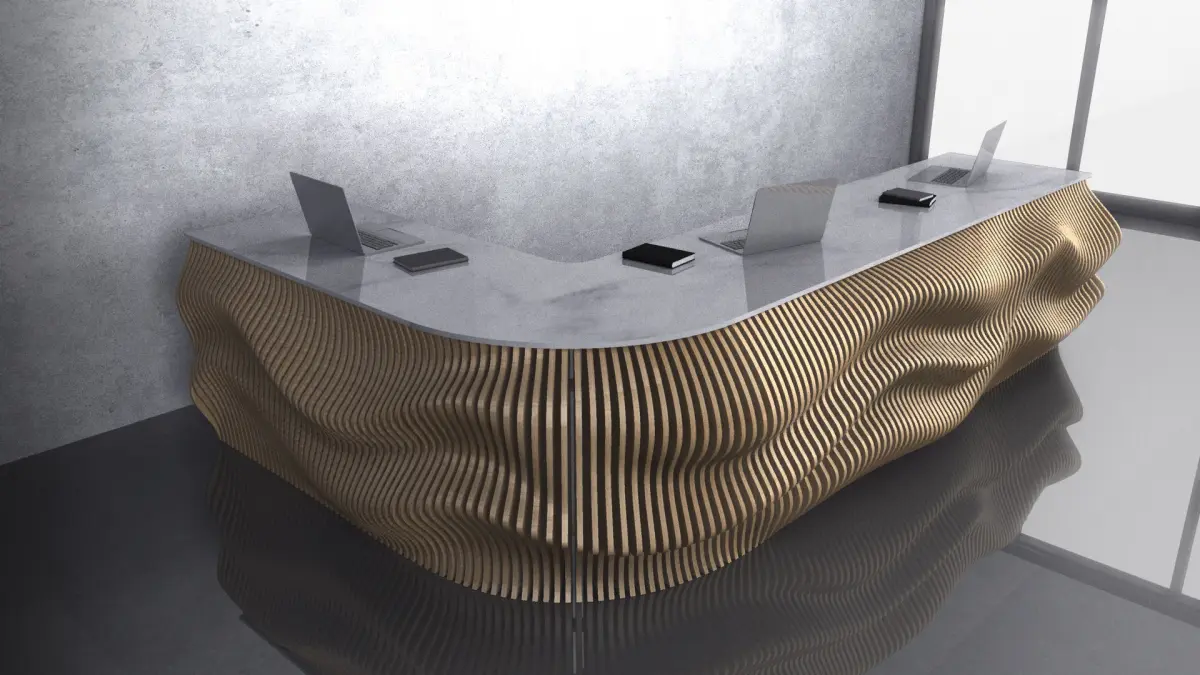

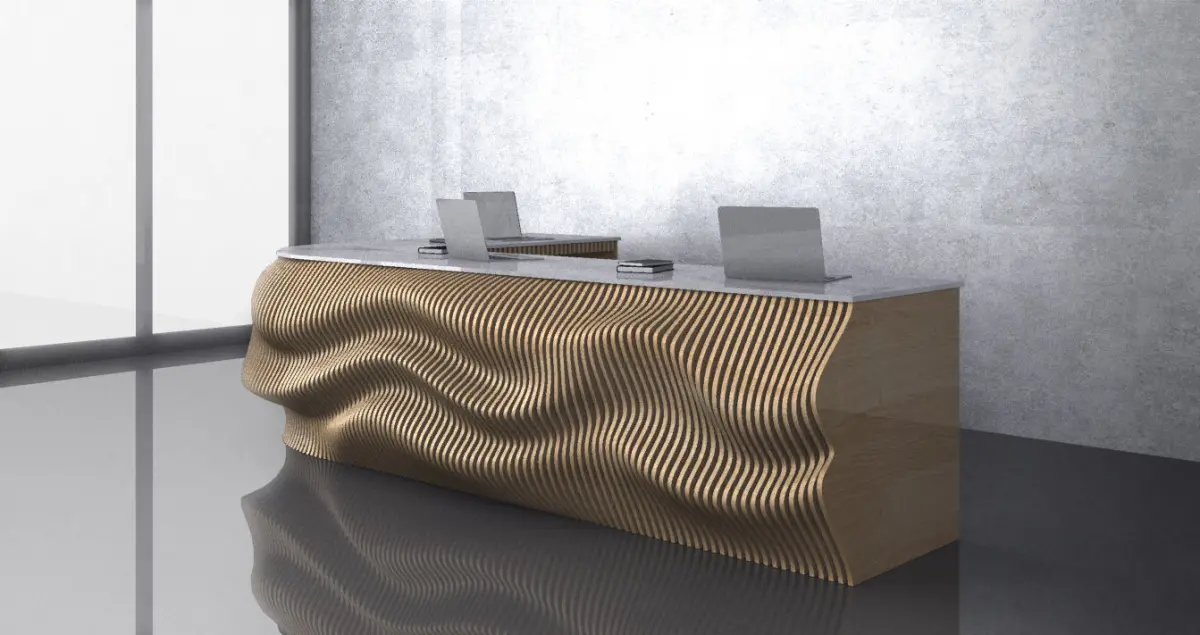

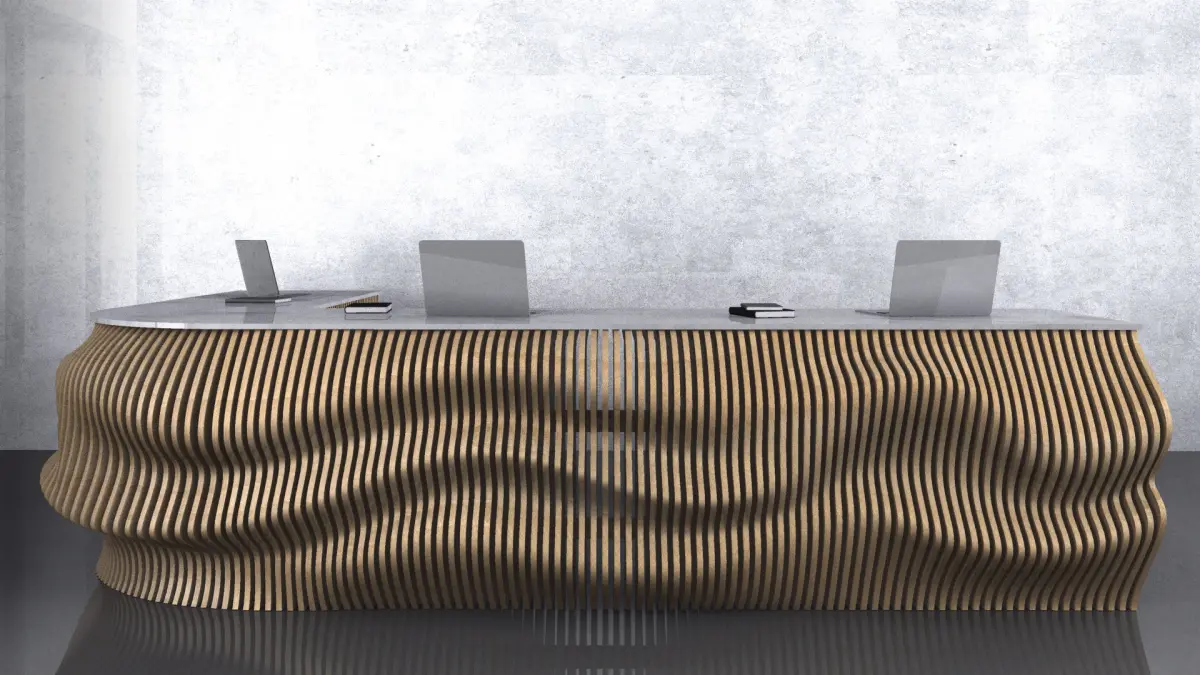

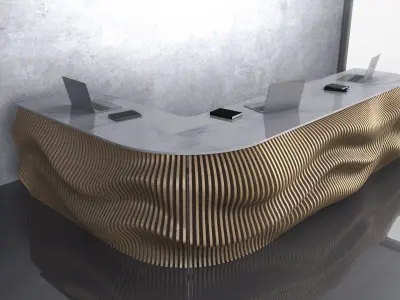

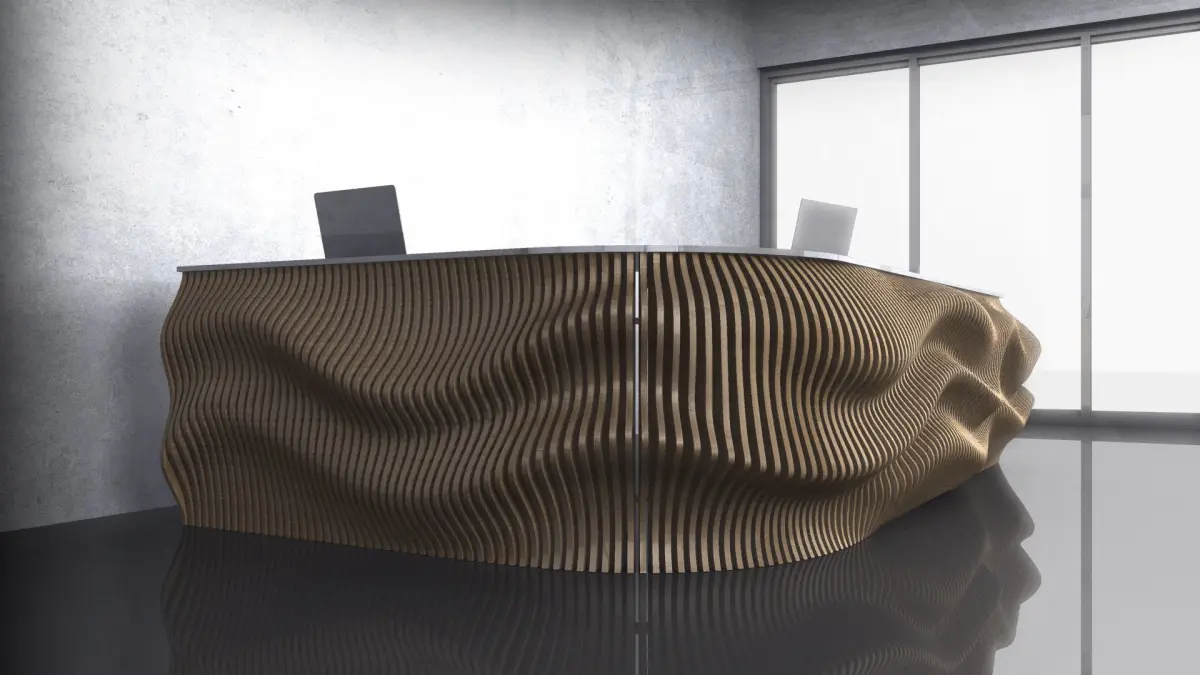

This is a parametric office entry desk which can be used in interior places. It has 3 parts and desk panel.
THERE ARE 3 alternatives on material thickness and spaces. First alternative: 15 mm, Second alternative 19 mm, Third is mirrored and height changed model !
FOR the CNC machines, All formats are included in a single ZIP file. (DXF, EPS, DWG, PDF) Please make sure that your machine program is compatible with one of these file formats before purchasing the digital product.
Total Dimensions: 3130 x 2015 x 760 mm (width - depth - height)
FIRST ALTERNATIVE: 15 mm thickness - 15 mm spaces (File is in CNC_files.zip)
- Part dimensions: 1215 x 720 x 750 mm (width - depth - height) (Wood thickness: 15 mm Spaces: 15 mm Slices: 41)
- Part dimensions: 735 x 685 x 750 mm (width - depth - height) (Wood thickness: 15 mm Spaces: varies Slices: 30)
- Part dimensions: 2415 x 810 x 750 mm (width - depth - height) (Wood thickness: 15 mm Spaces: 15 mm Slices: 81)
- Desk panel: 303 x 183 cm
SECOND ALTERNATIVE: 19 mm thickness - 19 mm spaces (File is in CNC_resized.zip)
- Part dimensions: 1197 x 720 x 750 mm (width - depth - height) (Wood thickness: 19 mm Spaces: 19 mm Slices: 31)
- Part dimensions: 735 x 685 x 750 mm (width - depth - height) (Wood thickness: 19 mm Spaces: varies Slices: 24)
- Part dimensions: 2413 x 810 x 750 mm (width - depth - height) (Wood thickness: 19 mm Spaces: 19 mm Slices: 64)
- Desk panel: 301 x 181 cm
THIRD ALTERNATIVE: 15 mm thickness - 15 mm spaces (File is in CNC_Second_Resized.zip) (Mirrored model, no top desk panel)
Total Dimensions: 316 cm x 213.5 cm x 73.6 cm
- Part dimensions: 2445 x 80 x 705 mm (width - depth - height) (Wood thickness: 15 mm Spaces: 15 mm Slices: 82)
- Part dimensions: 730 x 683 x 705 mm (width - depth - height) (Wood thickness: 15 mm Spaces: varies Slices: 30)
- Part dimensions: 1335 x 720 x 736.6 mm (width - depth - height) (Wood thickness: 15 mm Spaces: 19 mm Slices: 45)
I can resize the model and arrange cutting files optionally. Feel free to contact me! :)
If needed, I can send 3D model files after buying.
Also if you want to get real finished product, I can make contact with one of my producer to sell and ship real products! :)
OBJ (OBJ, filesize: 15.6 MB), 3DS (3D Studio, filesize: 3.26 MB), DWG (AutoCAD, filesize: 37.4 MB), DXF (DXF, filesize: 37.4 MB), PDF (PDF, filesize: 37.4 MB)
