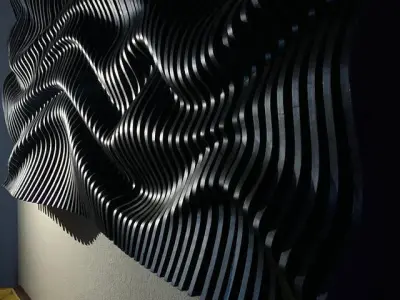

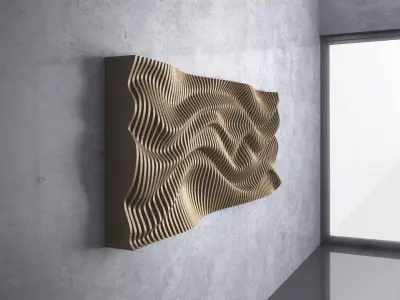

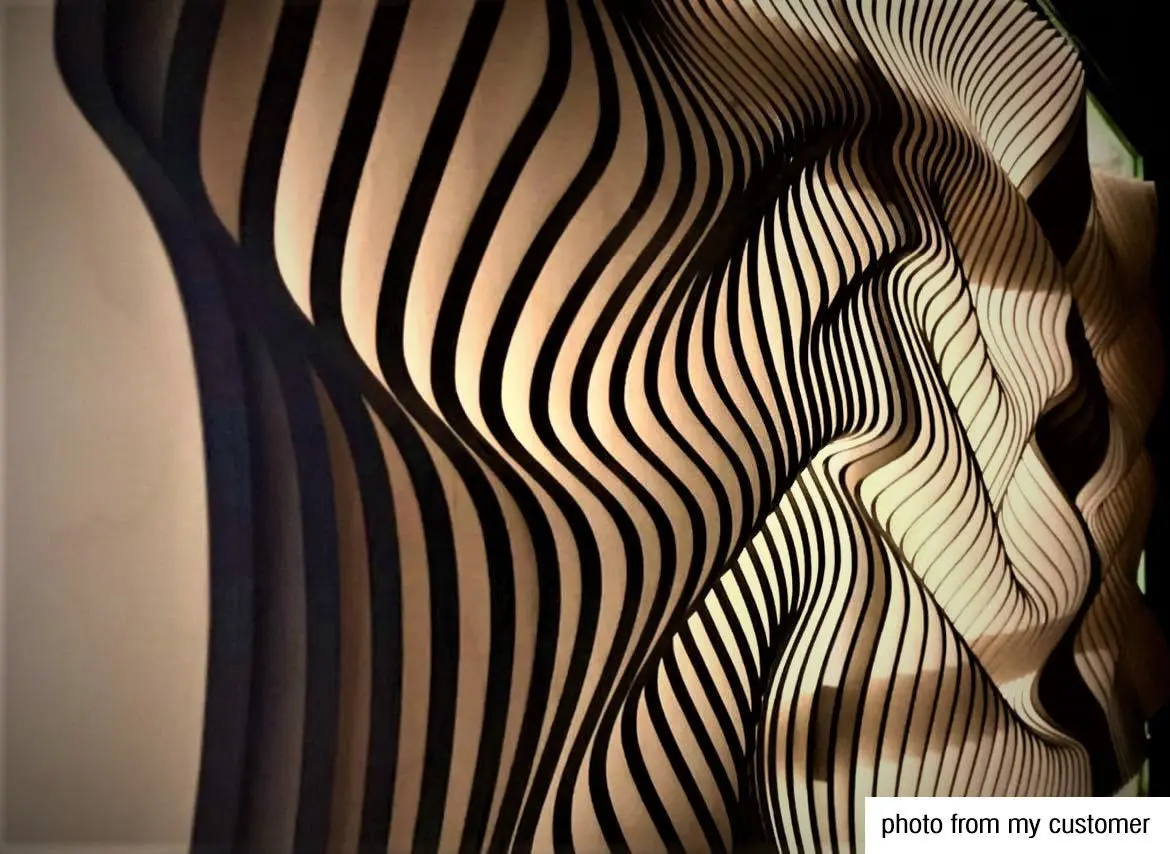

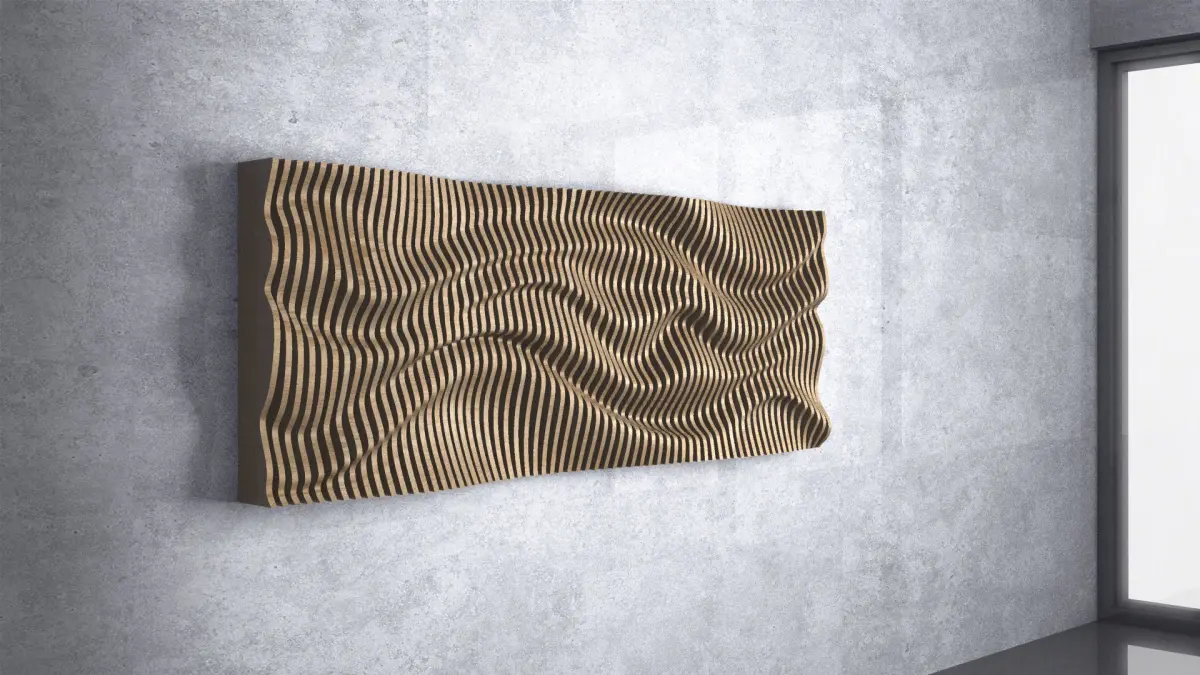

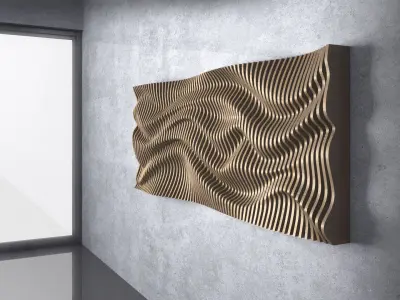

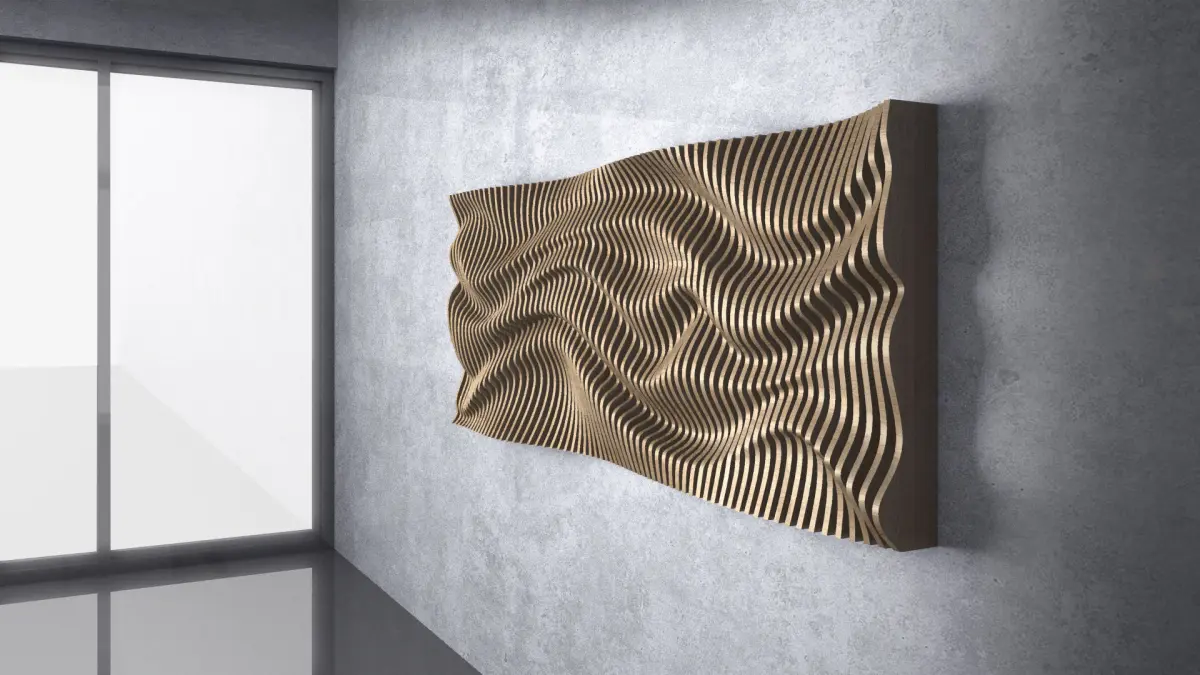

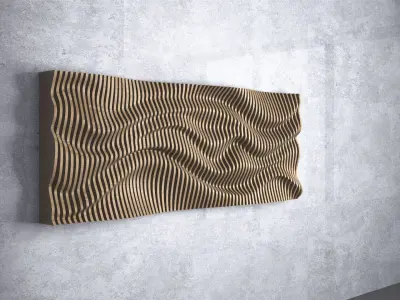

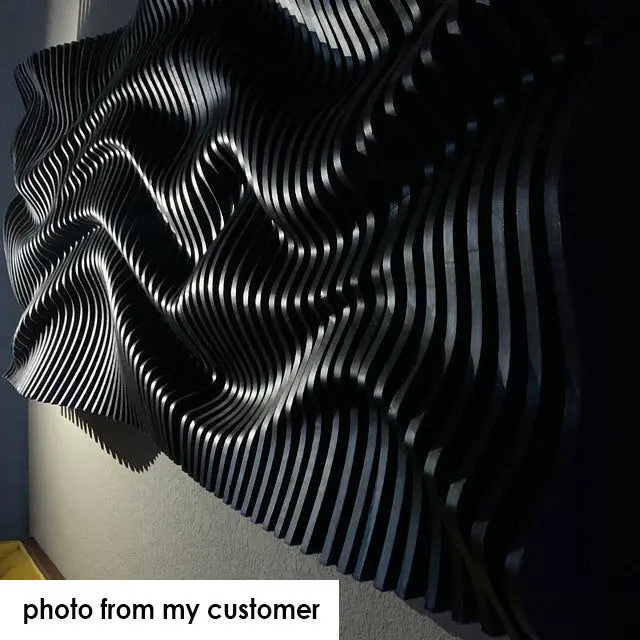

Parametric wavy wooden panels can be used in interior places. Parametric design on wood panels. There are notches on backside of panels to assembly.
THERE ARE 4 ALTERNATIVES on dimensions, I explained them below.
FOR the CNC machines, All formats are included in a single ZIP file. (DXF, EPS, DWG, PDF) Please make sure that your machine program is compatible with one of these file formats before purchasing the digital product.
- First Model: (file is in CNC_files.zip)
- Dimensions: 1995 x 740 x 155 mm (width - height - depth) (Wood thickness: 15 mm Spaces: 15 mm Slices: 67)
- It takes 3 sheets (120 x 240 cm or 8 x 4 ft). I arranged file for cutting you can use it. If you want I can arrange file for other sheet dimensions.
- Second Model: (file is in CNC_resized.zip)
- Dimensions: 1079.5 x 457.2 x 100 mm ( width - height - depth) (Wood thickness: 0.5 inch (12.7 mm) Spaces: 0.5 inch (12.7 mm) Slices: 43)
- It takes 1 sheet (120 x 240 cm or 8 x 4 ft). I arranged file for cutting you can use it. If you want I can arrange file for other sheet dimensions.
- Third Model: (file is in CNC_Second_Resized.zip)
- Dimensions: 2655 x 1000 x 215 mm ( width - height - depth) (Wood thickness: 1.5 cm Spaces: 1.5 cm Slices: 89)
- Fourth Model: (FOR SMALL CNC MACHINES) (file is in CNC_Resized_60cm.zip)
- Dimensions: 1605 x 600 x 125 mm ( width - height - depth) (Wood thickness: 1.5 cm Spaces: 1.5 cm Slices: 54)
- It takes 16 sheet (60 x 37 cm). I arranged file for cutting you can use it.
- It has also 1/1 scaled PDF sheets for printing. 3 paper included (1682 mm x 2378 mm) (PDF_sheets.zip)
I can resize the model and arrange cutting files optionally. Also I can adjust notches behind the panels. Feel free to contact me! :)
If needed, I can send 3D model files after buying.
Also if you want to get real finished product, I can make contact with one of my producer to sell and ship real products! :)
OBJ (OBJ, filesize: 3.51 MB), 3DM (Rhinoceros 3D, filesize: 537 KB), 3DS (3D Studio, filesize: 1.23 MB), SKP (Sketchup, filesize: 2.98 MB), DWG (AutoCAD, filesize: 15.1 MB), DXF (DXF, filesize: 15.1 MB), PDF (PDF, filesize: 15.1 MB)
