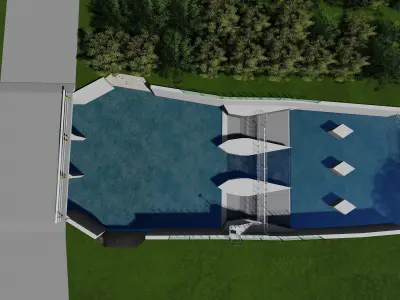

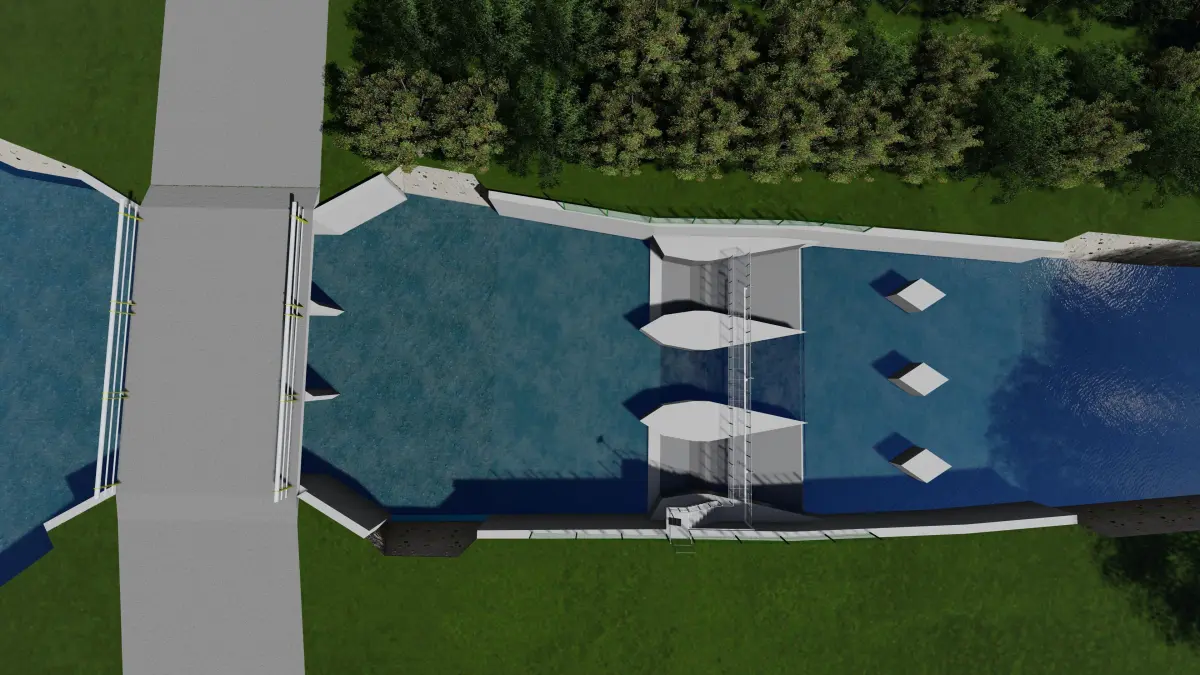

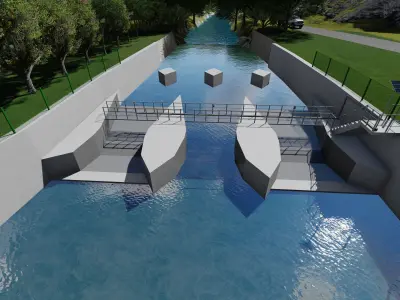

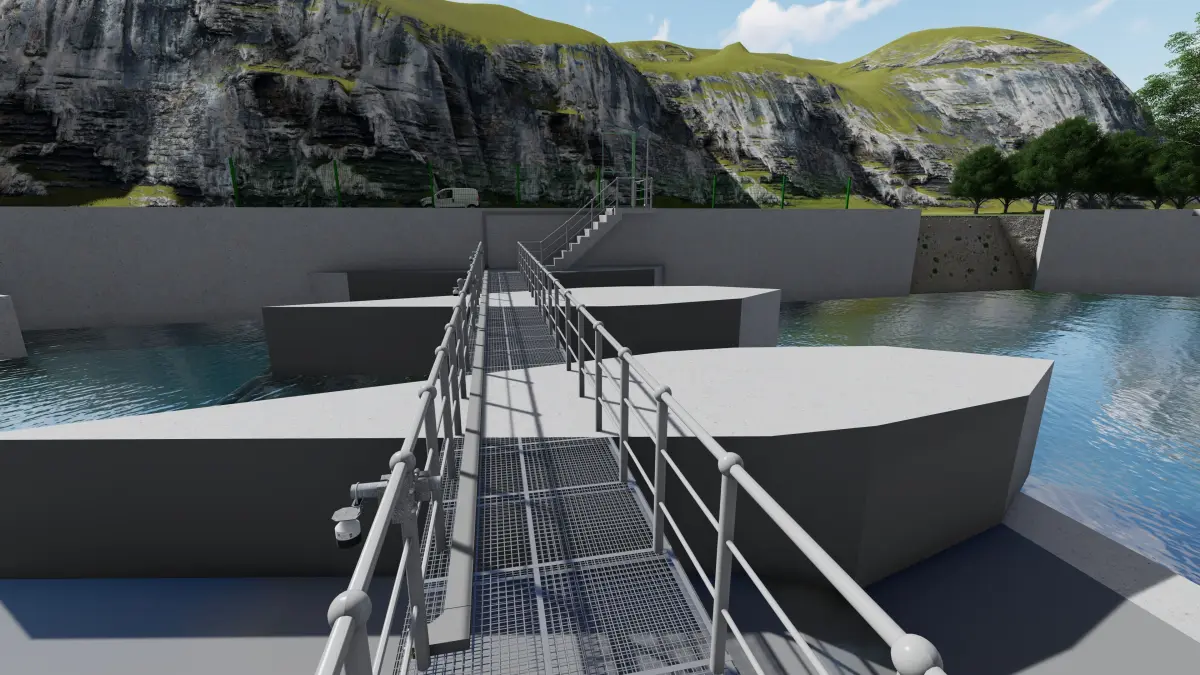

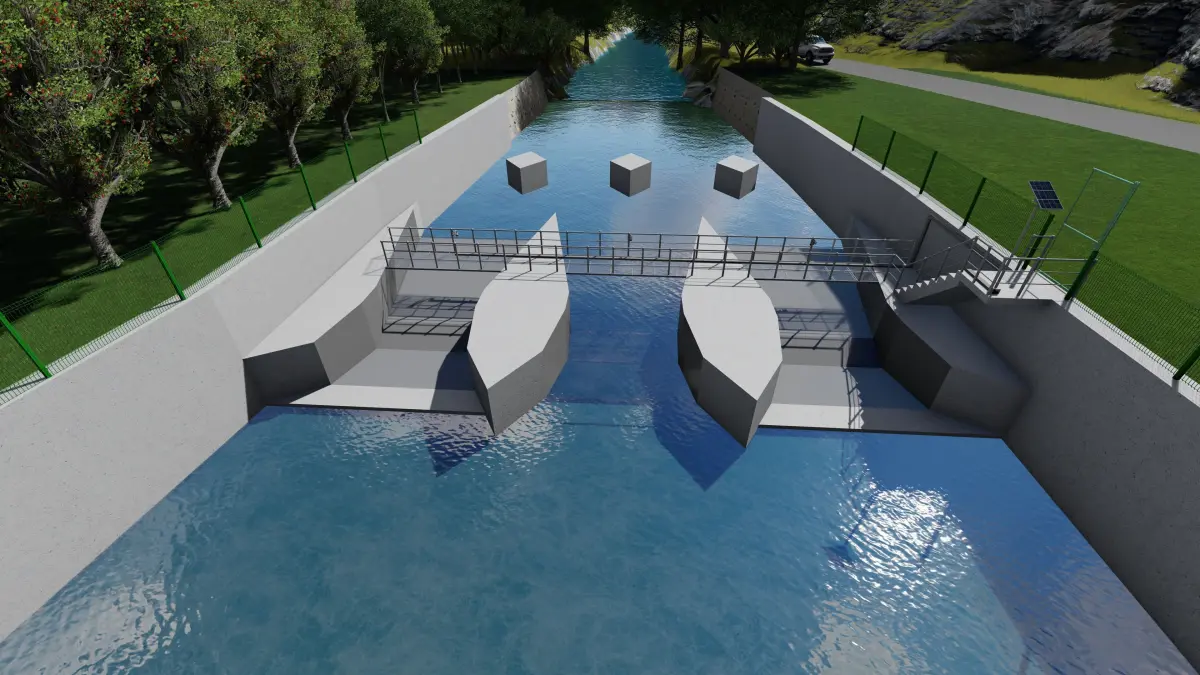

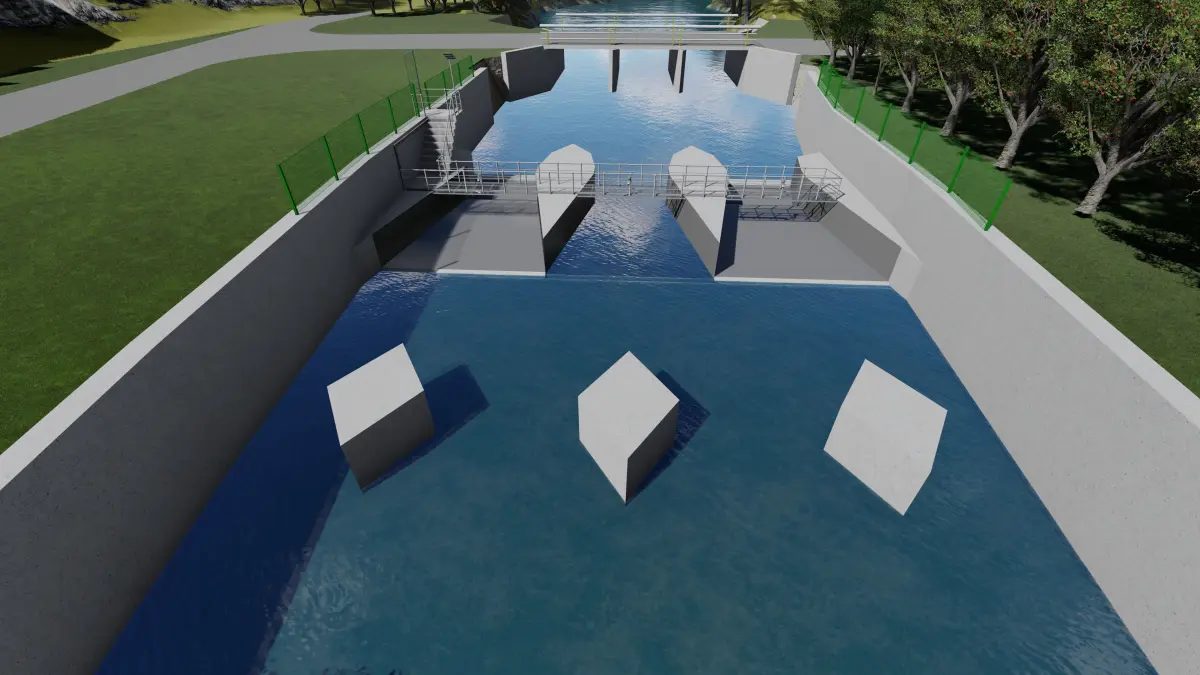

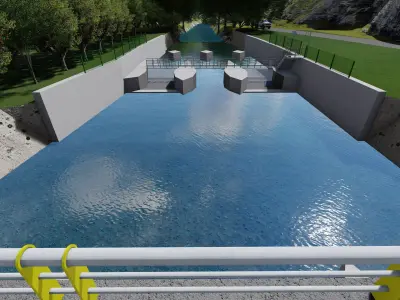

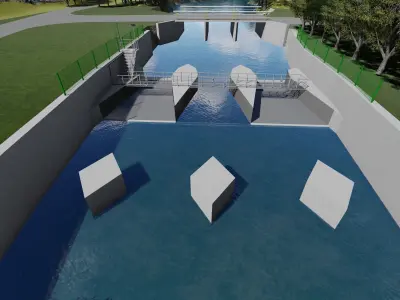

PARSHALL FLUME 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

sfaturgut

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «sfaturgut». CGhub does not claim copyright ownership over the content used.

The Parshall flume is a specially designed hydraulic structure used to measure water flow in open channels such as streambeds. Typically made of concrete, metal, or plastic, it features a converging–throat–diverging shape, allowing for accurate flow measurement based on water depth at specific points within the structure, using pre-calibrated formulas. It helps regulate flow for more precise readings and is preferred for its resistance to clogging, low energy loss, and ease of maintenance. Parshall flumes are commonly used in streambeds for flood control, irrigation systems, and wastewater monitoring.
