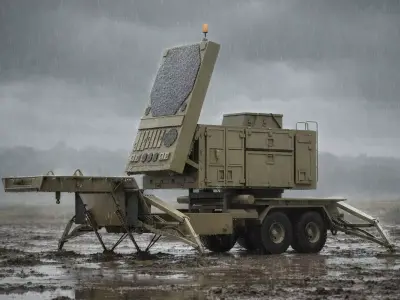

Patriot Launcher and MPQ-53 Radar Trailer - Air Defense 3D Model
- This asset package contains highly detailed 3D models of two major components of the Patriot Air Defense System: the MPQ-53 phased-array radar unit and the MIM-104 Patriot missile launcher trailer.
- The models are built with clean topology and accurate proportions, making them suitable for real-time applications, cinematic rendering, military simulations, and technical visualizations.
- Both assets are provided as separate models, allowing flexible scene setup and integration into various production pipelines.
Included Models:

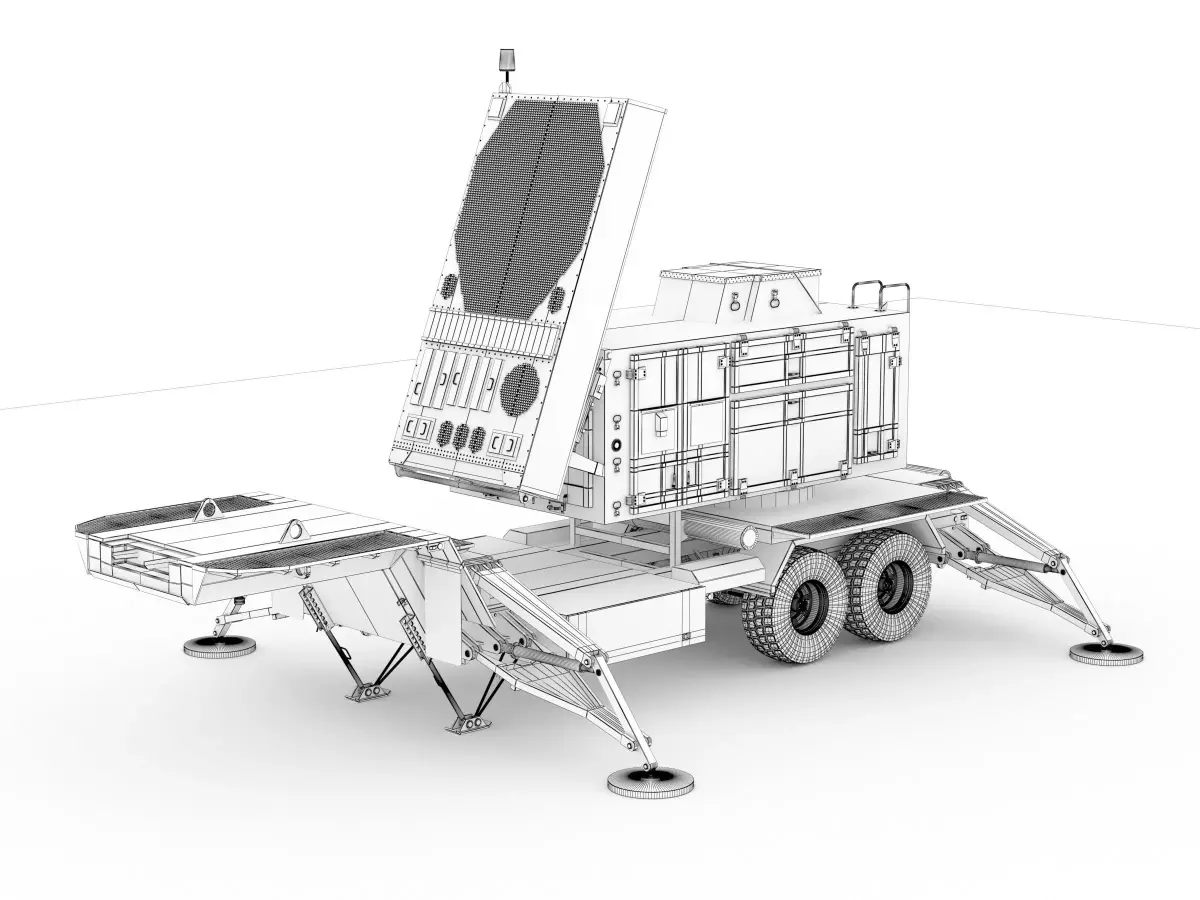

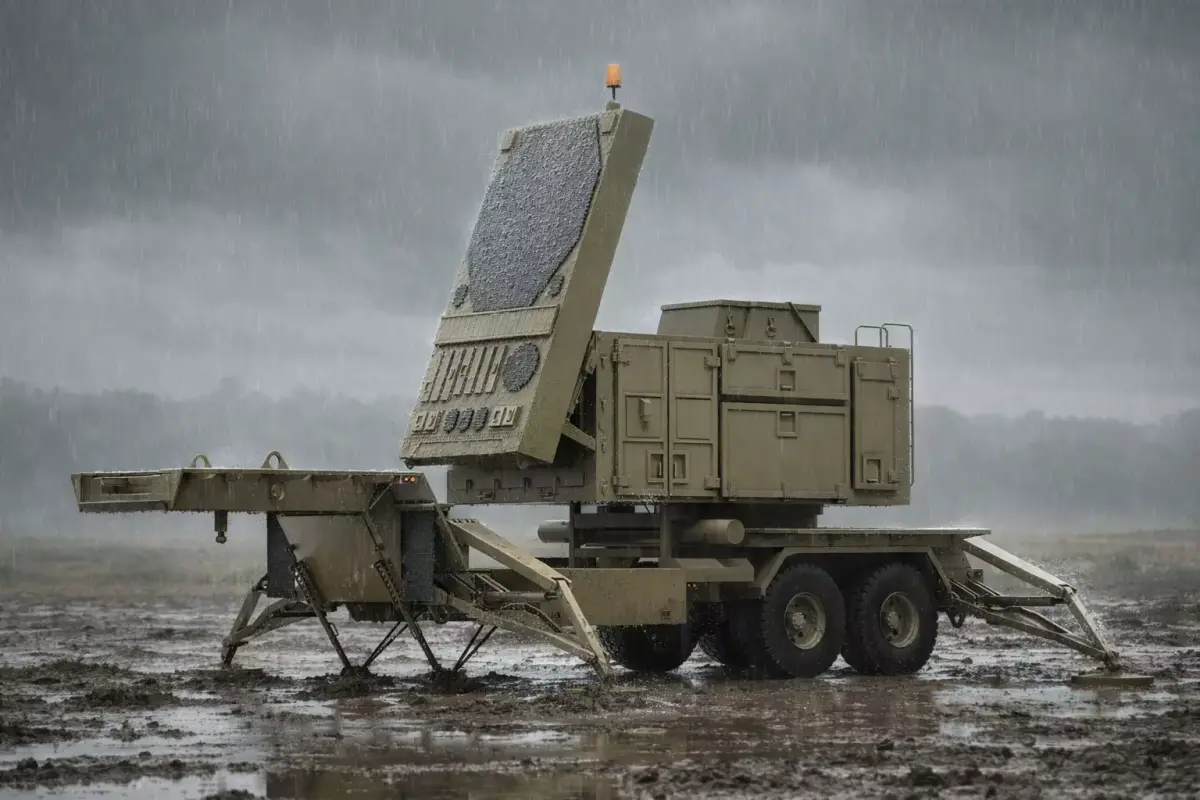

A detailed representation of the Patriot system’s phased-array radar platform, responsible for target detection, tracking, and missile guidance.
- MIM-104 Patriot Missile Launcher Trailer
A detailed launcher platform designed to deploy surface-to-air interceptor missiles, capable of engaging aircraft, cruise missiles, and tactical ballistic threats.
Model Features:
- Clean and organized polygonal topology
- Built with real-world scale proportions
- High level of structural and mechanical detail
- Suitable for close-up rendering and technical visualization
- Objects logically separated for easier editing and animation
- Ready for integration into game engines and rendering pipelines
File Formats:
- 3ds Max (.max) – includes Corona Renderer 9 materials
- FBX (.fbx) – widely supported interchange format
- OBJ (.obj) – universal format compatible with most 3D software
- STL (.stl) – suitable for 3D printing (not thickness-optimized)
- Blender (.blend) – compatible with Blender workflows
Materials and Textures
- No textures included
- Corona Renderer materials included in the .max file
- Materials can be easily modified or replaced depending on the rendering pipeline.
Possible Applications
- Military simulation environments
- Defense visualization projects
- Game development (RTS, tactical simulations)
- Film, cinematic, and VFX productions
- VR / AR environments
Technical or educational visualization:
- Scaled display models and 3D printing
Notes
- The STL format is provided for basic 3D printing usage and may require thickness adjustments depending on print scale.
- Lighting, cameras, and environment assets shown in preview renders are not included.
If you have any questions or require additional formats or customization, feel free to contact me.
Best regards
Bianco
MAX (Autodesk 3ds Max, filesize: 209 MB), BLEND (Blender, filesize: 103 MB), OBJ (OBJ, filesize: 151 MB), FBX (Autodesk FBX, filesize: 82.6 MB), MAX (Autodesk 3ds Max, filesize: 209 MB), MP4 (MP4, filesize: 262 MB), STL (Stereolithography, filesize: 122 MB)
