Buy PDR 324 - SKF 3D model

Name: PDR 324 - SKF 3D model
Brand: KienThuc
SKU: 867164
Price: 3.00 USD
Availability: InStock

License: Royalty Free

author:

KienThuc

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «KienThuc». CGhub does not claim copyright ownership over the content used.

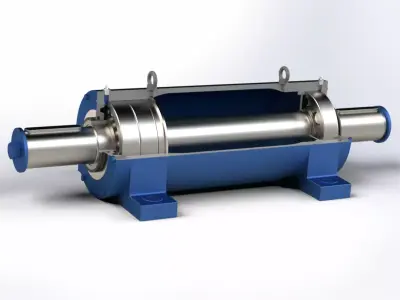

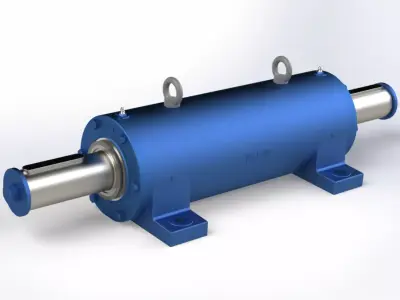

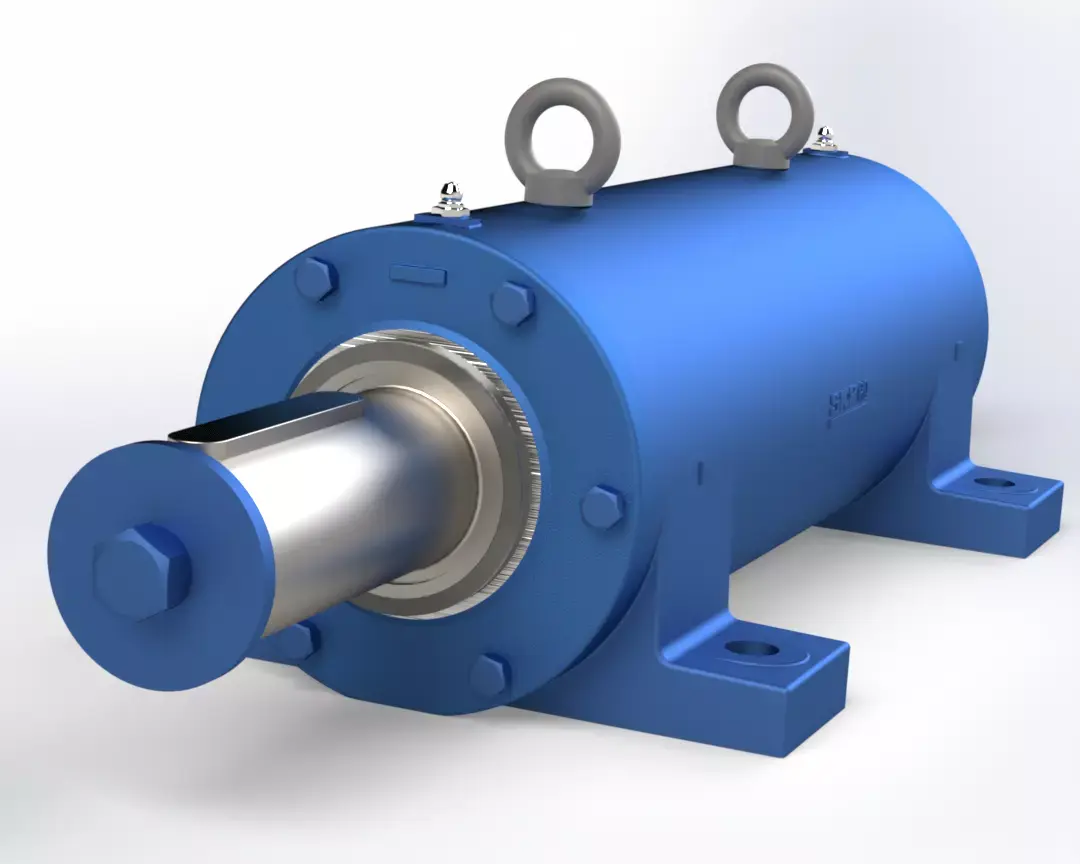

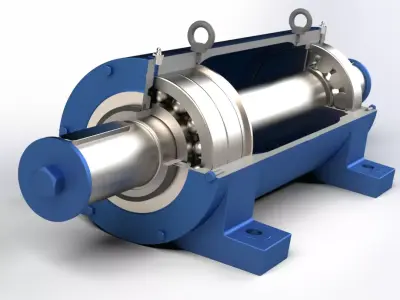

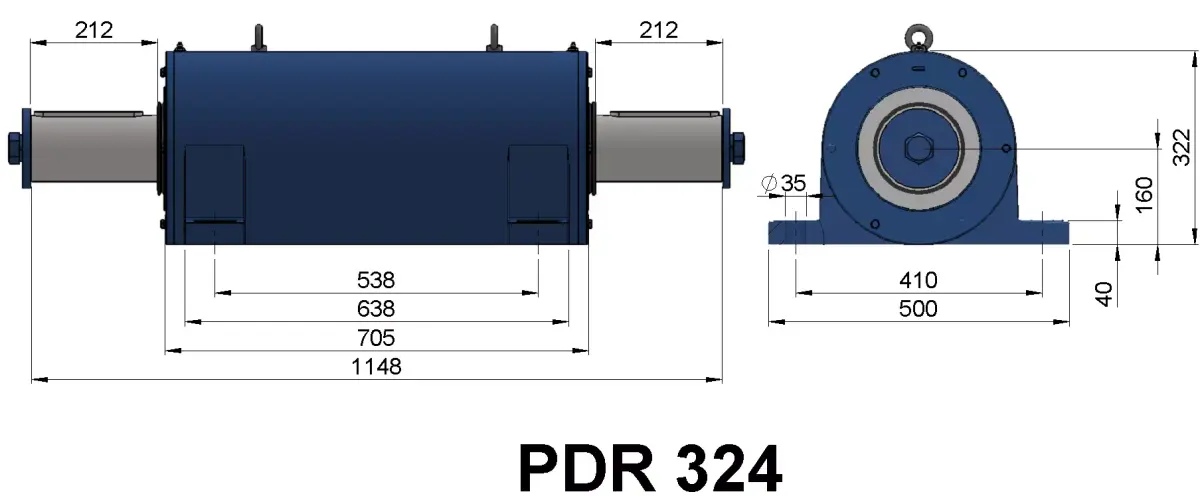

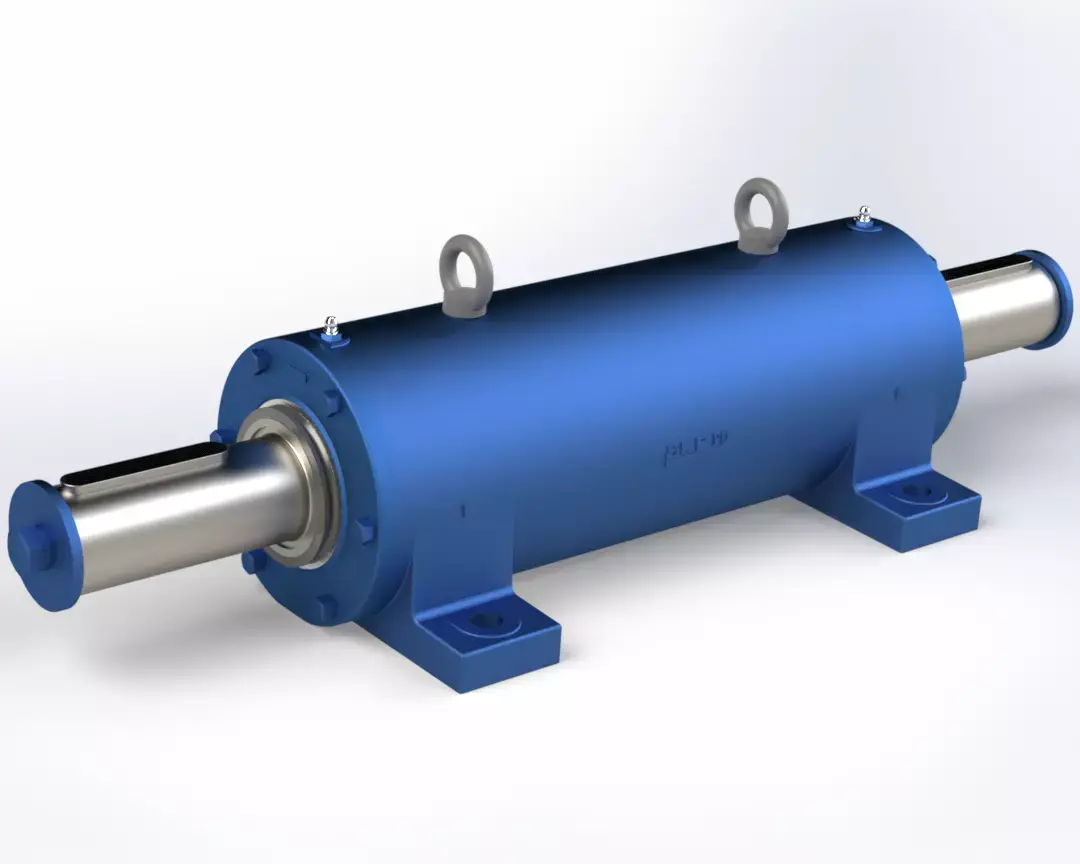

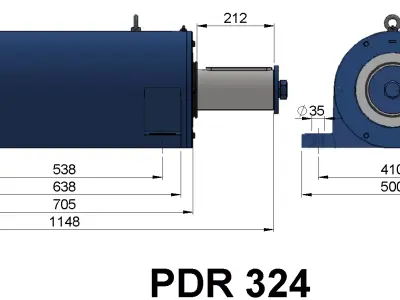

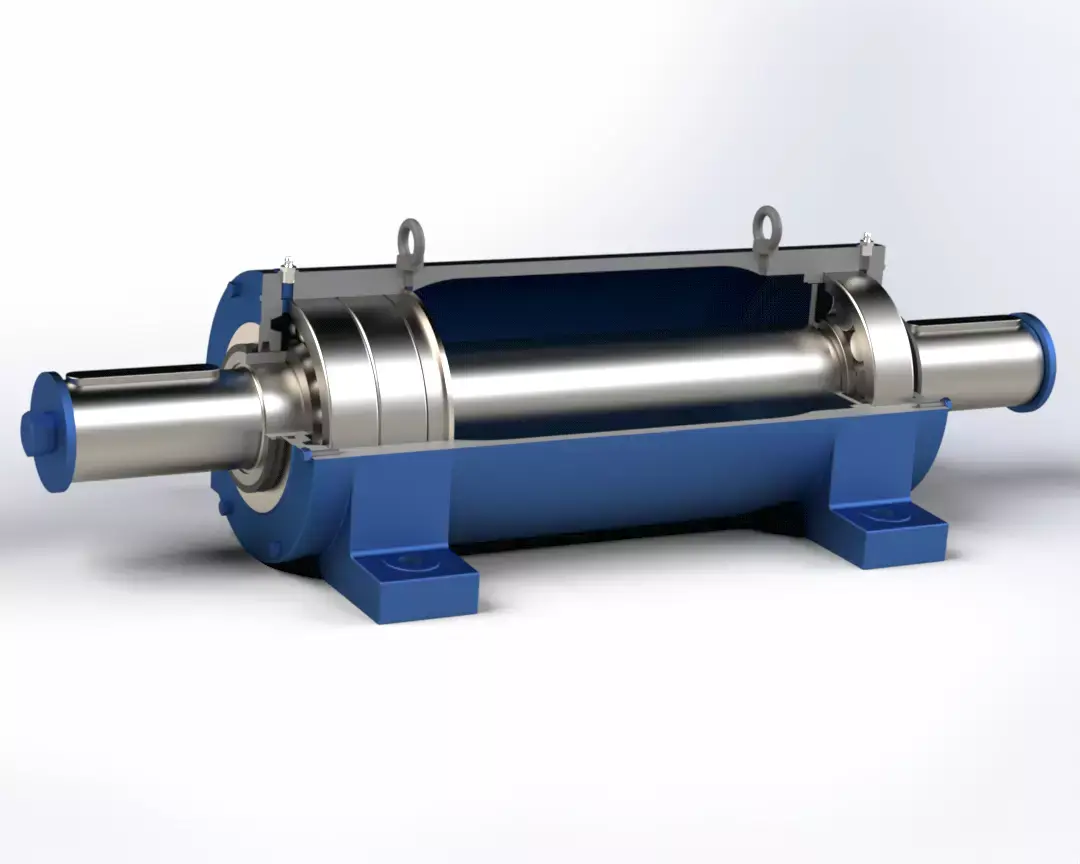

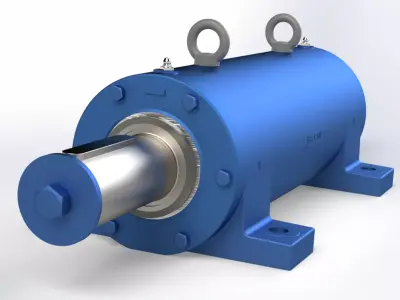

PDR 324– Two-Bearing Housing (PDR Series)

This 3D model represents the PDR 324 two-bearing housing, developed based on publicly available technical references from the SKF PDR series documentation.The model has been recreated with a high level of geometric and dimensional accuracy, reflecting the overall structure, proportions, and assembly layout of the real mechanical component as closely as the source data allows. All major elements of the housing are modeled as part of a complete assembly.

Designed as a true-scale mechanical assembly, not a printable partIntended for use in:

Mechanical design and visualization
Engineering presentations
CAD reference and technical illustration
Training and simulation projects

If you need the complete library of SKF two-bearing housings, or if you’re looking to create a custom library for your own work, feel free to contact me.Email: machcalc@gmail.com
