Model updated on February 26, 2026

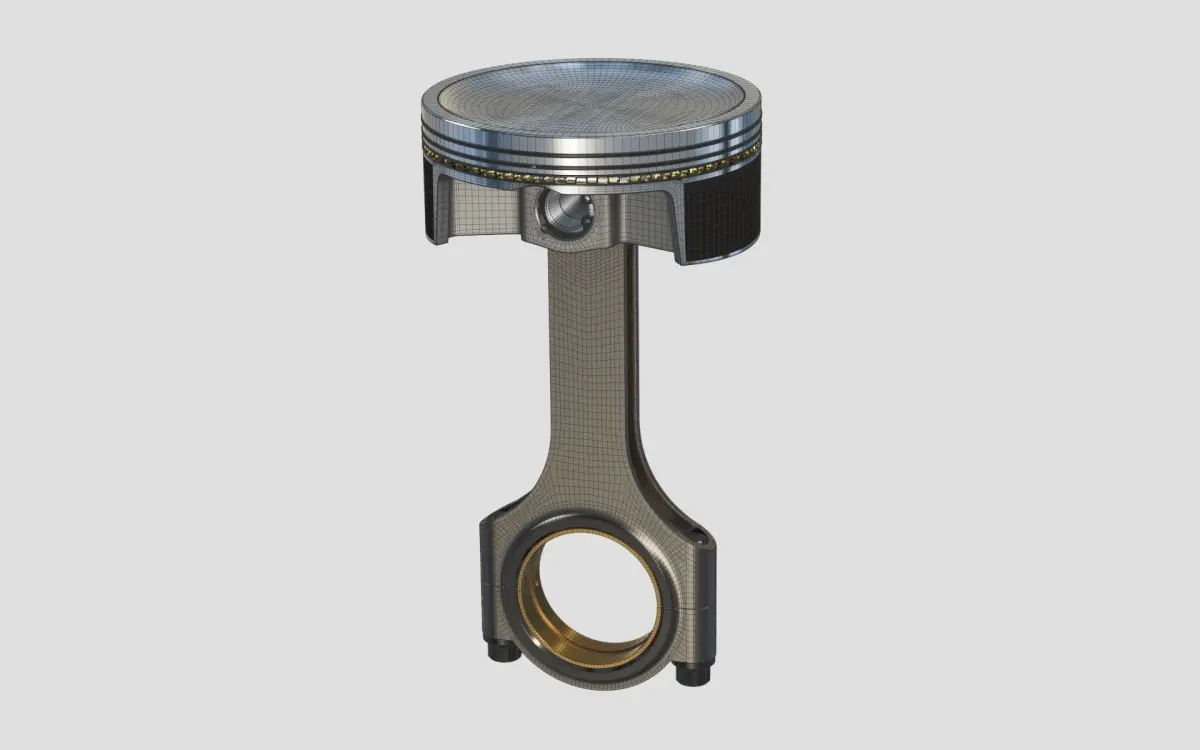

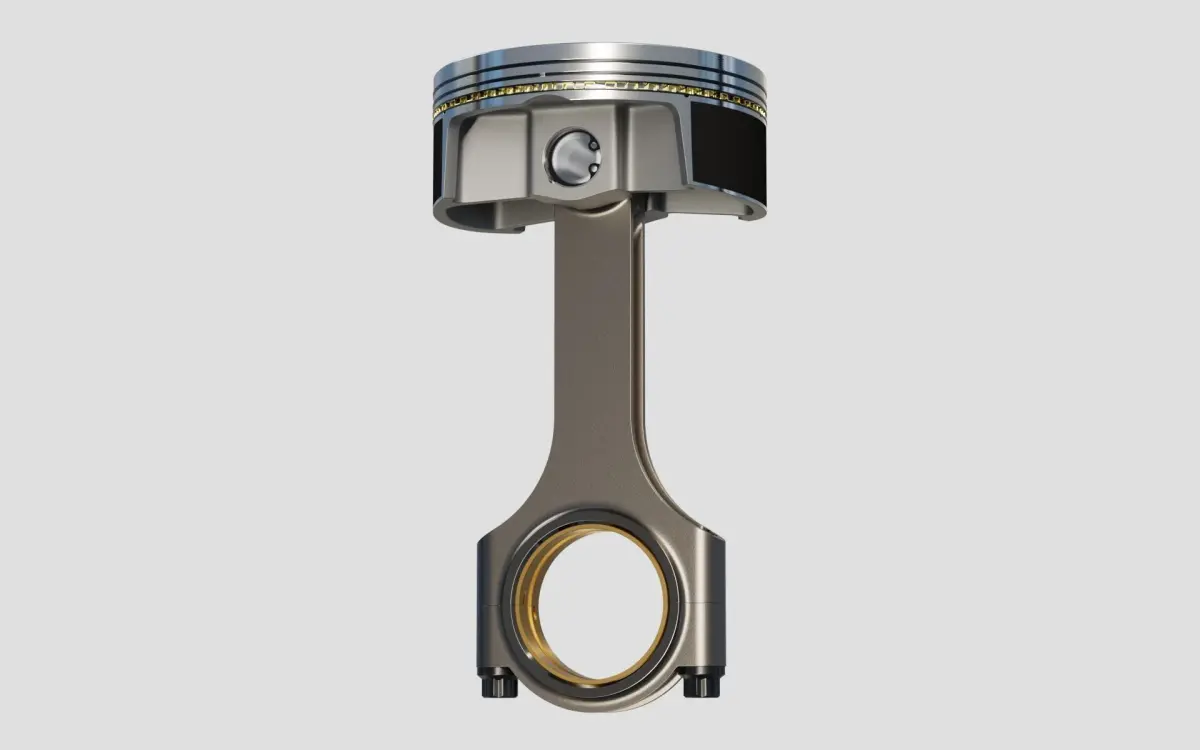

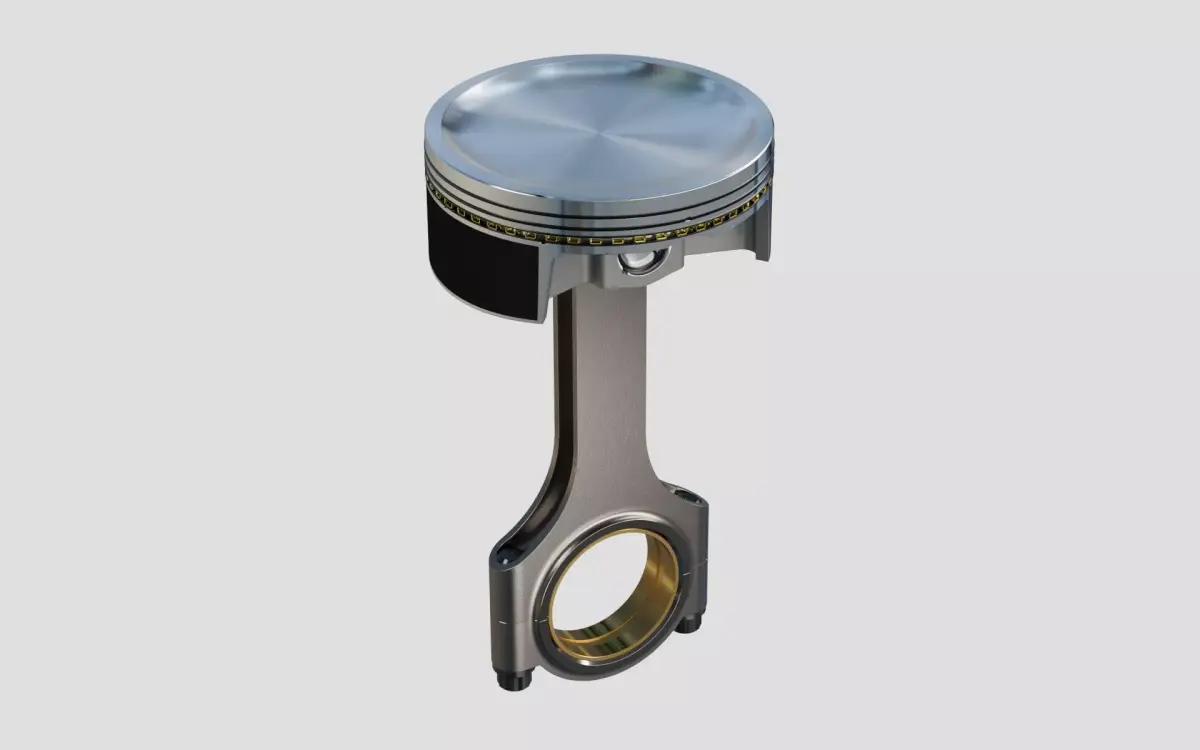

High quality ultra-detailed 3D model of a high-performance piston and connecting rod. All components are fully modeled, as in reality. Every component and detail of the real thing is faithfully reproduced, including the lubrication ducts. The head is coated with a ceramic thermal barrier to improve piston durability. The skirt is treated with a molybdenum-based anti-friction coating to reduce wear.
NOTE: Textures are NOT included in the model files. Download the separate texture pack and reassign textures to the model before use.
FEATURES:
- The dimensions reflect the real components.
- Perfect for CAD review, engineering demonstrations, educational purposes, high-quality visual presentations, renderings, films, advertising campaigns, etc.
- The model is highly accurate and based on original manufacturer's dimensions and technical data.
- Native format: Blender 5.0.1 Rendering engine: Cycles.
- Clean and optimized topology model resolutions for polygon efficiency.
- Model does not include any backgrounds, cameras, or scenes used in preview images.
- All objects, materials and textures are grouped and named according to their actual functionality.
- No post-processing of renders in all presentation video and images.
- No special plugin needed to open scene.

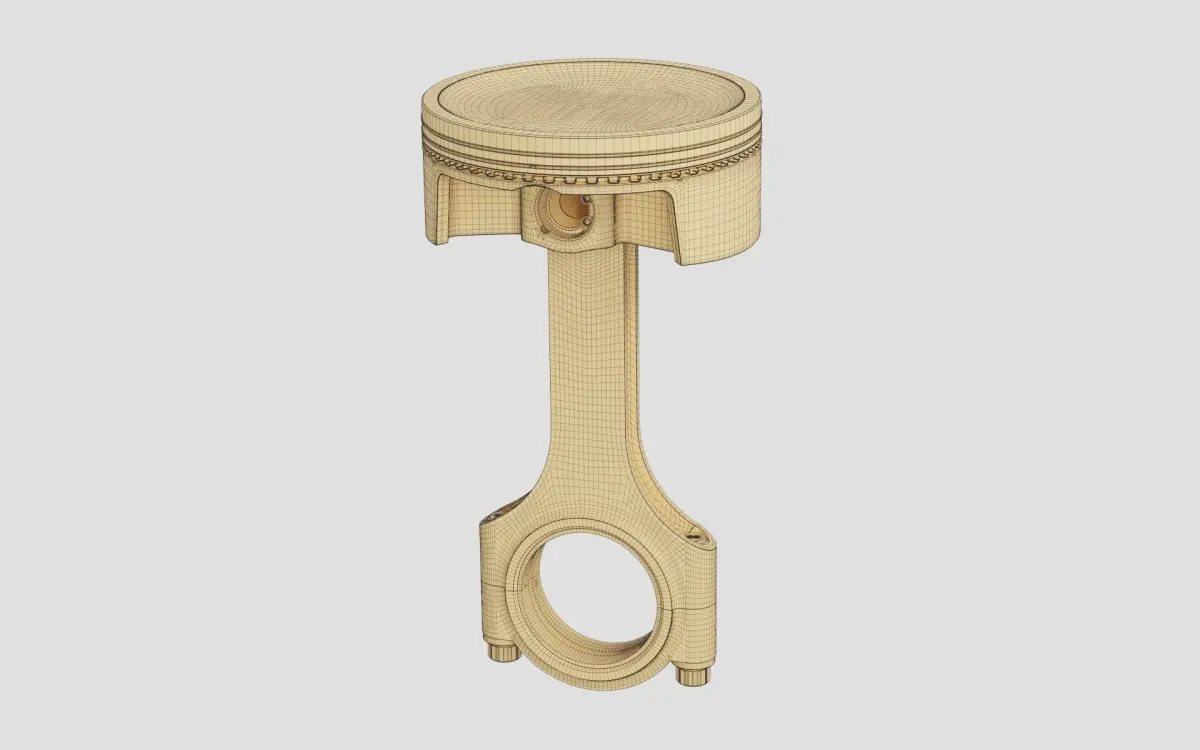

- Quads topology only.
- Units: cm (Centimeters).
- Dimensions: 10.5 x 10.5 x 19.7 cm.
- Correctly real-world scaled and centered at 0, 0, 0 coordinates.
- Textures: Yes.
- Materials: Yes.
- UV Mapped: Yes.
- Unwrapped UVs: Yes, non-overlapping.
- Rigged: No.
- Animated: No.
TEXTURES:
- High quality PBR textures are included in five map tiles (5x7) each with 4096x4096 resolution.
- BaseColor
- Roughness
- Metallic
- Normal
- Glossiness
- Bump
- AO
MODEL SPECIFICATIONS:
- Polygons count: 105,222
- Vertex count: 105,330
AVAILABLE FILE FORMATS:
- BLEND (Blender 5.0.1, Render: Cycles) Native format
- MB (Maya 2025)
- FBX, OBJ (Exchange formats)
- PNG (Textures Image format)
For any questions or requests, please feel free to contact us at:
https://www.cgtrader.com/designers/MS-Studio-3D?referral_id=1597149
BLEND (Blender, filesize: 4.52 MB), OBJ (OBJ, filesize: 3.3 MB), FBX (Autodesk FBX, filesize: 5.35 MB), MA (Autodesk Maya, filesize: 6.22 MB), PNG (PNG, filesize: 361 MB)
