Buy Pivot Window Horizontal Axis 3D model

Name: Pivot Window Horizontal Axis 3D model
Brand: droumbas
SKU: 802364
Price: 7.00 USD
Availability: InStock

License: Royalty Free

author:

droumbas

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «droumbas». CGhub does not claim copyright ownership over the content used.

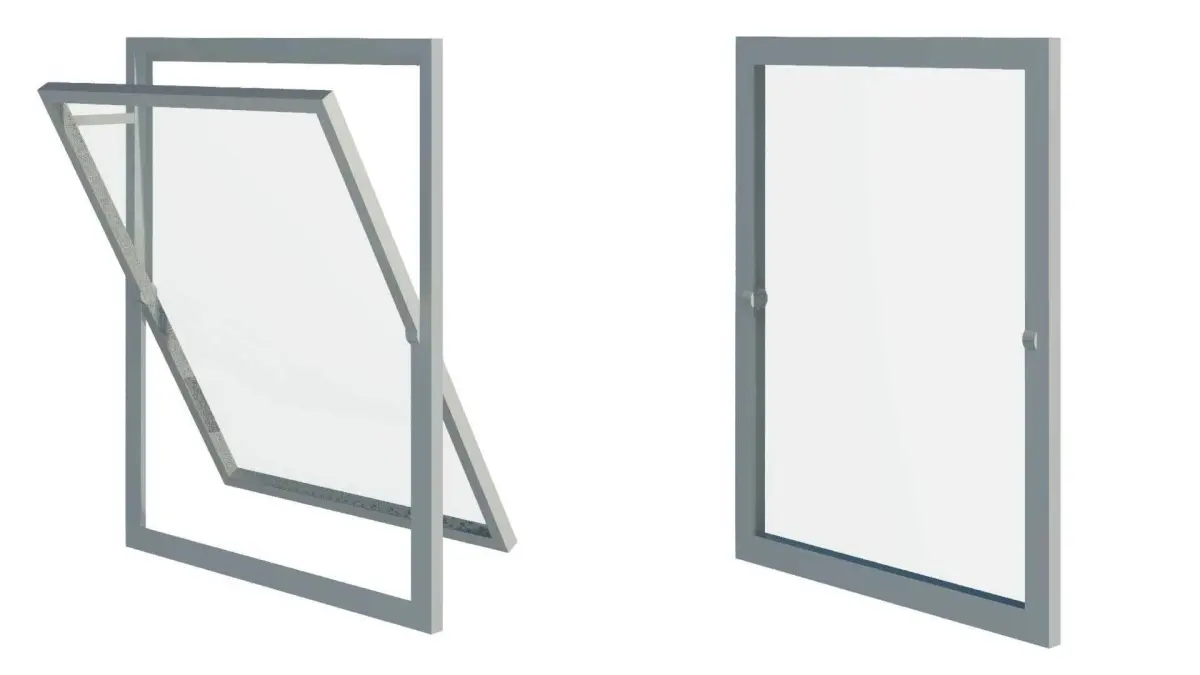

Fully Parametric Revit Family for a horizontal axis Pivot Window. Partially pivot opening window, 30degrees maximum opening with safety hinges.

Model is fully parametric, controlling all design aspects of the model to match any design requirement. This is a wall based family and can be place on any project wall. Window sill elevation parameter as well as width and height can produce a large number of window type variations.

Instance parameter for graphical representation of window being closed or open.

ATTRIBUTES:

Revit Version : 2022
Family Type : Wall Based Window
File Extension : .rfa

PARAMETERS:

Window Width and height
Window Sill Elevation
SIll option ON/OFF
Sill thickness
Window Panel Frame Width and Depth
Window Frame Width
Window Interior Setback
Stopper Width
Open/Close Option ON/OFF
ALl materials are parametric

FAMILY TYPES:W1500xH1300, Elevation 1100mm, Sill 20mm, Frame 40mmW1200xH1500, Elevation 900mm, Sill 30mm, Frame 40mmW1200xH600mm, Elevation 1800mm, No Sill, Frame 30mmW1000xH2200mm, Elevation 200mm, No Sill, Frame 50mm

User can create unlimited variations of family types.
