Publication date: 2022-02-11

Planetary Gear 3D print model

$5

License: Royalty Free

author:

mahdeezoabi

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «mahdeezoabi». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $5 Add to Wishlist
  • Description

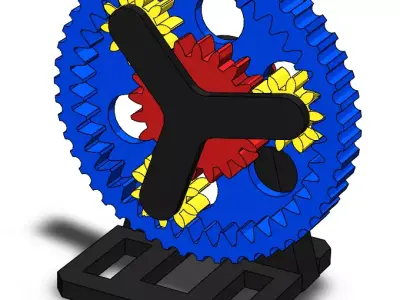

planetary gear 3d Printing model. The model contains three file formats: sld, step, stl.

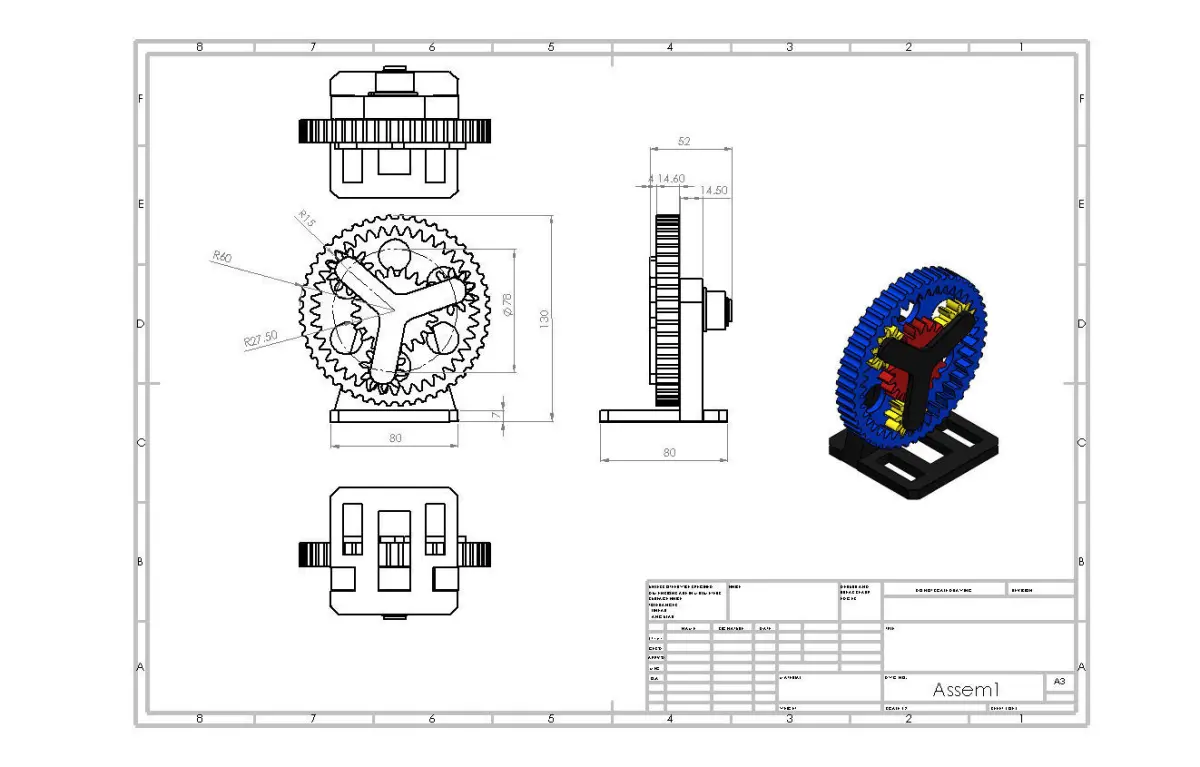

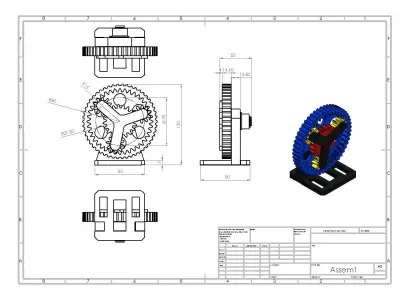

dimesnions on drawing sheet are in mm.

Gear ratio: Sun = 20T. Planets = 10T. Ring = 40T.

The model include all condituions, (the ring not fixed). So it is possible to rotate the ring and the sun with different rotation velocity.

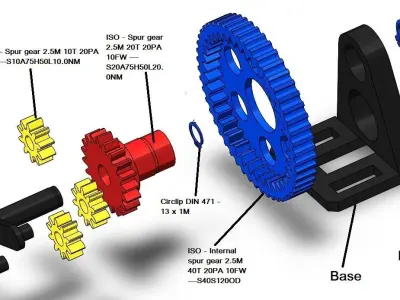

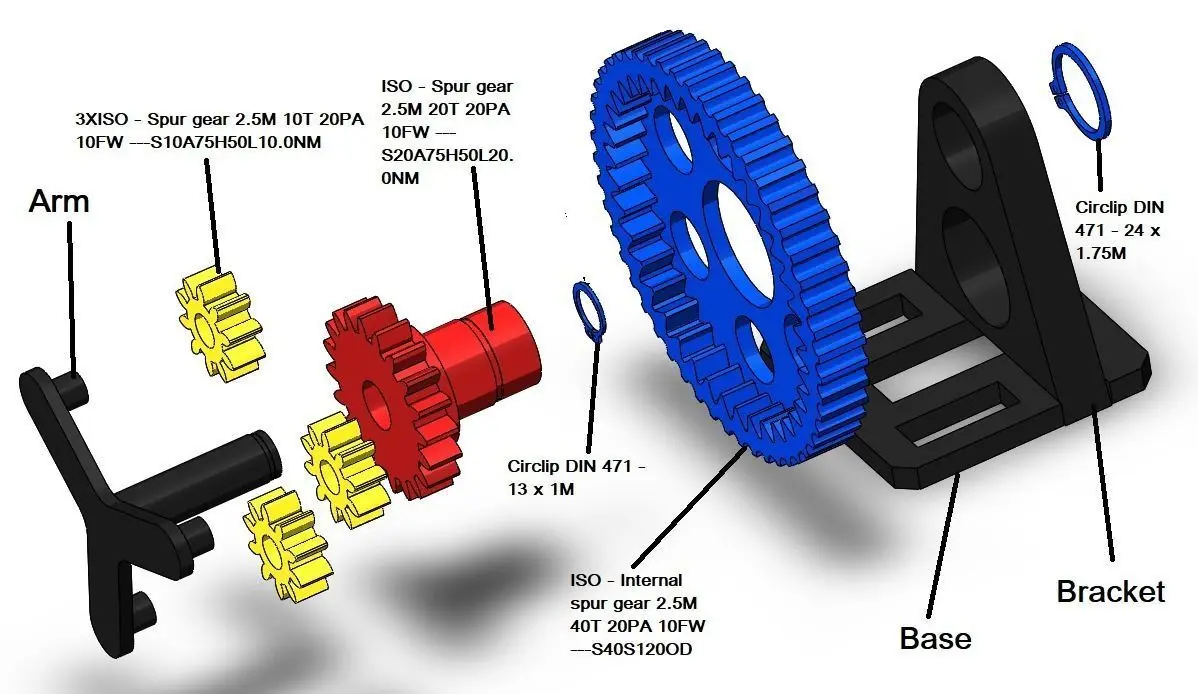

The model include ISO standard gears: 1xInternal spur gear, 3xPlanet spur gear and 1xSun spur gear.

For more information about planetary system:

https://www.thedrive.com/cars-101/40394/planetary-gear

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Planetary Gears Sun Solar Transmission Mechanical Automatic Car Planet Axle Shaft Machine Mechanic Ratio Science Engineering Car mechanic Solar car
