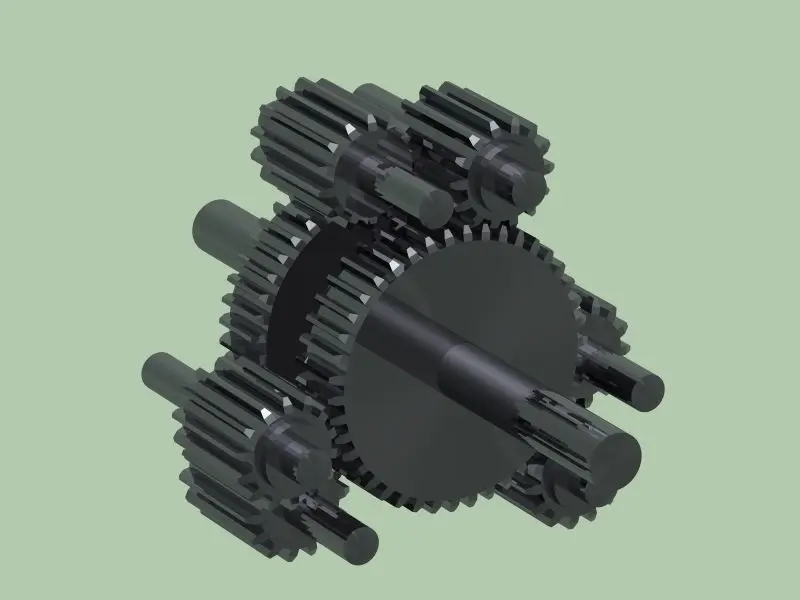

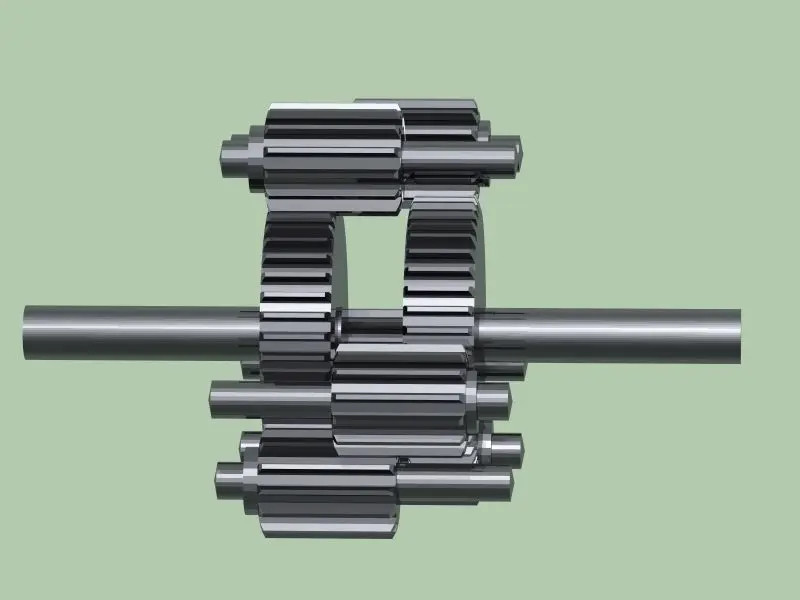

PARALLEL AXIS GEAR DIFFERENTIAL

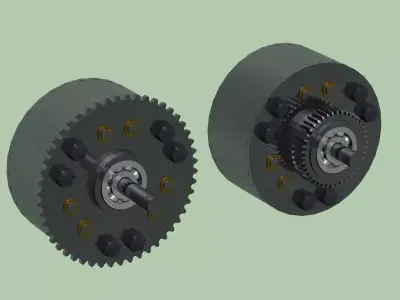

Based on Alexander Brown's 1902 US patent this is a compact planetary gear differential. The choice of crown gears provided are a sprocket for a chain drive, and a spur gear for direct gearing from the engine. Either one could be replaced with bevelled crown gears (not included).This design is cheaper to produce than the more common bevel-geared version and it can take up less space and weigh less.

OBJ (OBJ, filesize: 1.96 MB), 3DS (3D Studio, filesize: 1.06 MB), MAX (Autodesk 3ds Max, filesize: 2 MB), DAE (Collada, filesize: 1.73 MB), FBX (Autodesk FBX, filesize: 2.15 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 130056
  • Vertices: 65072
  • Geometry: No N-gons | No faceted geometry | Manifold geometry |

Tags

Differential Planetary gear differential Diff Transmission Axle Parallel axis differential Car Standard Standard car
