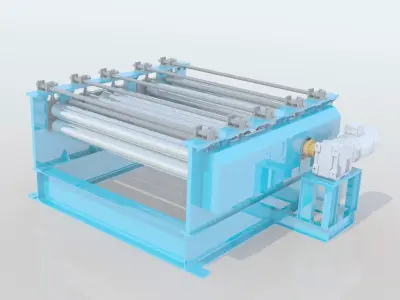

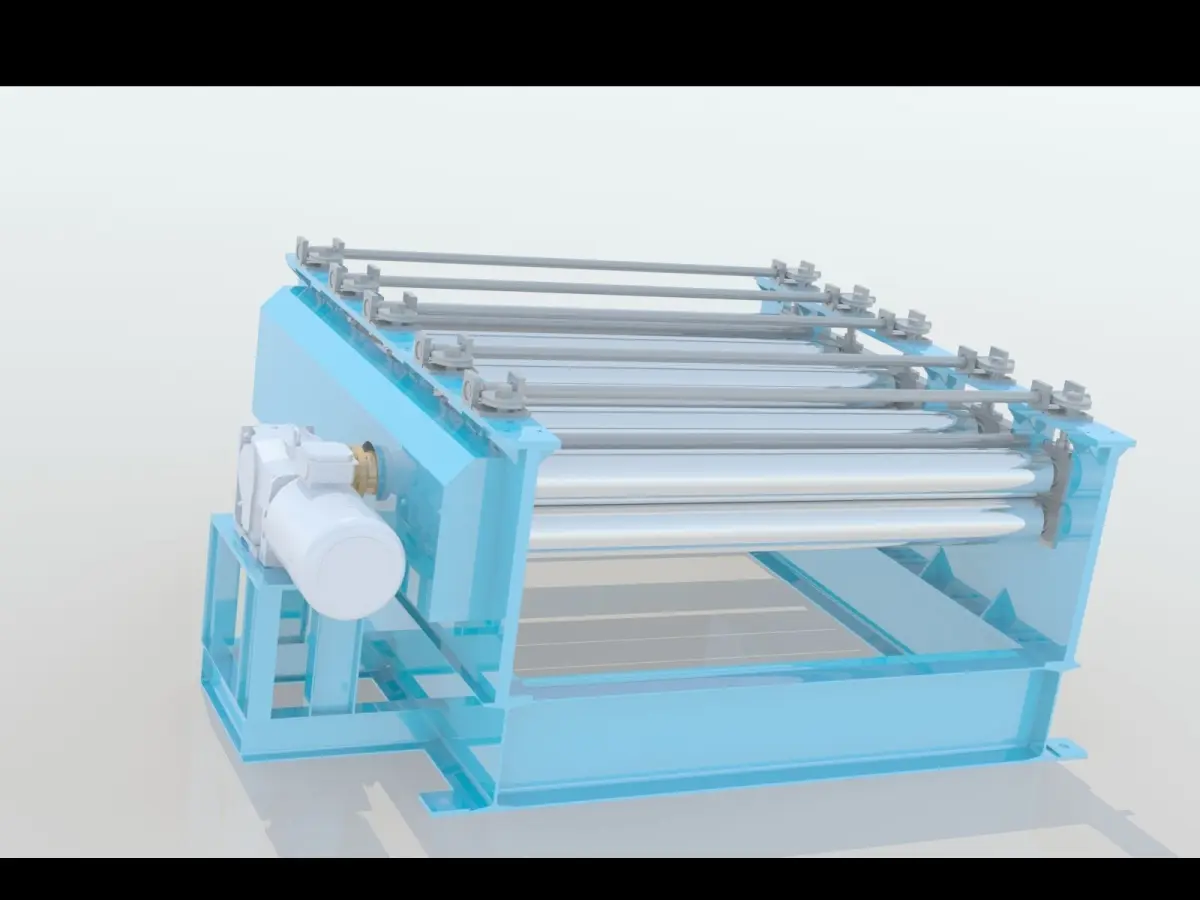

Plate straightening machine 3D print model

$19

License: Editorial No Ai Html

author:

KienThuc

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «KienThuc». CGhub does not claim copyright ownership over the content used.

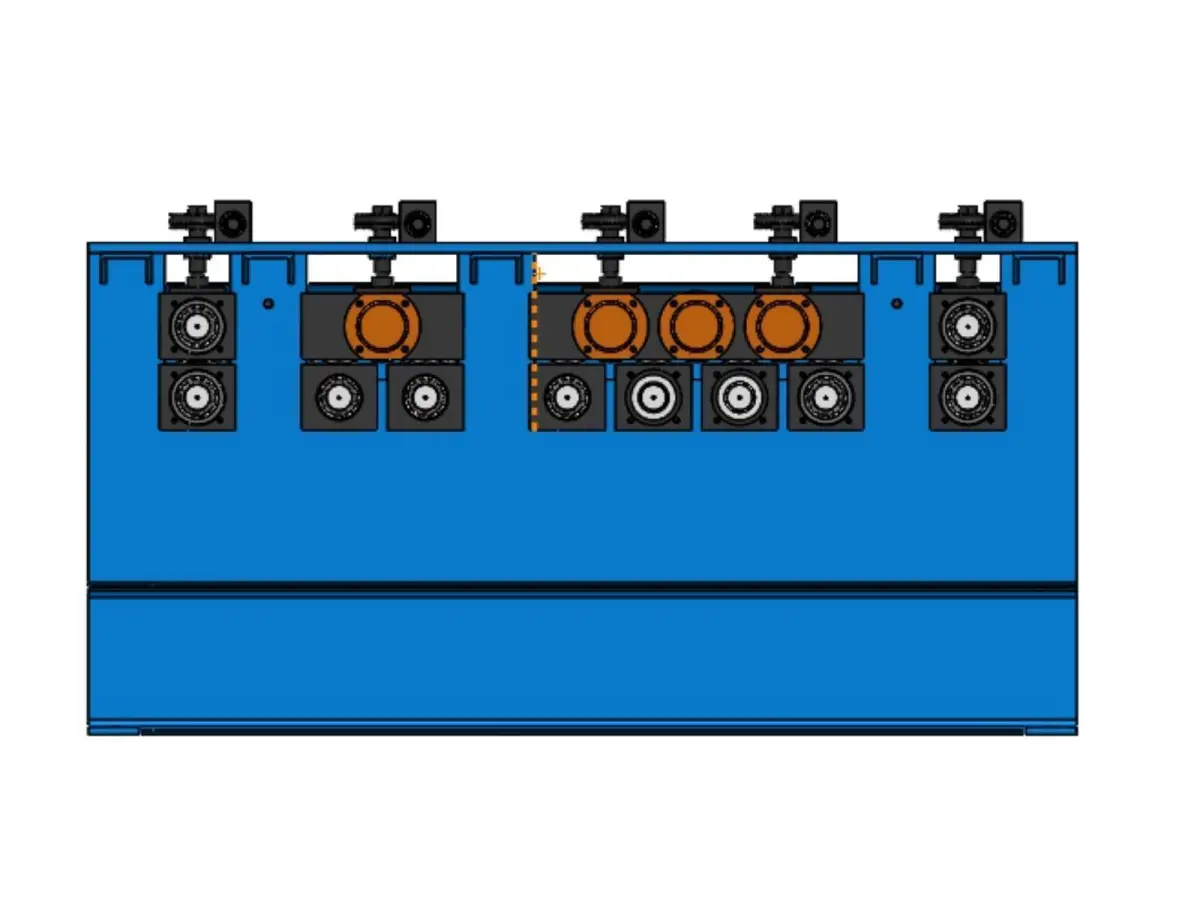

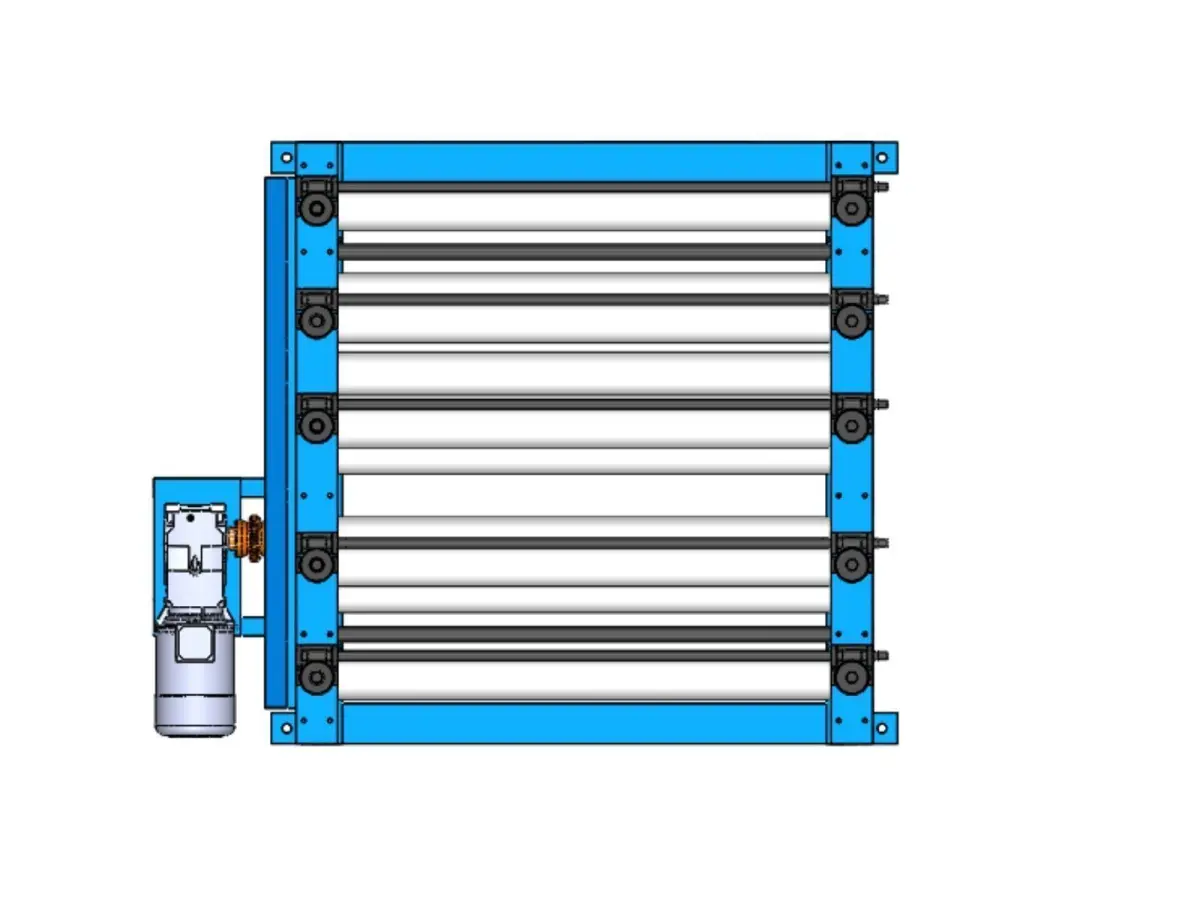

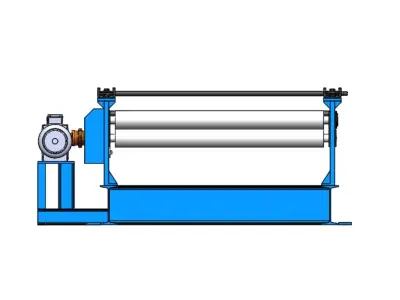

Straight machine

Working Width 1500mm
Material Thickness 0,3-1,5 mm
Number of rollers: 14 pcs
Roller diameter: 114mm
Engine 7.5KW 220 / 380v 50Hz

Straightening machine / Leveling machine working principle:

Straightening machine / Leveling machine motor drive speed reducer, speed reducer drive box, gear shaft drive shaft and rotary roller, achieve expanded metal mesh surface straight and level.
Place the expanded metal mesh produced by the expanded metal machine into the straightening/leveling machine feeder, by adjusting the machine handle to adjust the distance between the rollers, then leveling expanded metal mesh.
