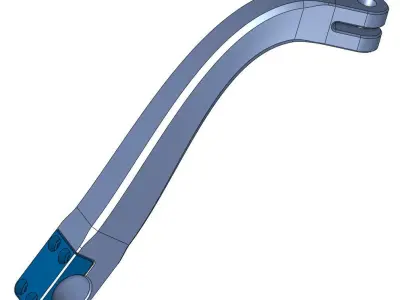

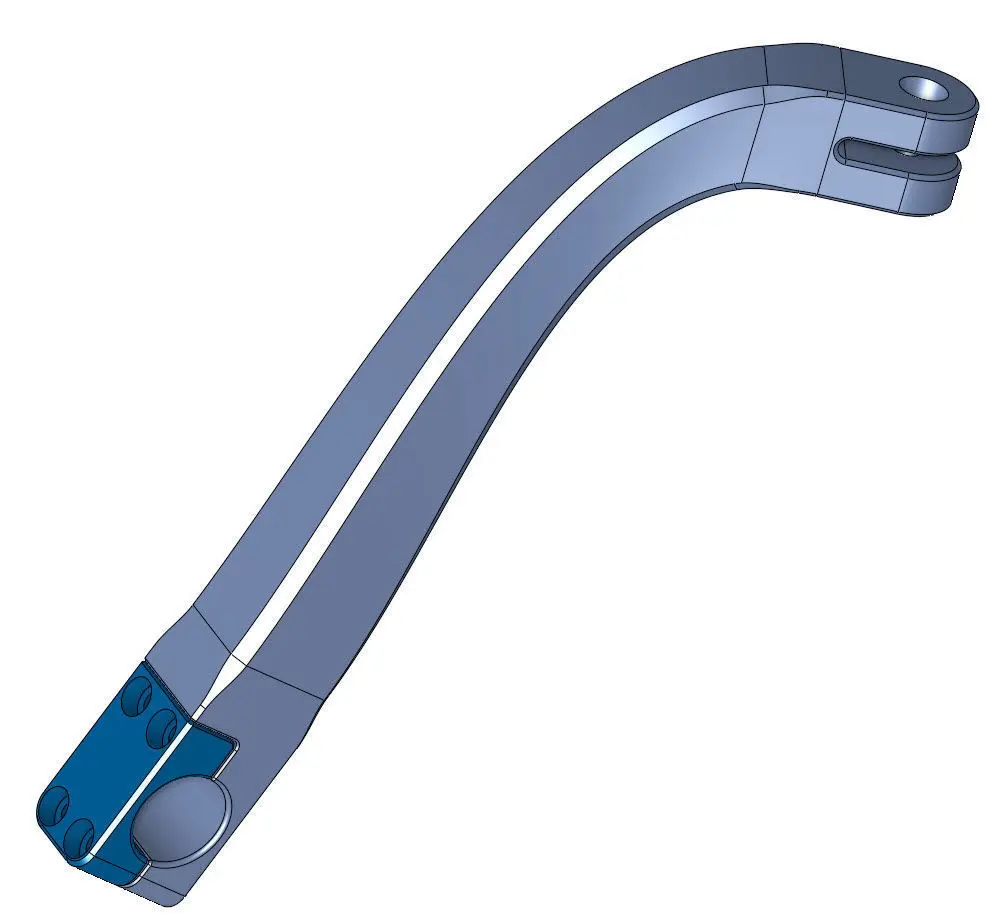

Playseat Reinforcement to reduce movement, designed for the Fanatec CSL Elite. The STL-file is for the left side reinforcement bar, mirror the part to print the right side version.

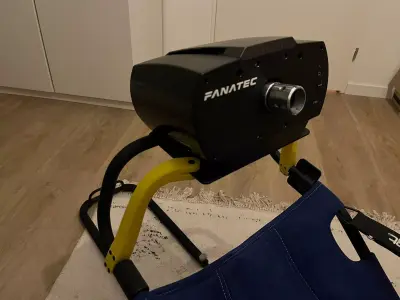

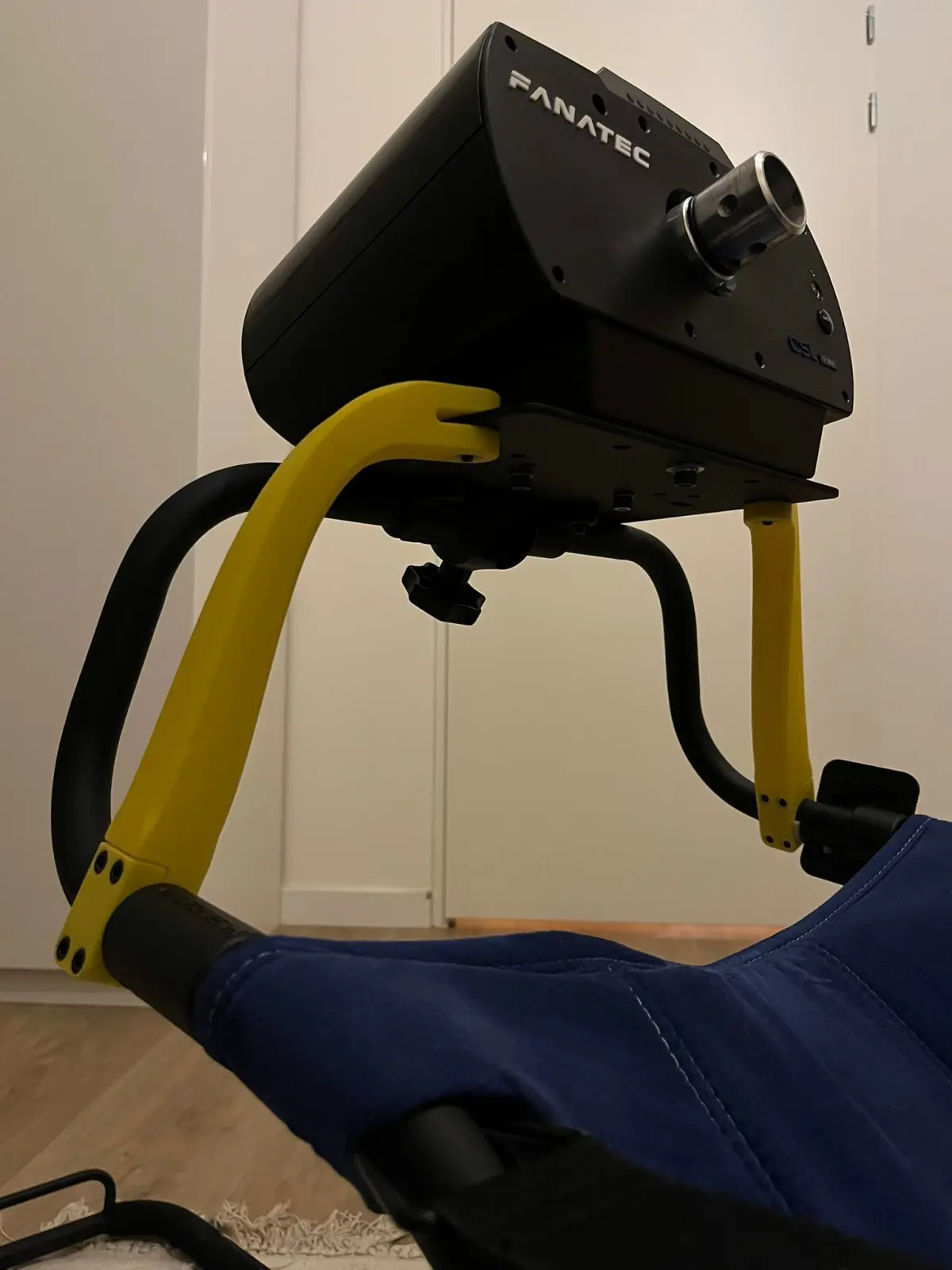

To install, first remove the steering wheel base, then clamp the reinforcement bar to the tube and slightly fasten the M5 bolts (4x). Then slide the top over the mounting plate of the playseat, drill a ø6 mm hole in the correct spot and slightly fasten the M6 bolt (1x). Do this for both sides, once everything is in place tighten the bolts but be careful to not overtighten the bolts.

Hardware required:8x: Bolt M5x25 (DIN 912)8x: Nut M5 (DIN 934)2x: Bolt M6x20 (DIN 912)2x: Nut M6 (DIN 934)
