Pleated Filter 3D model
Pleated Filter 3D model
Pleated Filter 3D model
Pleated Filter 3D model
Pleated Filter 3D model

Publication date: 2015-12-10

Pleated Filter 3D model

$15

License: Royalty Free License

author:

matvic

Buy at www.cgtrader.com - $15 Add to Wishlist
  • Description
  • Formats
Description

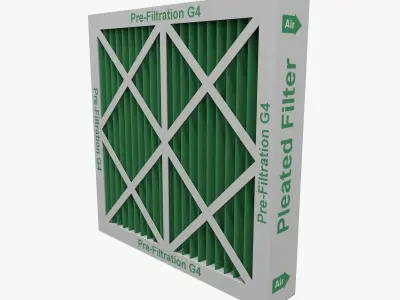

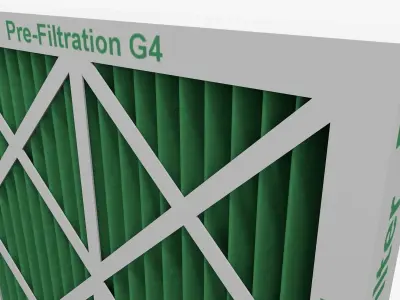

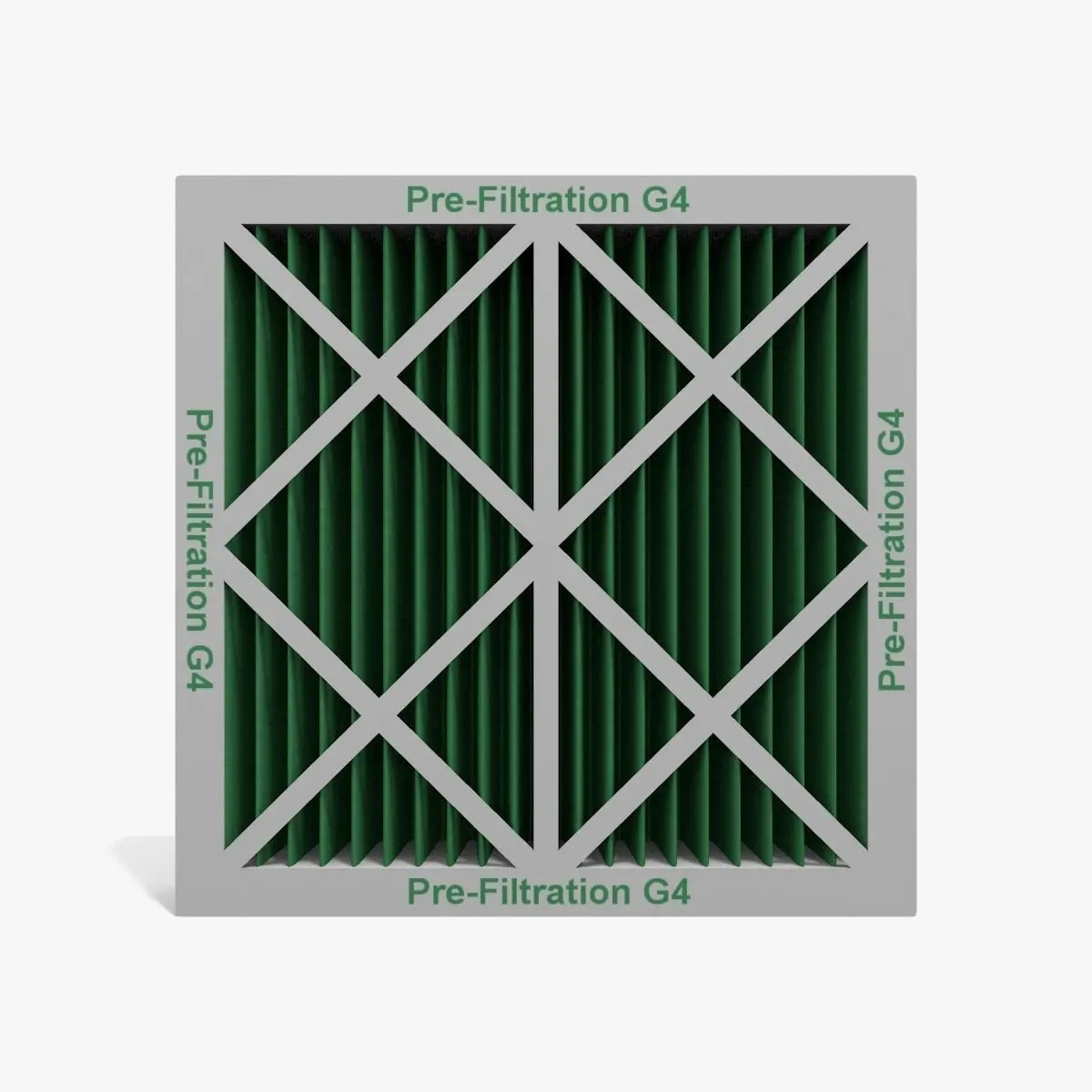

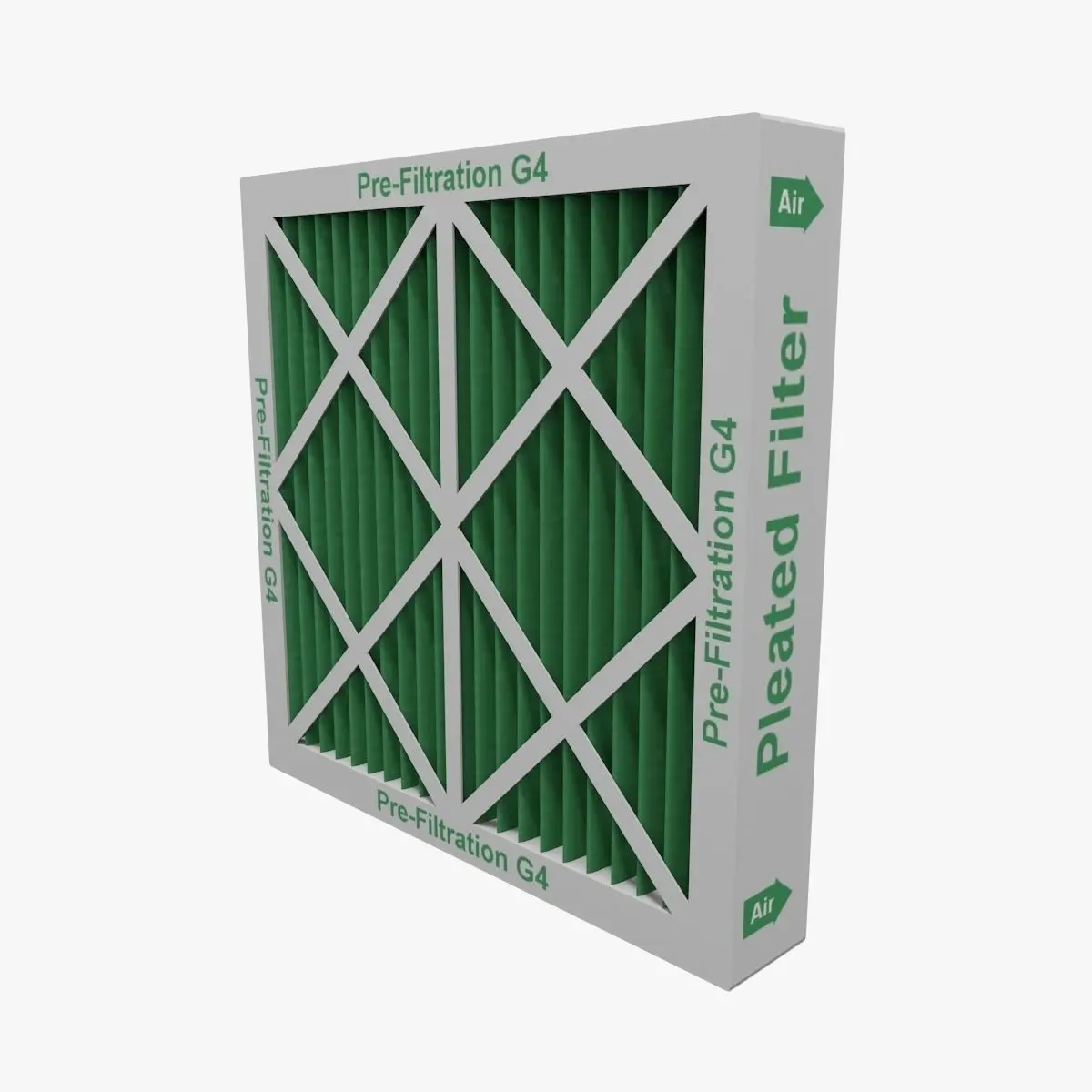

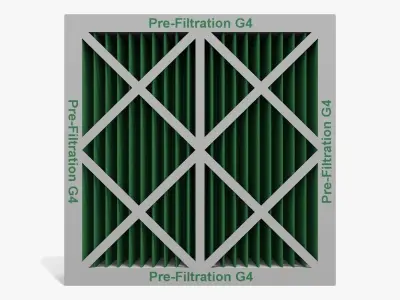

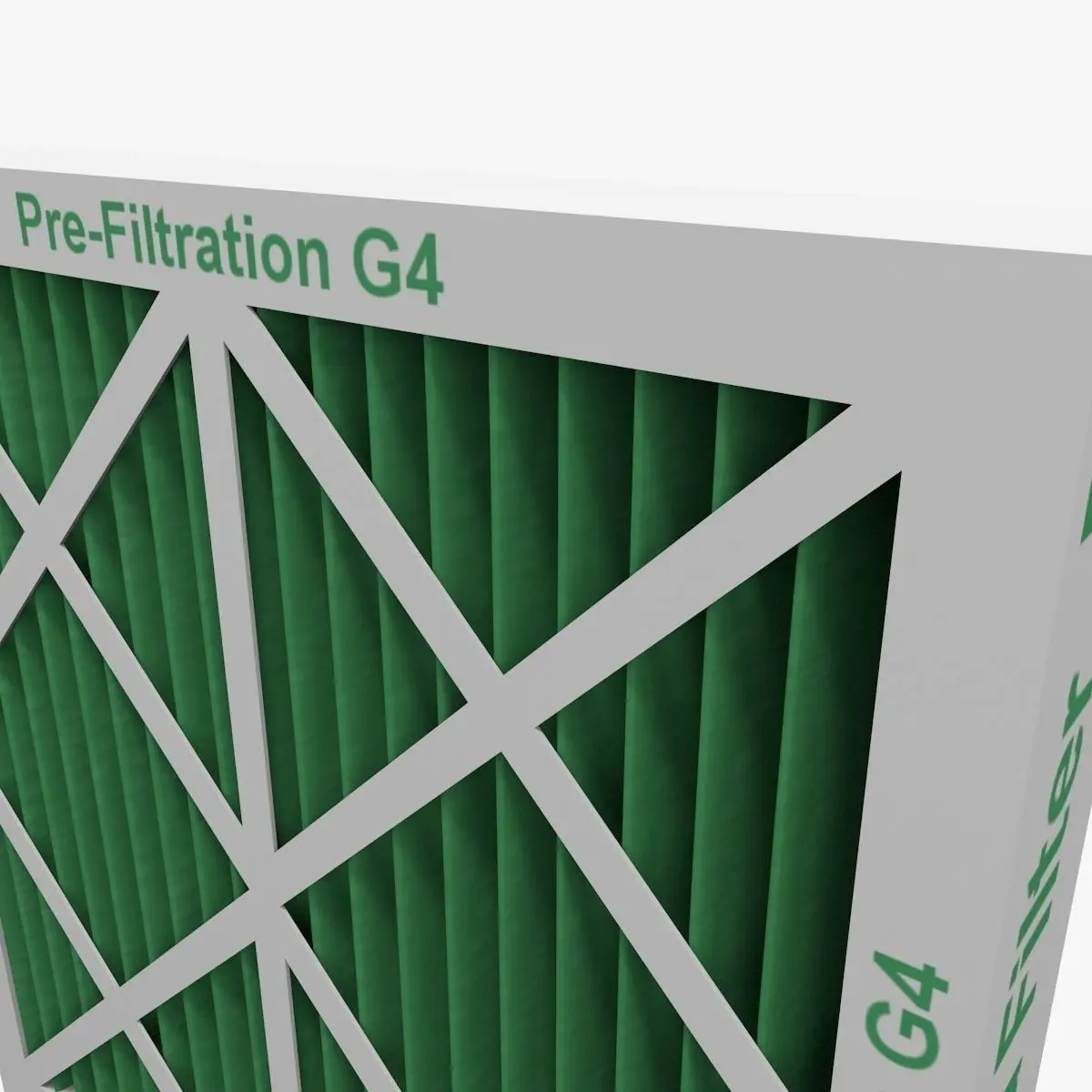

3D model of a pleated filter modelled in Blender v2.70a. The model is completed of materials and textures.The filters are used in the AHU (Air Handling Unit) for cleaning the air.This type of pleated filter has a special frame with grid in order to get more resistance.You can find the UV Layout in the ZIP - see folder 'UVLayout'.

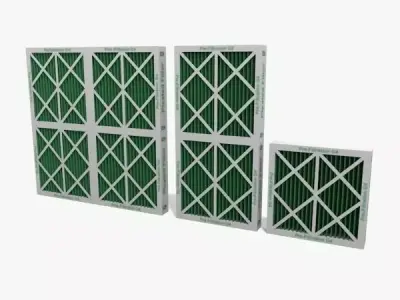

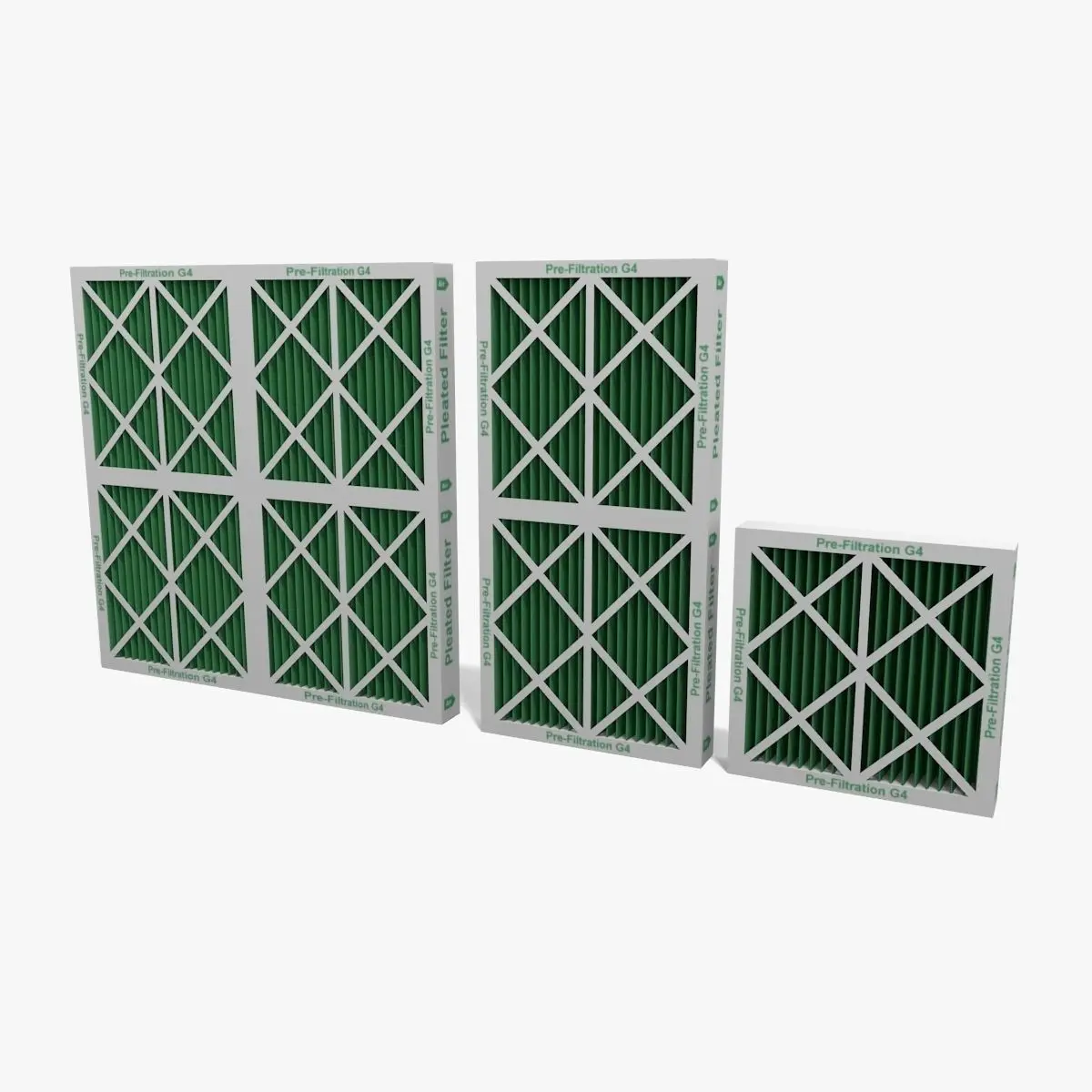

The archive contains three size (BxHxL) of the filter cell:- 305 x 305 x 50 mm;- 305 x 610 x 50 mm;- 610 x 610 x 50 mm.

List of textures:- PFilter.jpg 1024x1024 px

The model is available in the following formats:- Blender format .BLEND;- 3DS format (.3ds);- Wavefront OBJ (+ MTL file for materials).

The model is rendered with Blender.

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 6,670
  • Vertices: 8,470

Tags

Plane Pleated Filter Clean Air Conditioning Heating Hvac Filtering Industrial Part Industrial part Air conditioner
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «matvic». CGhub does not claim copyright ownership over the content used.
  • 3D Studio ()746 KB
  • OBJ () (2 files)1.41 MB
  • Blender ()962 KB
