Plumbing Hot Water Heater Engineering 3D model

$10

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

alexantropov1986

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «alexantropov1986». CGhub does not claim copyright ownership over the content used.

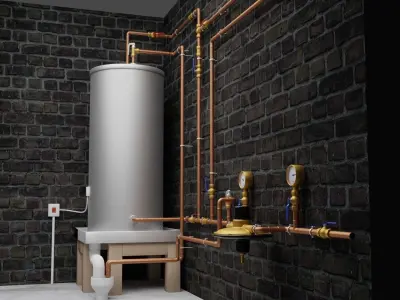

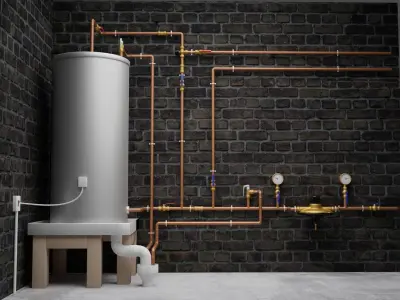

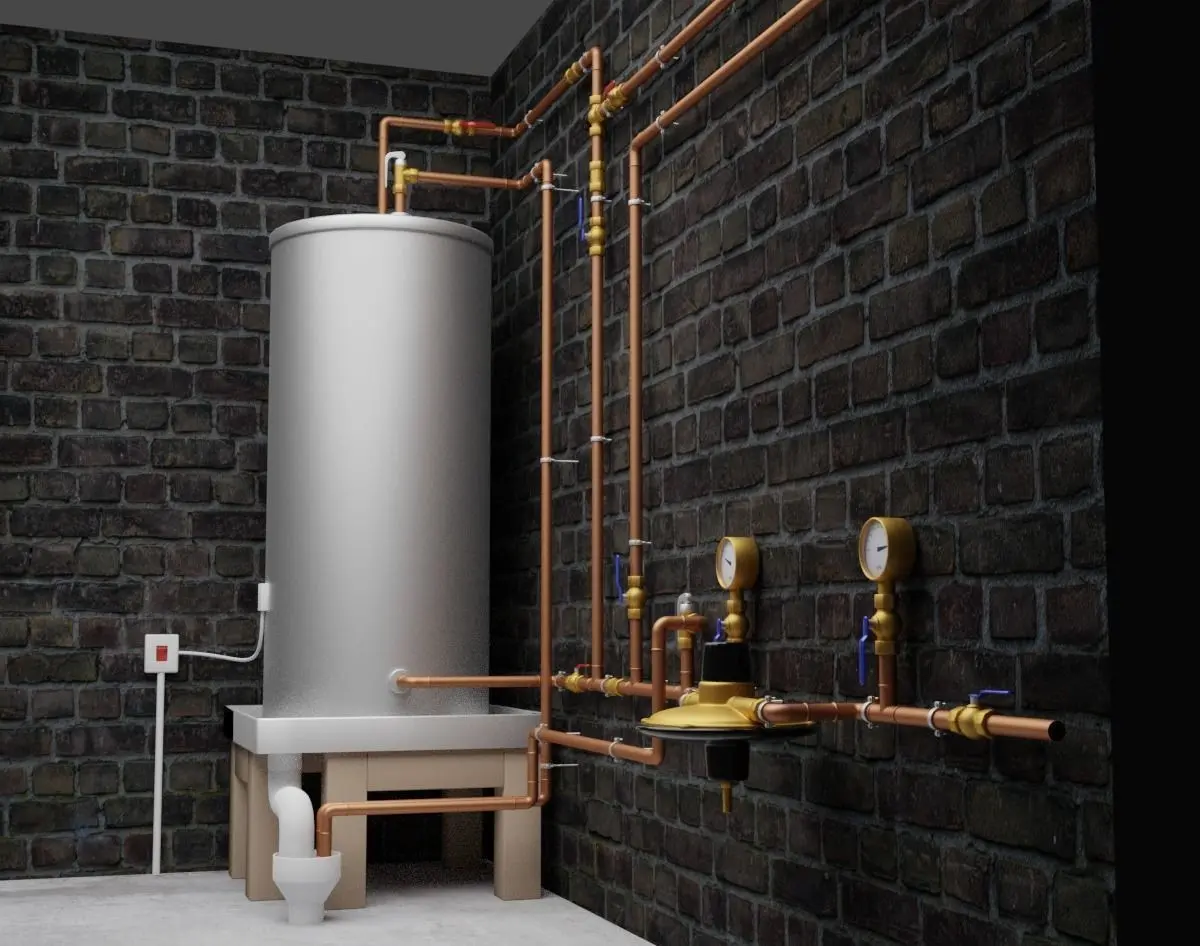

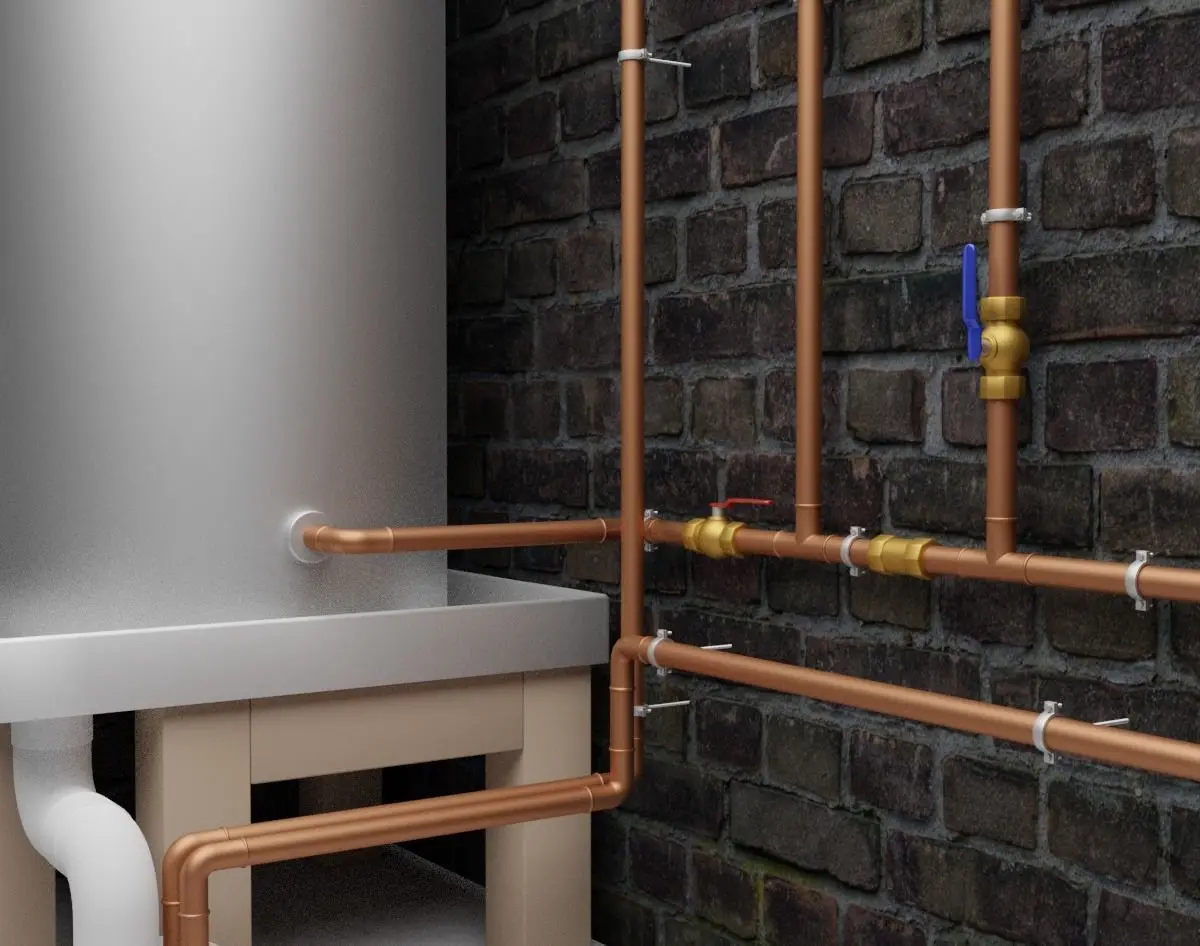

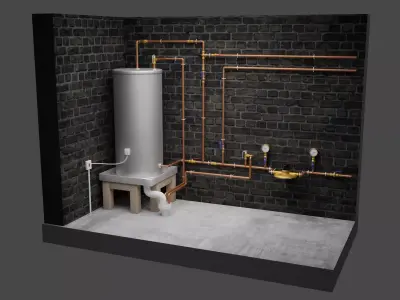

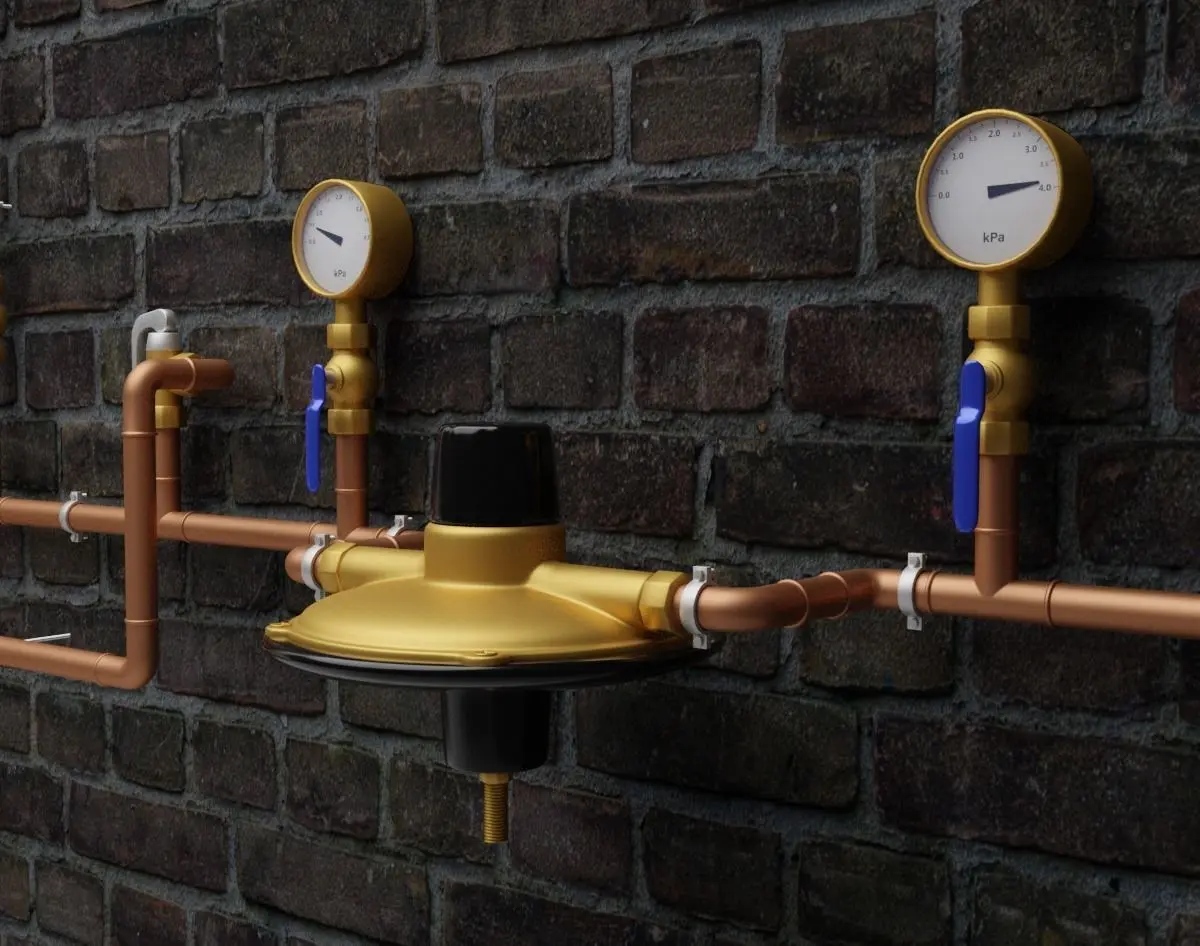

Realistic model of a domestic hot water cylinder plumbing and drainage system installation. I've based this on actual real-life design. It comes complete with a hot water cylinder, power isolator, pressure reducing valve, pressure gauges, isolating valves, non-return valves, tempering valve, hot water and cold water expansion valves, and copper pipework. The native file is from Blender 2.82, rendered in cycles. Export files are available in fbx and obj formats.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: non_overlapping
Geometry: Unknown
Polygons: 467000
Vertices: 467000

Tags

Plumbing Drainage Engineering System Mechanical Water Coupling Sink Mixer Drain Hydraulic Industrial Industry Plumber Pipe Piping Pipework Flow Plantroom Architectural Water pipe
