Pneumatic division rotary feeding mechanism 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

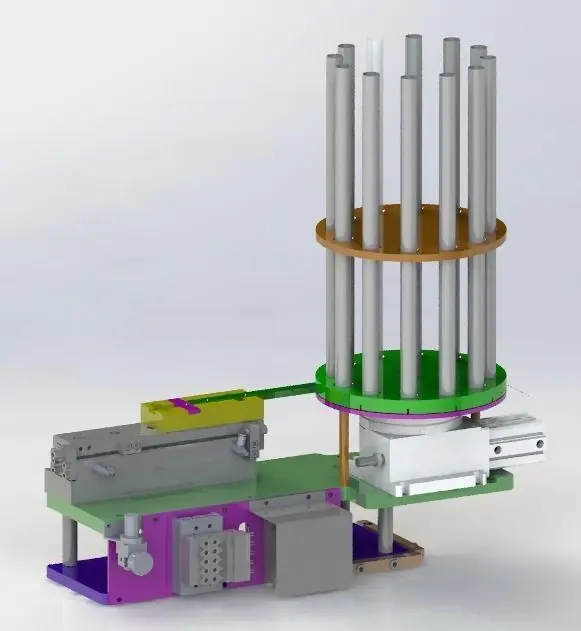

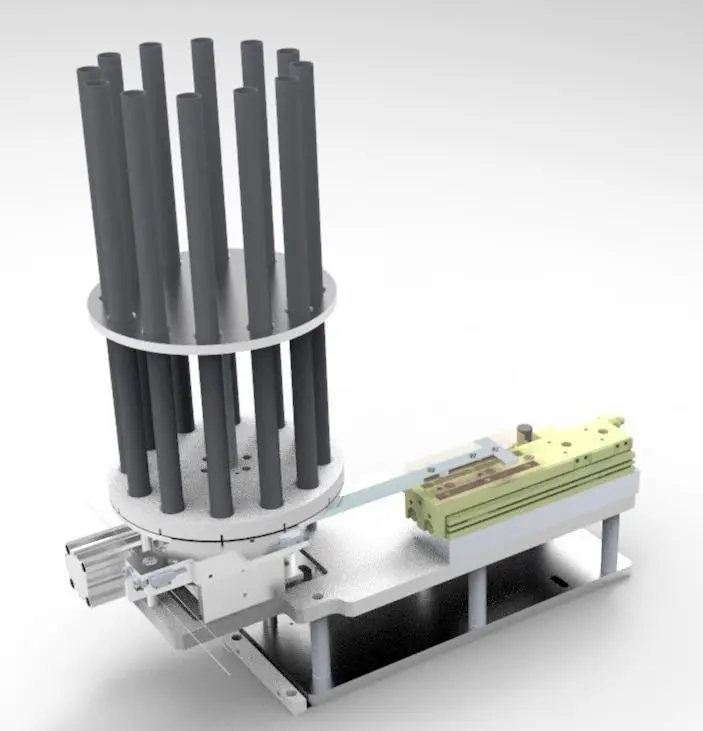

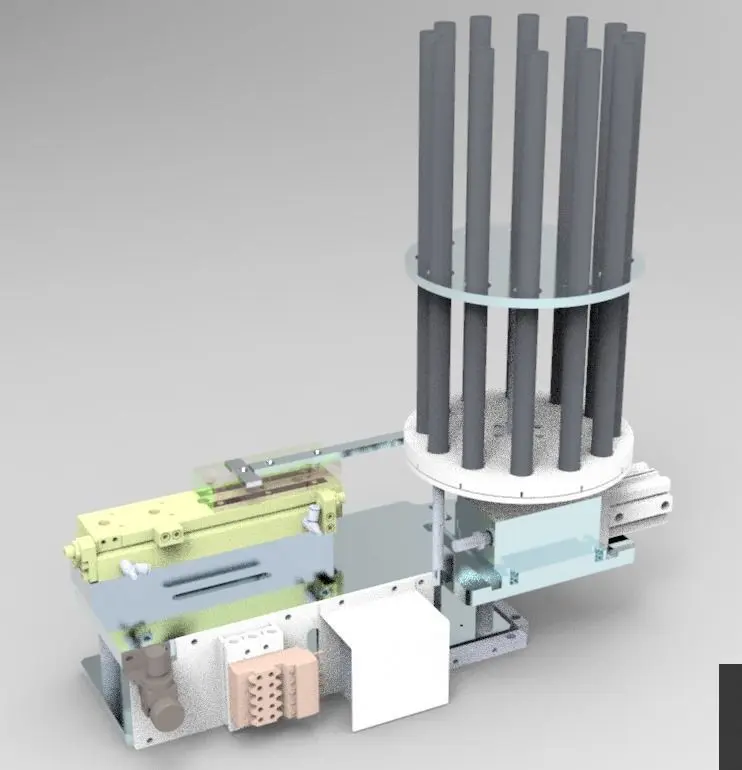

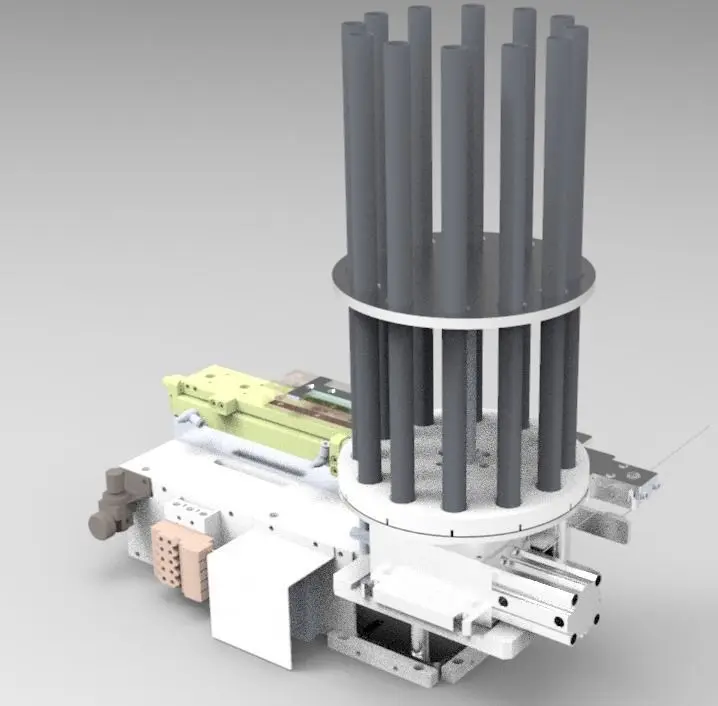

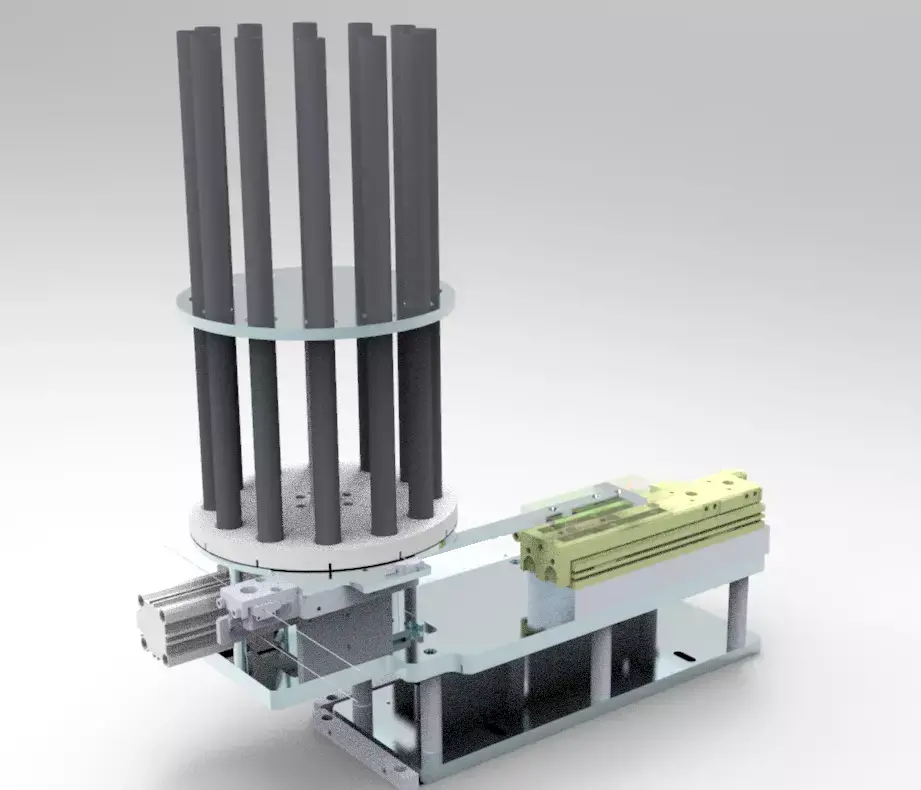

Pneumatic division rotary feeding mechanism (bearing), the mechanism through the pneumatic divider feeding, through the footwall of the clearance position, in the process of rotation, through the bearing to stack weight class materials and turn the bottom materials stripped away, into the cavity, to achieve the function of automatic loading, it can be made into a cylindrical materials plate can be multiple feeding, classic structure, the design process to use for referenceMechanism include

Pneumatic separator mechanism
Rotary rotary disc sorting mechanism
Cylinder push rod pushing mechanism

Files format contains-solidworks 2017-step-iges-stl-obj-3ds-Fbx-3dmax

- and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.If you have any questions about the details and design of the model, you can email me at any time, and I will give you all the answers as soon as possible.This is especially true after the purchase.

Designed with SolidWorks 2017；vray with keyshot

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 130625
Vertices: 132775
Plugins used

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Robot Divider Stacked Bearings Pneumatic Technology Industrial machine Industrial part Industrial factory Industrial robot
