pneumatic gripper 3D print model

$50

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

urfanravi

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «urfanravi». CGhub does not claim copyright ownership over the content used.

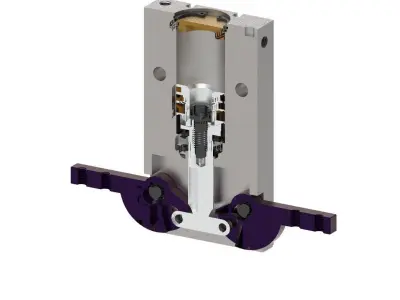

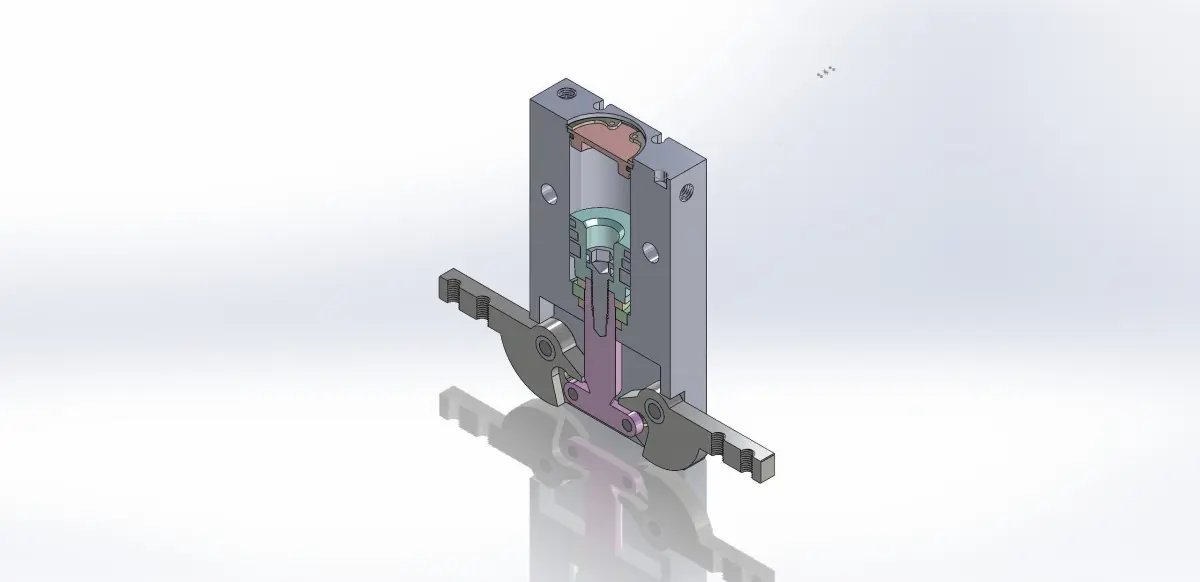

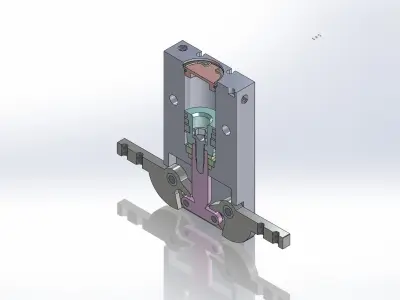

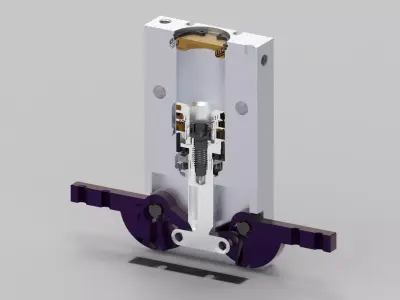

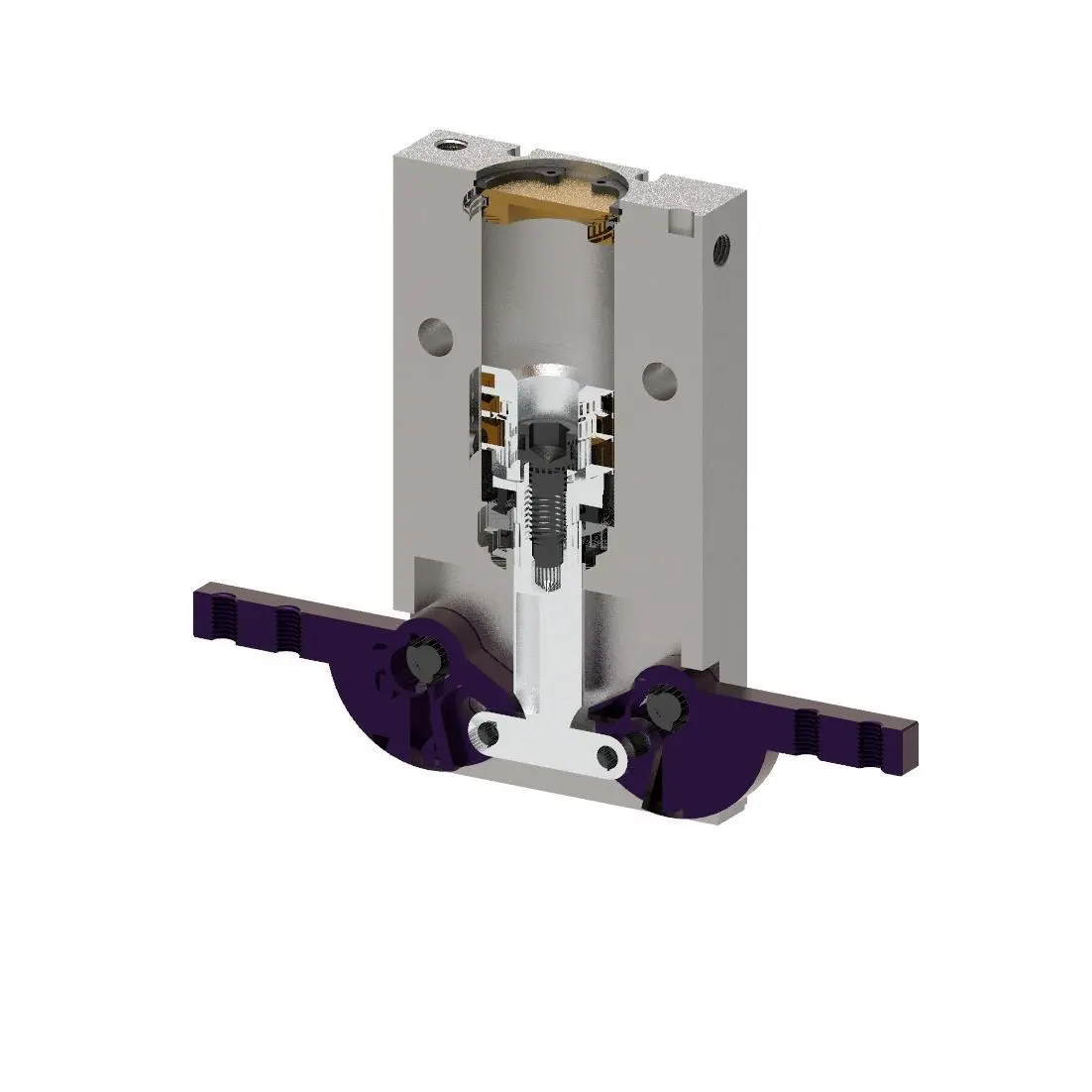

180 degree Angular Type Air Gripper Cam Type MHY2 25D

-This 3d model is created in solidwork with** higher accuracy**. -3D Model is a multiple part assembly file.

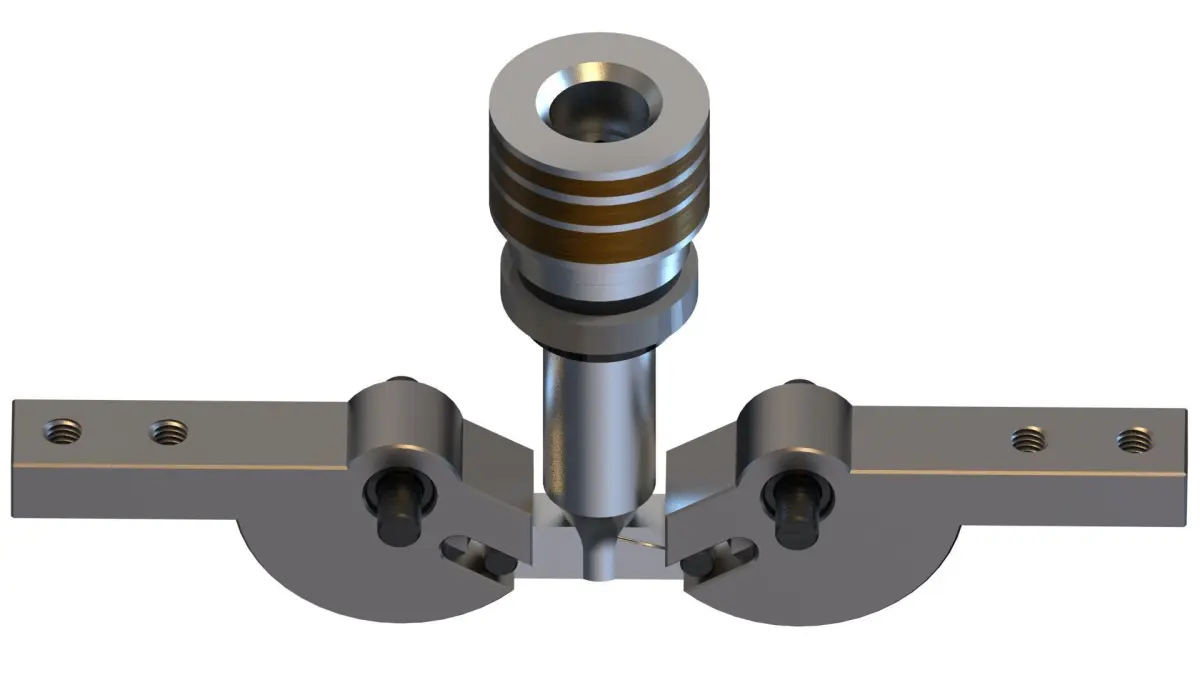

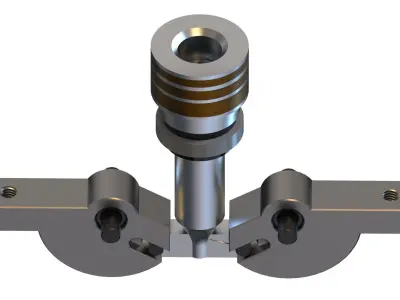

The MHY2-25D is constructed using high-quality materials such as aluminum alloy, making it durable and resistant to wear and tear. The gripper also features a double piston mechanism, which ensures stable gripping and prevents slippage. Additionally, the gripper has a built-in air cushion, which helps reduce impact and noise during operation, making it suitable for use in noise-sensitive environments.|

The angular type design of the gripper allows for a wider range of gripping angles, making it suitable for handling irregularly shaped workpieces. The gripper also features a 180-degree opening angle, which allows for easier loading and unloading of workpieces. The gripper can be easily mounted using the four holes provided at the bottom of the gripper body.

Overall, the MHY2-25D angular type air gripper is a reliable and efficient solution for gripping and handling various workpieces in industrial and manufacturing applications.

note:- dwg and dxf file dosn't contail any dimension
