I present a 3D model of - The Russian landmine for remote installation - POM 1 (ПОМ-1).
Training stand model (mockup).
This is the Russian POM-1 (ПOM-1), a High-Explosive Fragmentation, ground or
aircraft-dispensed, scatterable, electro and hydromechanically armed, anti-disturbance, Anti-Personnel landmine.
landmine deploy eight, 6m (19.69ft) long TPW (Target sensors).
Dimensions of the assembled model 73x80mm. (original size.)

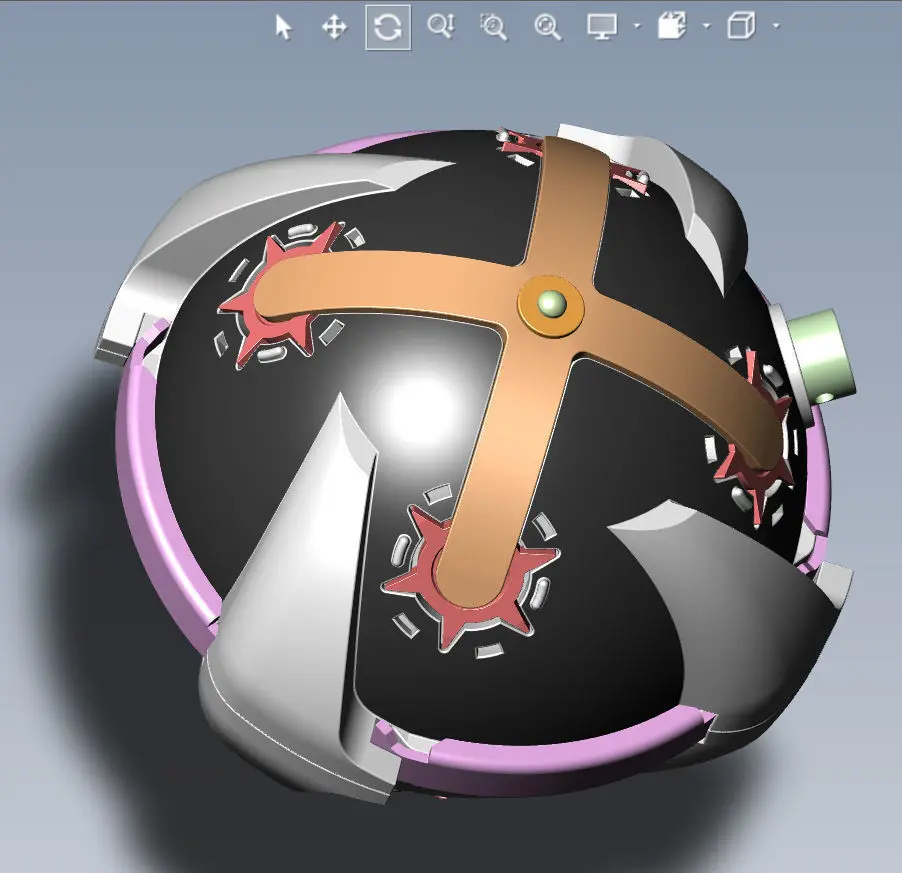

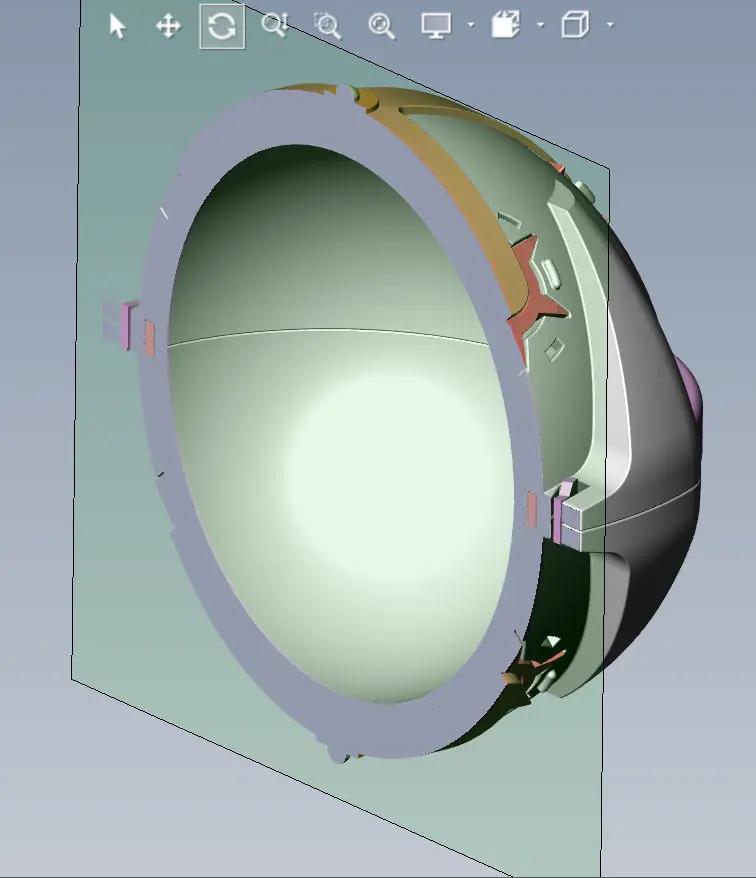

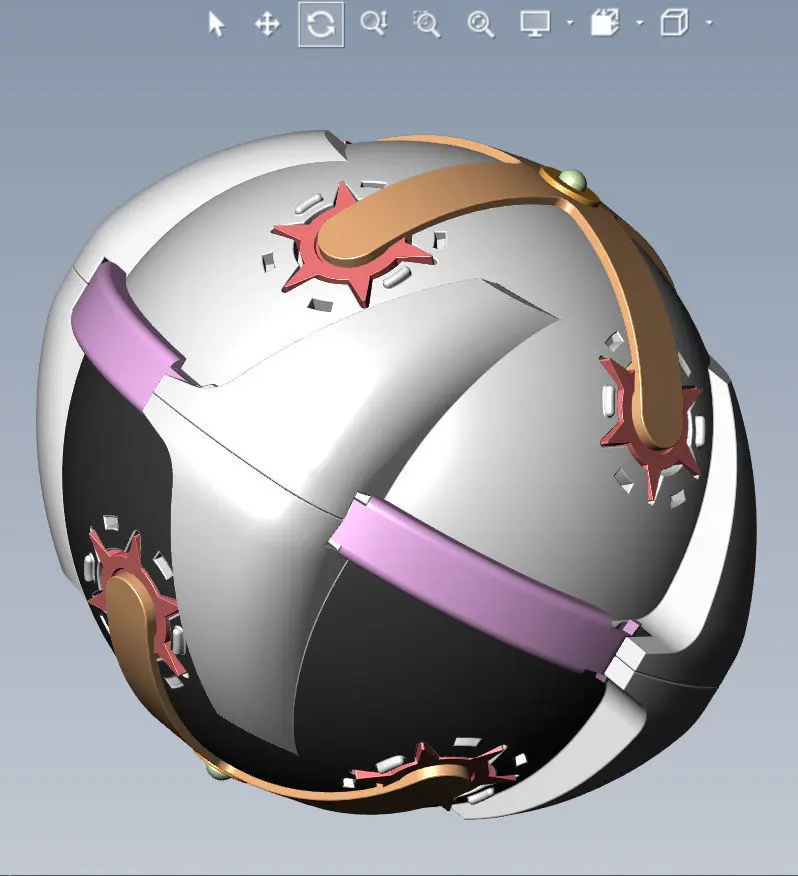

The model is made in SolidWorks. It is intended primarily for 3D printing stand model - training model,
for use as a visual aid and is not a complete copy of the external forms of the original product. Although it does display all the basic external elements. The model is adapted for the possibility of 3D printing and subsequent assembly of the product layout.

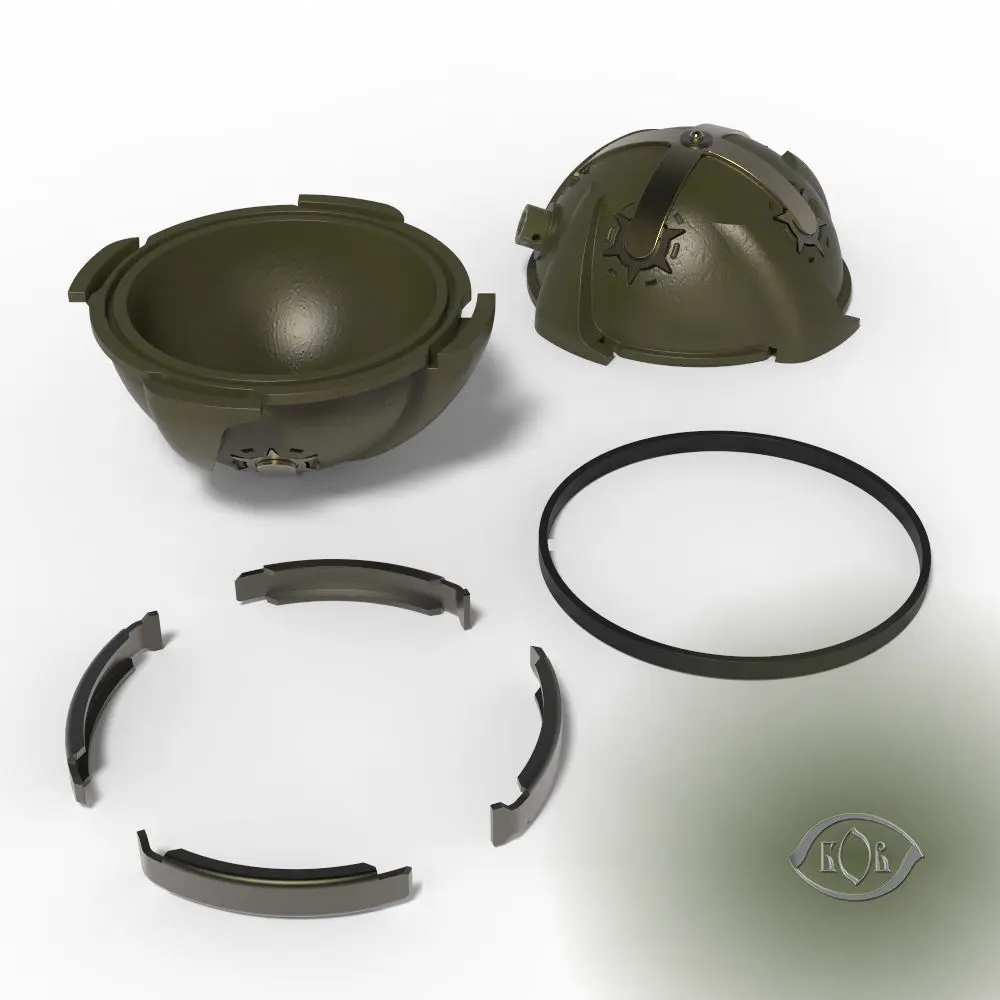

The model is assembled, contains files of all conditional parts (STL) in high-polygonal version to obtain qualitatively smooth forms. Additionally,
the set contains all files for obtaining high-quality realistic visualization with close-ups (smooth lines, selected surfaces for applying materials or textures),
texture file are texture inscriptions (markings) for applied to surfaces.(see rendering examples).
In addition to solid model file formats, converted high detail polygonal file formats are additionally provided.
Mesh:
Vertices 960517
Faces 1920970
(obj)
Please rate and write a review about this model.
If you have any questions, please message me.
Thank you.
SLDPRT (SolidWorks, filesize: 8.35 MB), OBJ (OBJ, filesize: 32.9 MB), FBX (Autodesk FBX, filesize: 41.9 MB), MAX (Autodesk 3ds Max, filesize: 43.6 MB), IGE (IGES, filesize: 2.37 MB), STL (Stereolithography, filesize: 17.6 MB), STP (STEP, filesize: 2.23 MB), X_T (Parasolid, filesize: 1.74 MB), TEXTURES (Textures, filesize: 6.57 KB)
