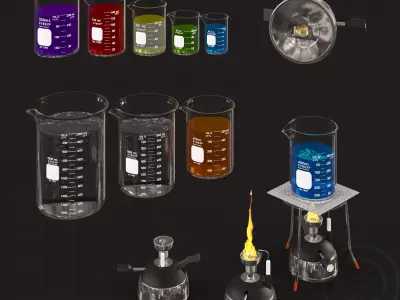

DIMENSIONS (mm)

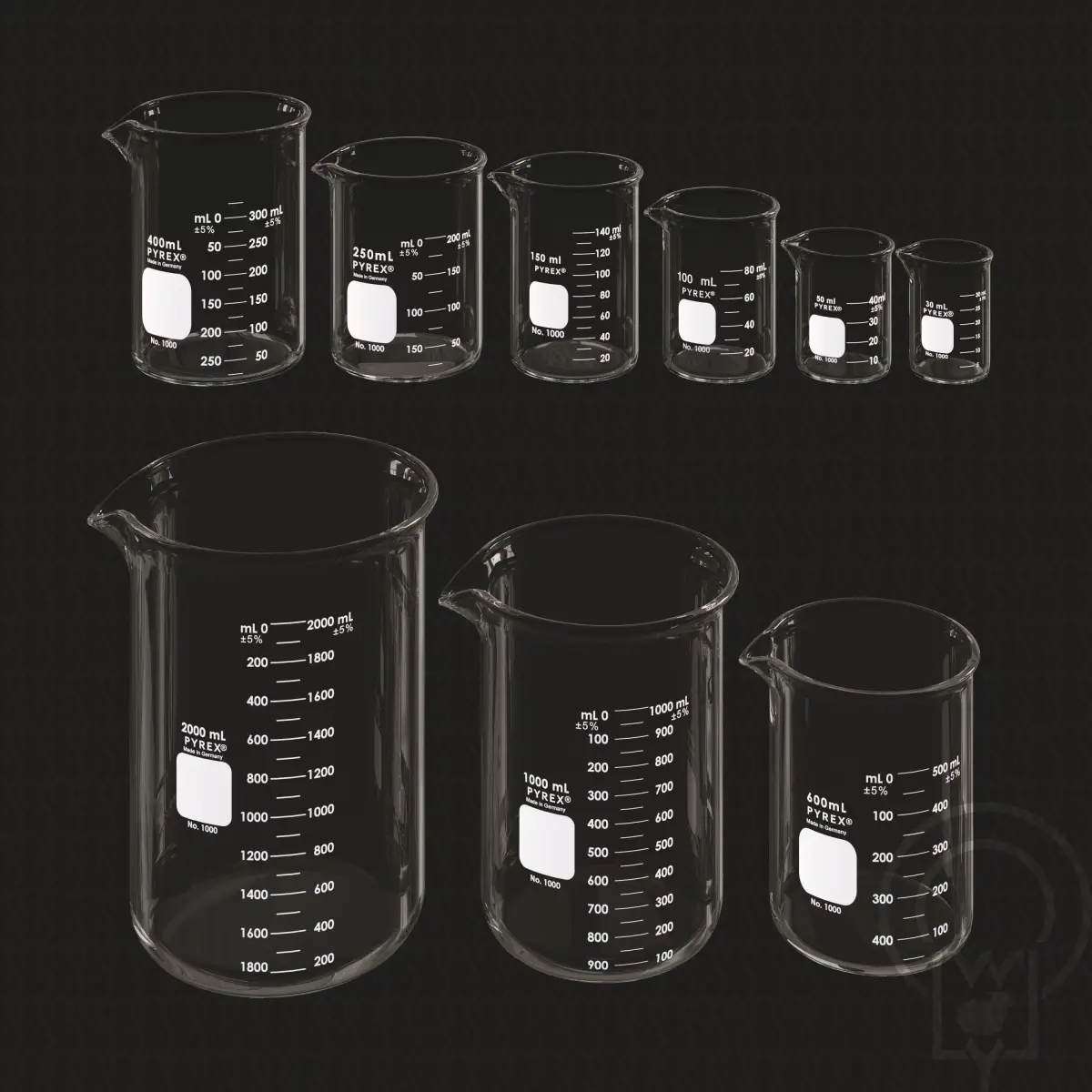

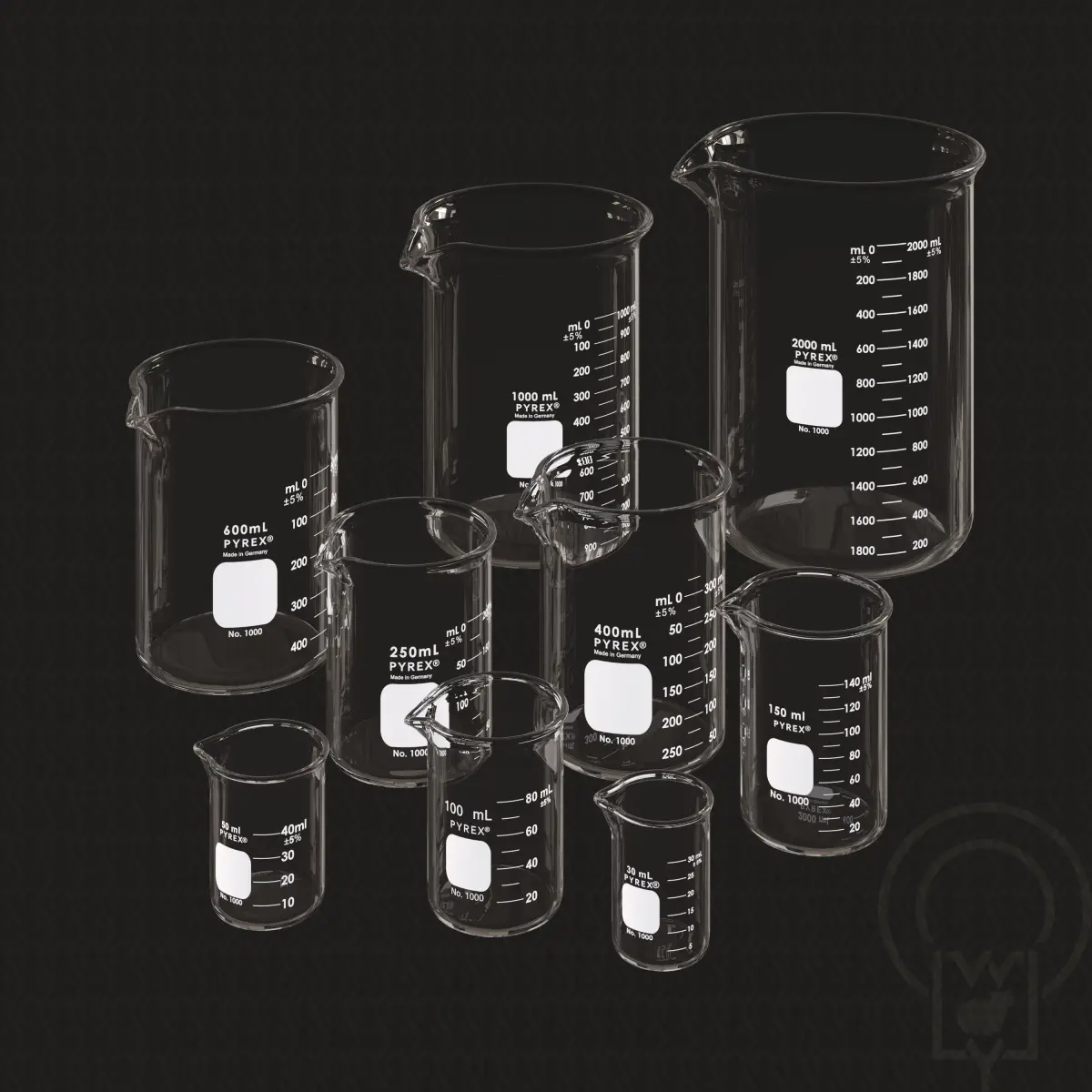

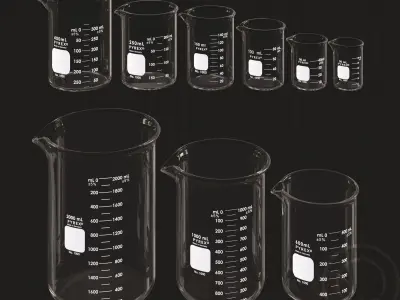

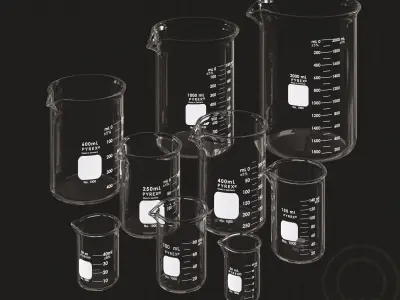

BEAKERS (mm) • Low-form / Griffin form
- 30 mL: Ø35 x H53 • 5mL increment
- 50 mL: Ø42 x H56 • 10mL increment
- 100 mL: Ø50 x H72 • 10mL increment
- _____
- 150 mL: Ø57 x H86 • 10mL increment
- 250 mL: Ø68 x H90 • 25mL increment
- 400 mL: Ø77 x H110 • 25mL increment
- _____
- 600 mL: Ø90 x H124 • 50mL increment
- 1000 mL: Ø108 x H158 • 50mL increment
- 2000 mL: Ø131 x H193 • 100mL increment
TRIPOD (mm) • for portable burner

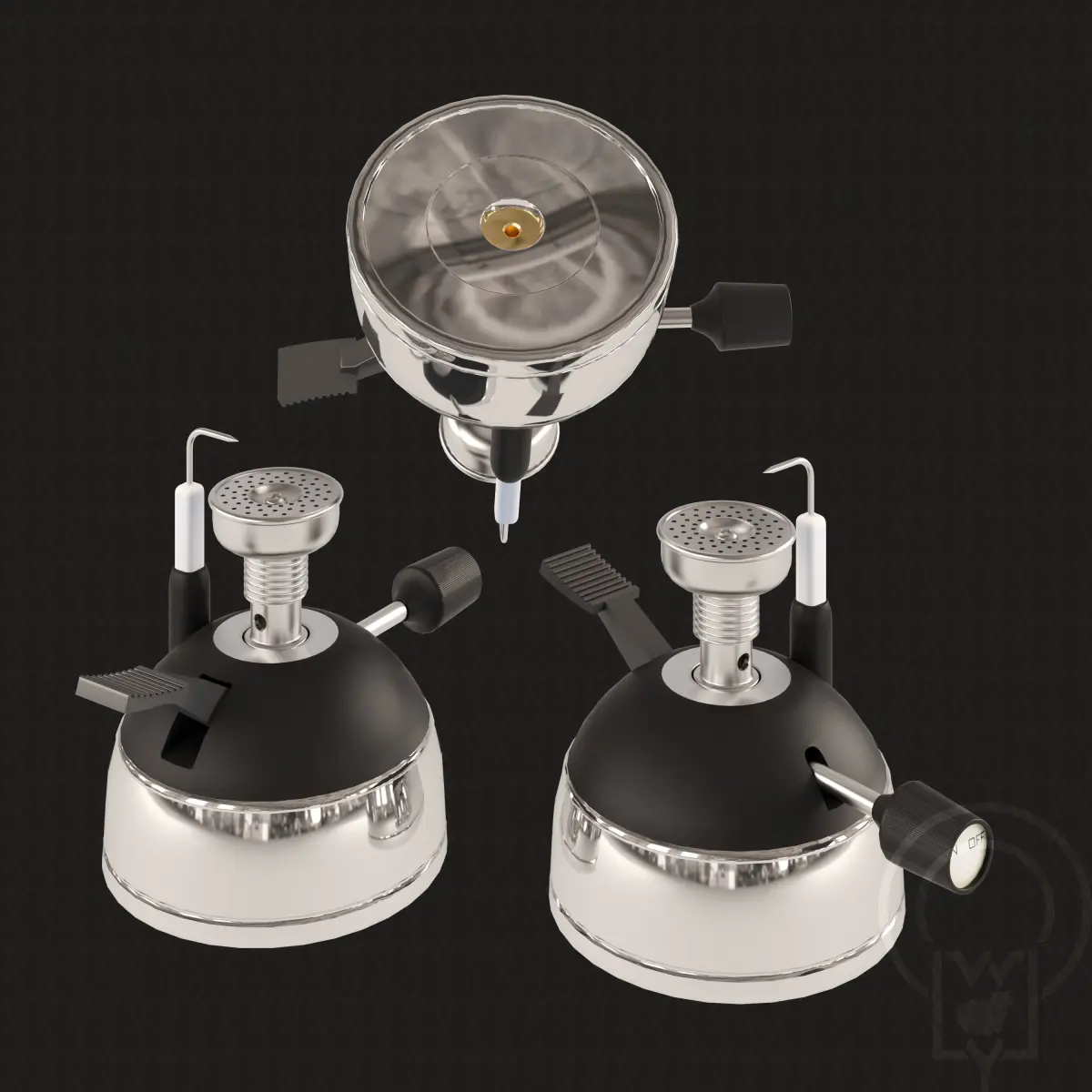

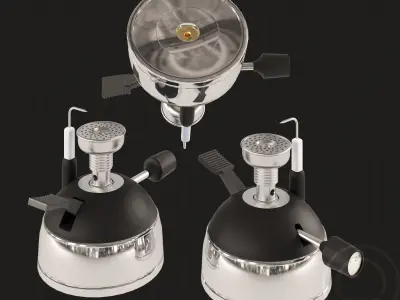

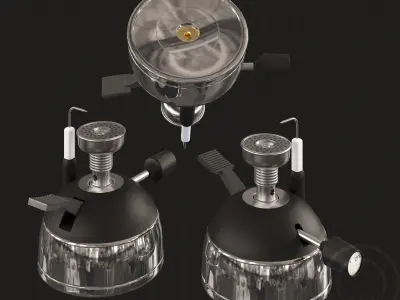

BURNER (mm) • portable
WIRE GAUZE (mm) • portable
FILE SIZE
- Material Library + Maps: 3.3 MB •
- Max file: 12 MB (uncompressed) • 2011, 2014 •
PYREX lab glassware, markings are spaced accurately (limited to Euclidean Geometry) in photoshop after using formulae for volume; mL = cc, cm³, therefore using the height for respective volumetric values as spacer distances between marking lines.
REFERENCE PRODUCT LINKS HERE:
https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-30-ml/
https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-50-ml/
https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-100-ml/
https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-150-ml/
https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-250-ml/
https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-400-ml/
https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-600-ml/
https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-1000-ml/
https://www.homesciencetools.com/product/pyrex-beaker-griffin-low-form-2000-ml/
https://www.homesciencetools.com/product/tripod-burner-stand-5-inch/
https://www.homesciencetools.com/product/portable-micro-lab-burner/
NOTE: Candle's flame is 2D, made with 2 planes intersecting each other. Does NOT have Vray light object.
RENDERINGS
- Previews are rendered in 3DsMAX 2016, 2014 with V-Ray 3.20.02.
- Please note that the studio scenes, light, cameras, and environment settings are not included.
Check profile for discount code.If you like this product, please rate it. Thank you!
MAX (Autodesk 3ds Max, filesize: 24.5 MB), FBX (Autodesk FBX, filesize: 8.08 MB), MAX (Autodesk 3ds Max, filesize: 24.5 MB), 3DS (3D Studio, filesize: 3.75 MB), TEXTURES (Textures, filesize: 2.25 MB), MAT (mat, filesize: 512 KB)
