Name: Precision Drill and Tap Alignment Jig Set 3D print model
Brand: spoocane777
SKU: 636371
Price: 15.00 USD
Availability: InStock

$15

License: Editorial No Ai

author:

spoocane777

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «spoocane777». CGhub does not claim copyright ownership over the content used.

This 2-pack precision jig set combines a drill guide jig and a tap alignment jig to improve accuracy and consistency during drilling and hand-tapping operations. Designed for workshop, garage, and jobsite use, this set helps reduce bit wander, crooked holes, and misaligned threads.

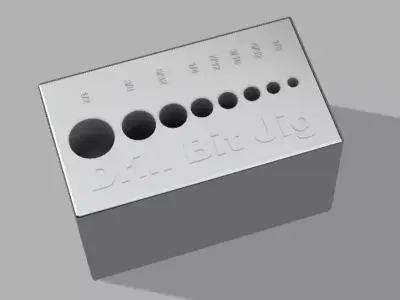

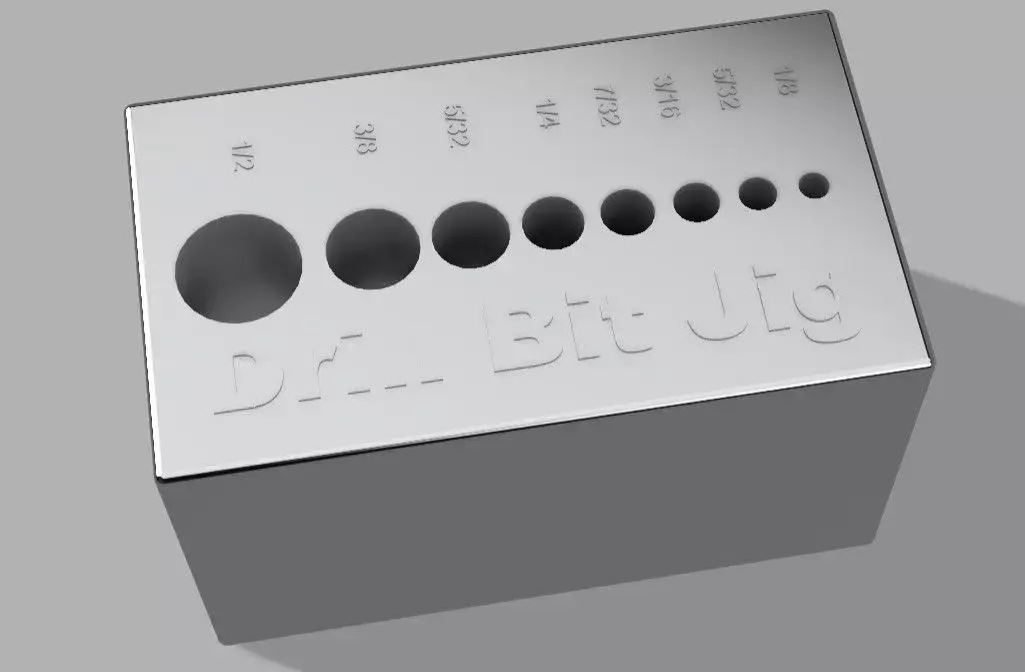

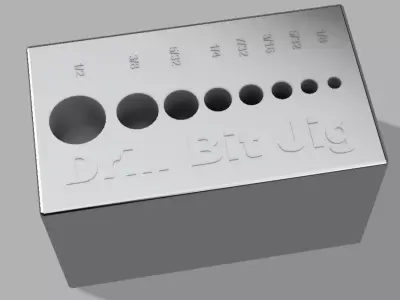

The drill guide jig features a compact 1.75 × 3.00 × 1.00 inch body with eight integrated guide holes for common imperial drill bit sizes: 1/8, 5/32, 3/16, 7/32, 1/4, 5/16, 3/8, and 1/2. Each guide hole is precisely aligned to help produce straight, repeatable holes in wood, plastics, and light metals.

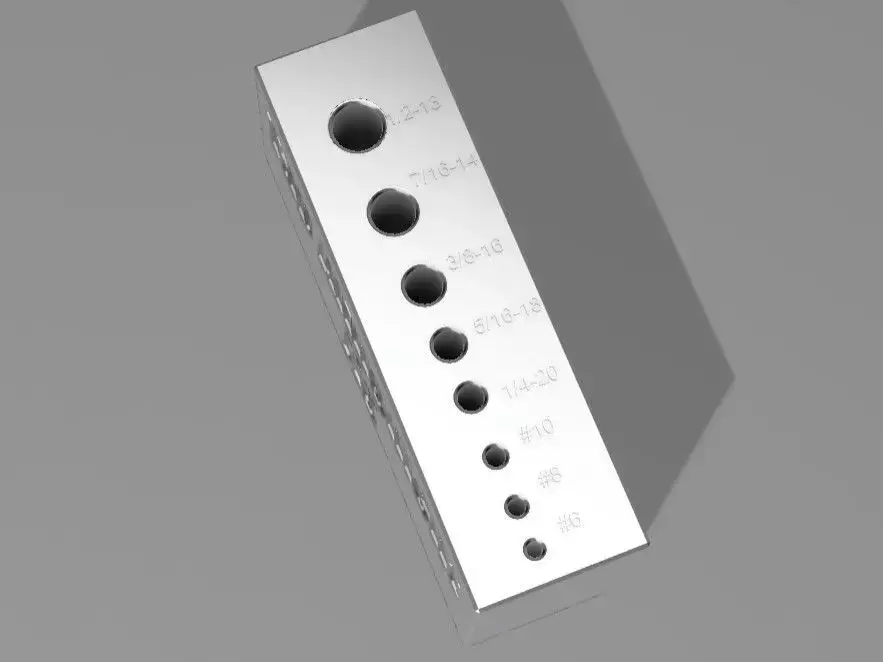

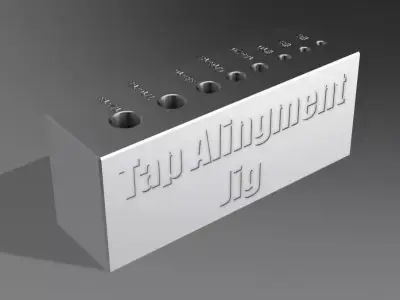

The tap alignment jig uses a rigid 2.00 × 4.00 × 1.25 inch body and includes eight guide holes sized for the most commonly used imperial taps: #6, #8, #10, 1/4-20, 5/16-18, 3/8-16, 7/16-14, and 1/2-13. The perpendicular guide holes help ensure clean, square tap starts and reduce the risk of damaged threads or broken taps.

Both jigs are optimized for 3D printing and can be printed in PLA+, PETG, or ABS with no supports required. Flat bases ensure proper seating on the workpiece, making this set ideal for machinists, fabricators, woodworkers, and DIY users who want reliable, professional-grade results.

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Polygons: 0
Vertices: 0
Geometry: Manifold geometry | No N-gons |

Tags

Tools Drilling Tapping Jig Fixture Precision Machining Workshop Woodworking Metalworking Tool Organizers Tools organizers Woodworking tools Woodworking jig
