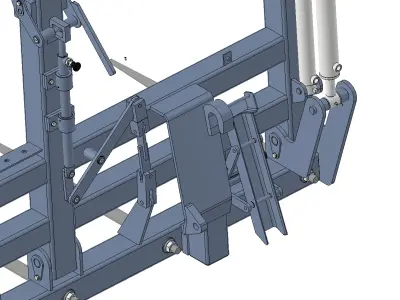

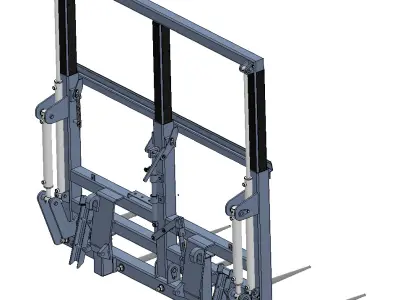

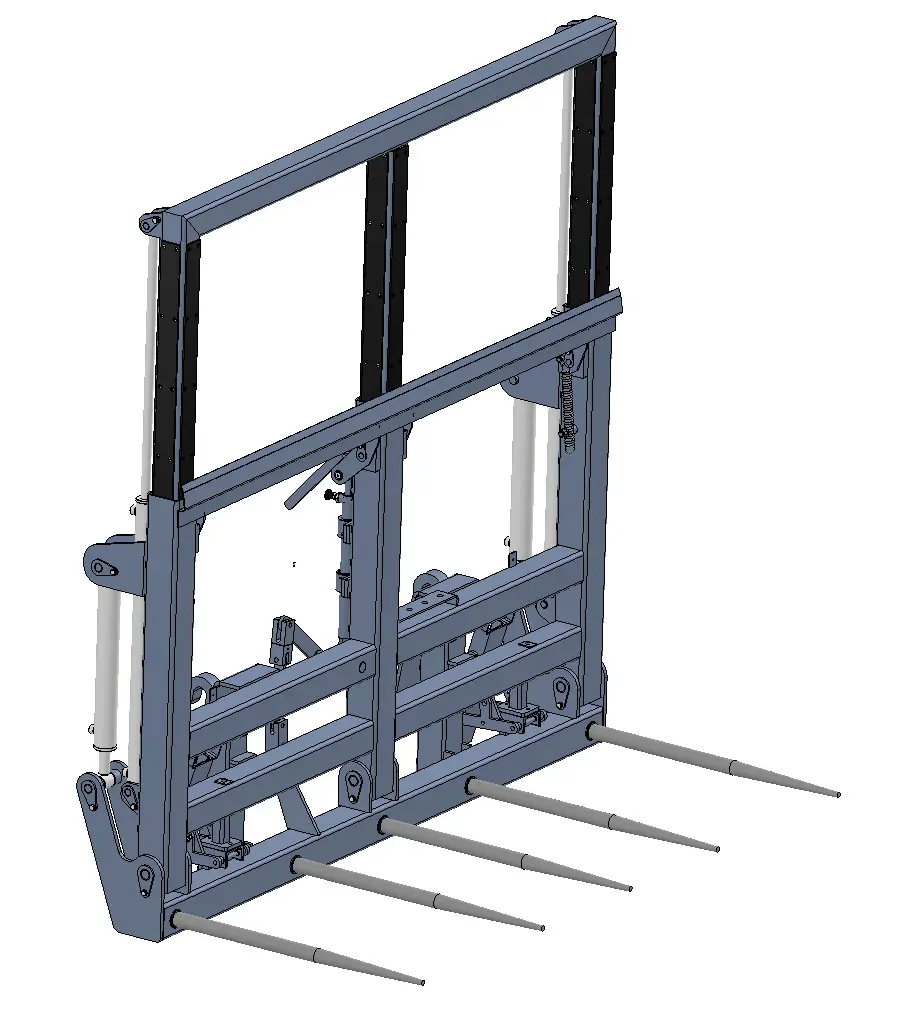

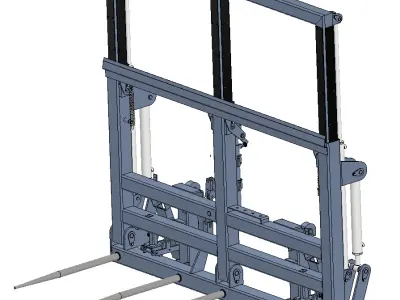

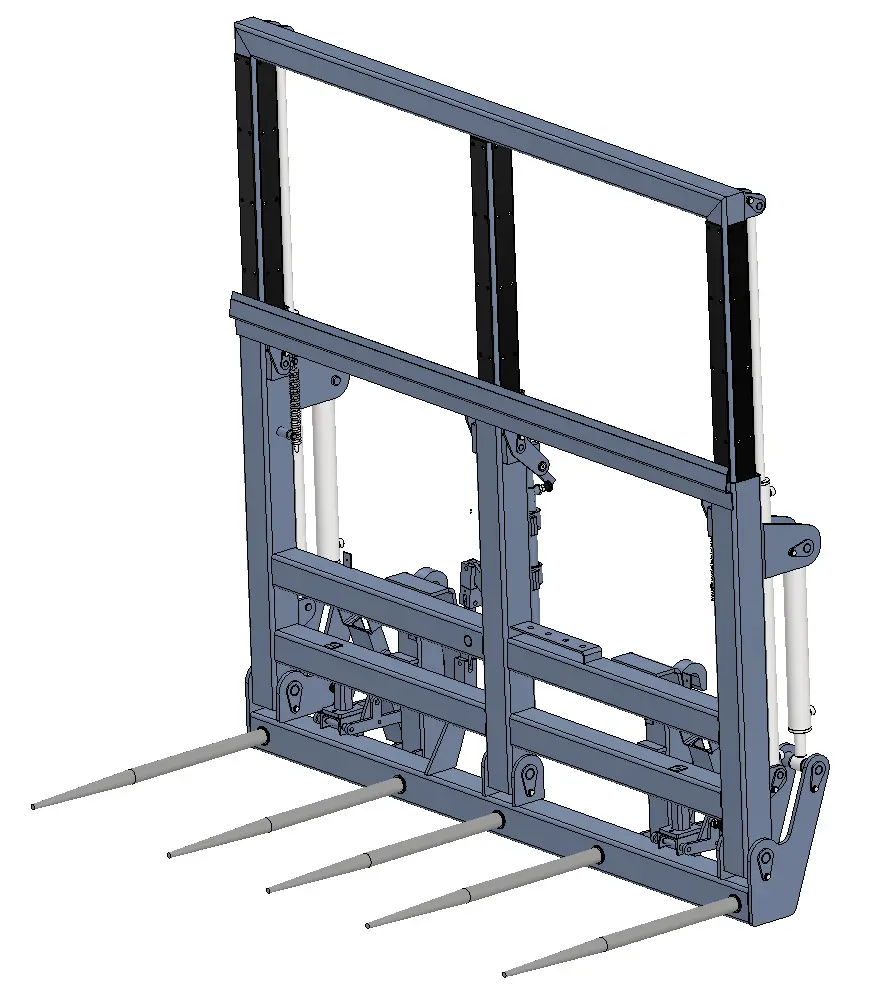

Professional CAD Model of a Hydraulic Bale Fork 3D model

$60

License: Royalty Free No Ai Html

author:

knm-konstruktion

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «knm-konstruktion». CGhub does not claim copyright ownership over the content used.

A well-designed hydraulic bale fork is an essential tool for efficiently transporting and handling hay or straw bales. A self-made hydraulic bale fork should be built with sturdy steel construction to ensure durability and high load capacity. The frame should feature reinforced welding and a robust hydraulic system for smooth and reliable operation.

Key features of a high-quality DIY hydraulic bale fork:

Heavy-duty steel frame for long-lasting performance
Hydraulic cylinders for precise bale gripping and release
Adjustable tines to handle different bale sizes
Secure locking mechanism to prevent slippage
Quick-attach system for easy mounting on tractors or loaders

For maximum efficiency, high-quality hydraulic components should be used, ensuring smooth operation and minimal maintenance. The design should focus on practicality and safety, making it an indispensable tool for agricultural work.

The bill of materials is included as a PDF

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 0
Vertices: 0

Tags

Cad Model 3d Hydraulic Bale Fork Grab Agriculture Machinery Mechanical Engineering Construction Hydraulics Mechanics Precision Manufacturing Cnc Industrial Machine Industrial machine
