Publication date: 2020-01-14

PROPELLER AP-PR-004 3D print model

$8

License: Royalty Free License

author:

adampolak

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «adampolak». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $8 Add to Wishlist
  • Description
  • Formats
Description

Propeller for Cox Pee Wee engine for small RC plane.

This traditional shape propeller is designed with small pitch rate to be ideal option for small engines with small torque but higher RPM.It has the optimal shape for small historical RC models with small drag and torque, but good thrust performance.

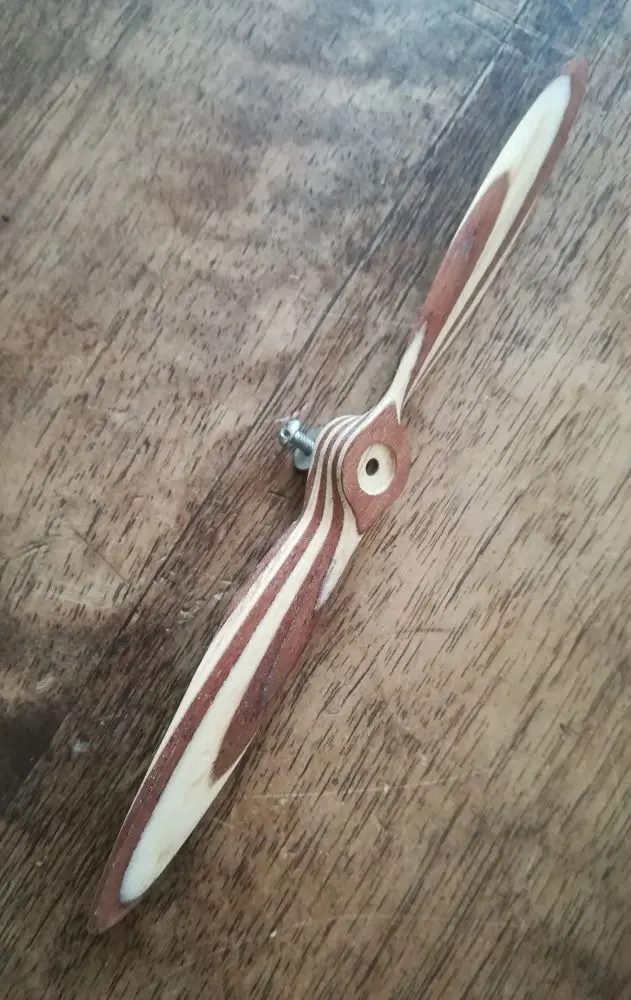

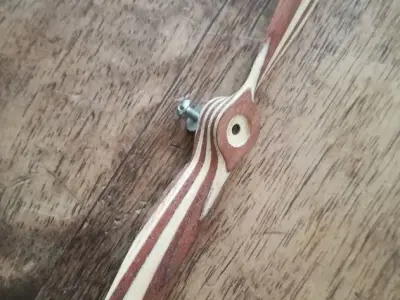

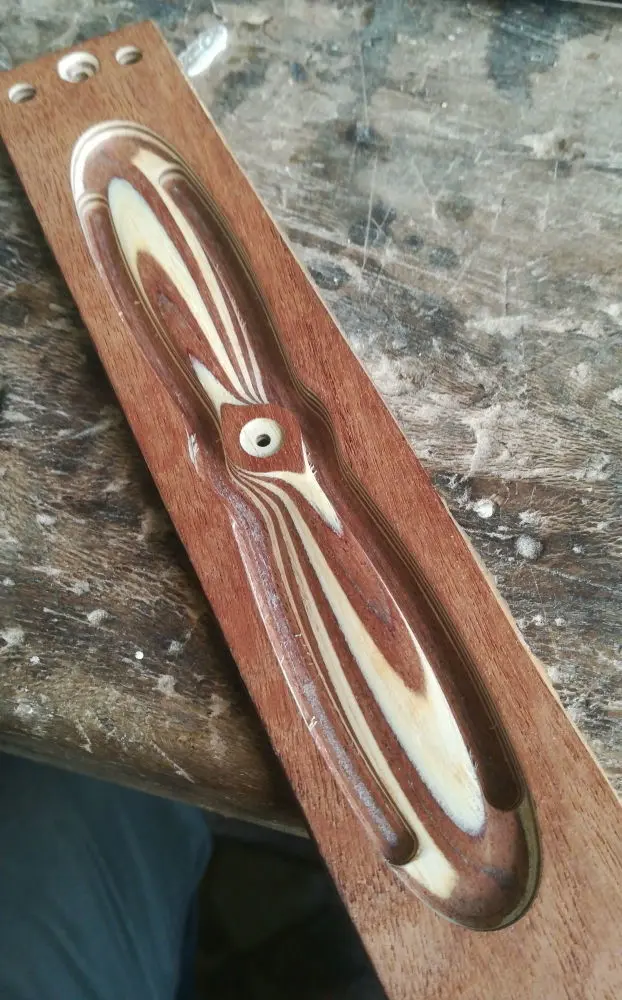

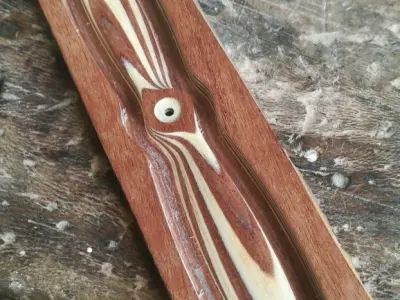

Ideal manufacturing method for this propeller is CNC machining of hard wood.Or casted synthetic polymers such as Nylon.It can be also 3D printed. (with high resolution printers)

Diameter: 150 [mm]

Pitch: 50 [mm]

Pitch ratio: 0.33

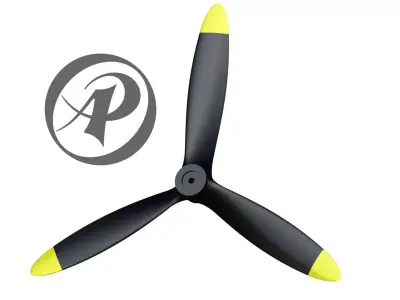

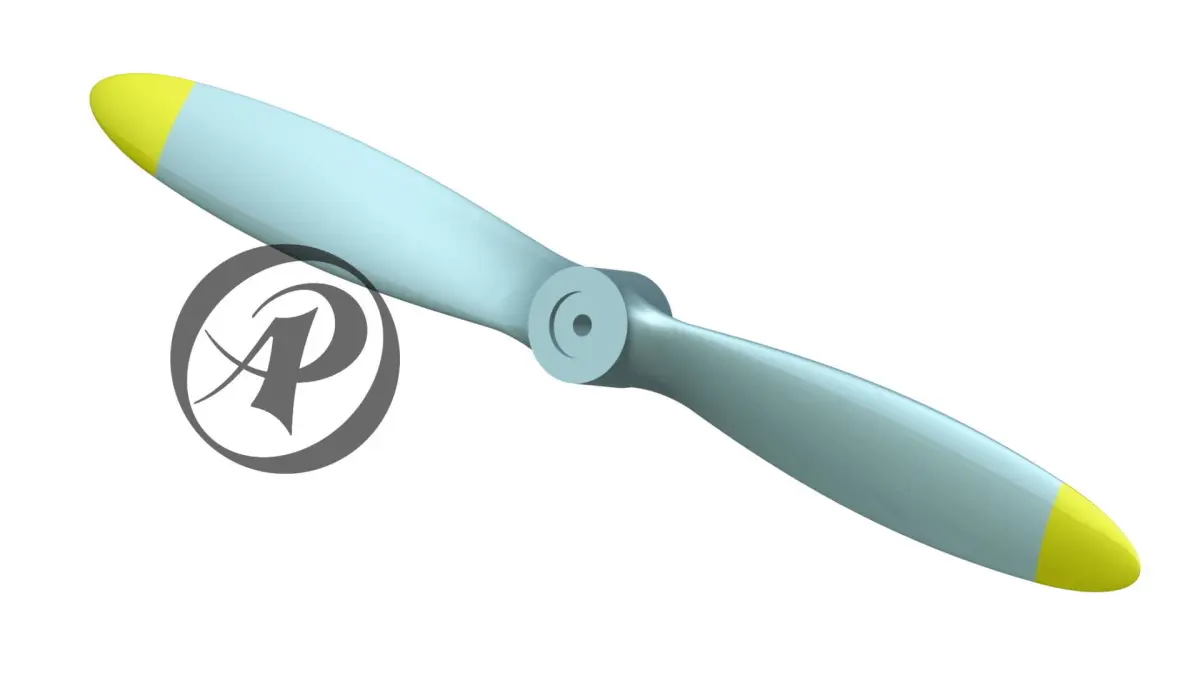

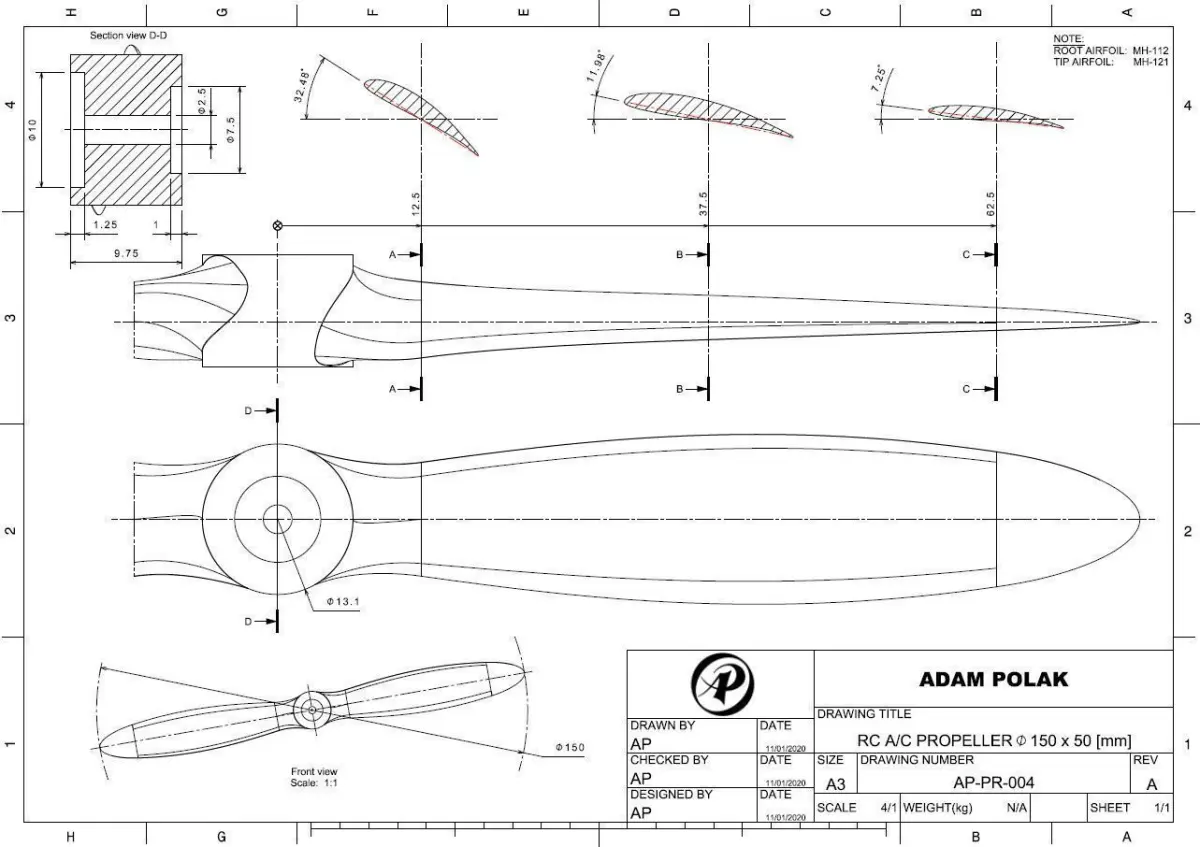

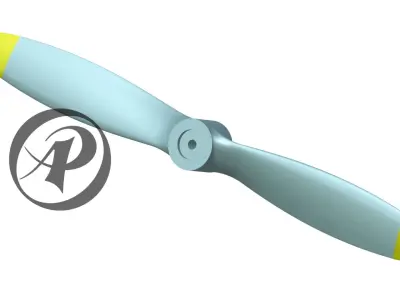

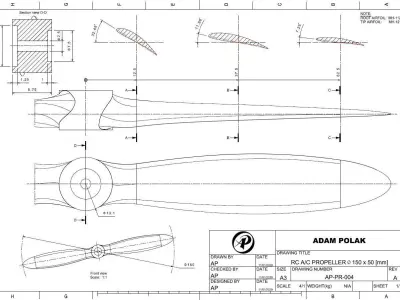

This is a set of four propellers with two and three blades (RH & LH rotation) with blade design AP-PR-004. (see attached drawing and presentation for blade and hub design)

Content:

Right-Hand rotation:

  • 2 blades propeller (*.stl; *.stp; *.igs)
  • 3 blades propeller (*.stl; *.stp; *.igs)

Left-Hand rotation:

  • 2 blades propeller (*.stl; *.stp; *.igs)
  • 3 blades propeller (*.stl; *.stp; *.igs)

12x models in total

1x drawing

1x design presentation

Please fill attached form if You would like to order bespoke propeller design.
  • Stereolithography () (4 files)50.9 MB
  • IGES () (4 files)6.57 MB
  • STEP () (4 files)6.76 MB
  • PDF () (3 files)634 KB

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: Unknown
  • Vertices: Unknown

Tags

Rc Plane Aircraft Propeller Aviation Airfoil Print Drawing Parts Hobby diy Mechanical parts Engine Aircraft engine Engine parts Hobby Diy Mechanical
