I present a 3D model of a PTM1 remote installation anti-tank mine 3D Printable Moulage
Historical note.
PTM-1 , Anti-tank mine.
mine, is a Soviet pressure-action anti-tank mine.
remote mining mine developed in the Soviet Union in the 1980s.
It has been actively used nowadays since 2014 in the Russian-Ukrainian war.
The PTM-1 mine is placed on the ground by means of PKM-1, VSM-1 or UMZ
remote mine-laying systems when using remote mine-laying cassettes
that hold three mines each, as well as by Uragan MLRS multiple rocket launchers.

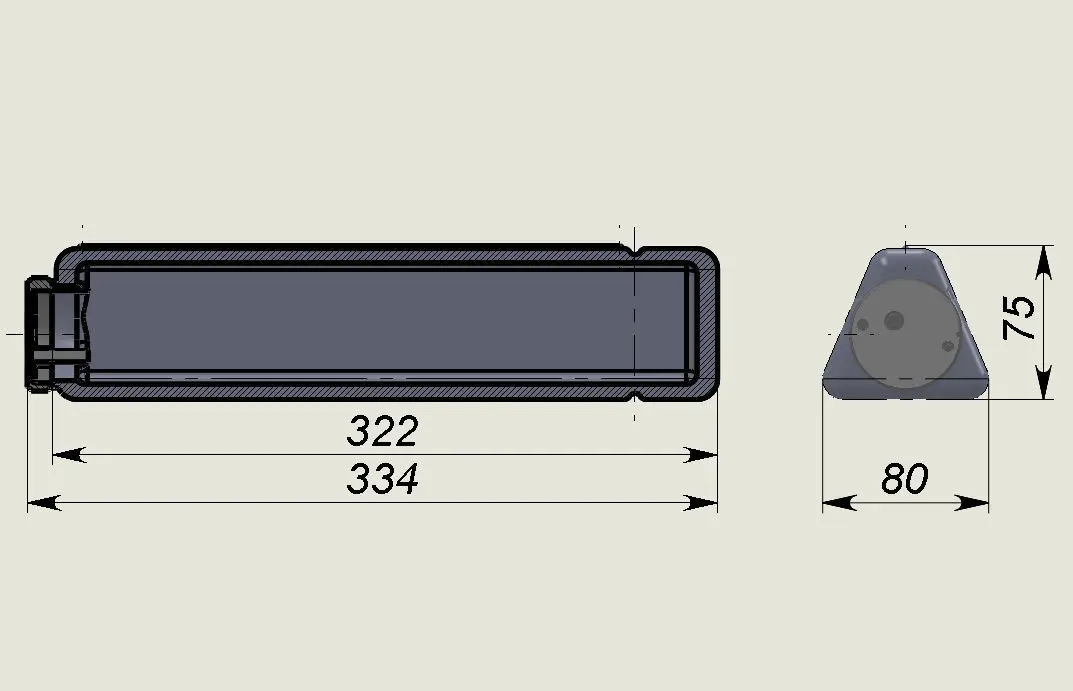

Model dimensions 332x80x75 mm.

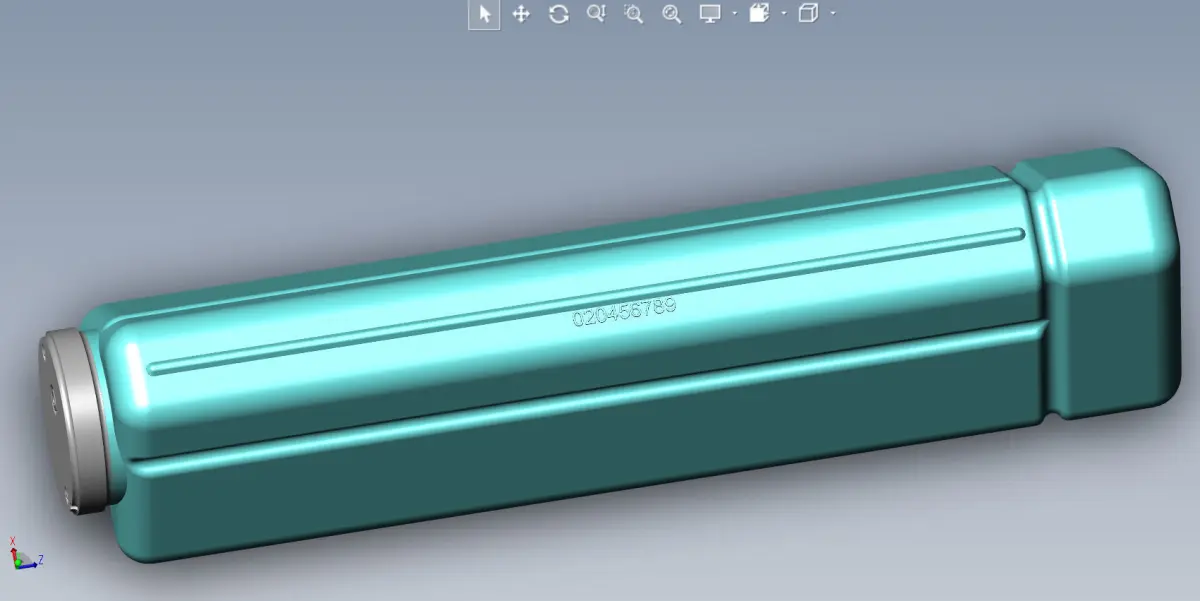

The model is made in SolidWorks 2012. It is primarily for 3D printing of a stand model
for use as a visual aid and is not a complete copy of the external forms of the original product,
although it displays all the necessary elements. Adapted for the possibility of 3D printing
and subsequent assembly of the product layout.
The model is technical - assembled, contains files of all parts (STL)
in high-polygonal version to obtain qualitatively smooth forms.
Additionally, the kit contains all files (in two versions - working and compact)
to obtain high-quality realistic visualization with close-ups (smoothness of lines, selected surfaces for the purpose of materials or textures)
in KeyShot 5.0, The kit contains a file .ksp
(containing everything necessary to obtain realistic visualizations of the model in two versions)

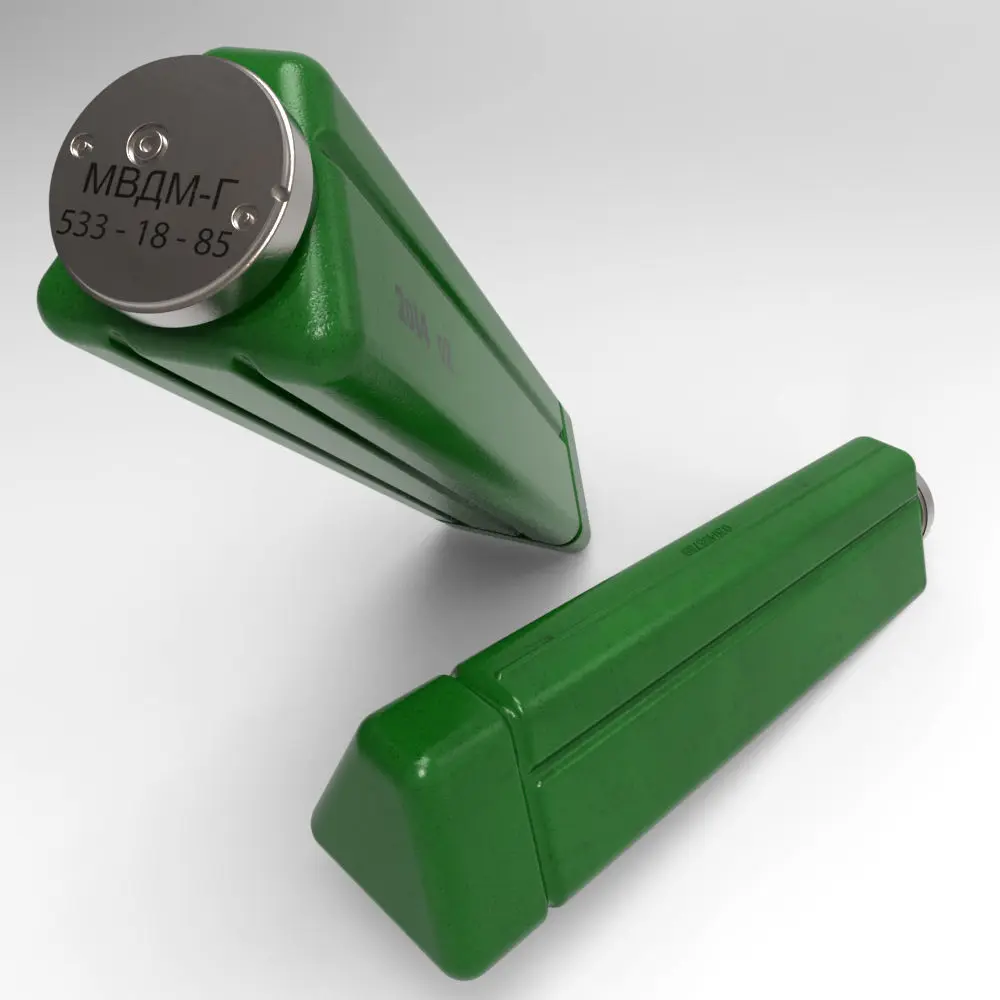

and texture inscriptions for application on surfaces.(see rendering examples).
In addition to solid model file formats, converted polygonal file formats in high detail are additionally provided.
Mesh:
Vertices 203896
Faces 407786
(obj)
Please rate and write a review about this model.
If you have any questions, please feel free to email me.
Thank you.
SLDPRT (SolidWorks, filesize: 2.15 MB), OBJ (OBJ, filesize: 6.89 MB), FBX (Autodesk FBX, filesize: 7.72 MB), MAX (Autodesk 3ds Max, filesize: 9.01 MB), IGE (IGES, filesize: 631 KB), STL (Stereolithography, filesize: 2.5 MB), STP (STEP, filesize: 795 KB), X_T (Parasolid, filesize: 429 KB), TEXTURES (Textures, filesize: 15.6 KB), BIP (KeyShot, filesize: 6.75 MB)
