Quick Return Mechanism 3D model buy

Publication date: 2022-08-17

Buy Quick Return Mechanism 3D model buy

$5

License: Royalty Free

author:

hw-blue

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «hw-blue». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $5 Add to Wishlist
  • Description
  • Formats

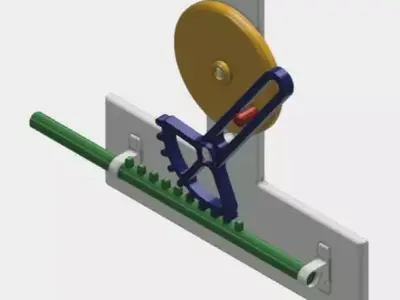

A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It is driven by a circular motion source (typically a motor of some sort) and uses a system of links with three turning pairs and a sliding pair. A quick-return mechanism is a subclass of a slider-crank linkage, with an offset crank.

STP (STEP, filesize: 430 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Quick Return Mechanism Apparatus Reciprocating Motion Stroke Circular Motor Crank Industrial Tool
