Publication date: 2021-01-04

Rack and Pinion 3D print model

$3

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

ereid01

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «ereid01». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $3 Add to Wishlist
  • Description

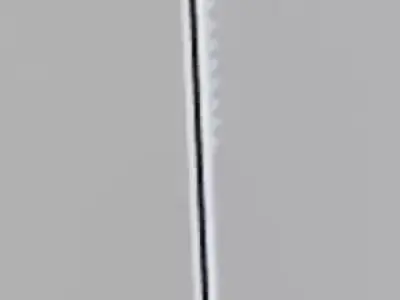

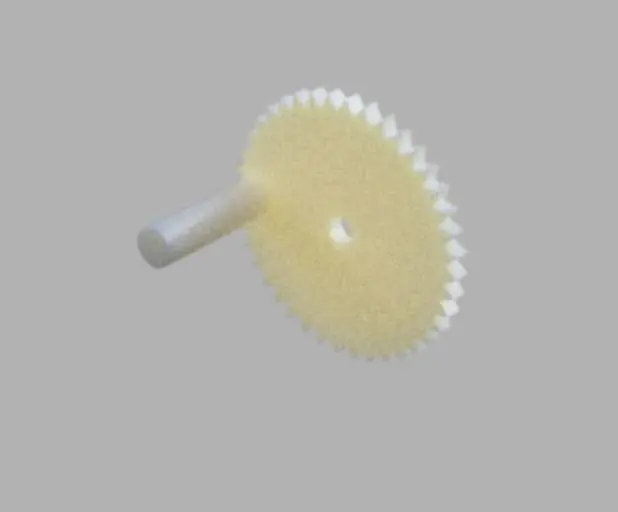

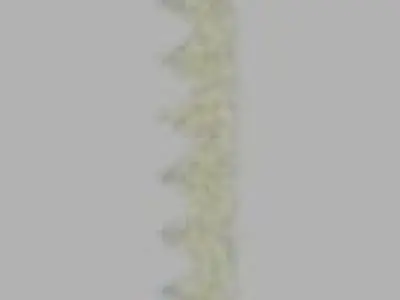

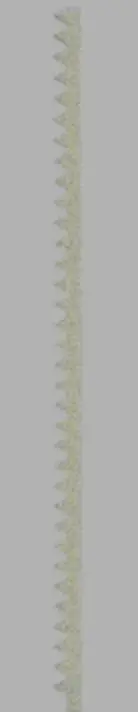

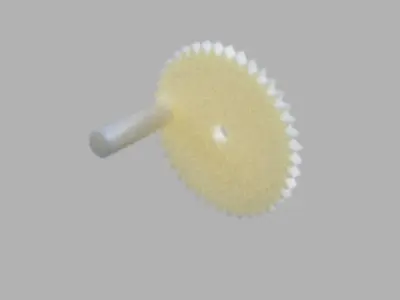

Rack and pinion included with pin. I used this for a water pump, but it is a universal mechanical system for transfering rotational to linear motion, so could be used for almost anything. The teeth of the gear and shaft were hand-designed so fit perfectly together with little slippage. I've also attached a video of how I used with my water pump.

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Unknown
  • Polygons: 0
  • Vertices: 0

Tags

Rack Pinion Gears Teeth Pin Rotional Motion Linear Water Pump Example Science Engineering Gear rack
