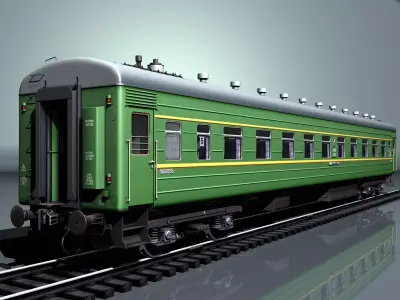

Buy Railway wagon type 66W plant-KVZ Low-poly 3D model

Name: Railway wagon type 66W plant-KVZ Low-poly 3D model
Brand: Urecky
SKU: 936380
Price: 85.00 USD
Availability: InStock

$85

License: Royalty Free No Ai

author:

Urecky

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «Urecky». CGhub does not claim copyright ownership over the content used.

4-axle, all-metall-corpus, passenger railcar type 66W (plant-KVZ) on 58 seats, sample 1952. (scheme shirring 2-2-1).Built by: KVZ, Kalinin wagon plant (Tver), later called the TVZ.

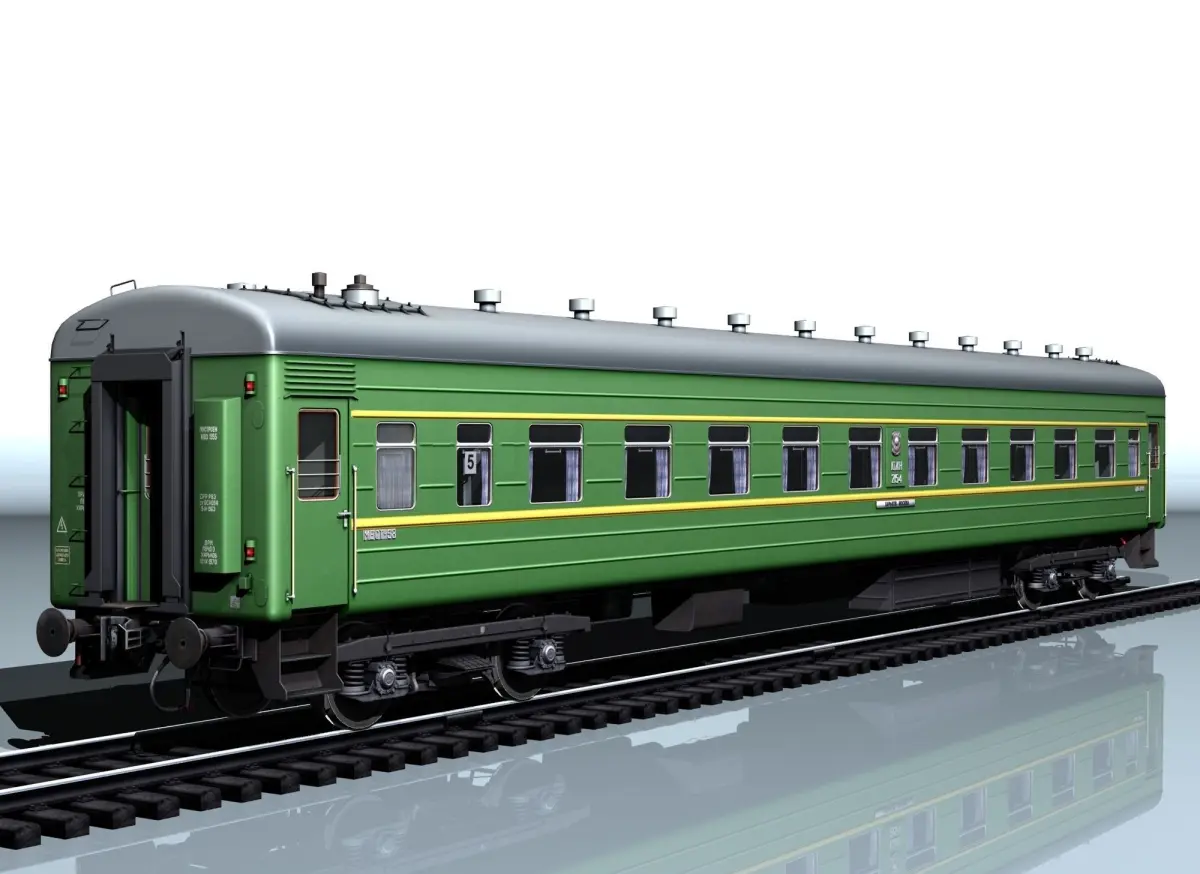

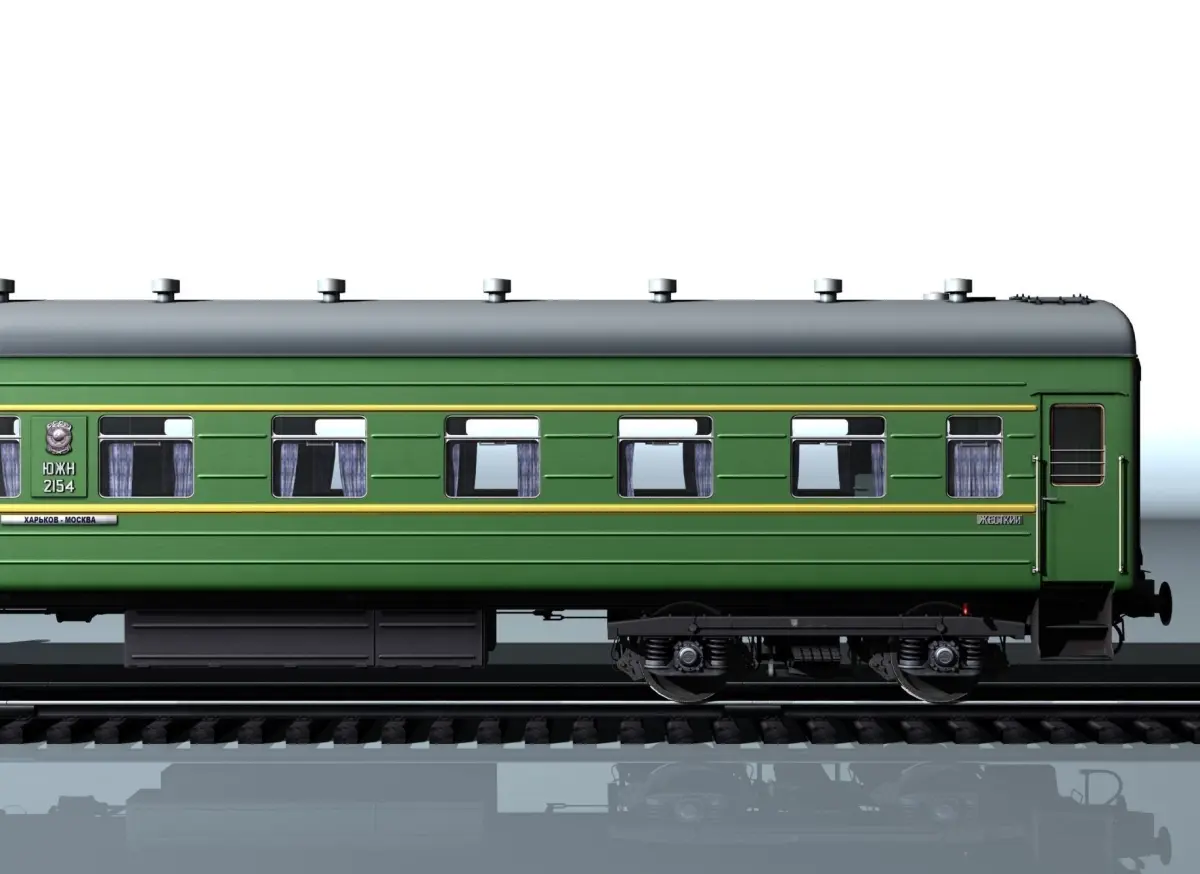

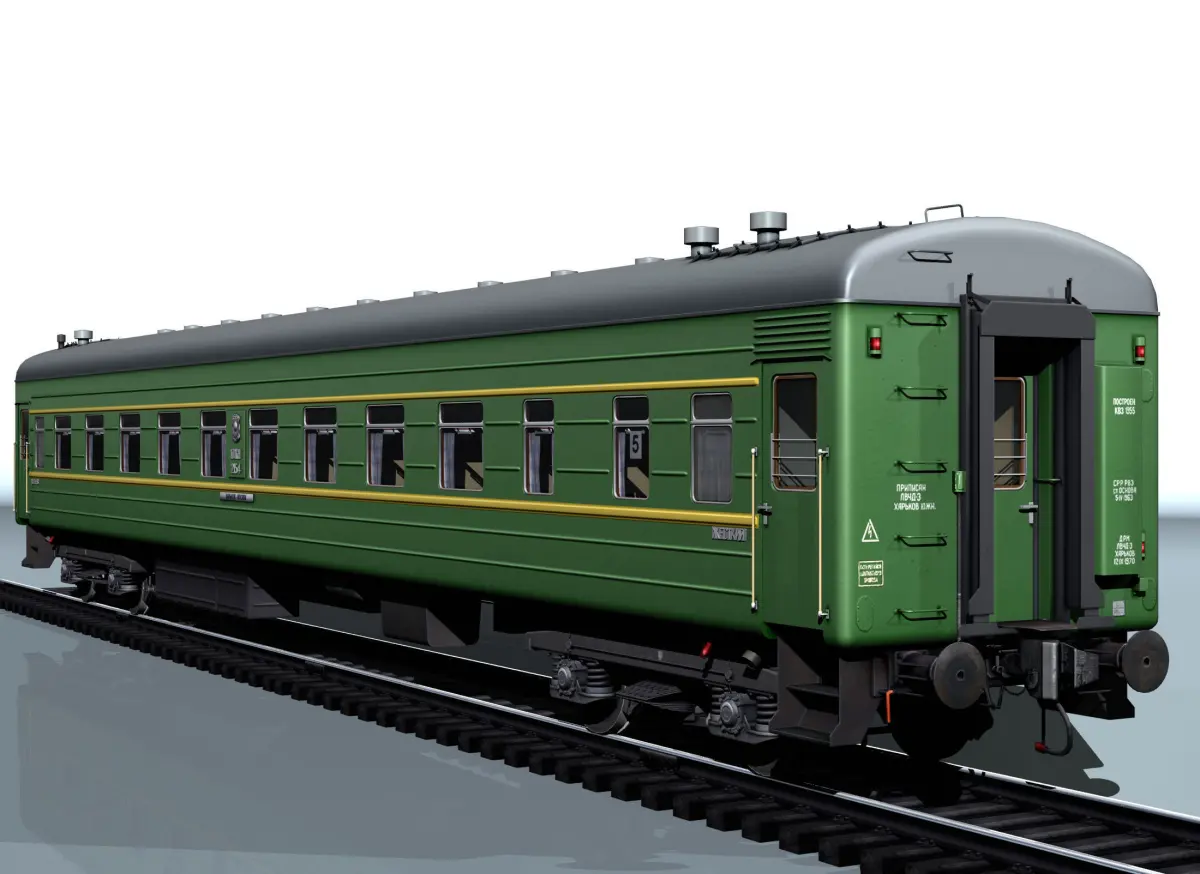

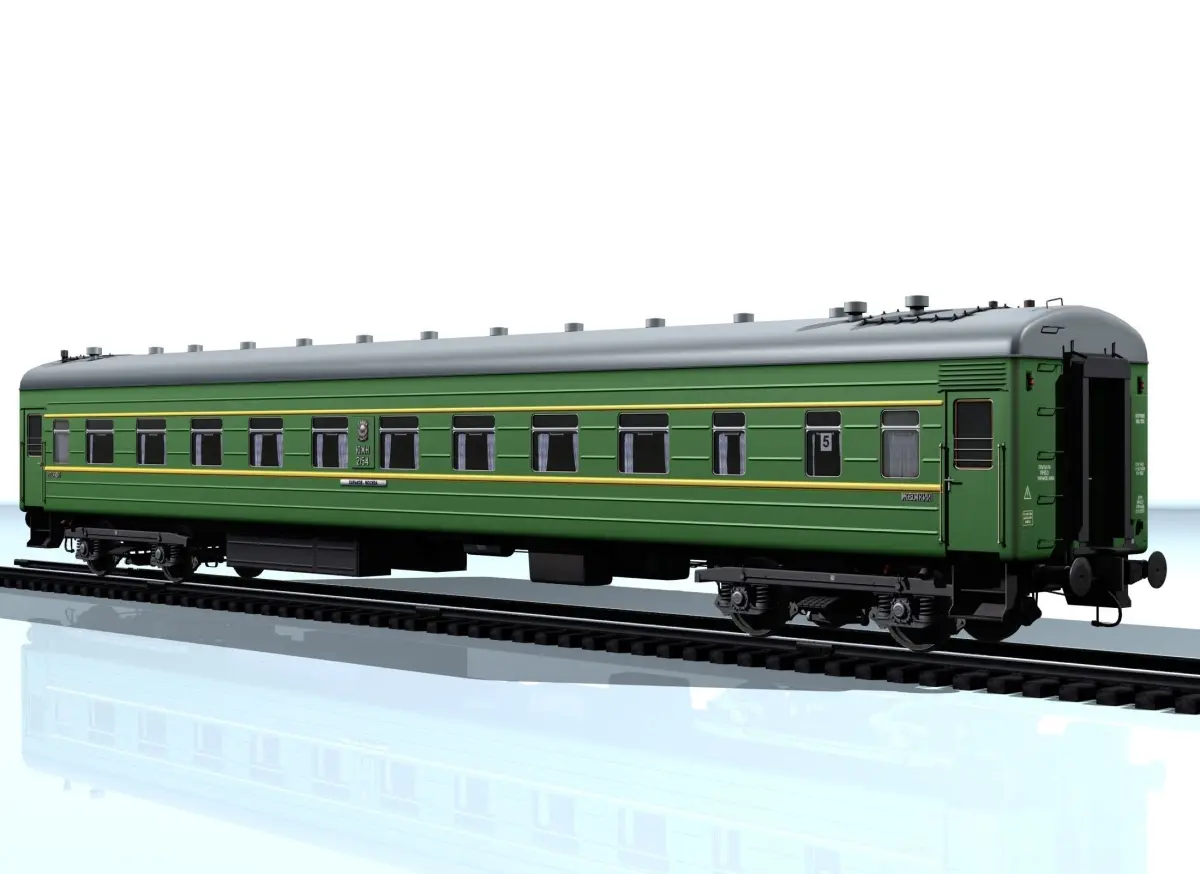

Model description:Model of the series Rolling stock of Railways of Russia and the USSR.Model category Lowpoly (faces- 135 800; verts- 84 300), made for visualization in various scenes, the gameplay, the simulators type Trainz (Auran) and mere...Units of model: [mm];Scale: M1:1uvw-mapping, textures in format .JPG.The model has a simple interior, the detailing of suspension and the braking system. Model high precision made according to the drawings provided by Uralvagonzavod.

Prototype Description:4-axle all-metal railcar type 66W on 58-seat, production of KVZ plant, sample 1952, type 66W.

The first series of all-metal passenger cars for the Soviet Railways after 1950.

Technical characteristics of the prototype:Hull length: 23,6 mWidth (full size): 3.22 mHeight (from rail head): 4.56 mThe base of the car: 17,0 mTare of wagon: 56tThe axis type - IIIHitch: automatic coupling type CA3Wheelbase: 4-axle, two bogie-type CMV.Wheels: rolled, cast iron with steel tires. Diameter 1050mm

Design features:Full metal corpus, smooth side of the case (without the ribs and moldings).Supporting frame with Two bearing beams with cross consolesHeating: water, independent.Lighting - electric mains.Ventilation: natural air supply with the discharge from the air stream.
