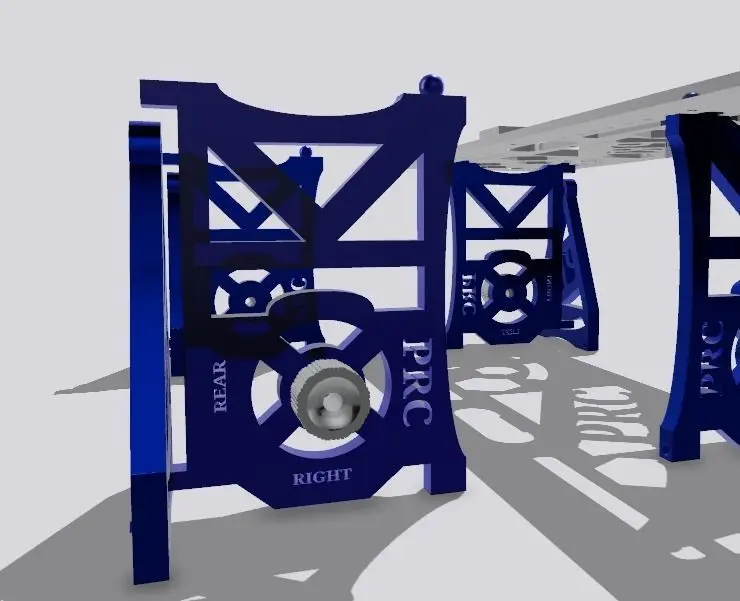

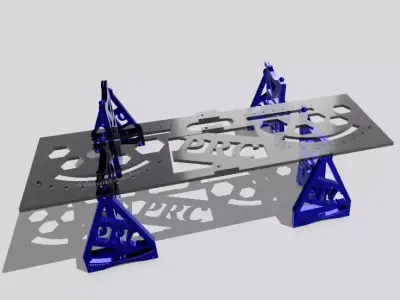

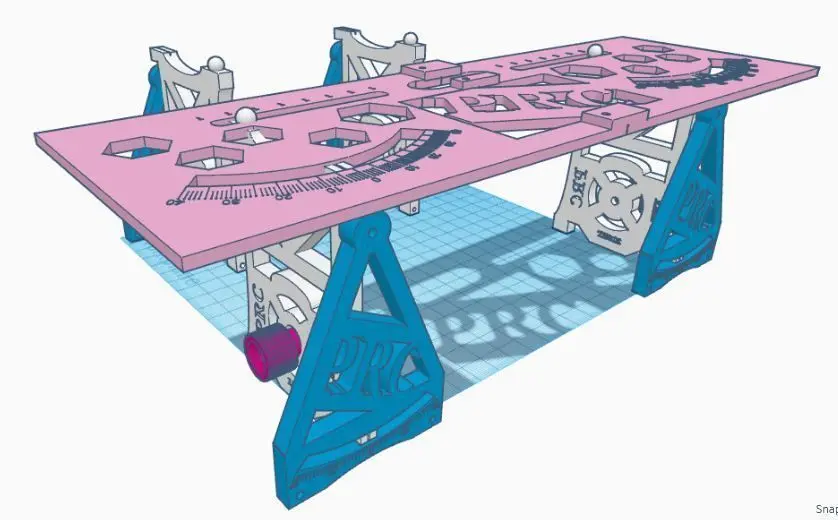

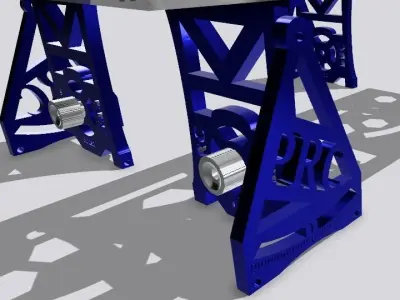

RC Car 1 10 Setup System 3D print model

License: Custom

author:

jipanmail

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «jipanmail». CGhub does not claim copyright ownership over the content used.

Trouble to check your 1:10 RC Camber or Toe check?

Buying a ready to use setup system out there is too expensive for you?I know it is a very-very an expensive tools in the market and also we are not using it everytime right? Borrowing from a another person never free your mind to own your setup system ^^

Here is your wise option to measure your RC 1:10 Camber and Toe

Print it and use it to measure your camber and toe all the way you want!

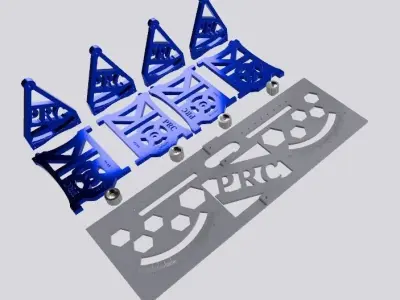

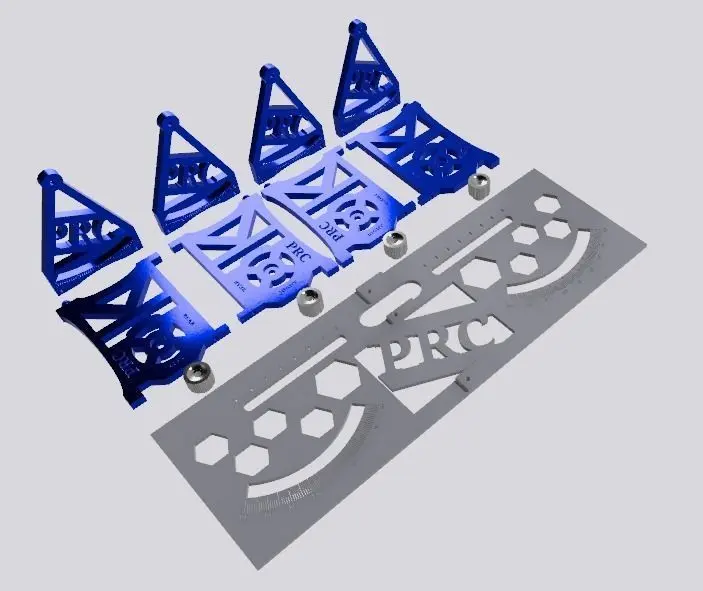

Additional item to complete assembly (minimal requirement) :Mini Ball Bearing 7x3x3 (OD x ID x THICK)M3 Phillip Screw and Nut 12mm @8pc, 6mm @4pc, 15mm @4pc, 8mm @11pc

UPDATE:-Revision 19/02/2022 :Add more depth for M3 screw hole on the bottom bearing stay

-Add On 19 February 2022!New STL file! Toe Gauge without top ball, change to M3 Hole to give liberty choosing real ball stud (Folder name: Toe Gauge Without Top Ball)

-Add On 14 January2023!New STL File! Add toe gauge height +10 mm from its original ground clearance to adequate some chassis that might touching the floor while using the setup system (Folder Name: Add On 14012023)

print with slow speed and set a low pitch as you can to have a detail on the ruler

Better print/paint it with grey colour so you don't have trouble reading the measurement

Most important is your 3d printer must be free from elephant foot effect
