RC Jet Boat 3D print model

Description

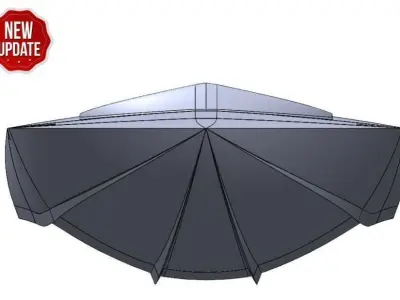

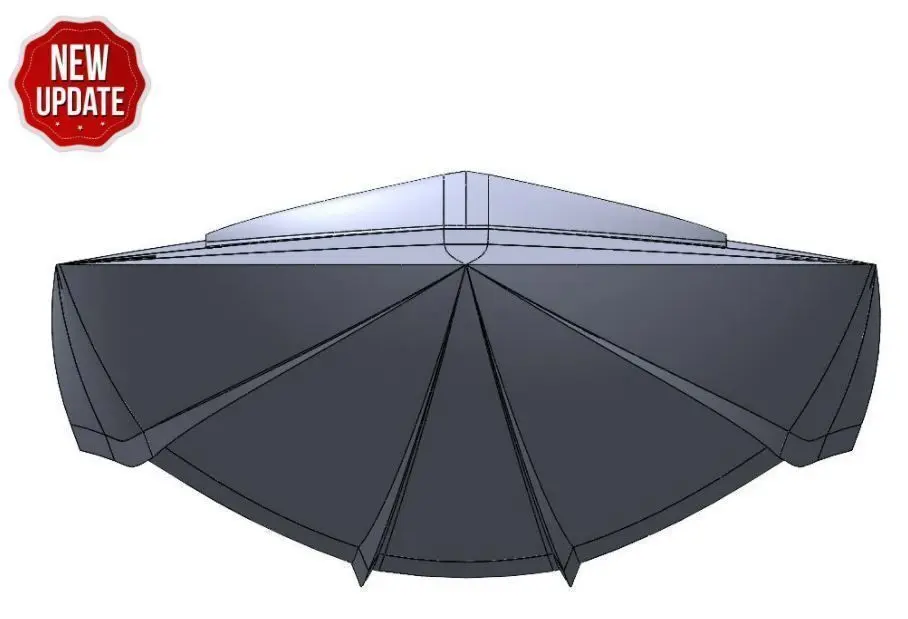

NEW UPDATE!!The Version 1.2 contains an important improvement of the hull, in fact some flaps have been added to give the model greater stability during navigation.

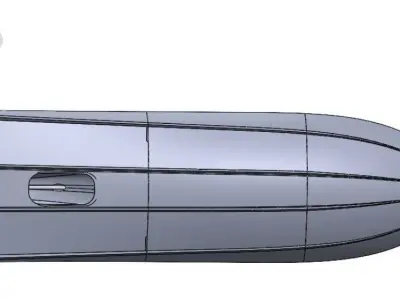

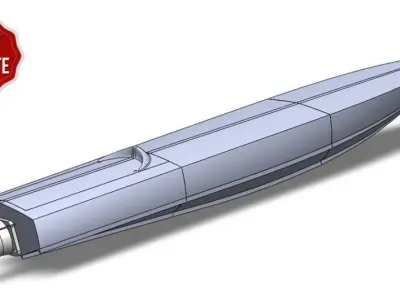

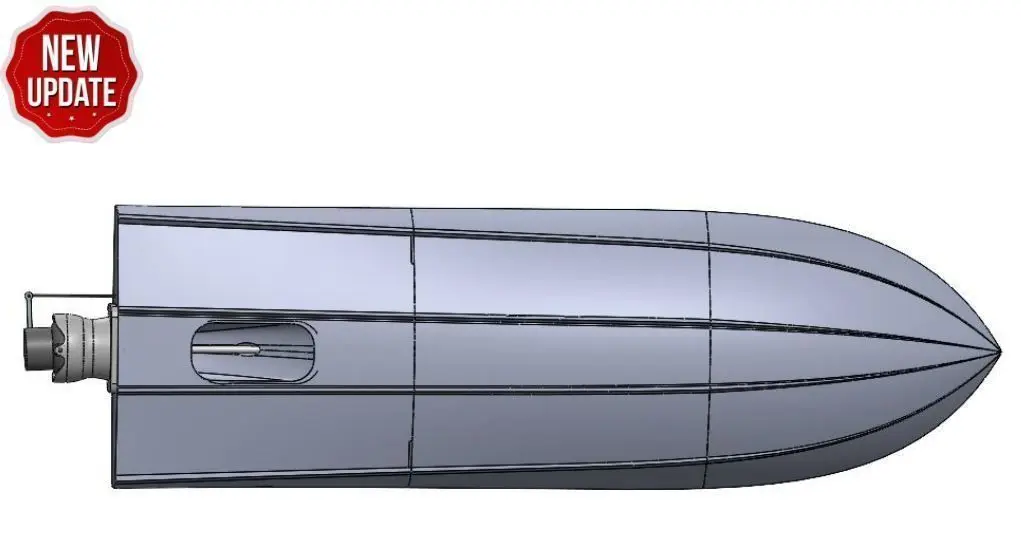

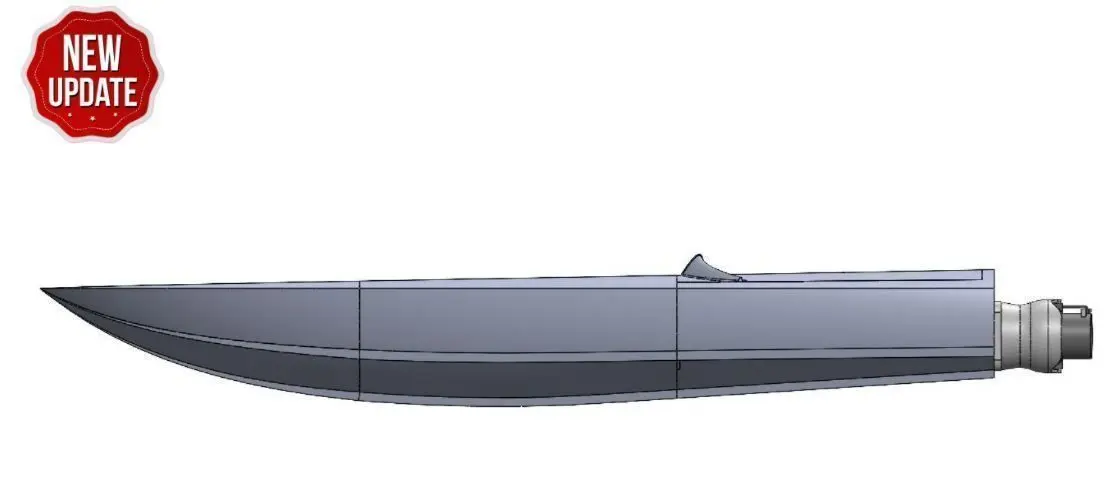

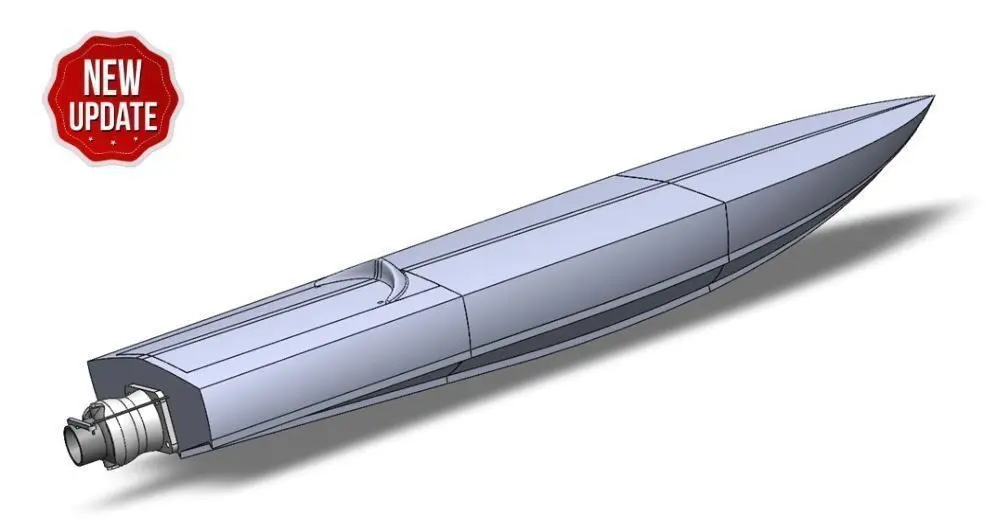

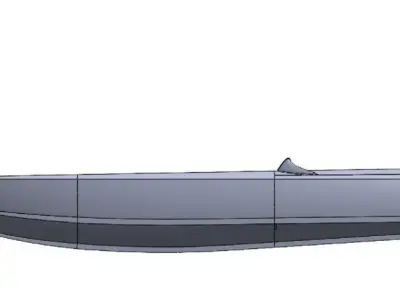

This project concerns the construction of an RC Racing Boat with jet propulsion engine.There are eight printable parts and they can be printed on any 3D printer with FDM or SLA technology.The recommended materials for printing the parts are ABS, PLA or resin.Each part can be printed without support, preferred nozzle diameter is 0.4mm, layer height from 0.15mm up to 0.21mm.Printed parts:No. 1 x Body 1

No. 1 x Body 2

No. 1 x Body 3

No. 1 x Top Body

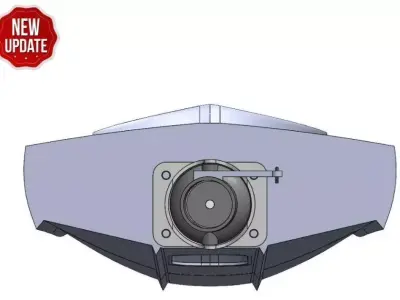

No. 1 x Jet Support 1

No. 1 x Jet Support 2

No. 1 x Propeller

No. 1 x Rod

The following commercial components are needed to complete the RC model:

No. 1 x Aluminium CNC Motor Jaw Shaft Coupler 3 x 3mm

No. 1 x RC Stainless Steel Rod shaft Linear Rail Round Shaft Length 150mm Ø3mm

No. 1 x Teflon tube for 3D printer Ø3mm

No. 1 x A2212 Brushless Ourunner Motor 1400KV
