High-quality 3D assets at affordable prices — trusted by designers, engineers, and creators worldwide. Made with care to be versatile, accessible, and ready for your pipeline.
Included File Formats
This model is provided in 14 widely supported formats, ensuring maximum compatibility:
• - FBX (.fbx) – Standard format for most 3D software and pipelines
• - OBJ + MTL (.obj, .mtl) – Wavefront format, widely used and compatible
• - STL (.stl) – Exported mesh geometry; may be suitable for 3D printing with adjustments
• - STEP (.step, .stp) – CAD format using NURBS surfaces
• - IGES (.iges, .igs) – Common format for CAD/CAM and engineering workflows (NURBS)
• - SAT (.sat) – ACIS solid model format (NURBS)
• - DAE (.dae) – Collada format for 3D applications and animations
• - glTF (.glb) – Modern, lightweight format for web, AR, and real-time engines
• - 3DS (.3ds) – Legacy format with broad software support
• - 3ds Max (.max) – Provided for 3ds Max users
• - Blender (.blend) – Provided for Blender users
• - SketchUp (.skp) – Compatible with all SketchUp versions
• - AutoCAD (.dwg) – Suitable for technical and architectural workflows
• - Rhino (.3dm) – Provided for Rhino users
Model Info
• - All files are checked and tested for integrity and correct content
• - Geometry uses real-world scale; model resolution varies depending on the product (high or low poly)
• • - Scene setup and mesh structure may vary depending on model complexity
• - Rendered using Luxion KeyShot
• - Affordable price with professional detailing
Buy with confidence. Quality and compatibility guaranteed.
If you have any questions about the file formats, feel free to send us a message — we're happy to assist you!
Sincerely,
SURF3D
Trusted source for professional and affordable 3D models.
More Information About 3D Model :

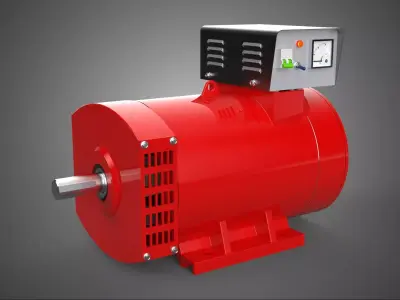

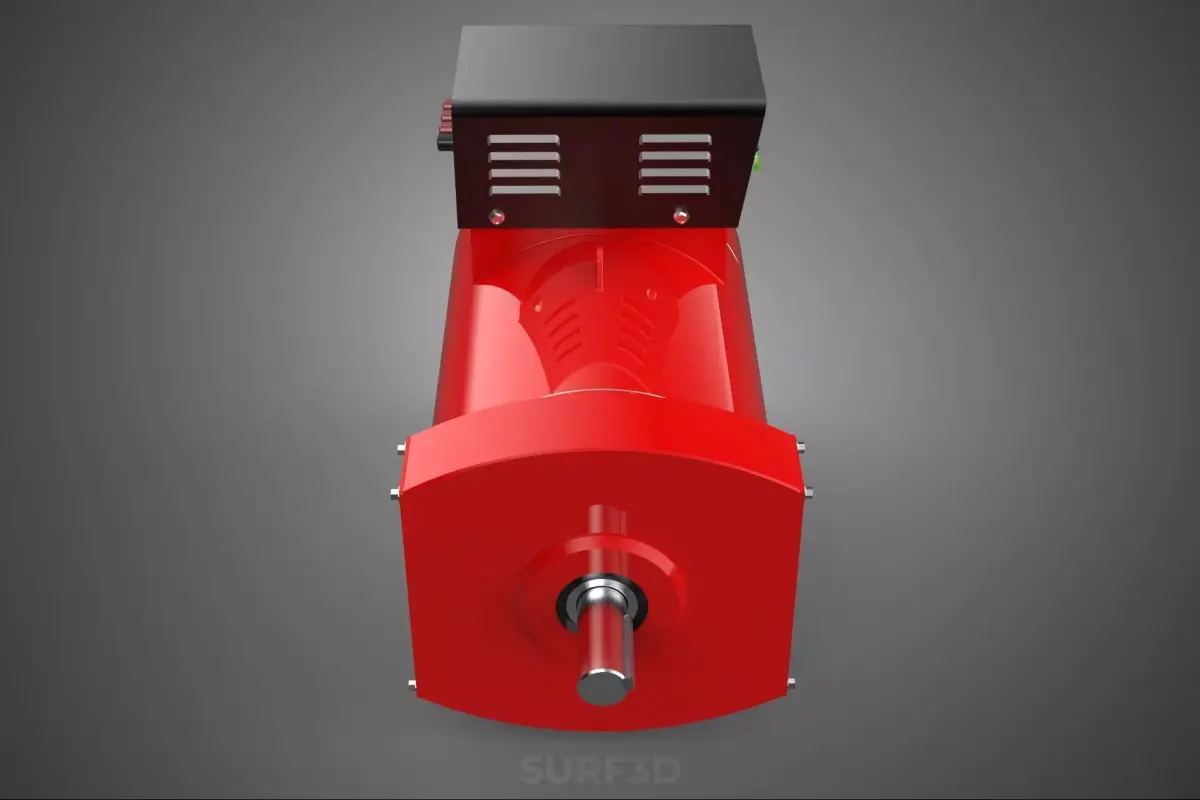

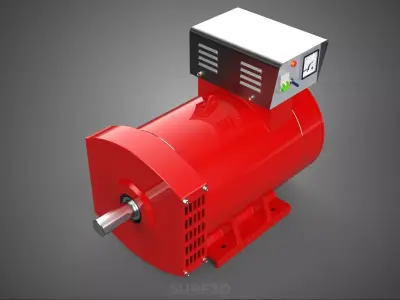

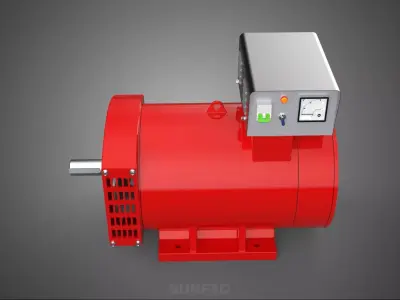

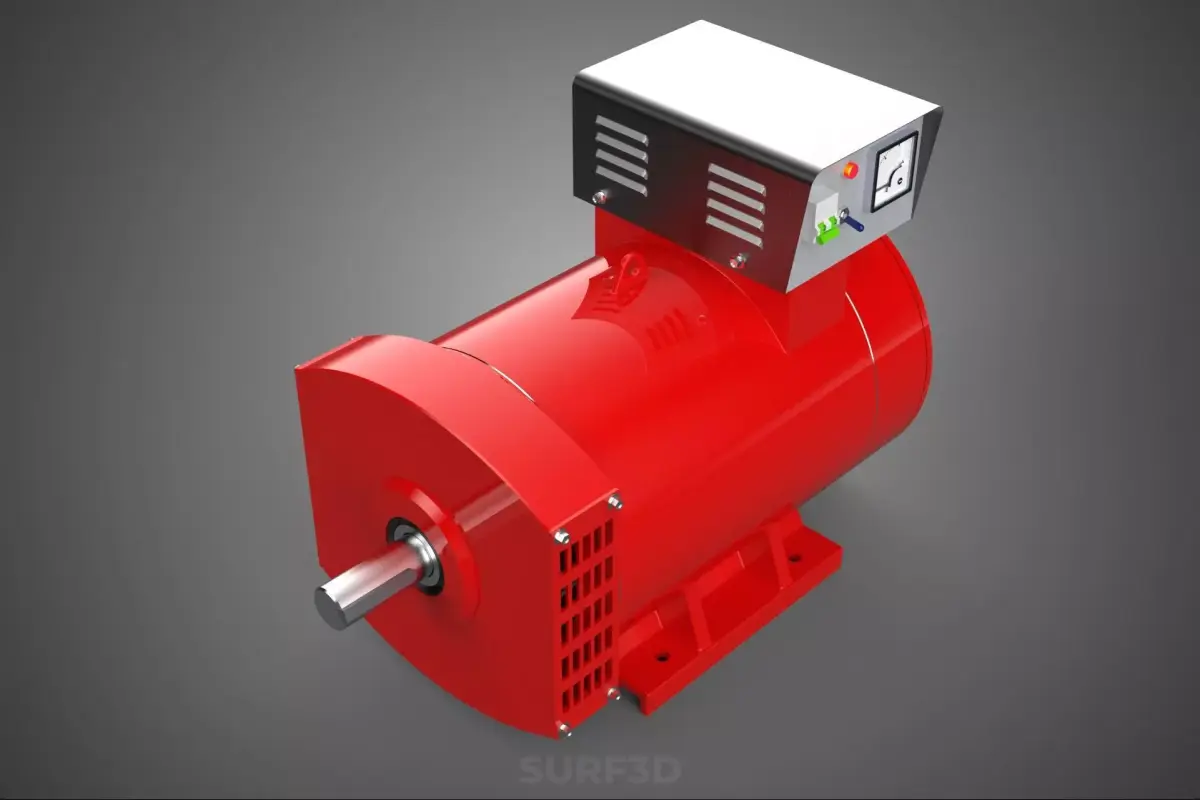

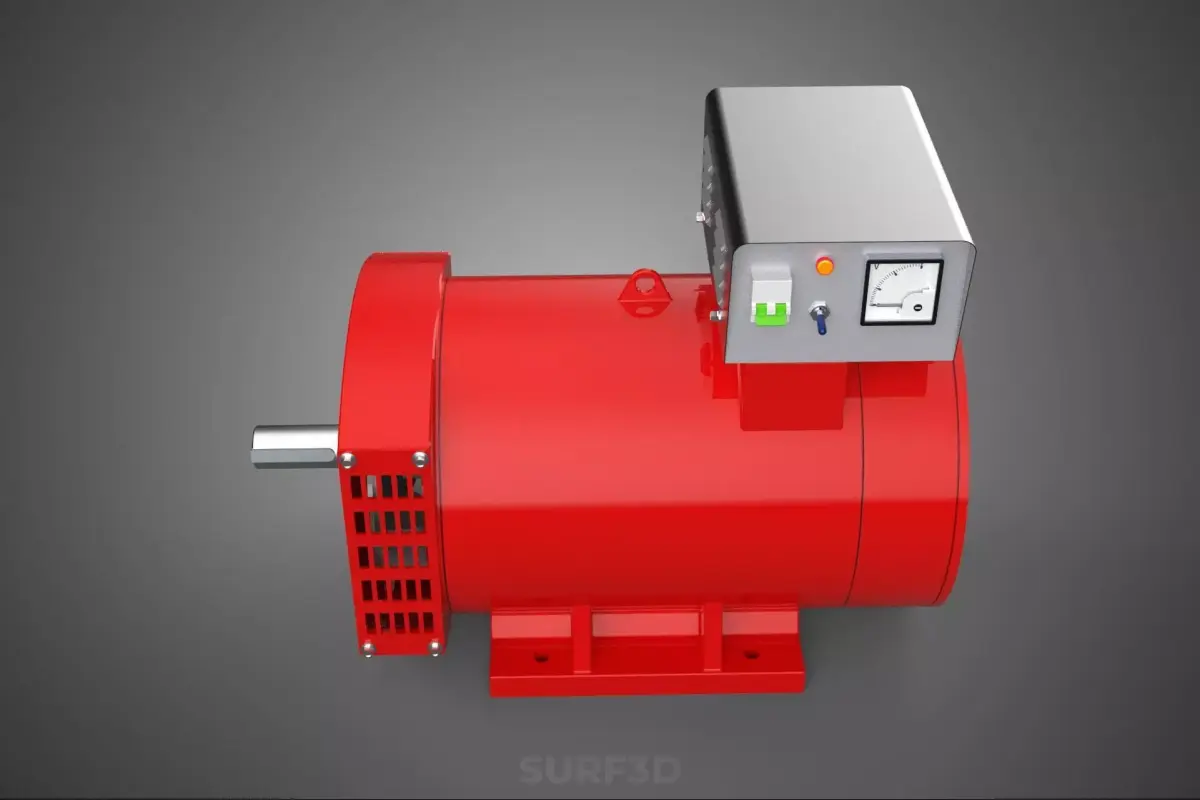

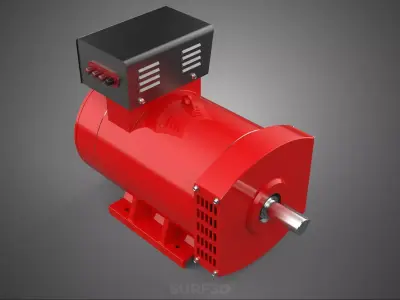

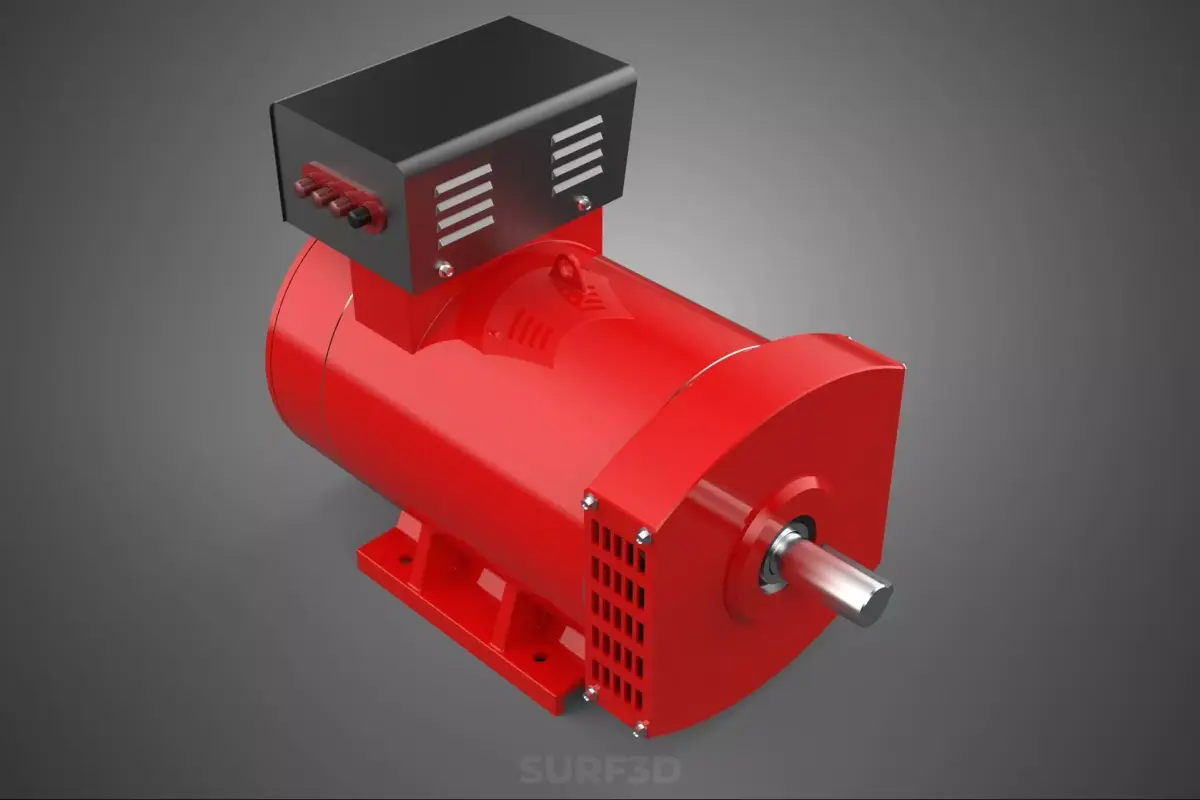

The system described by the designation RED INDUSTRIAL AC GENERATOR ALTERNATOR DYNAMO MOTOR CONTROL BOX represents a specialized, heavy-duty electromechanical assembly designed for robust electrical power generation, conversion, regulation, and protection within industrial operational environments. This designation encompasses the principal electromechanical component (the rotating machine) and the critical regulatory interface (the Control Box).
I. General Classification and Nomenclature
The composite unit functions primarily as a high-capacity power source or a motor-generator (MG) set. While the terms Generator, Alternator (AC output), and Dynamo (historically DC output, though sometimes used generically) are included, the AC Generator/Alternator function is typically primary in modern industrial applications. The inclusion of Motor suggests the unit can operate in reverse (consuming electrical energy to produce mechanical work) or is driven by an integrated prime mover (e.g., an internal combustion engine or a large electric motor).
The descriptor RED typically signifies a high-visibility, durable protective coating, often correlating with safety standards, immediate identification of critical assets, or adherence to specific corporate color schemes for fleet standardization. INDUSTRIAL mandates adherence to rigorous duty cycles, high ingress protection (IP) ratings, and resilience against demanding operating conditions (vibration, heat, dust).
II. Electromechanical Components
The core rotating machinery is an industrial-grade synchronous or asynchronous AC alternator.
A. Alternator/Generator Unit
This component is responsible for converting mechanical energy from a prime mover into three-phase or single-phase alternating current (AC) power. Key features include:
- Excitation System: Often brushless, utilizing a rotating rectifier assembly to supply direct current (DC) to the main field windings, ensuring reliable voltage regulation.
- Stator and Rotor: Constructed from high-grade magnetic materials optimized for minimal eddy current losses and high thermal dissipation, often featuring enhanced insulation systems (Class F or H).
- Duty Cycle: Designed for continuous or stand-by service, rated typically in kilowatts (kW) or megavolt amperes (MVA).
#### B. Motor Function
When operating as a motor, the machine utilizes incoming AC power to drive a coupled mechanical load. In MG sets, the motor and generator are coupled on a common shaft, often used for frequency conversion, voltage stabilization, or isolating sensitive loads from grid disturbances.
### III. The Control Box Assembly
The Control Box is the regulatory nerve center of the system, housed in a robust, often metallic enclosure (NEMA Type 3R, 4, or higher IP ratings) suitable for industrial placement. Its primary functions are monitoring, protection, and automatic/manual regulation of the power output.
#### A. Power Regulation and Instrumentation
The control box houses the Automatic Voltage Regulator (AVR), which modulates the field excitation current to maintain a stable output voltage regardless of load fluctuations. Instrumentation includes digital or analog meters displaying essential parameters:
- Voltage (Line-to-Line and Line-to-Neutral)
- Current (Amperes)
- Frequency (Hertz)
- Power Factor and Real Power (kW/MW)
- Running Hours and Temperature Monitoring
#### B. System Protection
Safety and equipment longevity are maintained via sophisticated protective relay systems designed to immediately disconnect the generator or motor under fault conditions. Standard protections include:
- Overcurrent/Short Circuit Protection: High-speed circuit breakers or fuses.
- Over/Under Voltage Protection: Relays trip if output voltage deviates outside preset thresholds.
- Thermal Protection: Sensors monitor winding and bearing temperatures, initiating alarms or shutdowns upon overheating.
- Frequency Protection: Critical for grid synchronization and load management.
#### C. Interface and Operation
The control box provides human-machine interface (HMI) access, including start/stop controls, status indicators (LEDs), and often a programmable logic controller (PLC) for complex sequencing, automatic synchronization (if grid-tied), and remote telemetry via industrial communication protocols (e.g., Modbus, EtherNet/IP). The red enclosure color may also specifically highlight the location of emergency stop (E-stop) buttons integrated into the box façade.
### IV. Applications
These robust, controlled power systems are essential across heavy industries, including data centers (uninterruptible power supply backup), manufacturing facilities, petrochemical plants, mining operations, and large-scale construction sites where reliable, regulated high-capacity electrical power is non-negotiable.
KEYWORDS: Industrial Generator, AC Alternator, Control Panel, Automatic Voltage Regulator, Synchronous Machine, Electromechanical System, Power Regulation, Motor-Generator Set, Emergency Power, High-Visibility, NEMA Enclosure, Power Protection, Three-Phase Power, Prime Mover, Electrical Safety, Load Management, Heavy Duty, PLC Control, Field Excitation, Circuit Breaker, Thermal Monitoring, Industrial Automation, Switchgear, Diesel Generator Set, Motor Control Center, Grid Synchronization, Uninterruptible Power, Remote Monitoring, Power Generation, MVA Rated.
STL (Stereolithography, filesize: 7.61 MB), OBJ (OBJ, filesize: 14.5 MB), 3DM (Rhinoceros 3D, filesize: 28.9 MB), 3DS (3D Studio, filesize: 4.68 MB), FBX (Autodesk FBX, filesize: 4.89 MB), GLTF (glTF, filesize: 4.98 MB), DAE (Collada, filesize: 25.8 MB), MAX (Autodesk 3ds Max, filesize: 34.7 MB), DWG (AutoCAD, filesize: 6.1 MB), BLEND (Blender, filesize: 14.9 MB), STP (STEP, filesize: 12.7 MB), SAT (3D ACIS, filesize: 14 MB), SKP (Sketchup, filesize: 12.4 MB), IGE (IGES, filesize: 23.1 MB)
