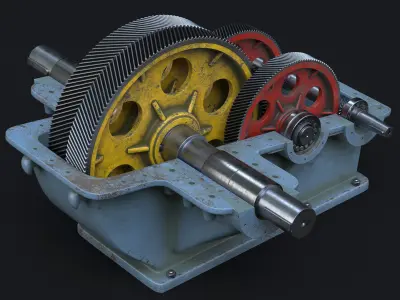

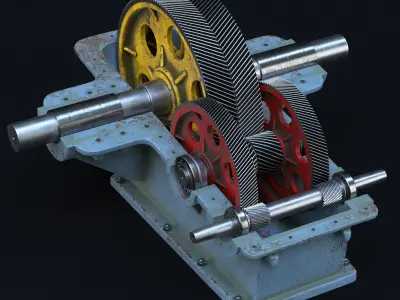

Reducer industrial gearbox Low-poly 3D model

$50

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

delavera

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «delavera». CGhub does not claim copyright ownership over the content used.

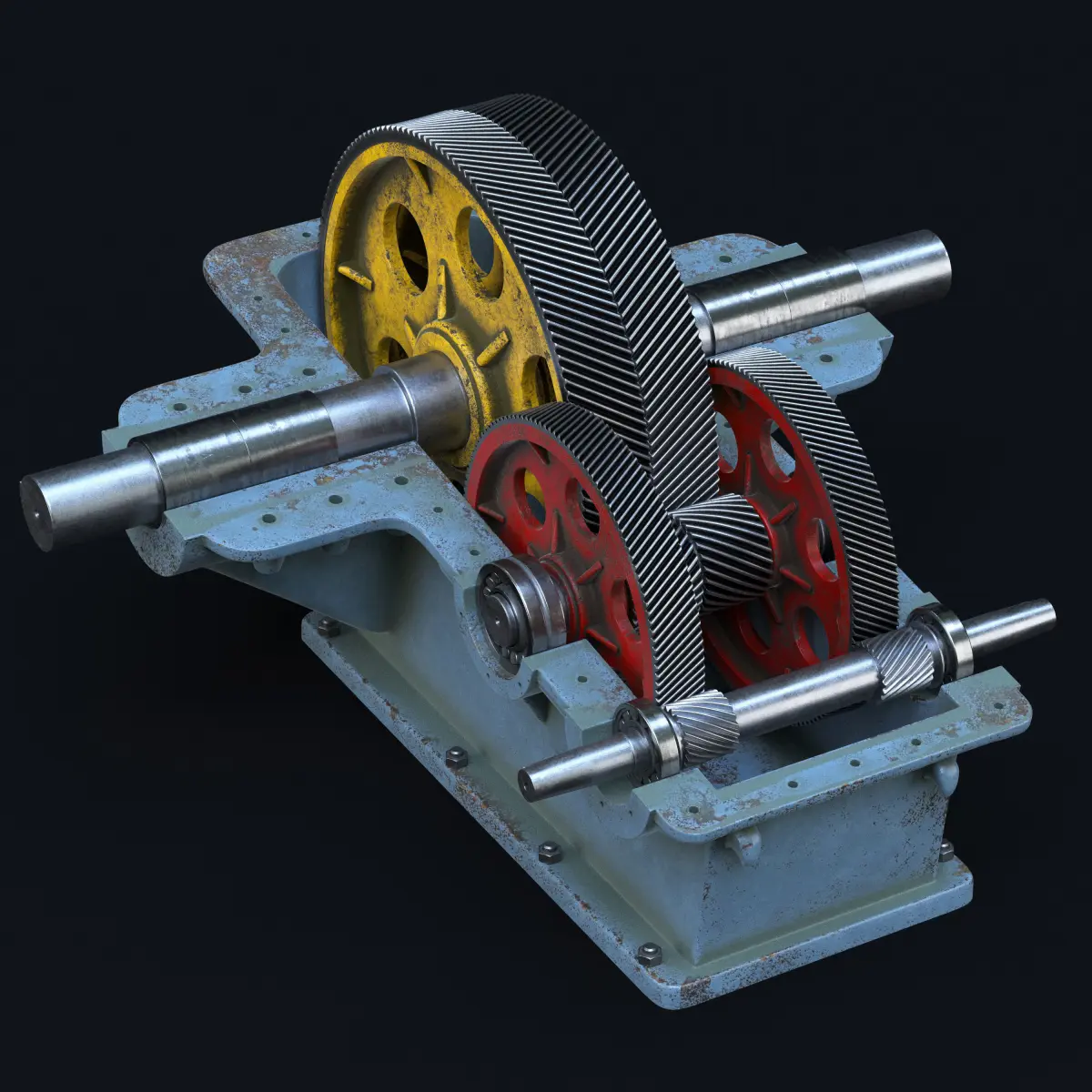

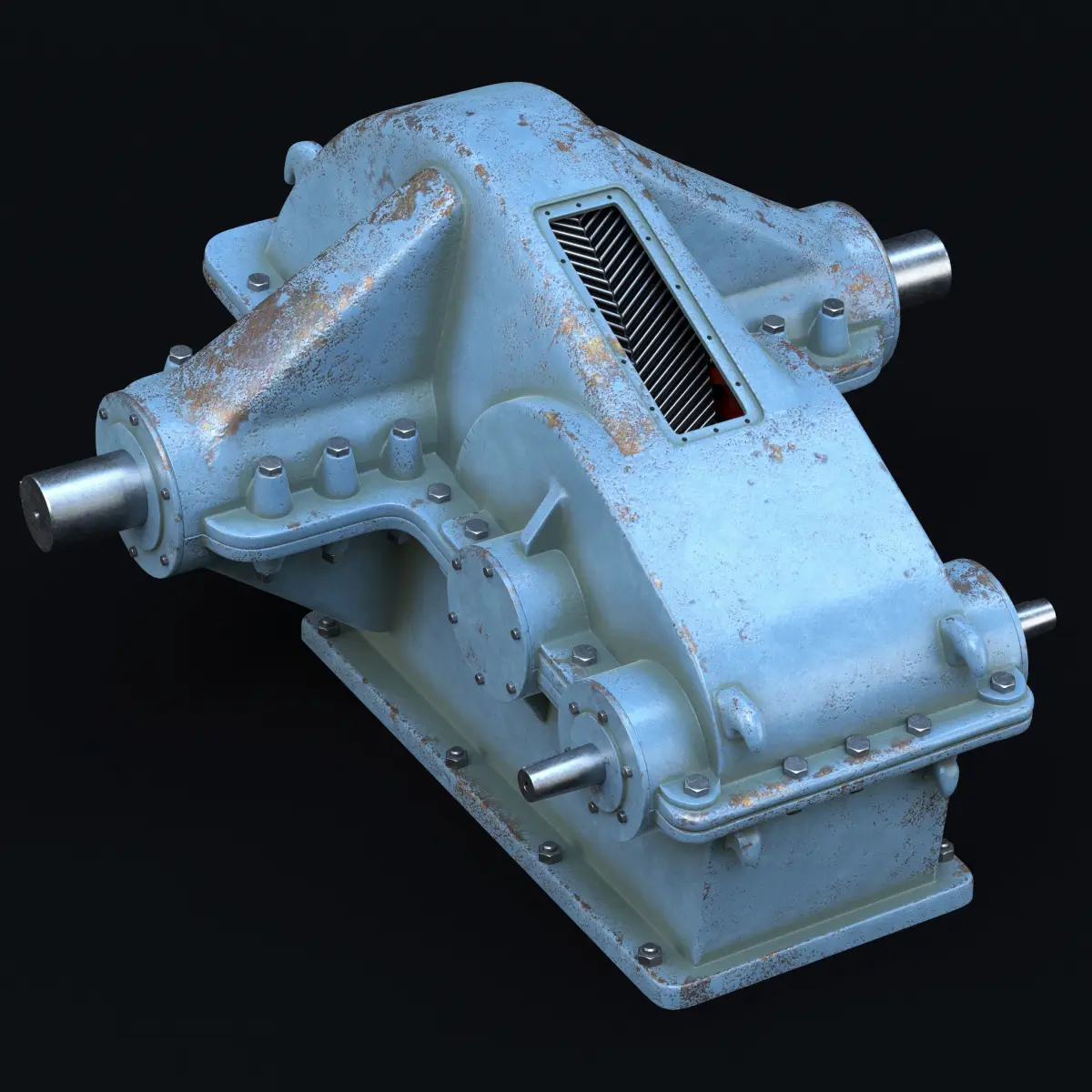

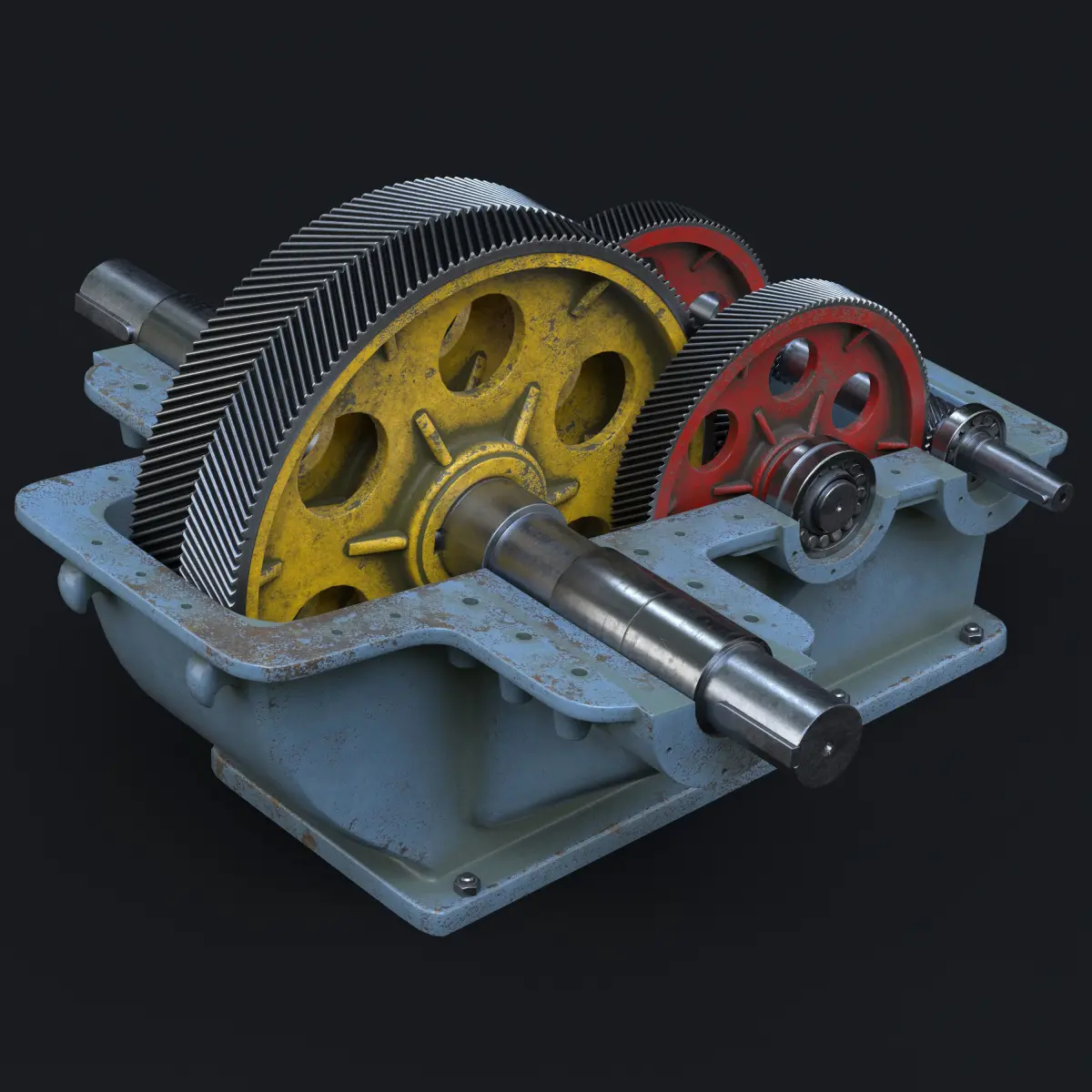

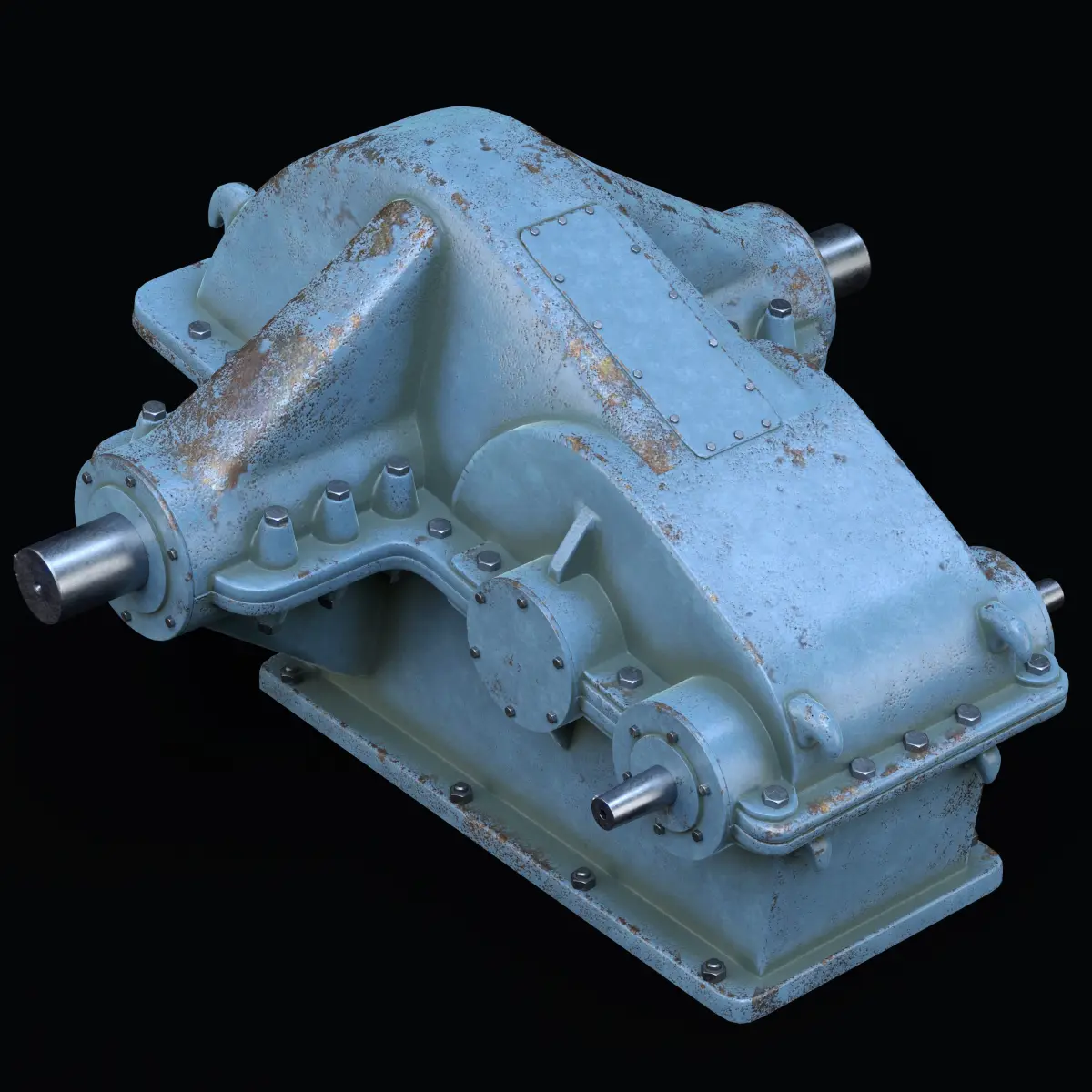

The two-stage parallel-shaft reduction gear unit. The teeth numbers (high-speed stage x low-speed stage):150/27 x 130/20.

The modules: 6,5 x 6,5.

The angles of teeth b= 32 28'28'' x 32 28'28''

Highly realistic and detailed 3D model.

Originally modeled in 3ds Max and rendered with Corona.

Clean, quad-only topology - ready for subdivision. Relevant parts are carefully UV-mapped and big textures included (diffuse, reflection, glossiness, IOR and normal map)

Model is ready to render, just put it into your scene.

The model is also available in .obj, .3ds and .fbx file formats.T

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: non_overlapping
Geometry: -
Polygons: 197903
Vertices: 195174
Plugins used

Tags

Reduction Motor Reducer Transmission Engine Mechanical Gears Box Power Part Components Element Mechanic System Mech Cog Set Mechanism Industrial Machine Industrial machine Industrial part
