Reducer with bearings and gears 3D model
Home Catalog Reducer with bearings and gears 3D model
Reducer with bearings and gears 3D model
Reducer with bearings and gears 3D model
Reducer with bearings and gears 3D model
Reducer with bearings and gears 3D model
Reducer with bearings and gears 3D model

Publication date: 2022-01-05

Reducer with bearings and gears 3D model

$9

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

nikolay-esipov

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «nikolay-esipov». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $9 Add to Wishlist
  • Description
  • Formats

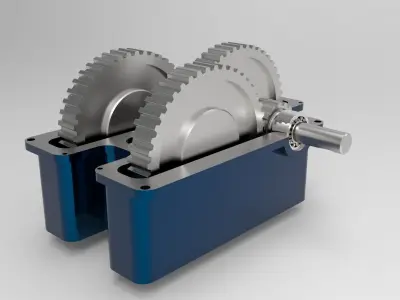

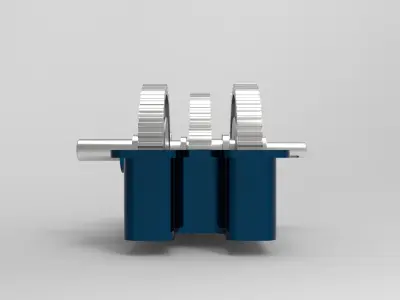

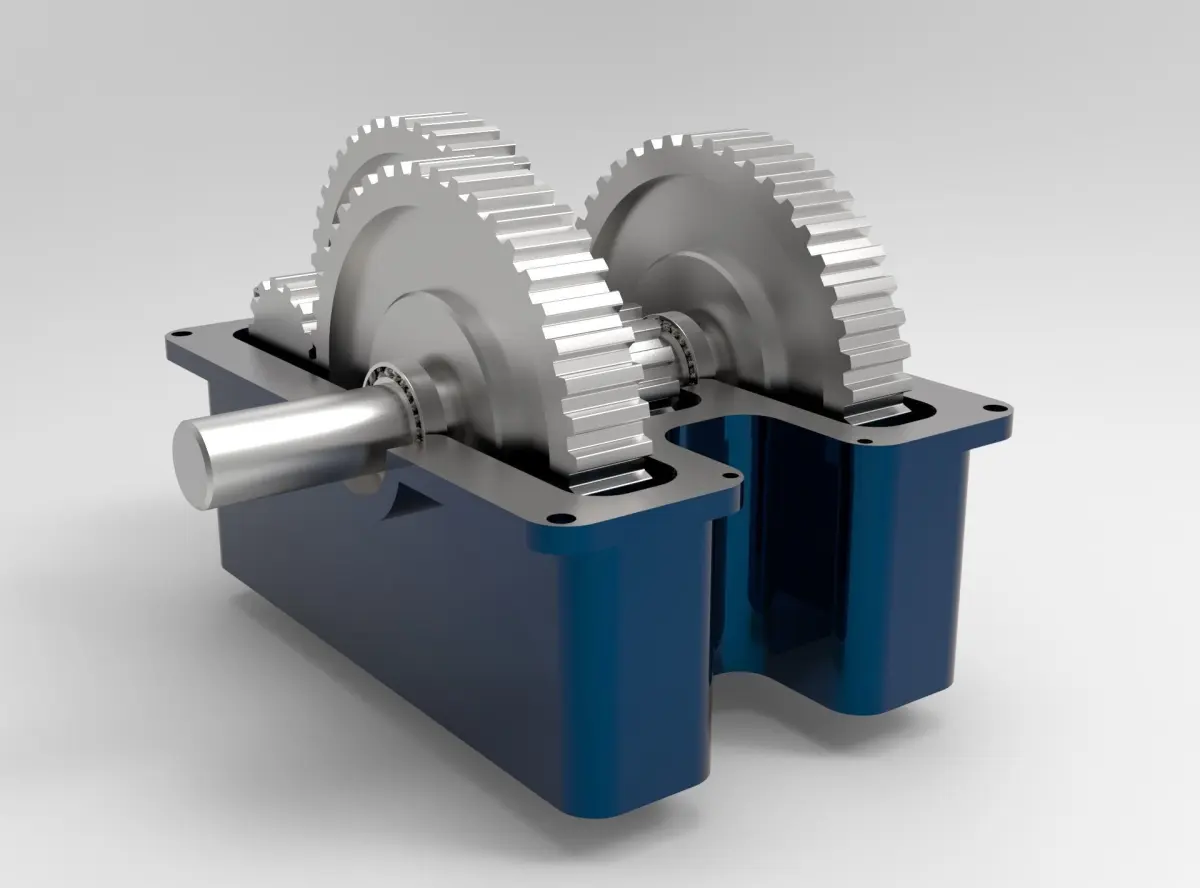

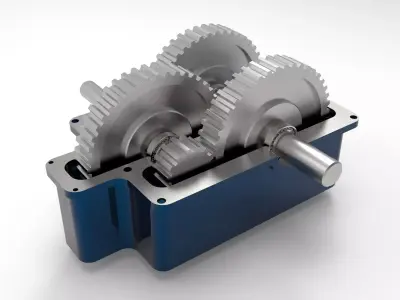

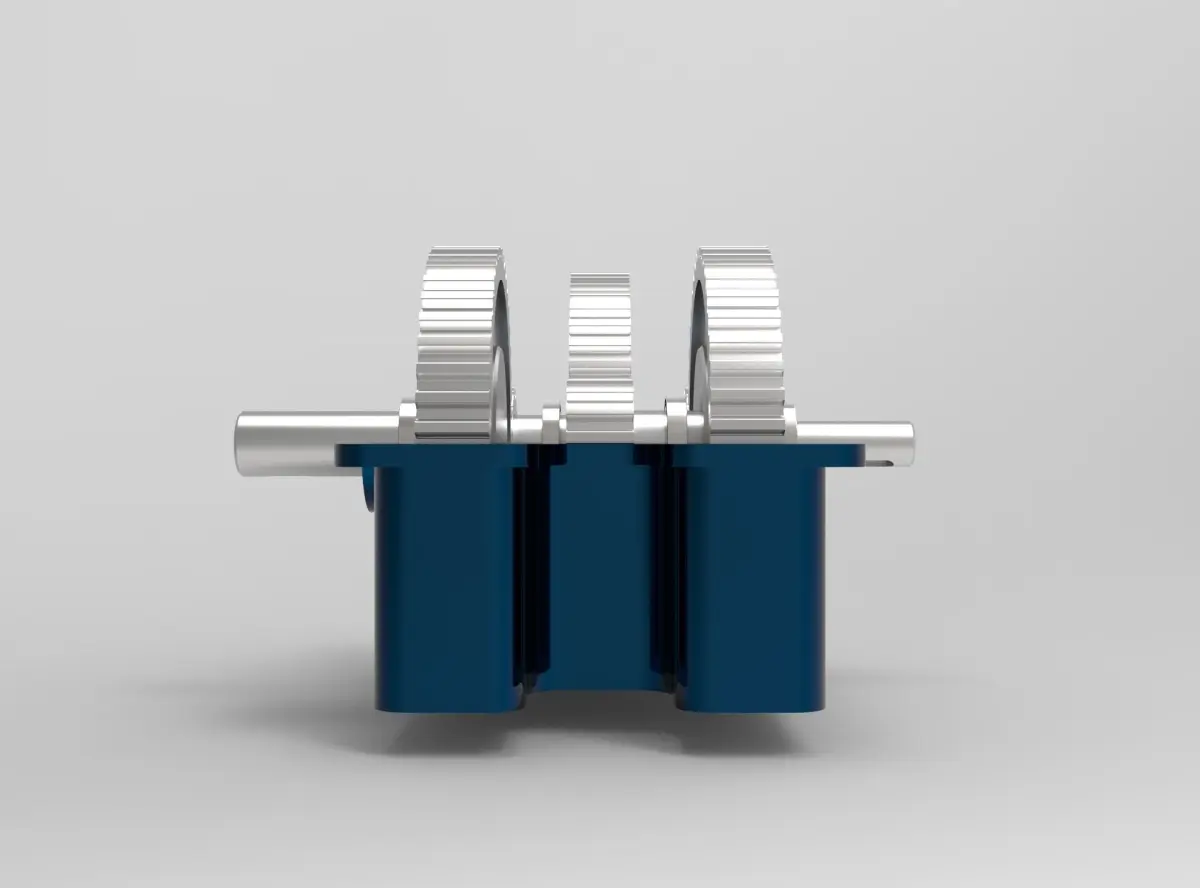

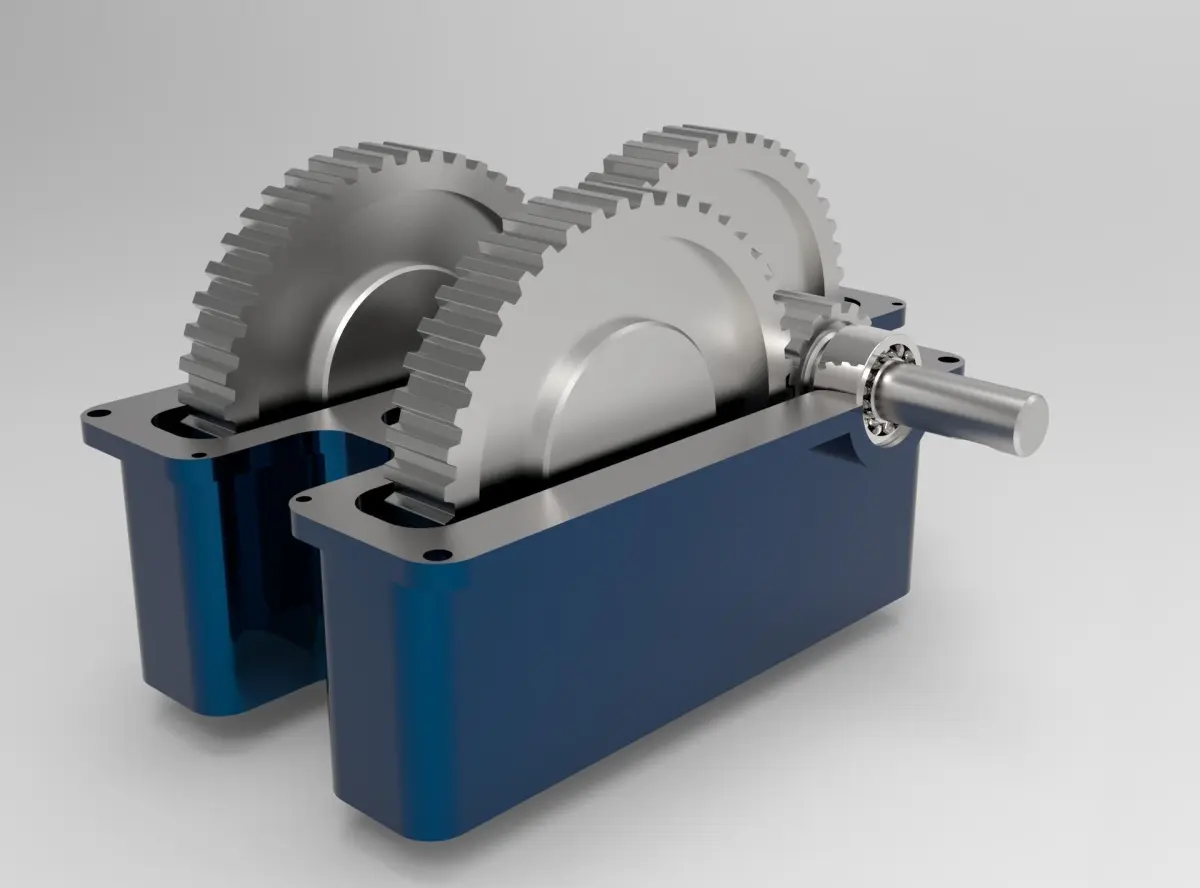

3d model of the gearbox. The work was done in Solidworks 2020. The assembly can be used to demonstrate the operation of the device.

Models are suitable for printing on a 3D printer. Polygon models do not have the correct mesh, please consider this before purchasing.

Assembly dimensions: 65x110x119 (mm.)

The archive contains files :

  • frame

  • gear_1

  • gear_2

  • gear_3

  • shaft _1

  • shaft _2

  • shaft _3

  • reducer _assembly

Native Formats: SLDPRT (SolidWorks, filesize: 2.97 MB) Exchange Formats: OBJ (OBJ, filesize: 7.02 MB), STP (STEP, filesize: 548 KB), STL (Stereolithography, filesize: 4.12 MB), SAT (3D ACIS, filesize: 1.48 MB), 3MF (3D Manufacturing File, filesize: 1.98 MB), BIP (KeyShot, filesize: 2.36 MB), IGE (IGES, filesize: 563 KB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Geometry: Unknown

Tags

Machinery Isolated Chrome Industrial Steel Gearbox Mechanical Machine Gears Bearing Assembly Engine Models 3d Reducer Speed Industrial machine
