Residential 2D and 3D floor plan project 3D model

$50

License: Royalty Free

author:

cavitnation

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «cavitnation». CGhub does not claim copyright ownership over the content used.

Modern 1+1 Apartment drawing made in Autodesk Revit 2023 version.

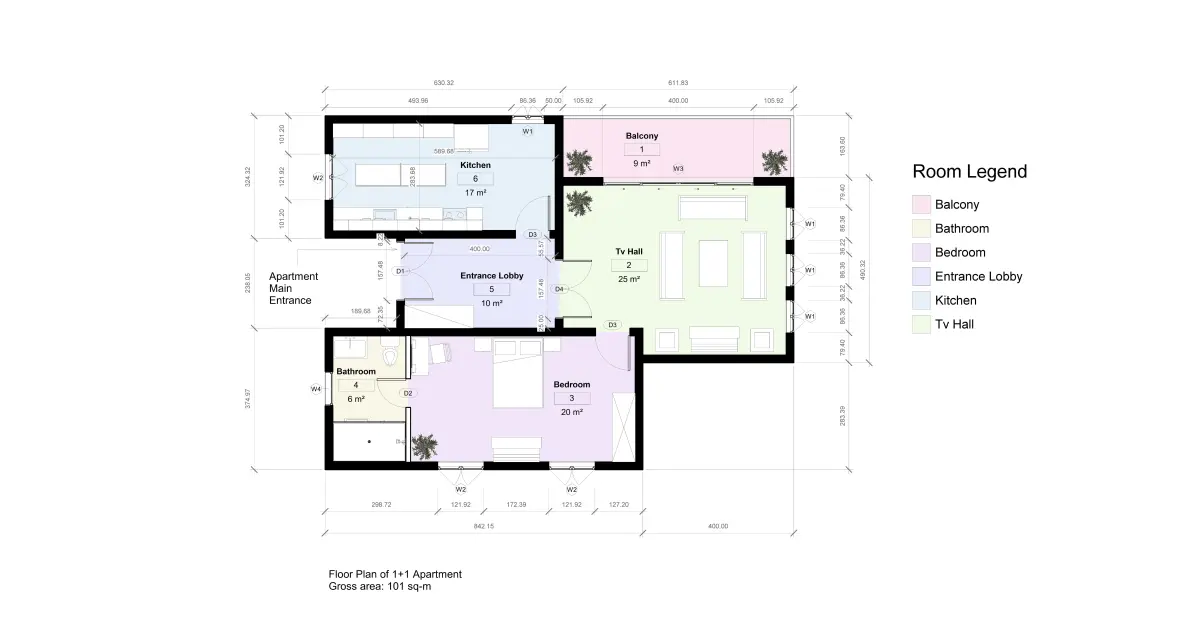

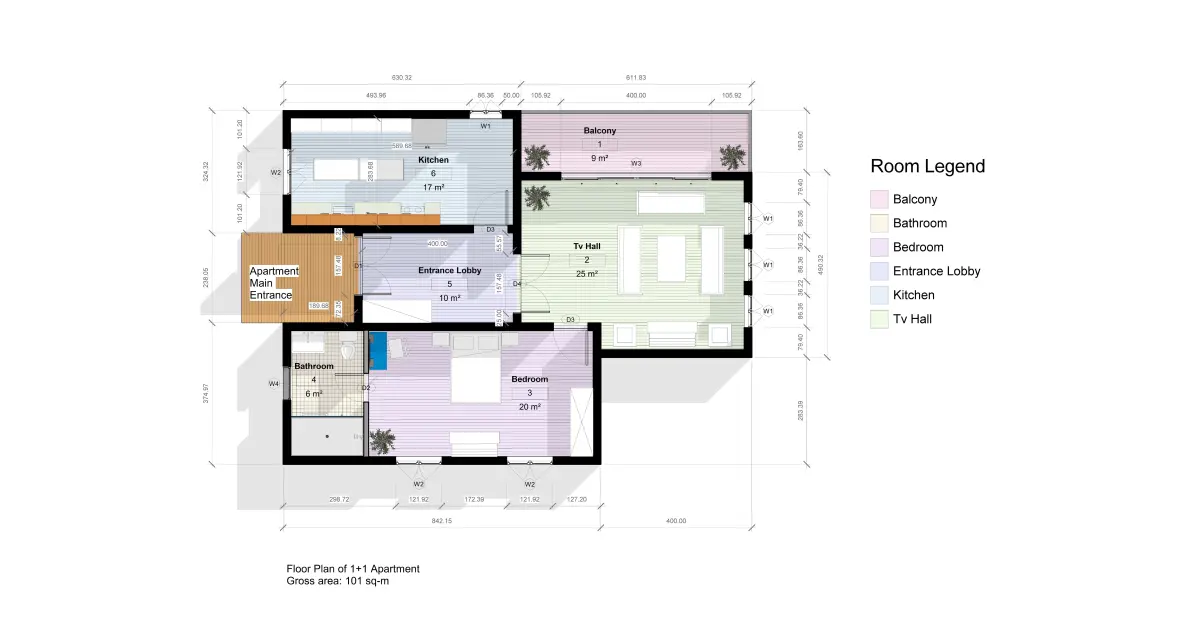

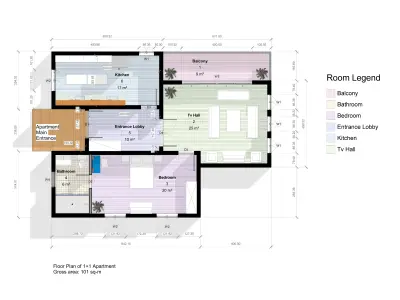

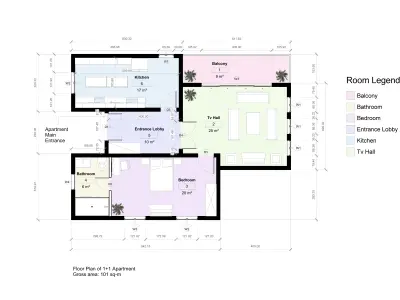

2D Floor plan with proper dimensions, Tagging and Annotation are included.

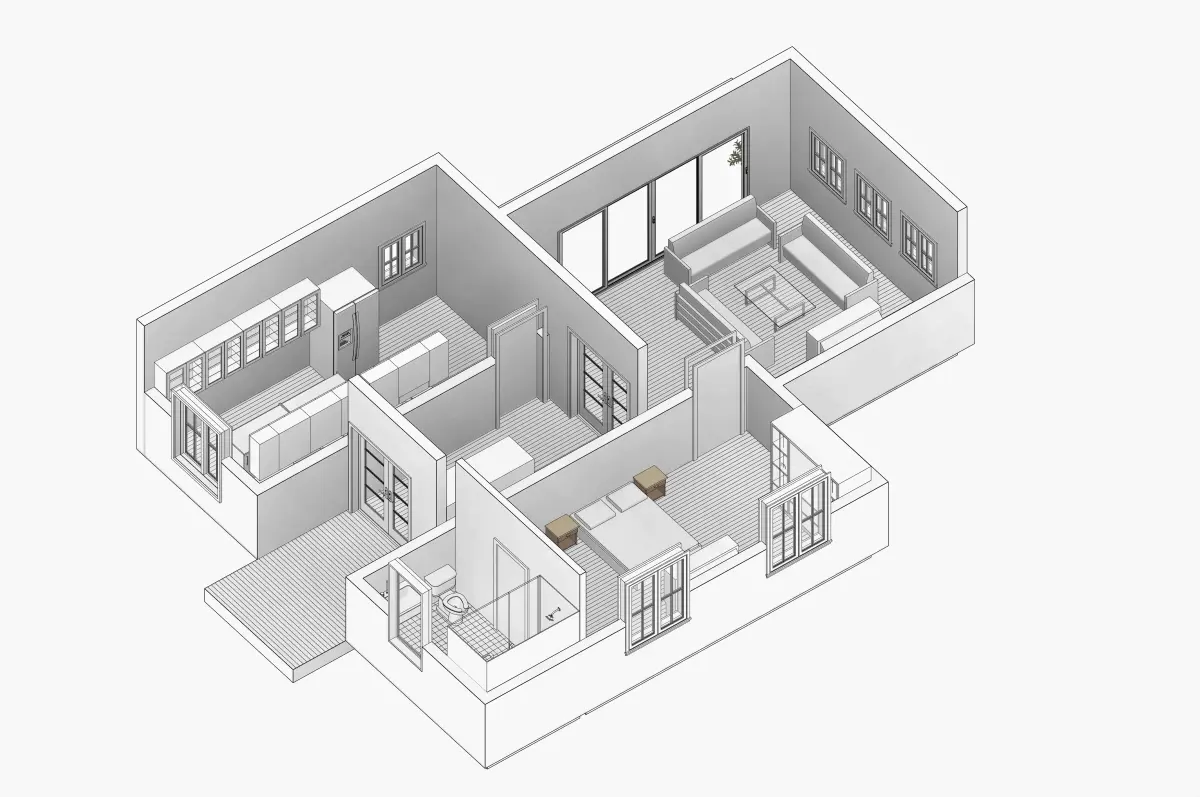

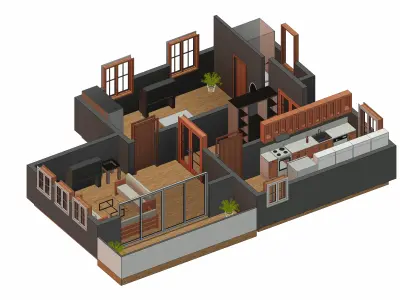

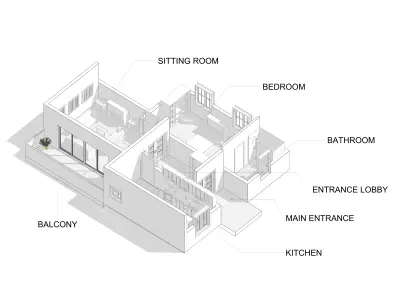

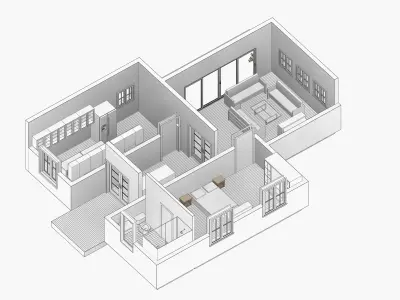

3D view of Floor plan is there with proper flooring.
Total size of the apartment is 101 sq-meter
Room Legend are included

Following 2D/3D families are included in the file.

Bedroom with Bed and side tables, dressing and chair, Television, Clothing Cabinet, door and windows (20 sq-mt)
Bathroom with Shower which have adjustable Instance Parameters, Sink and W.C (6 sq-mt)
Kitchen with Refrigrator, wall cabinets, sink and stove set, center island table (17 sq-mt)
Tv Hall with sofa and table, Television, side tables and a plant (25 sq-mt)
Balcony attached with Tv Hall accessible through Large 4 Panel windows, zero fit sil height (9 sq-mt)
Entrance Lobby with wardrobe (10 sq-mt)

Thank you.
