Publication date: 2026-02-16

Revit Curtain Panel with Dynamic Louvers Fully Parametric System 3D model

$8

License: Royalty Free No Ai

author:

jcarchwiz

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «jcarchwiz». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $8 Add to Wishlist
  • Description
  • Formats

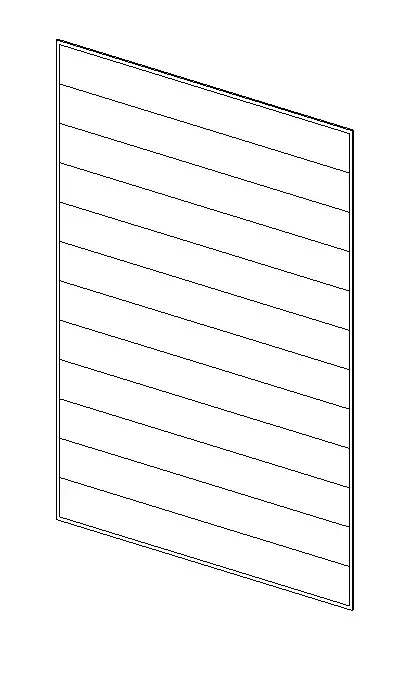

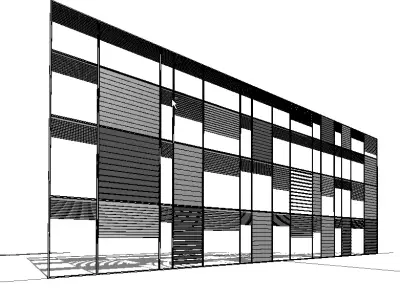

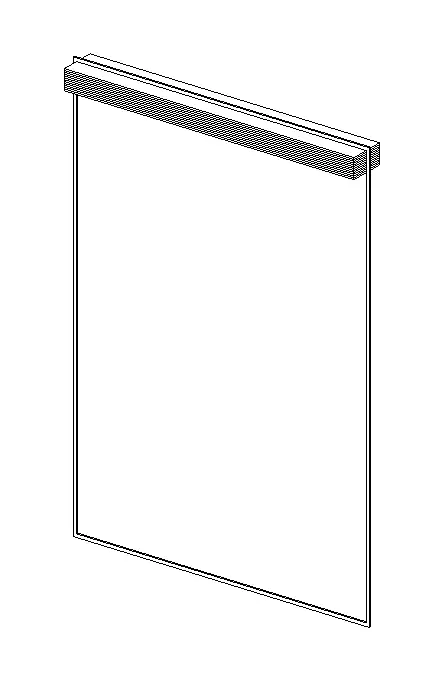

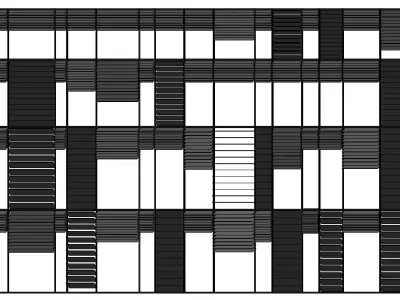

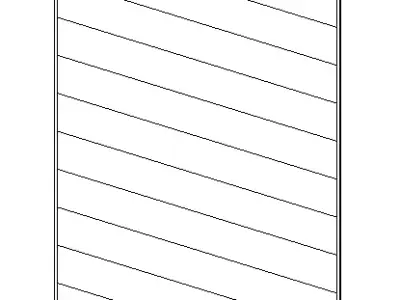

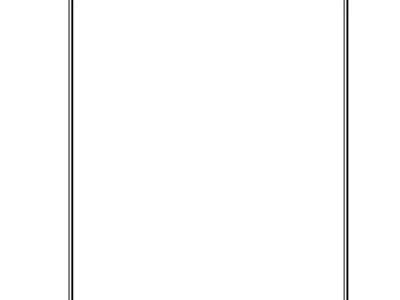

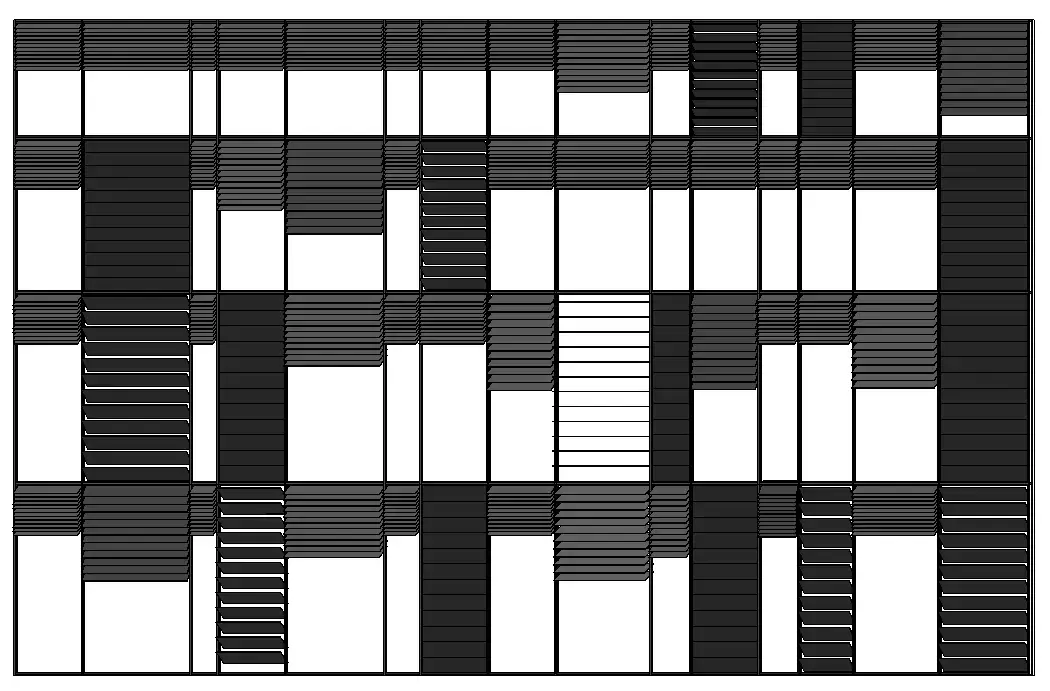

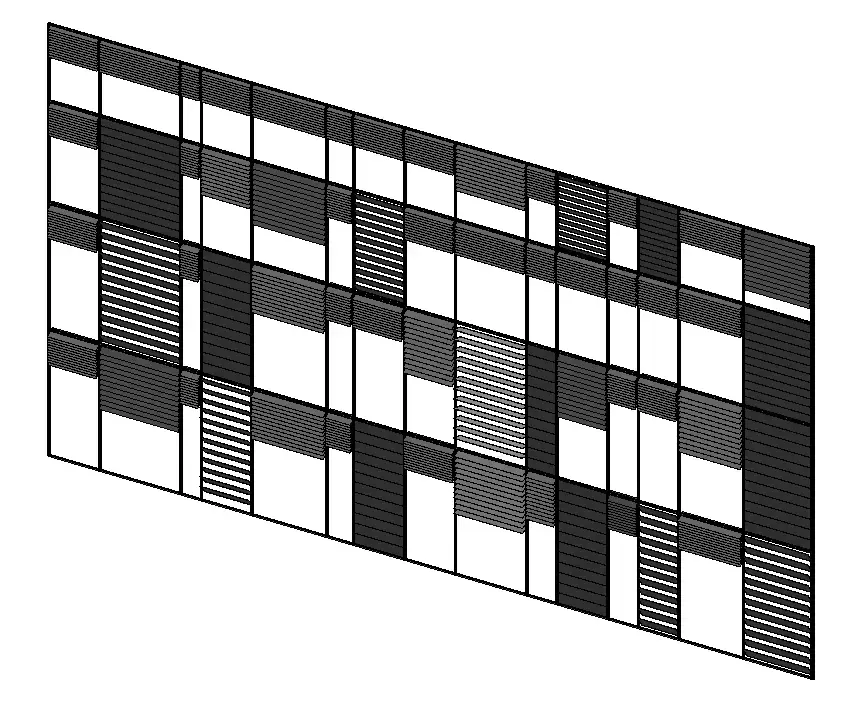

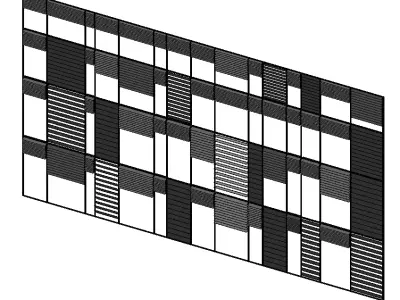

High-quality Revit Curtain Panel family with fully parametric dynamic louvers, designed for modern façades, sun-shading systems, and responsive building envelopes. Ideal for architectural visualization, BIM documentation, and performance-driven façade design.

This family is built for Curtain Walls and allows complete control over louver geometry, spacing, orientation, and behavior directly from Revit parameters.

Key Features:

  • Fully parametric dynamic louver system
  • Adjustable louver angle (open / closed / custom tilt)
  • Control of louver spacing, depth, thickness, and count
  • Curtain Panel–based family for seamless Curtain Wall integration
  • Panel dimensions driven automatically by curtain grid
  • Optimized, lightweight geometry for large façades
  • Clean and organized Revit parameters
  • Supports responsive façade and sun-shading design
  • Suitable for BIM documentation and architectural visualization
  • No plugins or scripts required (native Revit family)
  • Compatible with Revit 2024+
RFA (Autodesk Revit, filesize: 5 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 0
  • Vertices: 0
  • Plugins used
  • Geometry: Unknown

Tags

Architectural Engineering Building Window Modern Contemporary Exterior Facade Louvers Sunlight Parametric Family Curtain Wall Panel
