Fully parametric Revit families collection built to UK standards and ready for residential interiors. Clean geometry, adjustable sizes, and easy setup for practical everyday use.
What’s Included:

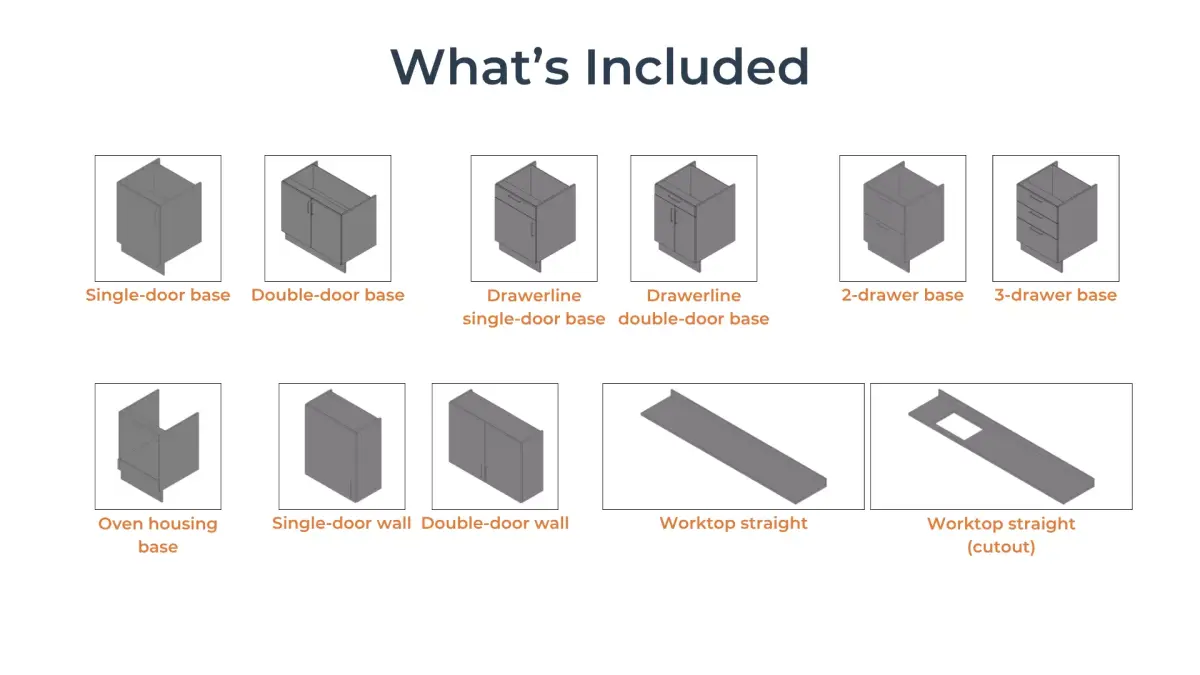

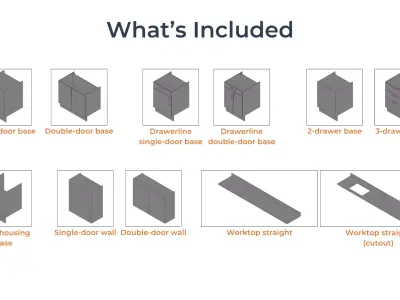

11 families:

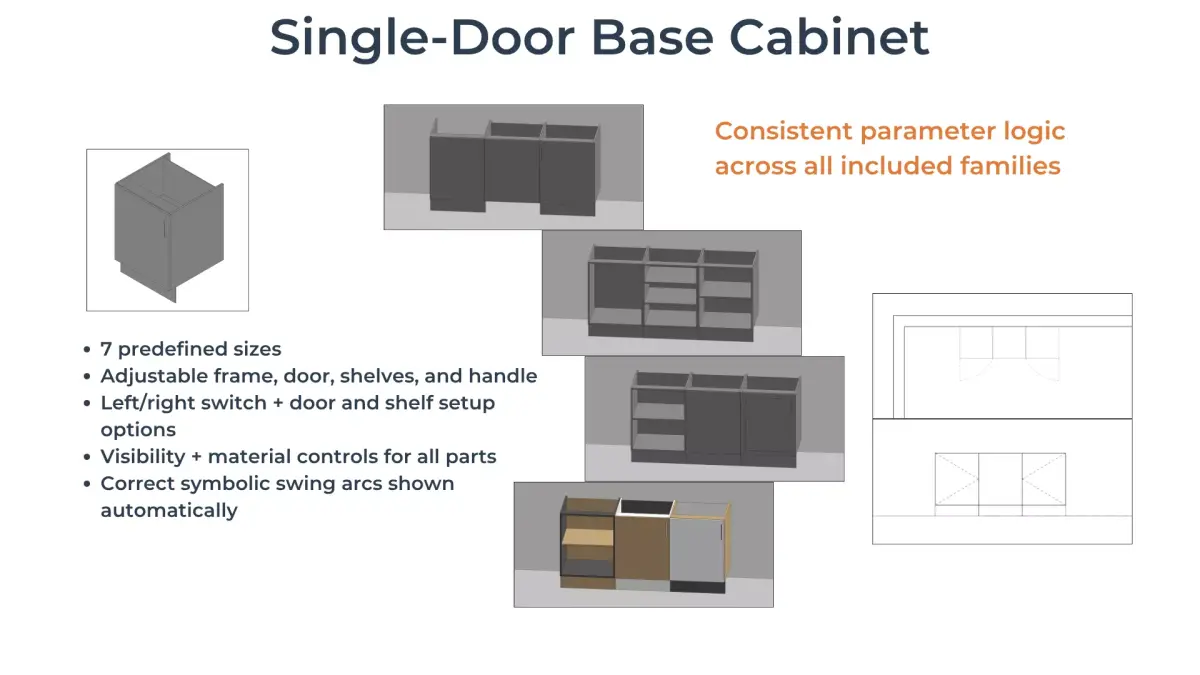

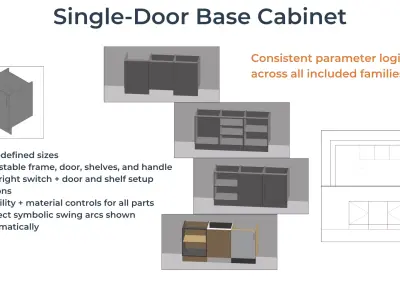

- Single-door base cabinet
- Double-door base cabinet
- Drawerline single-door base cabinet
- Drawerline double-door base cabinet
- 2-drawer base cabinet
- 3-drawer base cabinet
- Single-door wall cabinet
- Double-door wall cabinet
- Oven housing base cabinet
- Worktop straight
- Worktop straight with cutout
User Guide for each family
Main Features:
- Includes commonly used predefined sizes
- Adjustable dimensions for cabinet frame, doors, shelves, and handles
- Easily switch between left- and right-handed setups (where applicable)
- Independent visibility control for back panels, plinths, shelves, doors, and handles
- One-click toggles for door type, shelf setup, and handedness
- Editable materials for all key components
- Lightweight geometry for smooth performance
- Non-hosted placement - won’t be deleted with walls
- Independent visibility for swing arcs and door side indicators. Correct left- or right-hand symbols are shown automatically based on cabinet orientation (where applicable)

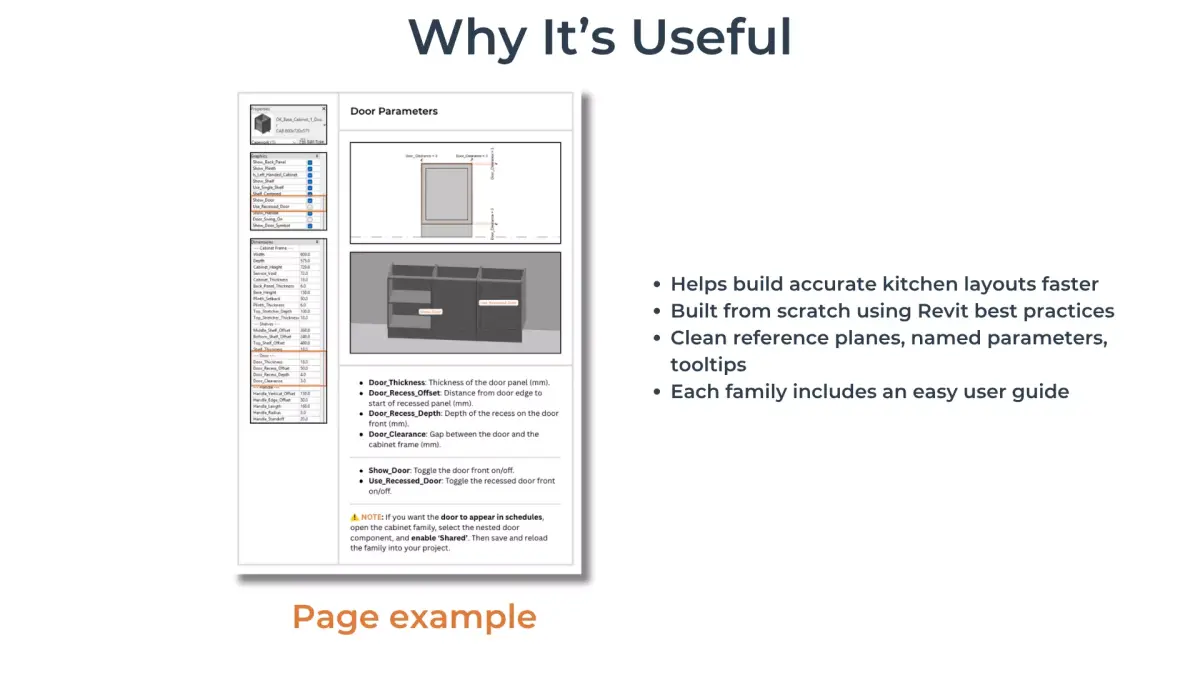

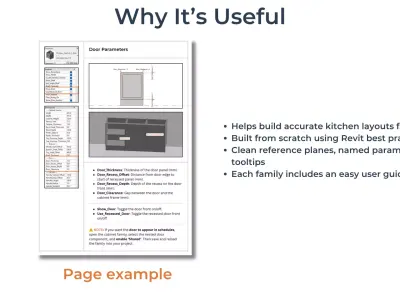

Why It’s Useful:
- Designed for everyday Revit work - helping you build accurate kitchen layouts faster and keep your model clean and editable.
- Created from scratch using Revit best practices
- No cleanup needed - just load and start using
- Easy to edit in the Family Editor - clean reference planes, named parameters, and tooltips for quick adjustments
- Each family includes a simple user guide for quick setup

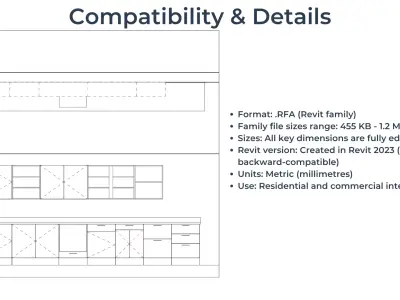

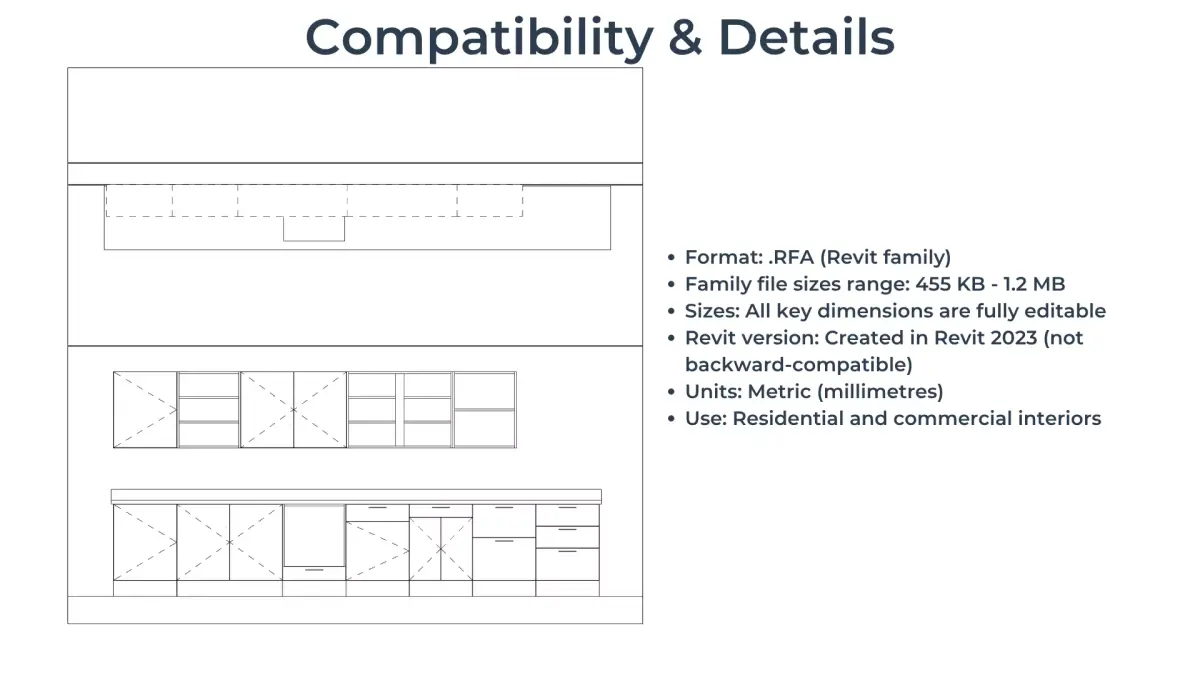

Compatibility & Details:
- Format: .RFA (Revit family)
- Family file sizes range: 455 KB - 1.2 MB
- Sizes: All key dimensions are fully editable
- Revit version: Created in Revit 2023 (not backward-compatible)
- Units: Metric (millimetres)
- Use: Residential and commercial interiors
If you’d like to test the quality and parameters before buying, you can download a free sample family here:
https://www.cgtrader.com/free-3d-models/furniture/cabinet/parametric-revit-family-adjustable-wall-cabinet-frame-with-shelf
It’s a simplified but fully usable version, built with the same structure as this bundle.
Looking for matching units or layout packs?See my full Revit collection here:
https://www.cgtrader.com/designers/revitfams
Also available separately:
If you only need specific items, each family from this collection is also available as a standalone file:
Single-door base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-base-cabinet-1-door-with-shelf-handles
Double-door base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-base-cabinet-2-doors-with-shelf-handles
Drawerline single-door base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-drawerline-base-cabinet-with-1-door
Drawerline double-door base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-drawerline-base-cabinet-with-2-doors
2-drawer base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-base-cabinet-with-2-drawers-and-handles
3-drawer base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-base-cabinet-storage-with-3-drawers
Single-door wall cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-wall-cabinet-with-shelves-2-door-style
Double-door wall cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/parametric-revit-family-wall-cabinet-frame-with-shelves
Oven housing base cabinethttps://www.cgtrader.com/3d-models/furniture/cabinet/oven-housing-base-cabinet-revit-family-uk-parametric
Worktop straighthttps://www.cgtrader.com/3d-models/furniture/cabinet/worktop-straight-revit-family-uk-parametric
Worktop straight with cutouthttps://www.cgtrader.com/3d-models/furniture/cabinet/worktop-straight-with-cutout-revit-family-uk-parametric
PDF (PDF, filesize: 21.8 MB), RFA (Autodesk Revit, filesize: 21.8 MB)
