Robotic Arm Design 3D model
Home Catalog Robotic Arm Design 3D model

Publication date: 2020-04-24

Buy Robotic Arm Design 3D model

$6.74

License: Royalty Free

author:

ParametricEgy

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «ParametricEgy». CGhub does not claim copyright ownership over the content used.
  • Description
  • Formats

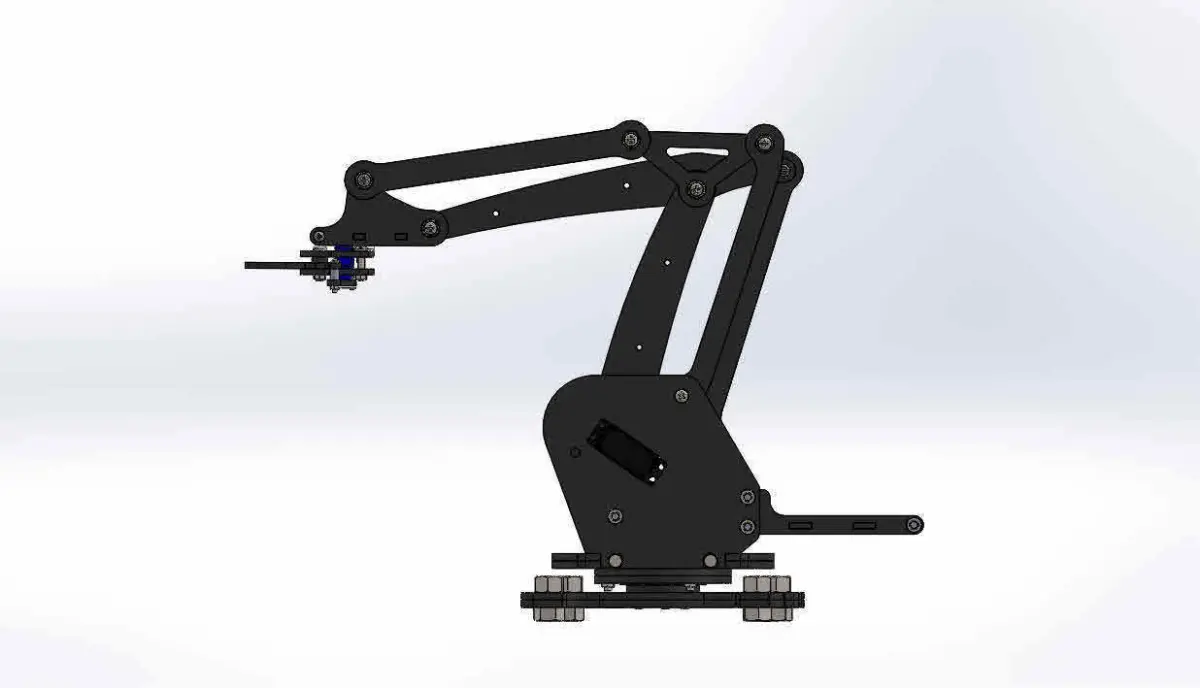

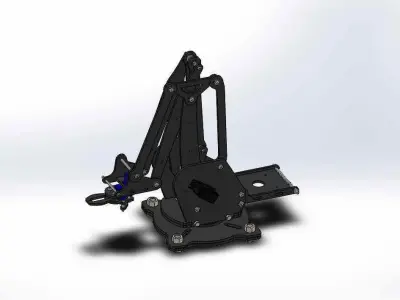

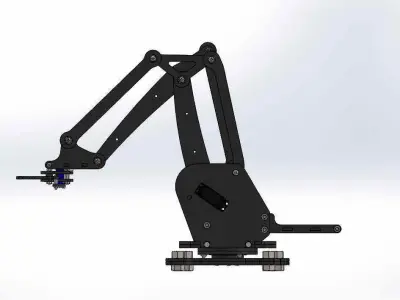

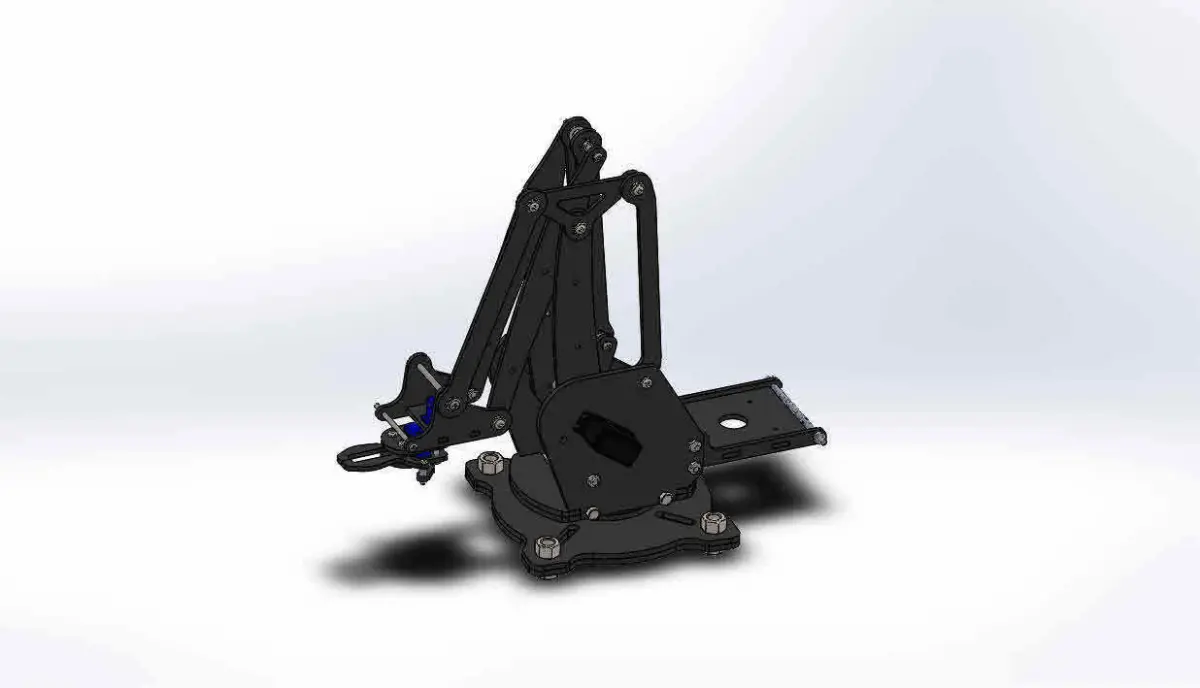

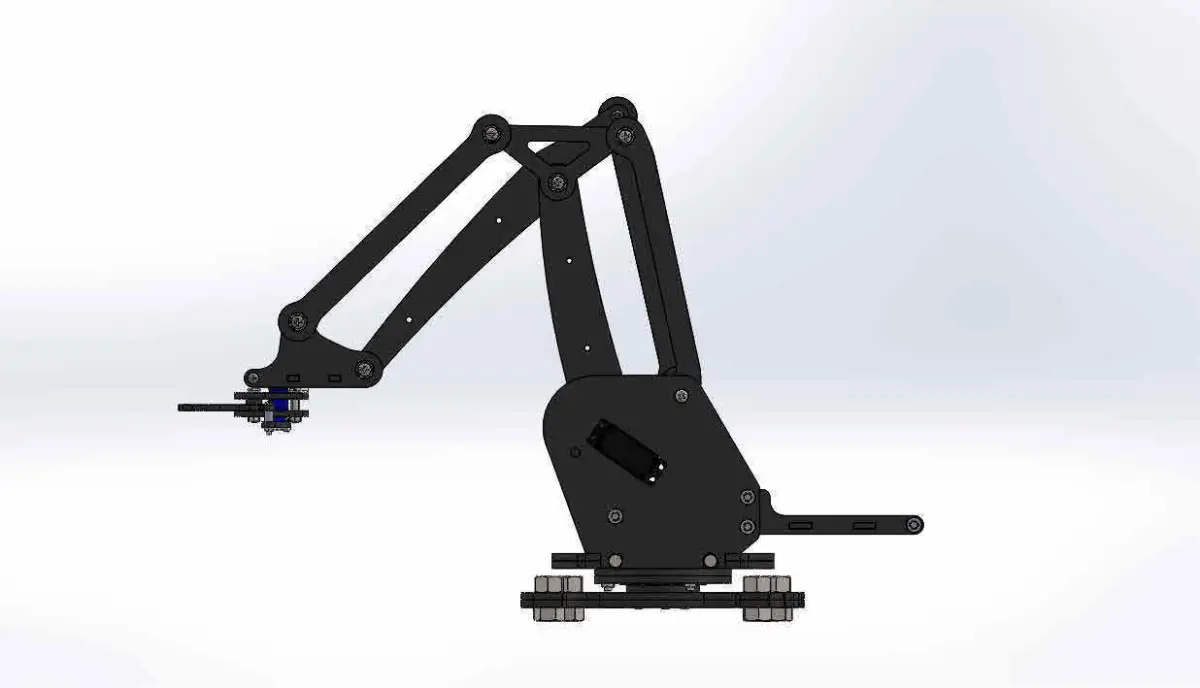

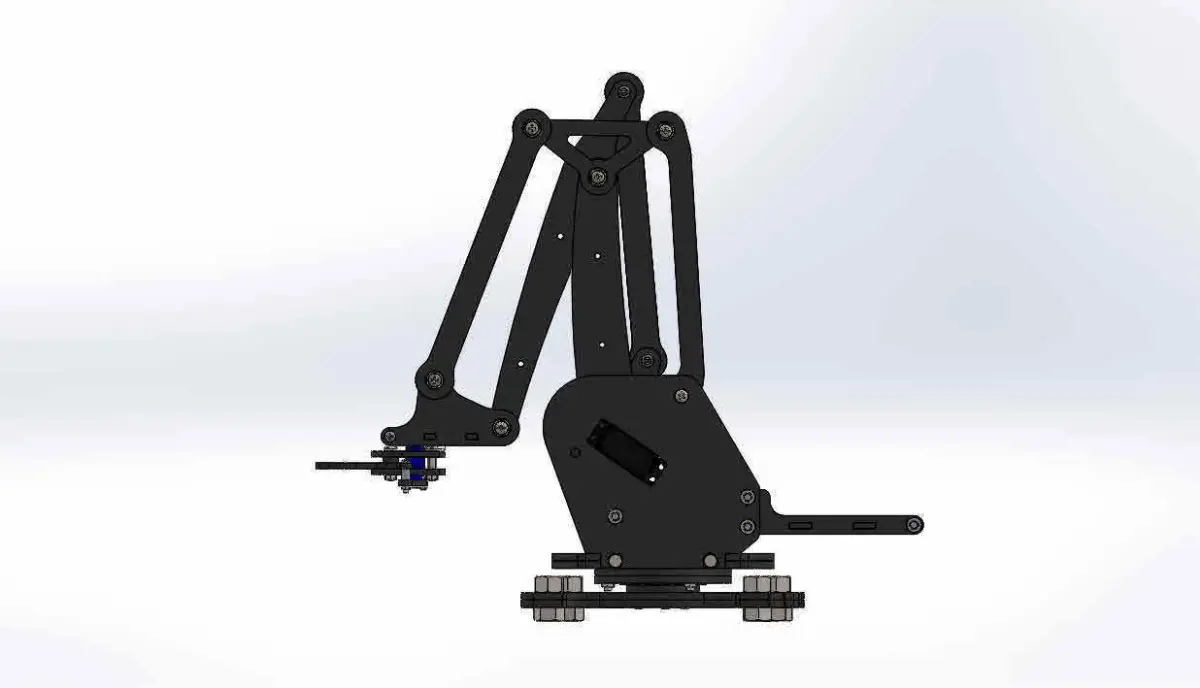

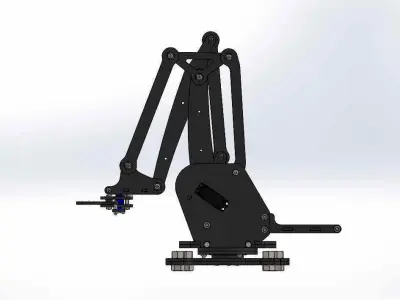

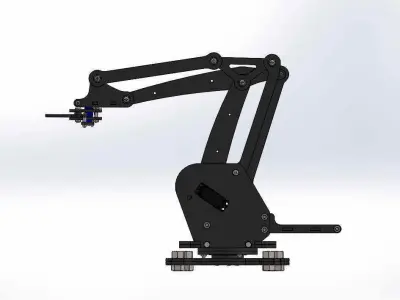

Robotic arm like Uarm

4 DOF

parts and assembly by solidworks 2018

Dxf Files for Laser cut

2 X DC servo motor 20 kg.cm

1 X DC servo motor 15 kg.cm

2 X micro servo 1.8 kg.cm (MG90S)

with PDF Collective drawing

Arduino Code (Firmware)

Control Program

Receive Gcode

Laser Cut on 4 and 5 mm Acrylic

SLDPRT (SolidWorks, filesize: 231 MB), DXF (DXF, filesize: 159 MB), STP (STEP, filesize: 159 MB), PY (Python Script, filesize: 159 MB), PDF (PDF, filesize: 159 MB)
