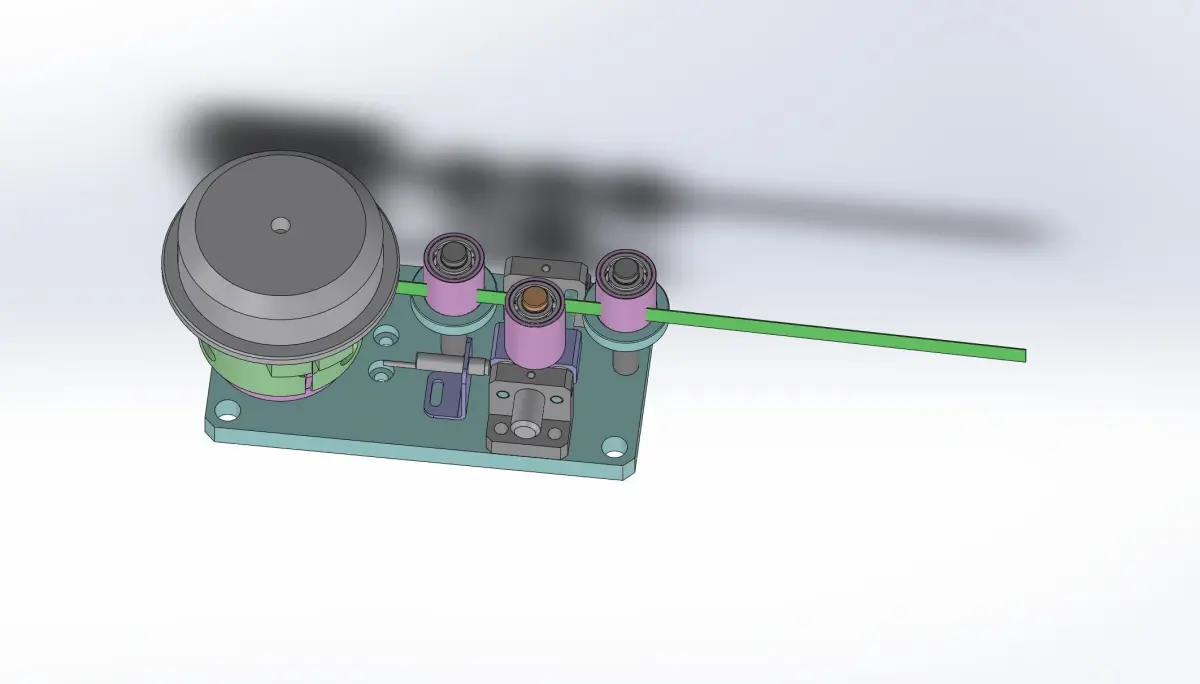

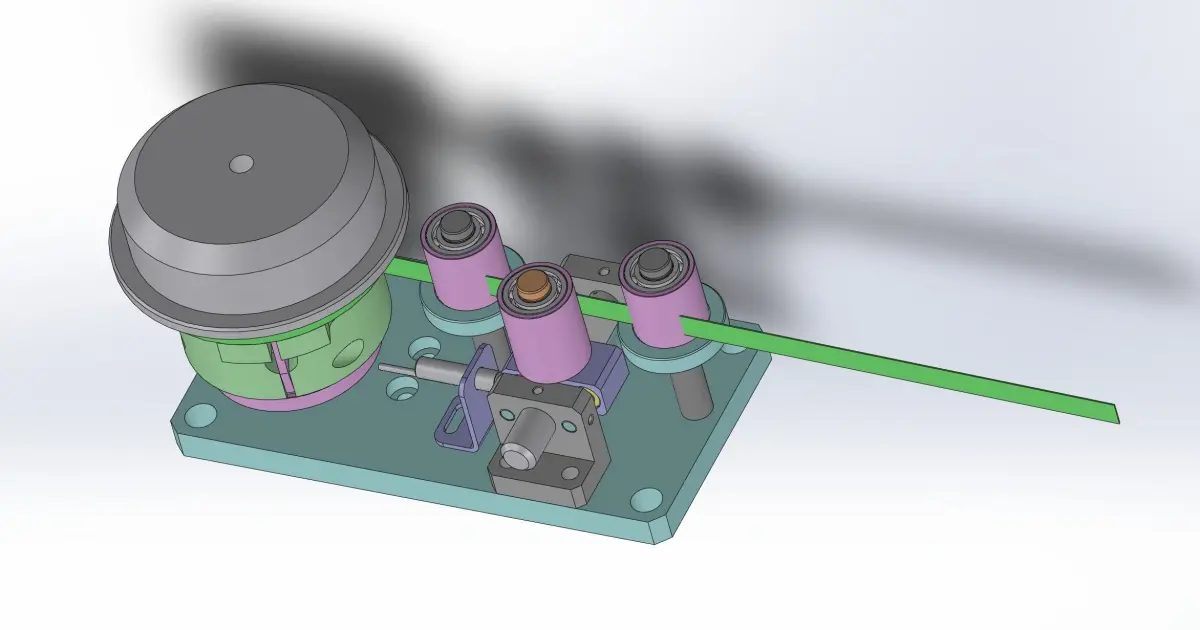

Roll mechanism

Tape transmission，use roll to transfer tape to the loading mechanism,include expansion joint,it can fix the tape roll,this mechanism design with spring tension.

polygons: 1391845

Vertice: 2783702

Files format contains-solidworks 2017-step-iges-3ds-Fbx-3dmax

and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Polygon mesh
Polygons: 1391845
Vertices: 2783702
Plugins used

Tags

Machine Industry Industrial Equipment Manufacture Production Assembly Factory Automatic Mechanic Engine Tool Part Device Robot Spring Tape Expansion Roll Industrial part Industrial factory Industrial robot
