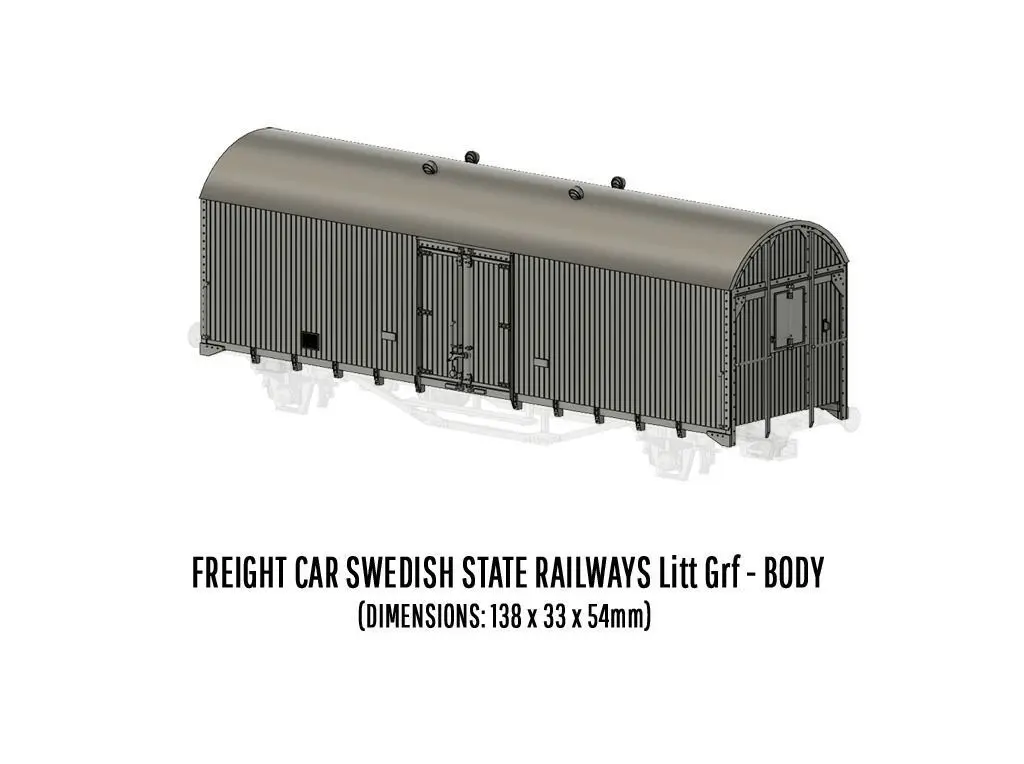

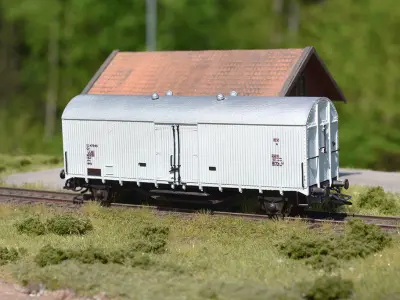

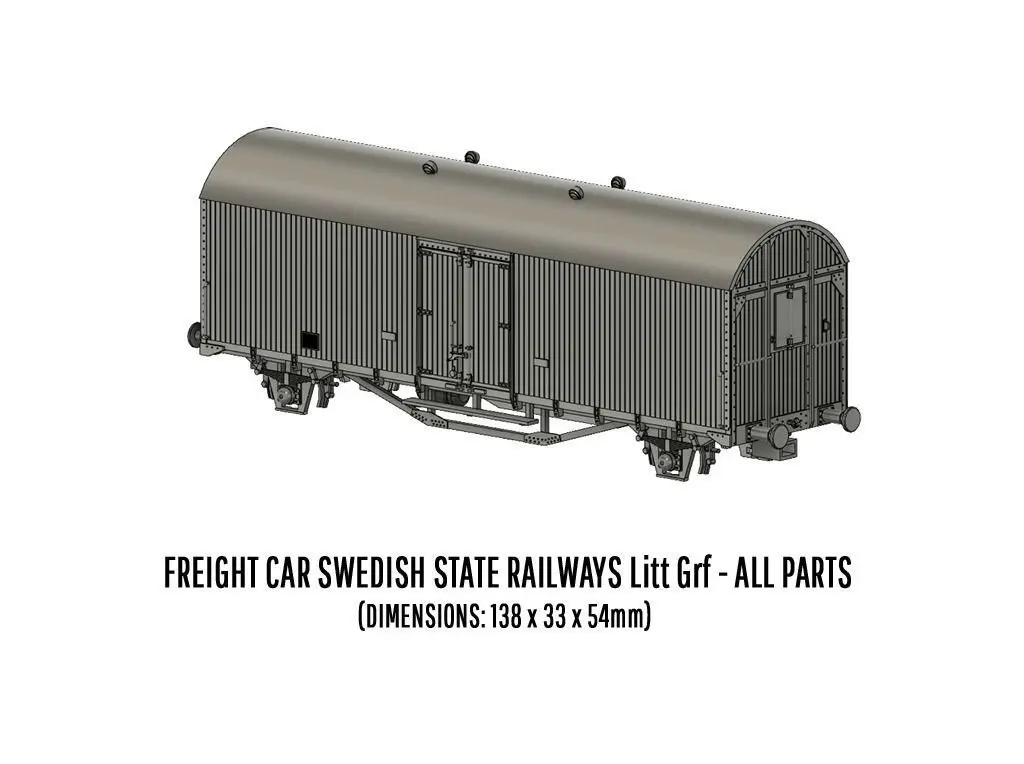

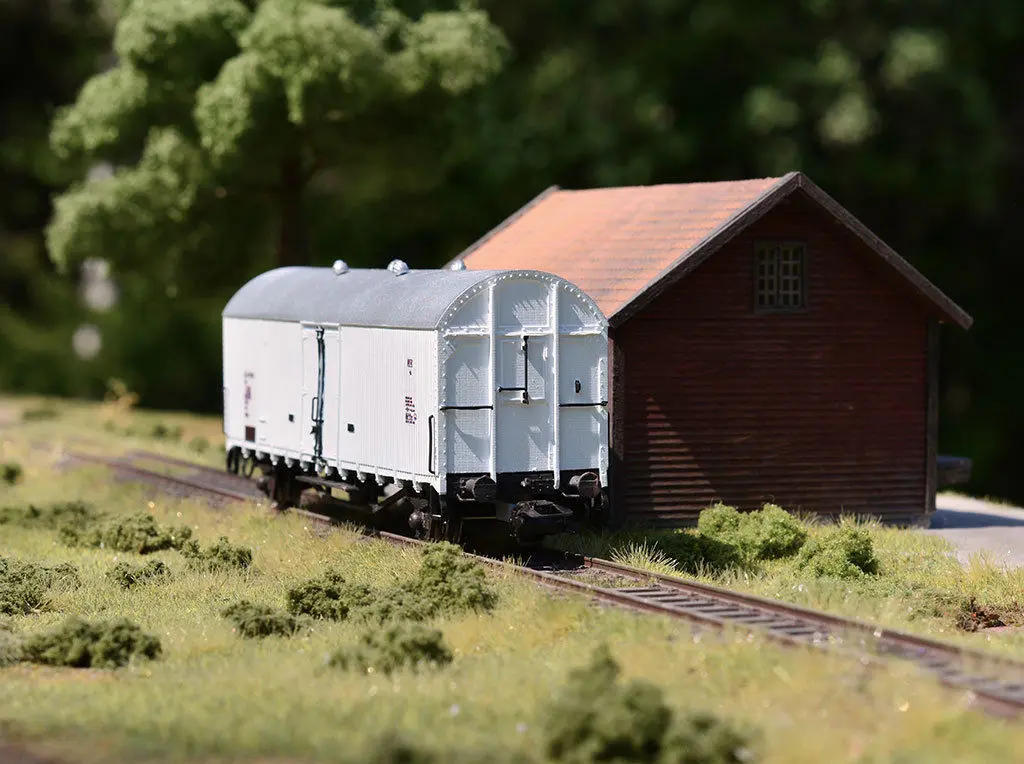

Full set of STL-files to build a Swedish state railroad thermo isolated box car Litt Grf in H0-scale. 640 units were built 1952-1962. In duty until 1992.Model runs well on both 2- and 3-rail systems. The car is equipped with standard sized NEM-pockets, which allows for any NEM-couplings of your choise.Decals are included as PDF-document.
In addition you need: 2x wheel pairs (WHEEL DIAM: 10.3mm SHAFT LENGTH: 24.6mm)2x NEM springs (size 2.0mm diam, 4.0mm length, 0.1 - 0.2mm wire diameter)2x Couplings for NEM-pocket
Ready-to-print super detailed items set for H0-scale Model Railroad. The Print files (STL-format) with correct supports are included and all neccesary preparations are made to simplify print. Simply download, un-zip, slice and print. Enjoy!
The models are developed and test printed to verify function, detail and printability. Testing has been performed on a range of consumer grade 4k, 6k and 8k resin 3D-printers.
We recommend 0.3mm layer thickness. The model has been testprinted successfully using the following resins for low warp, high strength and super detail:
- 70% Anycubic ABS-like PLUS resin / 30% Anycubic Tough resin
IMPORTANT GENERAL NOTE TO AVIOD WARPING / SCEWING:
- WASHING: Wash all items clean from resin preferrably in a washing mashine 6-8 minutes (Anycubic Wash & Cure 2.0)
- POST CURING: Leave all items to dry after wash properly. Preferrably over-night / 12-24h. All sides, including inside surfaces, MUST be exposed to the UV-light. Recommended time: 4 minutes.
- Paint the details immidiatly after post-curing using a primer. We recommend TAMAIYA Surface Primer Fine Gray. Do not use water based primer.
*The Editorial licence of course includes unlimited printing for your own Model Railroad. However, the 3D models provided in this set must NOT be used for commersial production or re-sale of the 3D-models.
