Rooftop Lightweight Solar Construction Type-1 3D model

$28

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

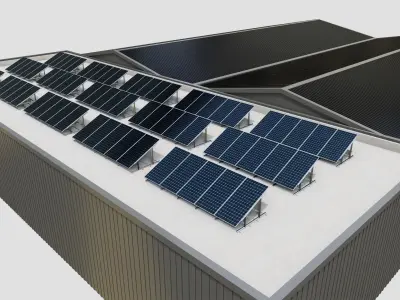

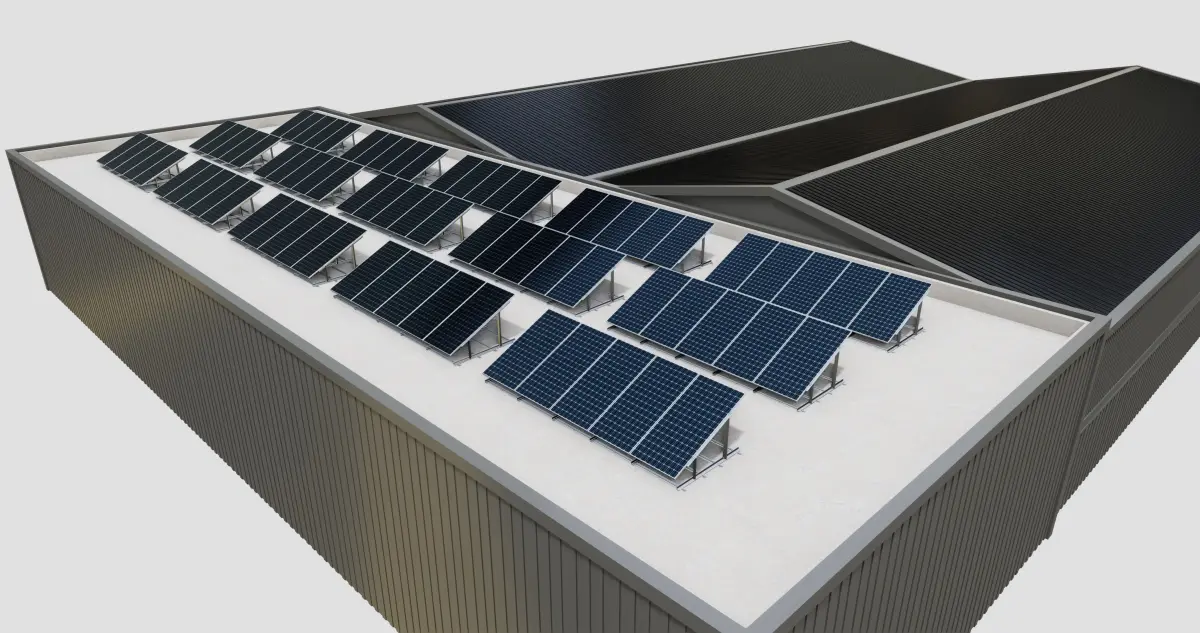

Rooftop Lightweight Solar Construction Type-1

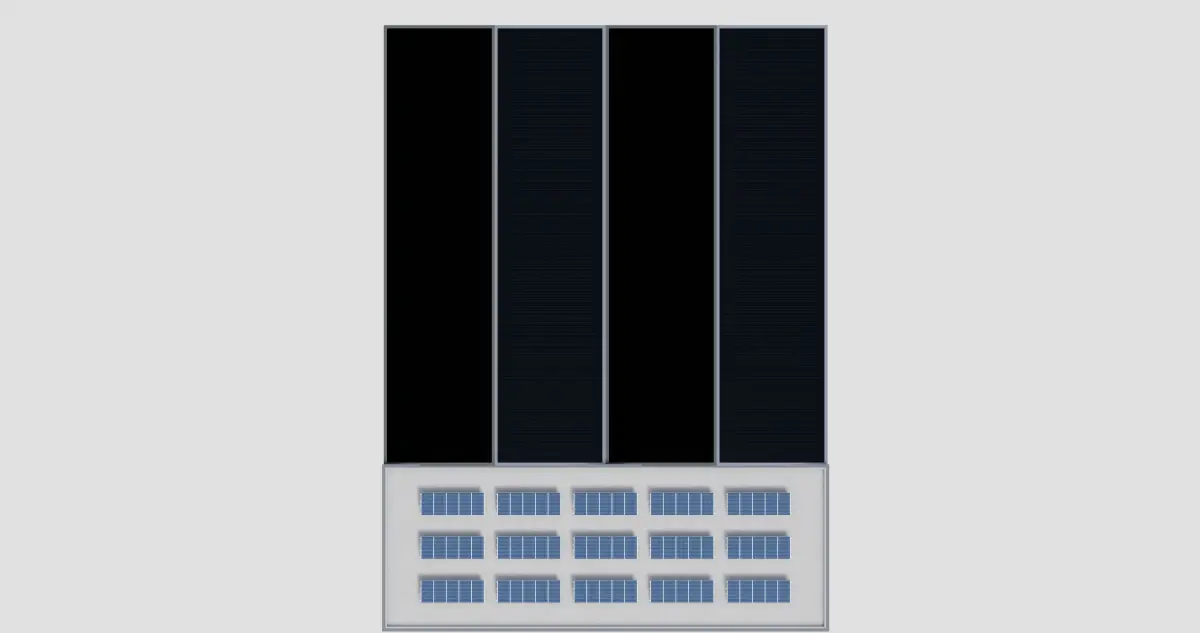

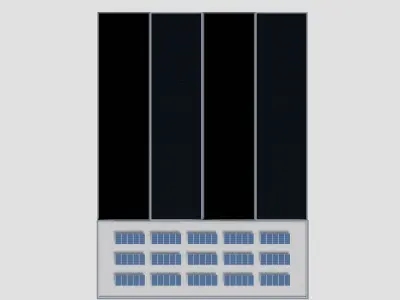

1x5 Vertical Solar Glass Panel Layout

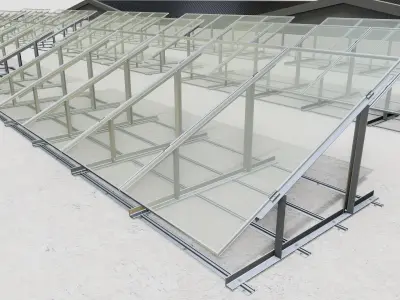

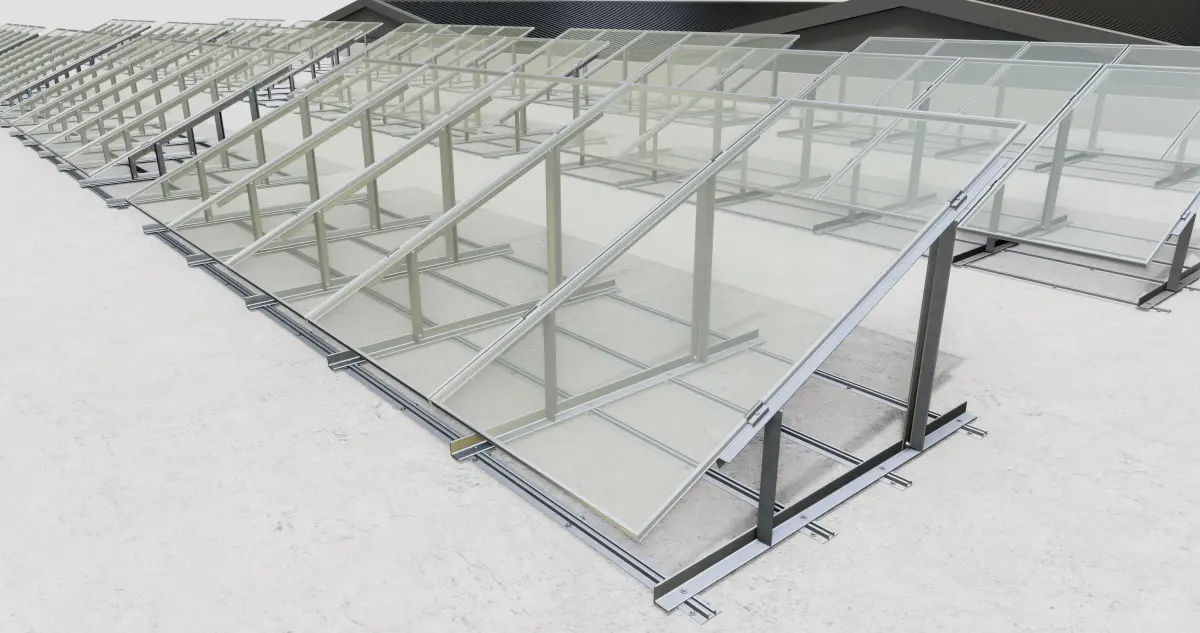

Roof Connection Type; Anchored with aluminum profile

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 2,75 kWp power in 1 hour

Total of 15 light steel constructions

15 light steel constructions with a total of 41.25 kW (DC) energy generation

The system consists of 6 axles and the distance between each axle is 1154 mm

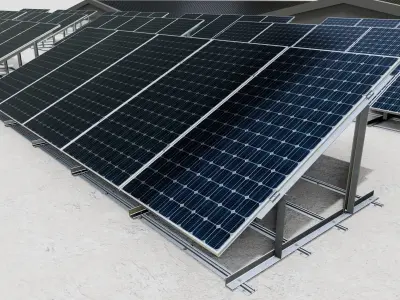

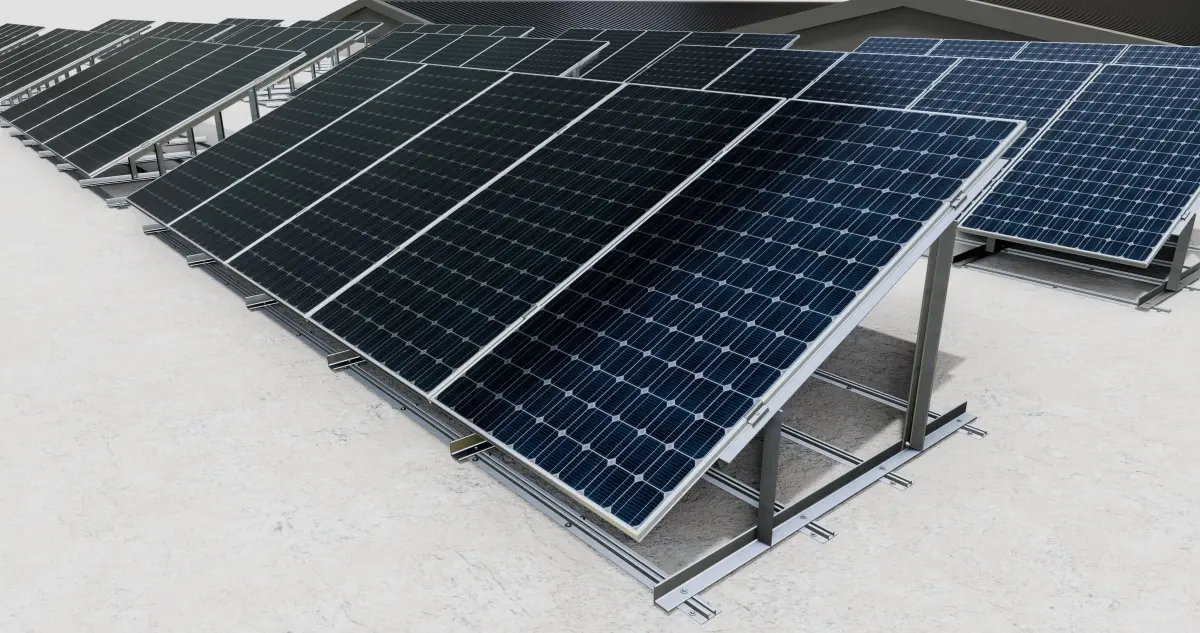

Horizantal angle of panel 25°

The closest distance of the panels to the floor 200 mm.

Prepared With BLENDER Version 4.0.1

Polygons : 982277

Vertices : 1341203

Objects : 7016

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 982277
Vertices: 1341203

Tags

Roof Rooftop Solar Lightweight Ground Mounting Panel Energy Sun Construction Beam Column Aluminum Structure Outdoor Engineering Buildings Blender Architectural
