Rooftop Lightweight Solar Construction Type-2 3D model

$28

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.

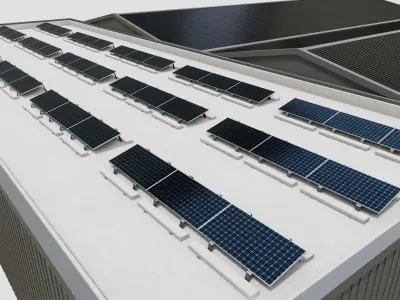

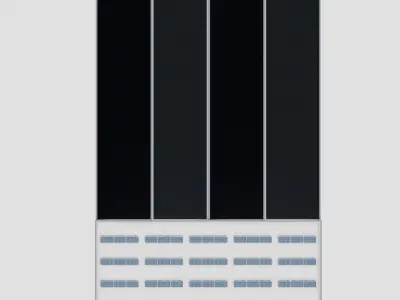

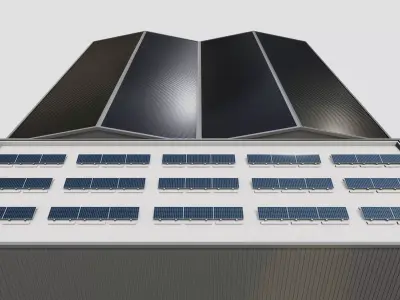

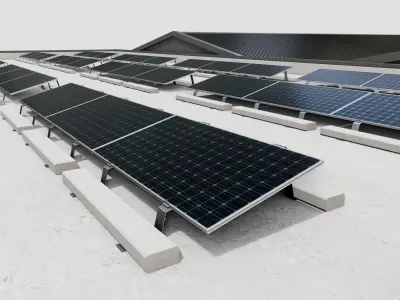

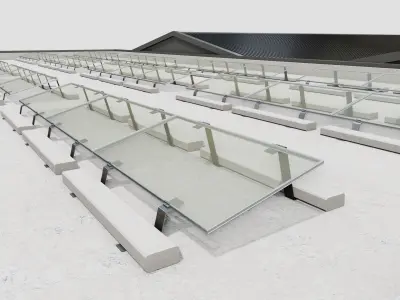

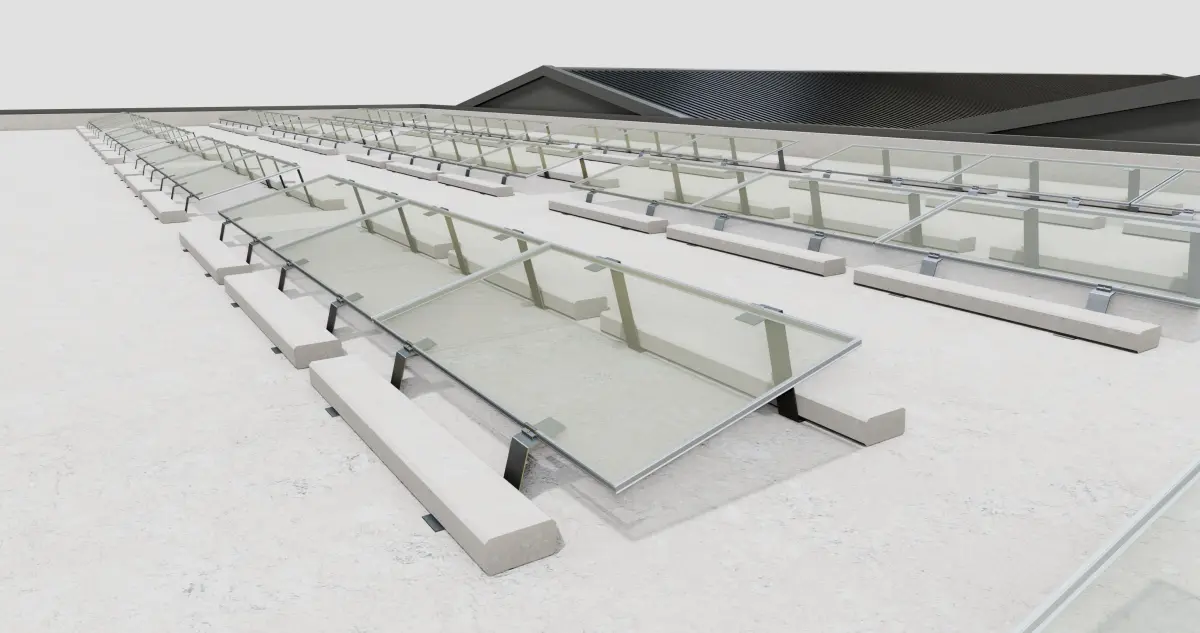

Rooftop Lightweight Solar Construction Type-2

1x3 Horizontal Solar Glass Panel Layout

Roof Connection Type; With ballast foundation block

Panel Dimensions : 2279 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 1,65 kWp power in 1 hour

Total of 15 light steel constructions

15 light steel constructions with a total of 24,75 kW (DC) energy generation

The system consists of 6 axles and the distance between each axle is 1200 mm

Horizantal angle of panel 15°

The closest distance of the panels to the floor 200 mm.

Prepared With BLENDER Version 4.0.1

Polygons : 250097

Vertices : 421613

Objects : 1676

3D Model details

cgtrader Platform
Animated
Rigged
Ready for 3D Printing
VR / AR / Low-poly
PBR
Textures
Materials
UV Mapping
Unwrapped UVs: Unknown
Geometry: Unknown
Polygons: 250097
Vertices: 421613

Tags

Roof Rooftop Solar Lightweight Ground Mounting Panel Energy Sun Construction Beam Column Aluminum Structure Outdoor Engineering Buildings Blender Architectural
