Rope Tension Pedestrian Overpass Type-1 3D model
Home Catalog Rope Tension Pedestrian Overpass Type-1 3D model
Rope Tension Pedestrian Overpass Type-1 3D model
Rope Tension Pedestrian Overpass Type-1 3D model
Rope Tension Pedestrian Overpass Type-1 3D model
Rope Tension Pedestrian Overpass Type-1 3D model
Rope Tension Pedestrian Overpass Type-1 3D model

Publication date: 2024-12-13

Buy Rope Tension Pedestrian Overpass Type-1 3D model

$32

License: Royalty Free

author:

SUNVERRA

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «SUNVERRA». CGhub does not claim copyright ownership over the content used.
Buy at www.cgtrader.com - $32 Add to Wishlist
  • Description
  • Formats

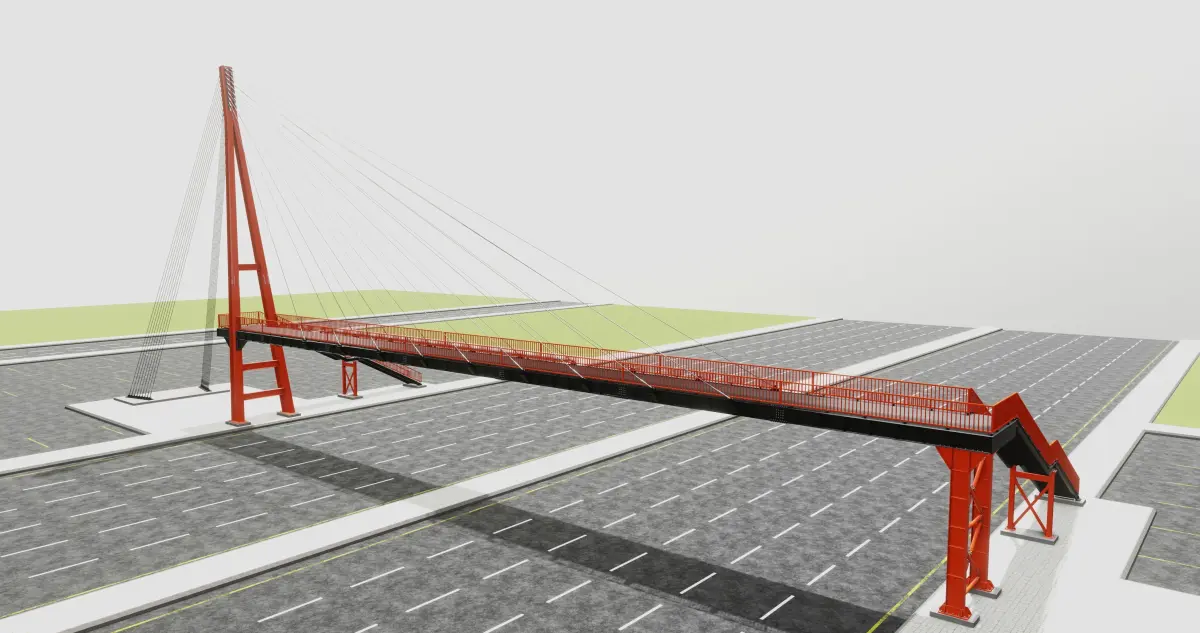

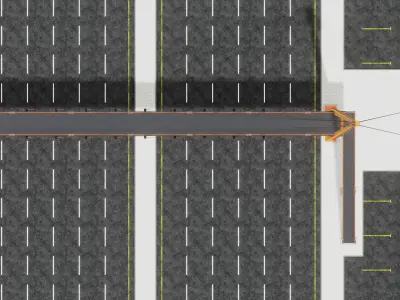

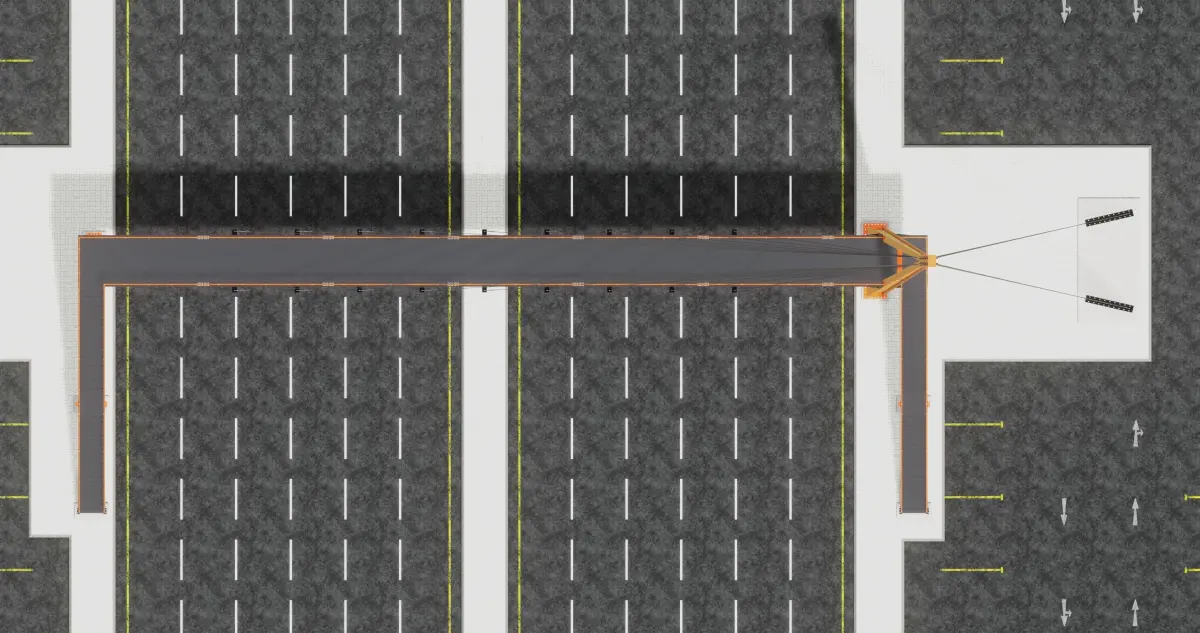

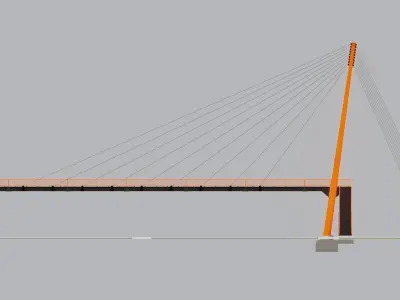

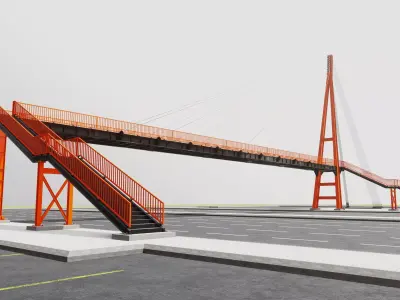

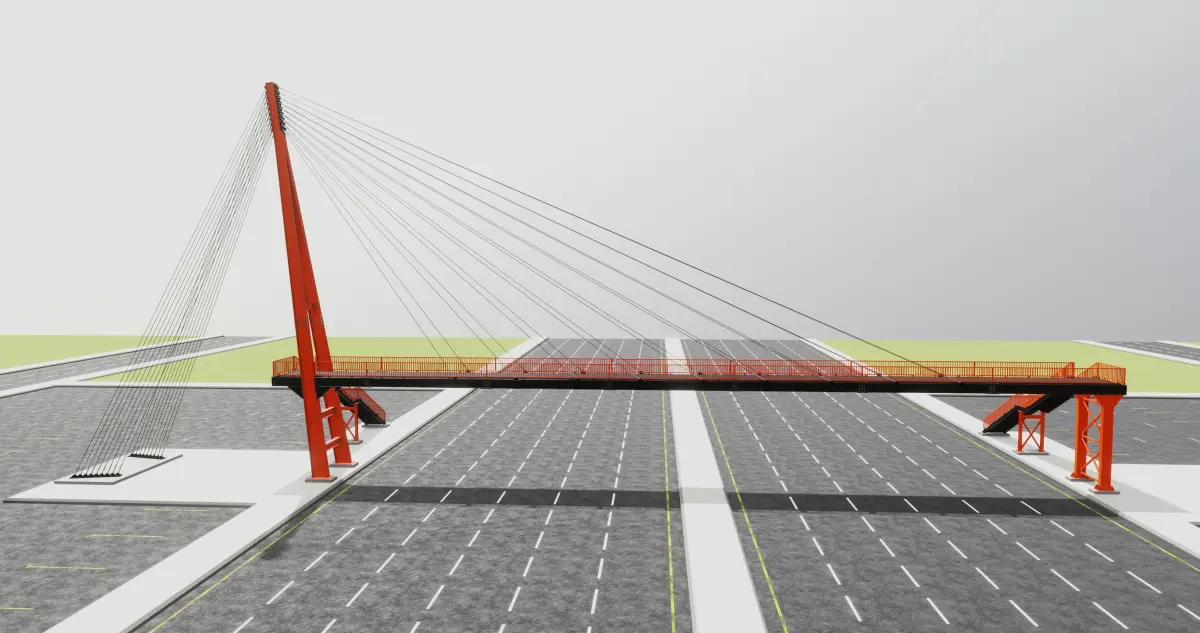

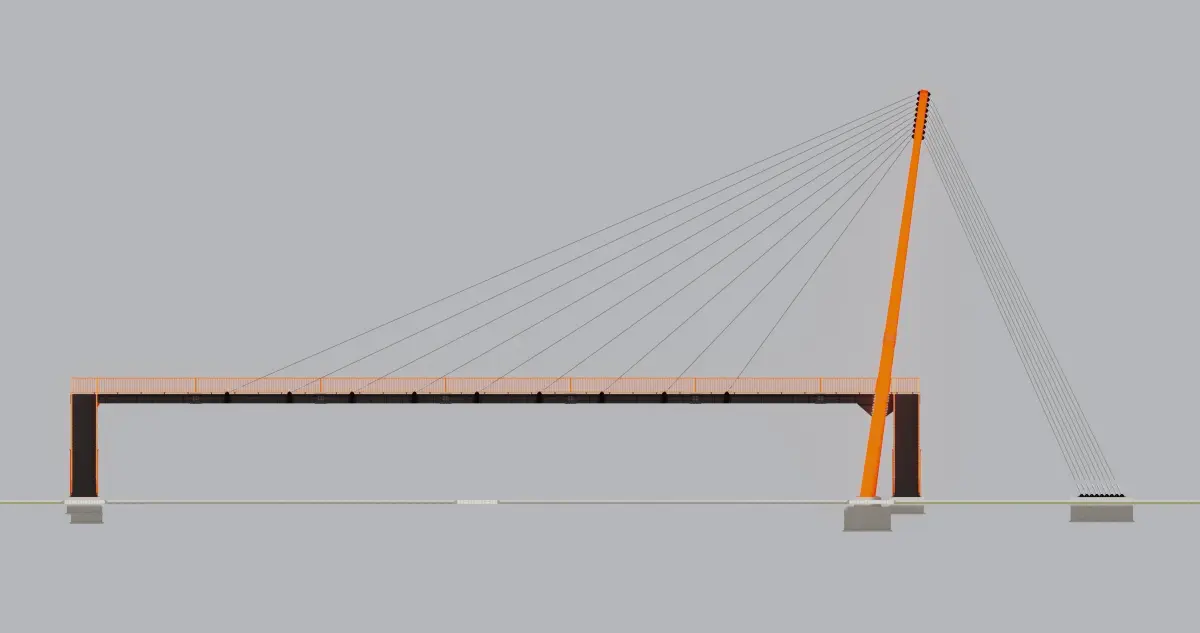

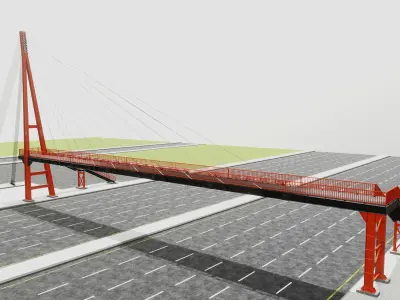

Rope Tension Pedestrian Overpass Type-1

The Same Model is Available in Two Different Colors.Galvanized Coating Color With Black and Orange Colors

The Long Platform Construction is Connected by Rope Tensioning.

18 Ropes for the Tensioning of the Platforms 18 Ropes for the Moment Balance of the Long Pylon Column Were Tied to the Ground From the Back.

Largest Column Span : 50 mt.

Platform Asphalt Height : 6 mt.

Platform Width : 3 mt.

Steel Rope : 36 piece

Rope Fixed Press : 16 piece

Rope Tensioning Press System : 16 Piece

Prepared With BLENDER Version 4.0.1

Polygons : 371336

Vertices : 508834

Objects : 4899

BLEND (Blender, filesize: 145 MB), OBJ (OBJ, filesize: 230 MB), FBX (Autodesk FBX, filesize: 232 MB), JPG (JPG, filesize: 241 MB), PNG (PNG, filesize: 241 MB), EXR (EXR, filesize: 157 MB)

3D Model details

  • cgtrader Platform
  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Polygons: 371336
  • Vertices: 508834
  • Geometry: No N-gons | No faceted geometry | Manifold geometry |

Tags

Pedestrian Overpass Steel Bridge Rope Tension Ground Construction Beam Column Pylon Structure Outdoor Engineering Buildings Blender Architectural
