Rotating four-station detection system 3D model

License: Content published with the label may not be sold, given, or assigned to another person or entity in the form it is downloaded from the site.

author:

forestlsls

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «forestlsls». CGhub does not claim copyright ownership over the content used.

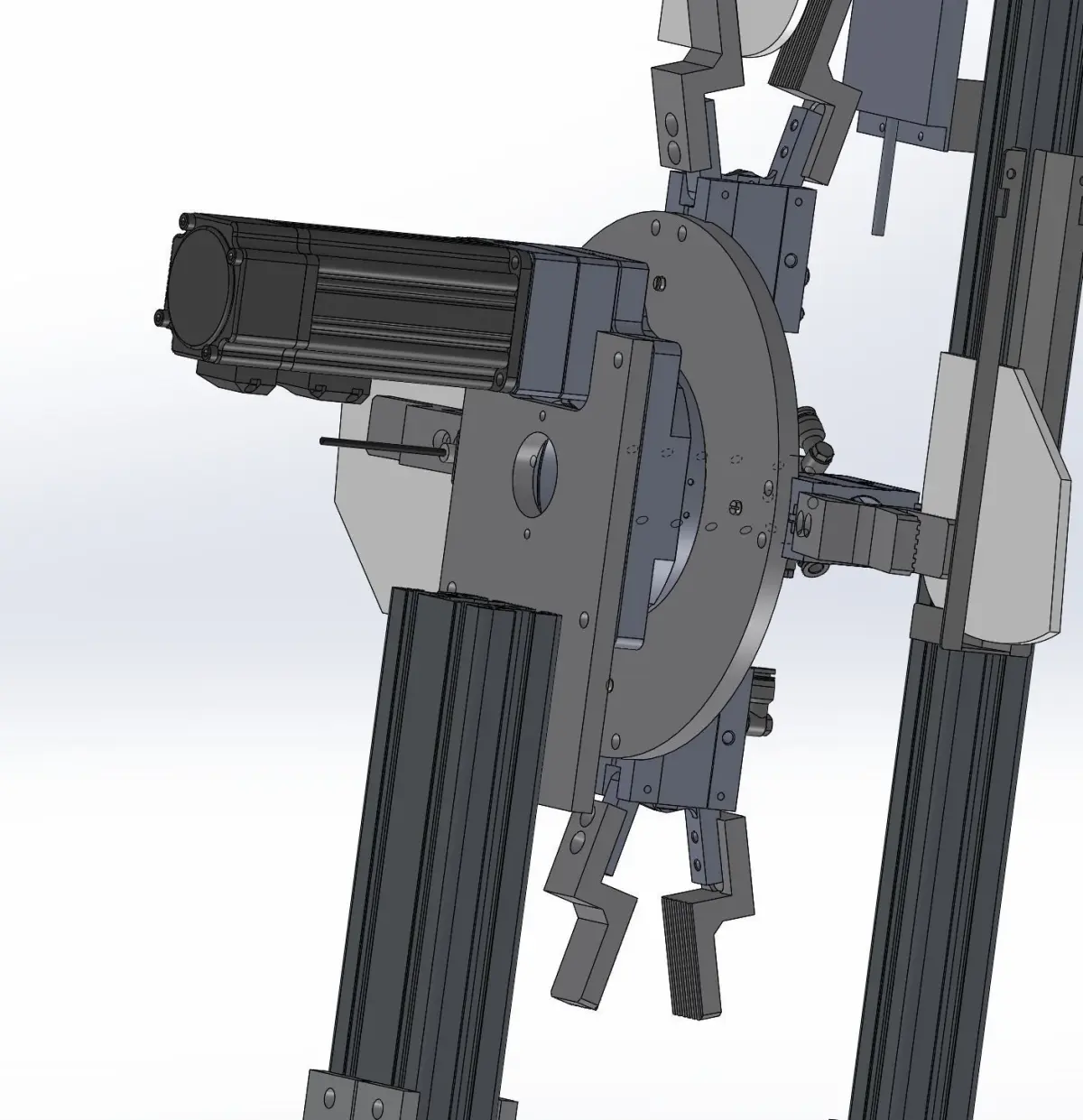

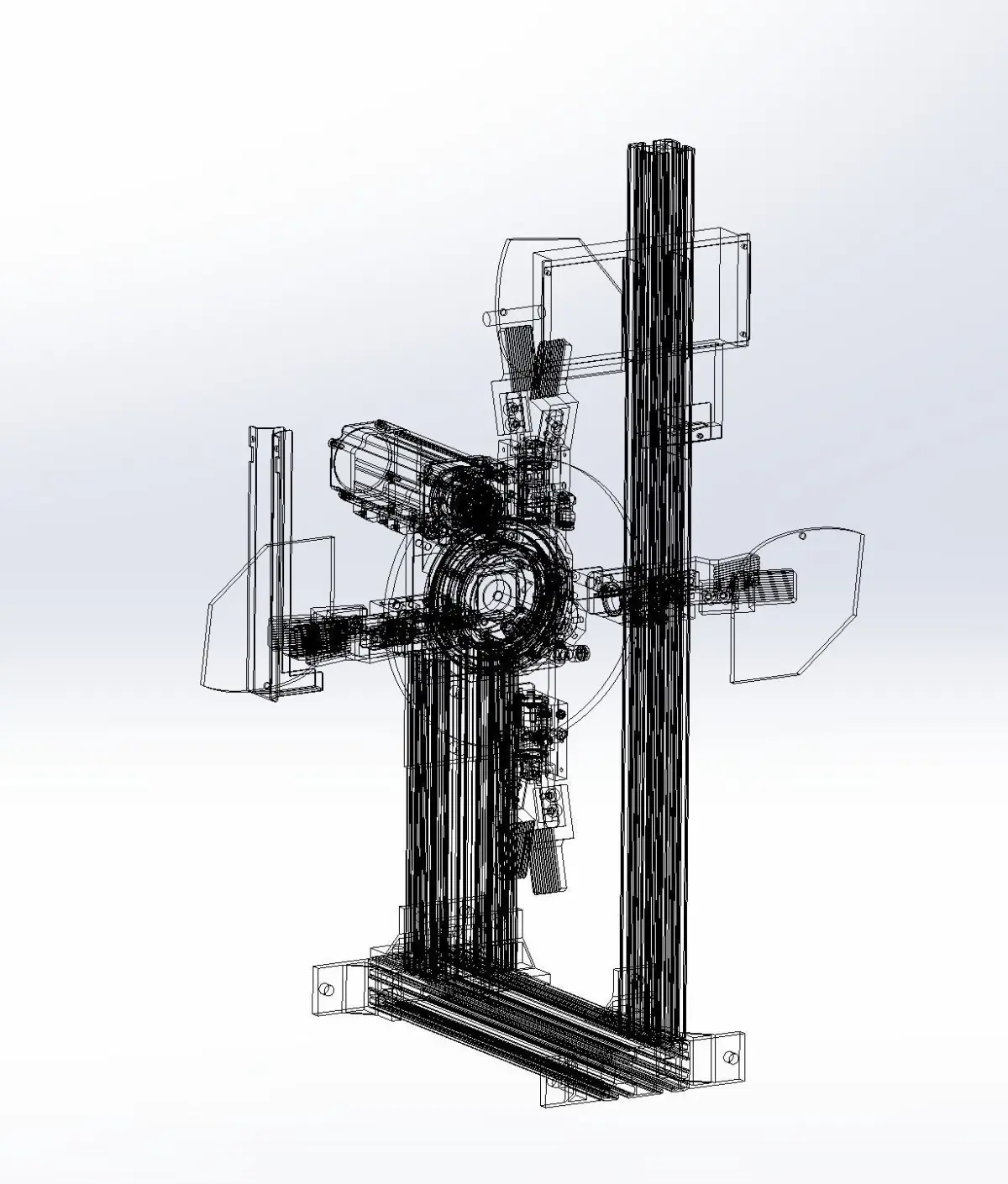

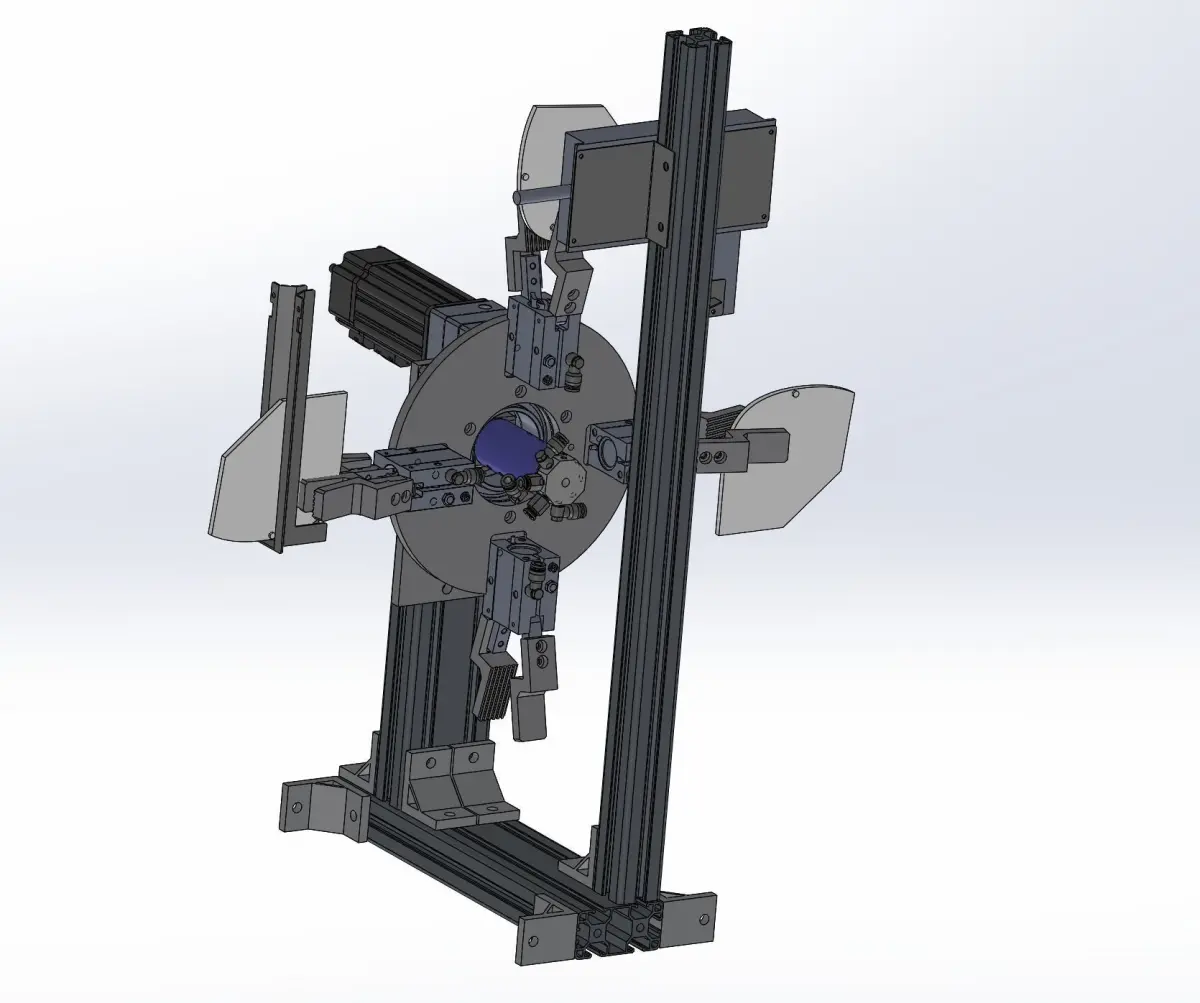

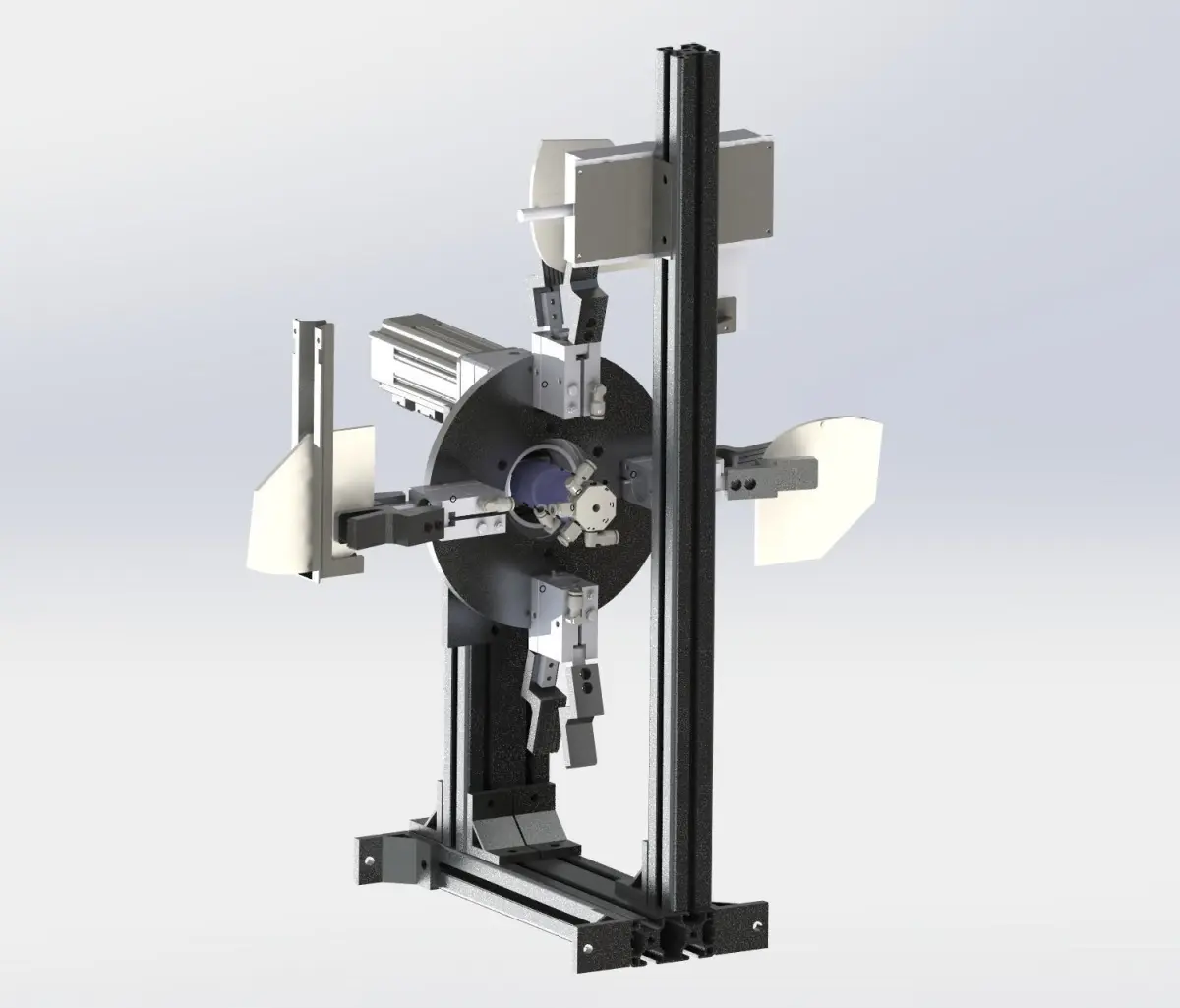

Rotating four-station detection system

The mechanism is driven by motor, and the product is clamped by claw cylinder, which can grasp the product at four stations. The mechanism is simple and practical, and can be used in many working environments

Files format contains

-solidworks 2017

-step

-iges

and other formats

If you like,you can buy for you to get this models or if you have any questions also you can email to me.Designed with SolidWorks 2017, render with Keyshot
