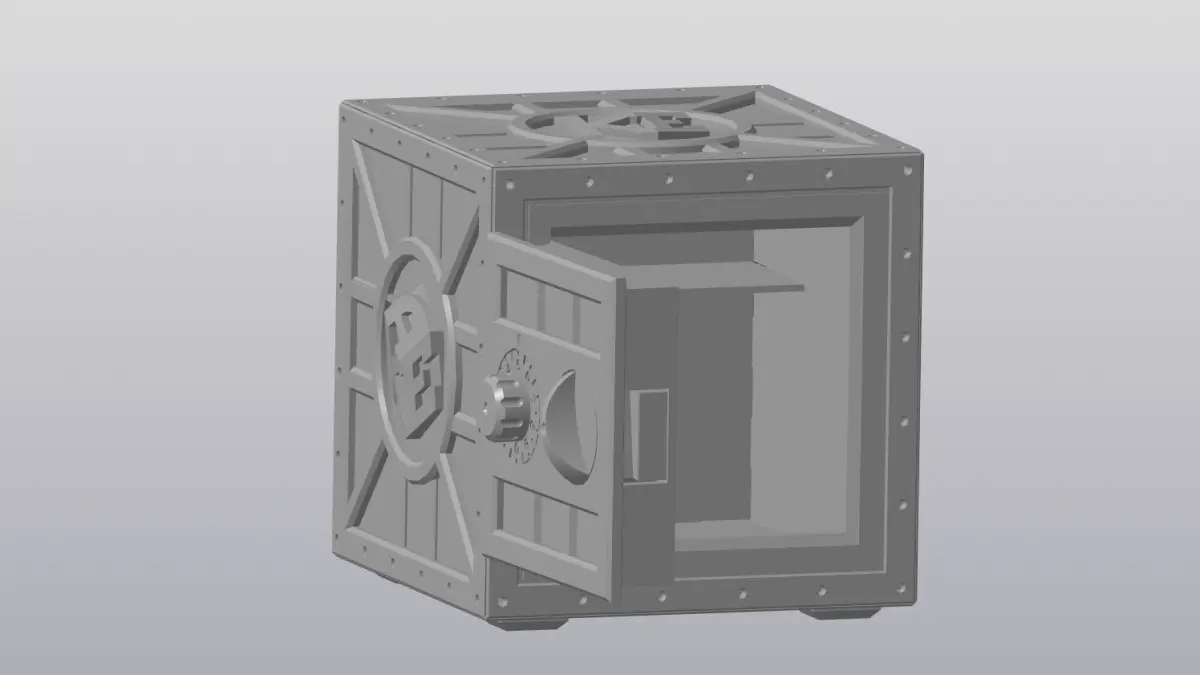

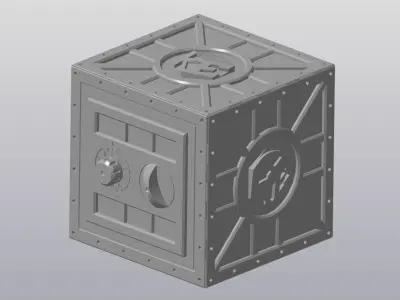

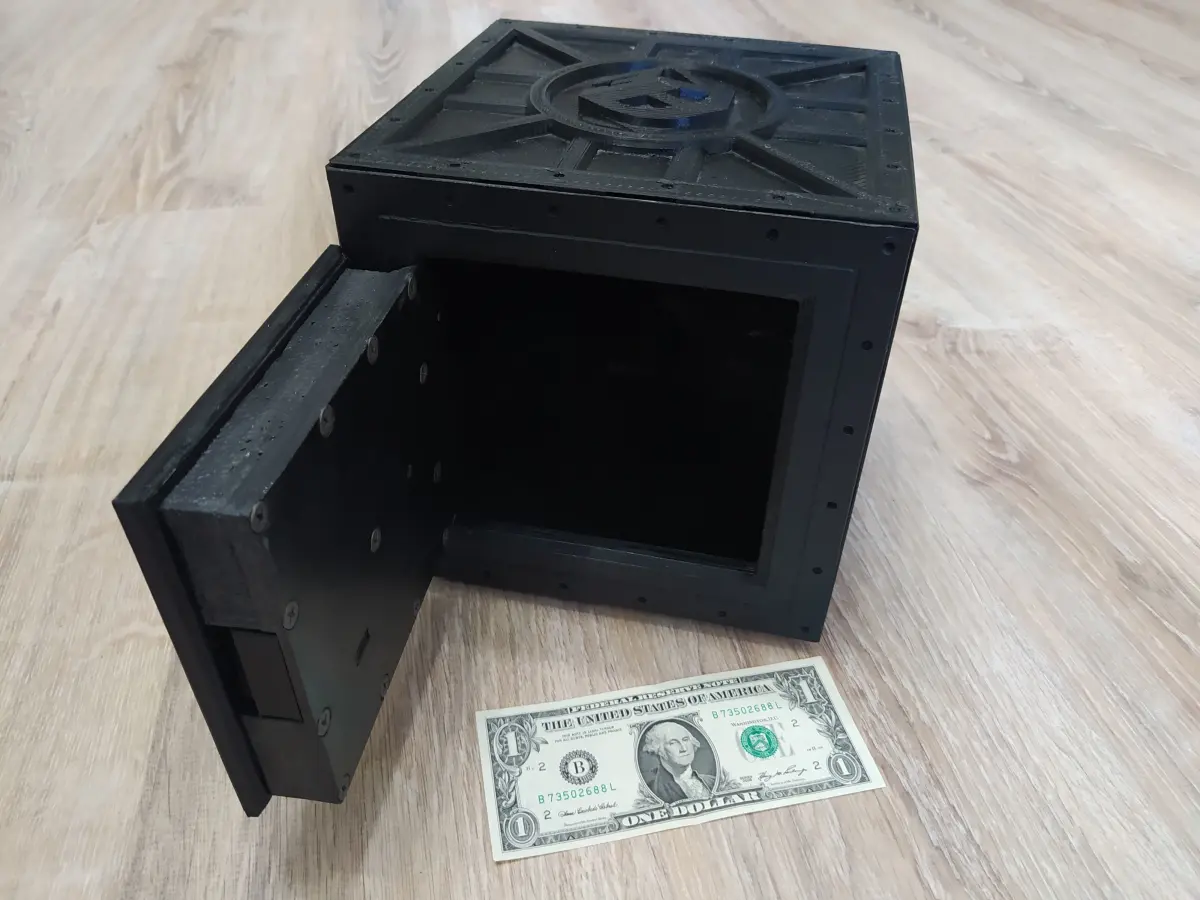

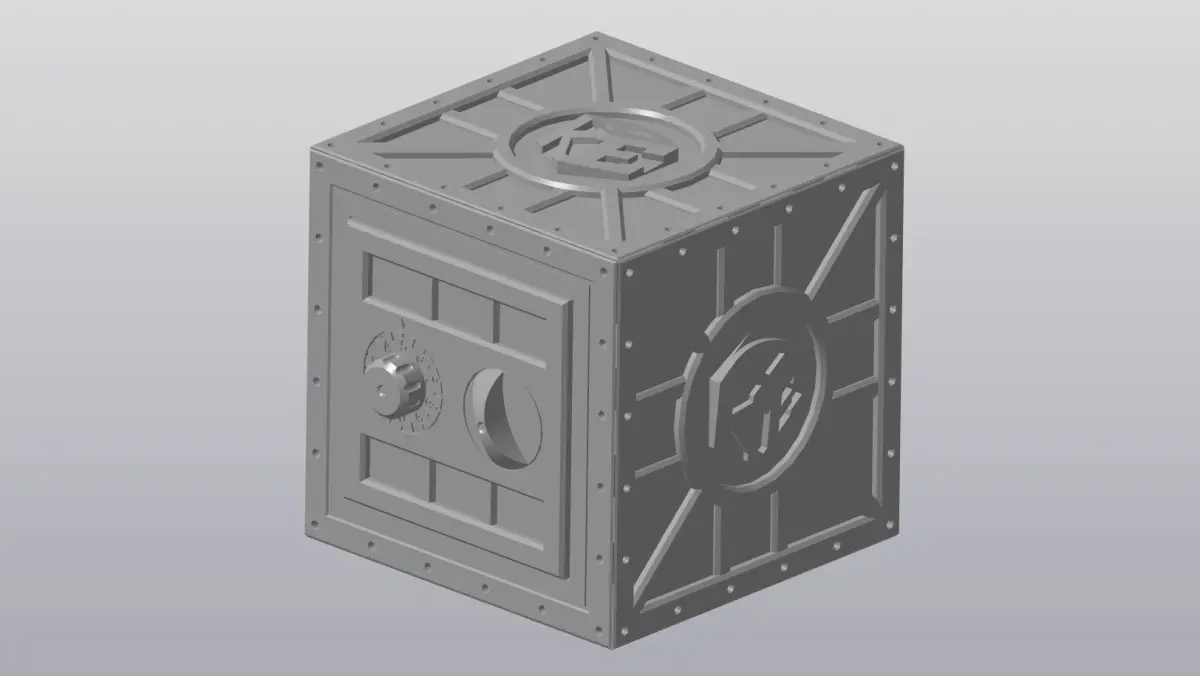

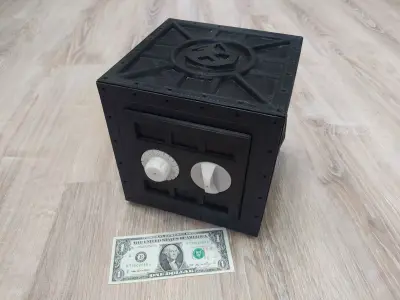

Safe 200x200x200 mm. with a combination lock and ability to set your own code.

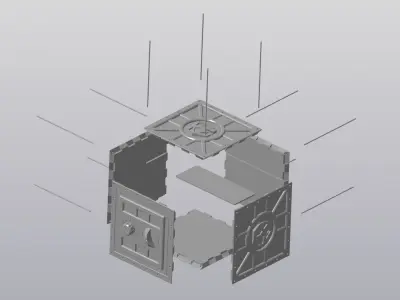

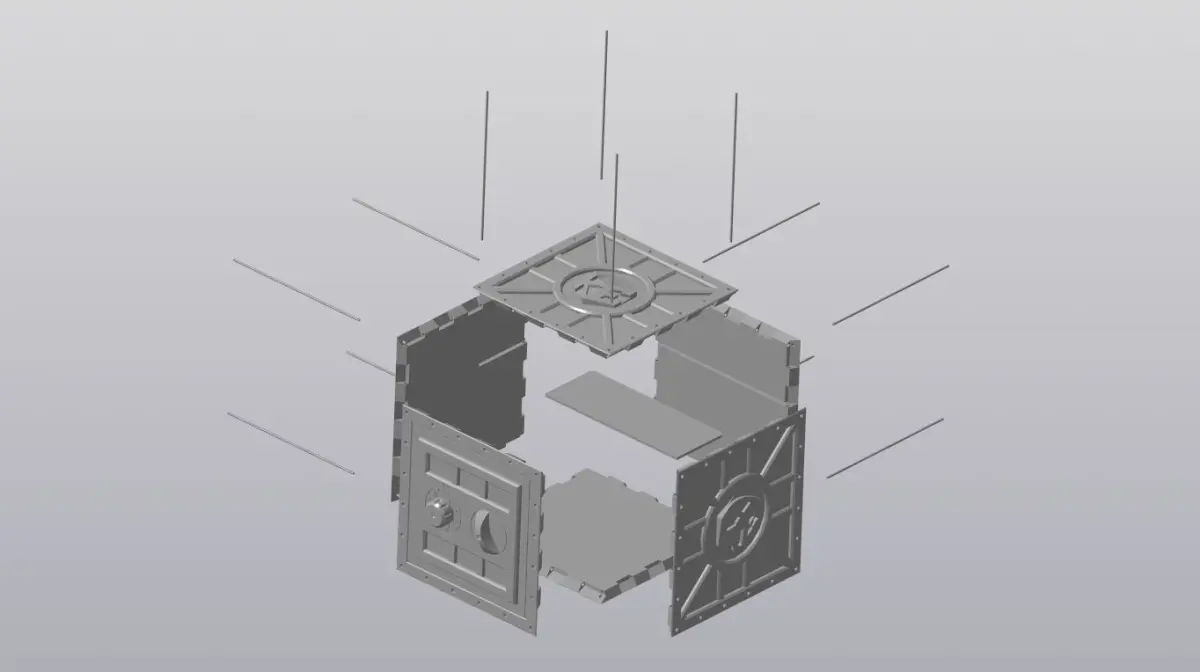

To build the safe, you need to print following details:

• Axis1 – 1• Axis2 – 1• Backside – 1• Front Side – 1• Bolt – 1• Bottom – 1• Door handle1 – 1• Door handle2 – 1• Door – 1 • Door2 – 1• Gear1 – 1• Gear2 – 1• Gear3 – 1• stud – 12• Left side – 1• Right side – 1• Shelf – 1• Spring – 1• Tooth – 2• Top – 1

In order to set up your own code combination, you must:

Unscrew the screws that close the lock mechanism.• To change the first digit, you need to change the location of the Tooth detail on Gear3 detail.• To change the second digit, you need to change the location of the Tooth detail on the Gear2 detail.• To change the third digit, you need to change the location of the Gear1 detail and Door handle 1 by turning Axis1.

To unlock the safe you should provide a code consisting of 3 digits according to the following scheme:

The first digit is set by rotating the Door handle 1 handle clockwise, after 2 full turns you need to stop the handle on the desired digit.• The second digit is dialed by rotating the Door handle 1 counterclockwise, after 1 full turn, you need to stop the rotation on the desired digit.• The third digit is typed by rotating the handle Door handle 1 clockwise, you need to stop the rotation on the desired digit.
