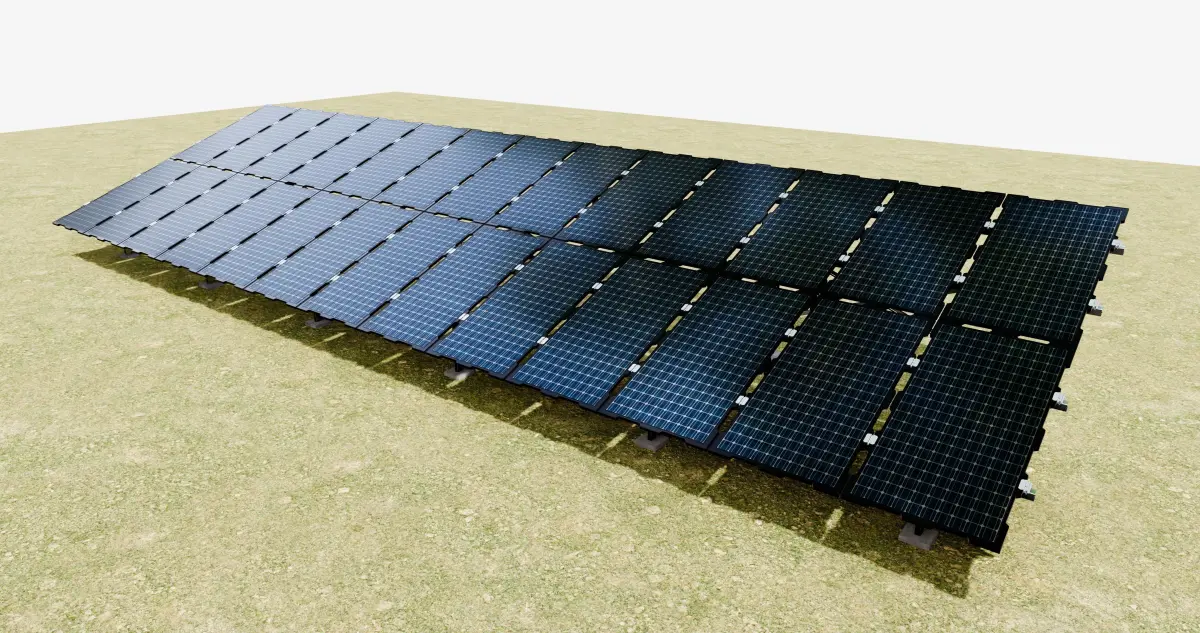

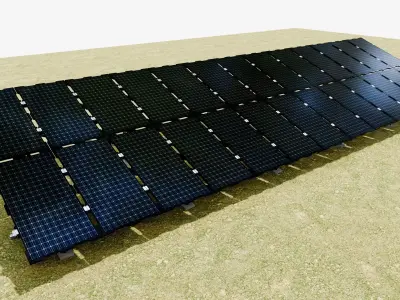

Sample Assembly for New Framed Solar Panel

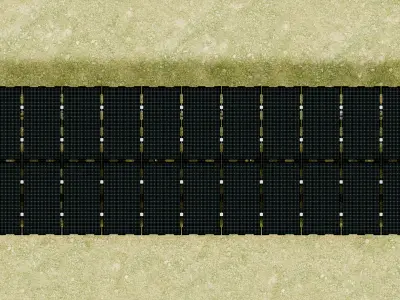

2x13 Vertical Solar Glass Panel Layout

Ground Connection Type; With Concrete Friction Pile

Panel Dimensions : 2278 x 1134 x 35 mm

Panel Power : 550Wp

1 solar panel steel construction produces 14,3 kWp power in 1 hour

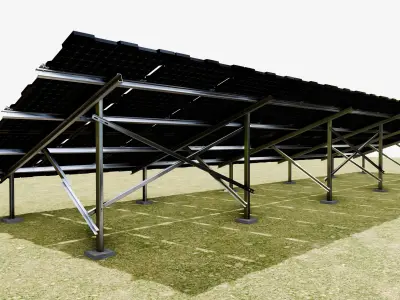

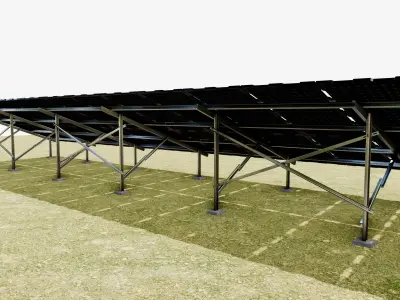

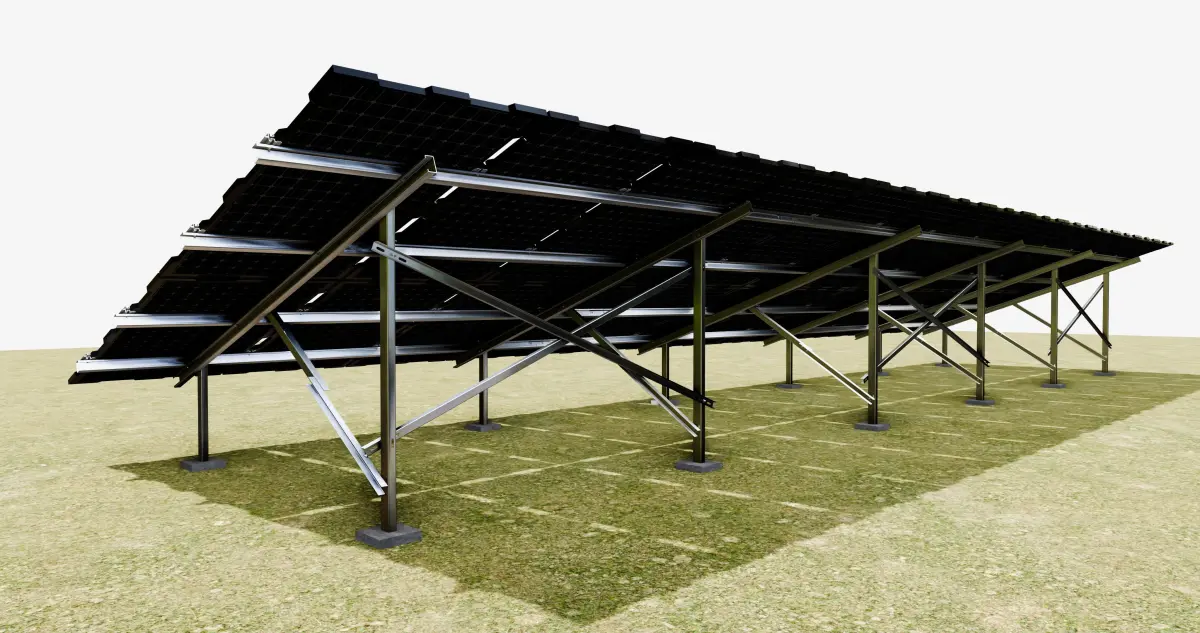

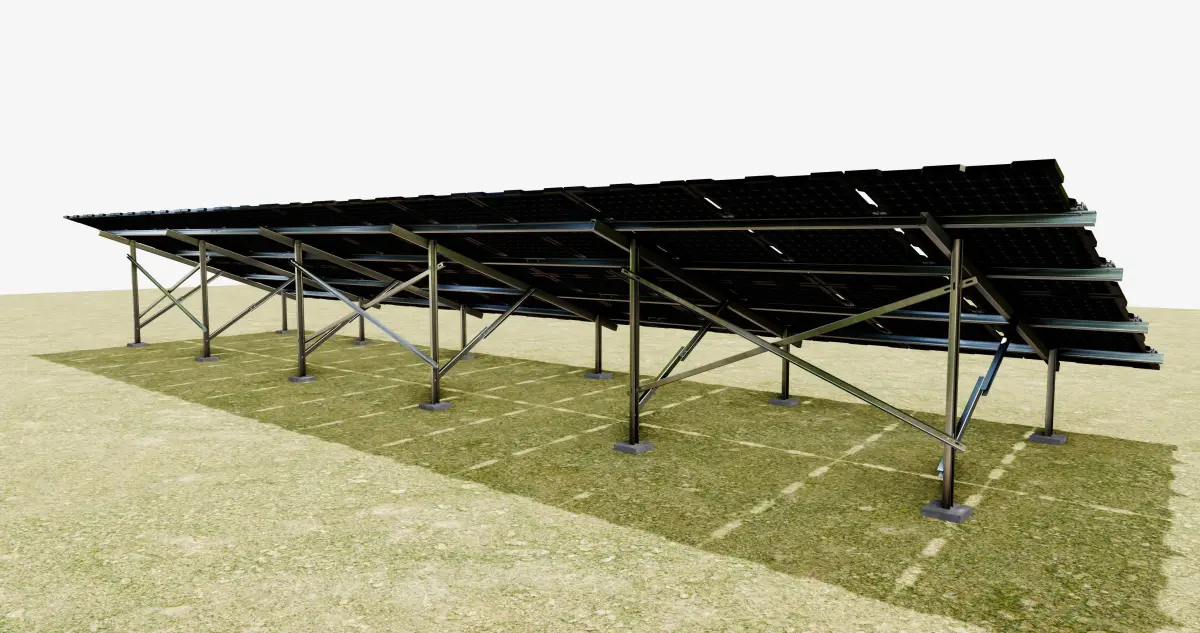

The system consists of 6 axles and the distance between each axle is 2650 mm.

Horizantal angle of panel 20°

The closest distance of the panels to the floor 600 mm.

New Frame Solar Panel

1- 550 Watt 2278x1134x35mm New Frame Solar Panel

2- 630 Watt 2465x1134x35mm New Frame Solar Panel

3- 320 Watt 1950x990x35mm New Frame Solar Panel

4- 160 Watt 1480x670x35mm New Frame Solar Panel

  • Bifacial Solar Panel

  • Modern New Design Frame

  • Middle and End Clamp Compatible With the New Frame Design

  • Hexagon Head Bolt, Large Diameter Washer and Flanged Nut Design

Hexagon head bolt; ideal for the bottom tightening method

**Assembly Example Made With 550W Panel

Prepared With BLENDER Version 4.0.1

Polygons : 270955

Vertices : 375928

Objects : 649

Native Formats: BLEND (Blender, filesize: 38 MB) Exchange Formats: OBJ (OBJ, filesize: 48.9 MB), FBX (Autodesk FBX, filesize: 46.3 MB), OTHER (Other, filesize: 124 MB)
