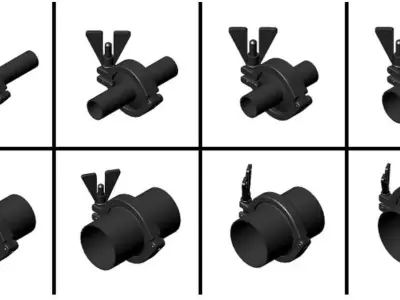

Sanitary Union Clamp TC Complete Set 1-2 in to 4 in 3D model

Description

This package includes a complete 3D CAD library of sanitary union clamp TC fittings, covering 8 standard sizes from 1-2 inch (Ø12.7 mm) up to 4 inch (Ø101.6 mm).

Each union set is composed of:

2 × Nipple TC

1 × Gasket (sealing)

1 × Clamp TC

All models were created from scratch with engineering precision and are ready for integration into industrial piping projects in the food, beverage, pharmaceutical, and chemical industries.

Content included (8 sizes):

Sanitary Union Clamp TC 1-2 inch (Ø12.7 mm)

Sanitary Union Clamp TC 3-4 inch (Ø19.05 mm)

Sanitary Union Clamp TC 1 inch (Ø25.4 mm)

Sanitary Union Clamp TC 1-1-2 inch (Ø38.1 mm)

Sanitary Union Clamp TC 2 inch (Ø50.8 mm)

Sanitary Union Clamp TC 2-1-2 inch (Ø63.5 mm)

Sanitary Union Clamp TC 3 inch (Ø76.2 mm)

Sanitary Union Clamp TC 4 inch (Ø101.6 mm)

File formats delivered:

.DWG (AutoCAD / Plant 3D)

.STEP (neutral CAD format for Inventor, SolidWorks, Fusion 360, FreeCAD, etc.)
