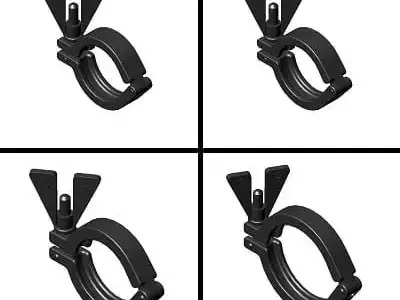

SanitaryClampTCCompleteSet 3D model

Description

This package includes a complete 3D CAD library of sanitary clamp TC fittings, covering 8 standard sizes from 1-2 inch (Ø12.7 mm) up to 4 inch (Ø101.6 mm).

All models were created from scratch with engineering precision and are ready for integration into industrial piping projects in the food, beverage, pharmaceutical, and chemical industries.

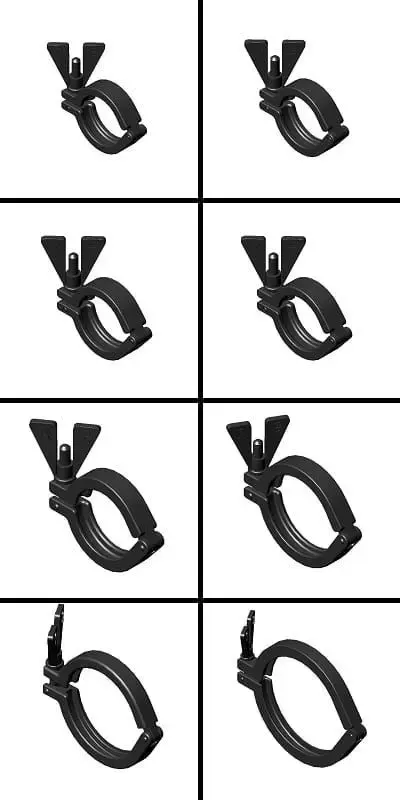

Content included (8 sizes):Sanitary Clamp TC 1-2 inch (Ø12.7 mm)Sanitary Clamp TC 3-4 inch (Ø19.05 mm)Sanitary Clamp TC 1 inch (Ø25.4 mm)Sanitary Clamp TC 1-1-2 inch (Ø38.1 mm)Sanitary Clamp TC 2 inch (Ø50.8 mm)Sanitary Clamp TC 2-1-2 inch (Ø63.5 mm)Sanitary Clamp TC 3 inch (Ø76.2 mm)Sanitary Clamp TC 4 inch (Ø101.6 mm)

File formats delivered:

.DWG (AutoCAD / Plant 3D)

.STEP (neutral CAD format for Inventor, SolidWorks, Fusion 360, FreeCAD, etc.)
