Semi Automatic Turning Machine 3D model
Semi Automatic Turning Machine 3D model
Semi Automatic Turning Machine 3D model
Semi Automatic Turning Machine 3D model
Semi Automatic Turning Machine 3D model

Publication date: 2023-03-27

Semi Automatic Turning Machine 3D model

$59

License: Royalty Free License

author:

Lovano

Buy at www.cgtrader.com - $59 Add to Wishlist
  • Description
  • Formats
Description

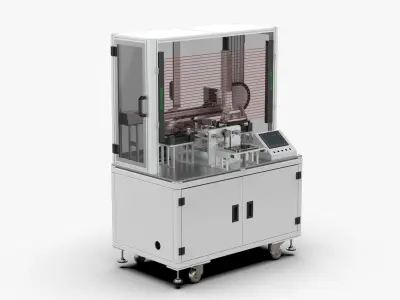

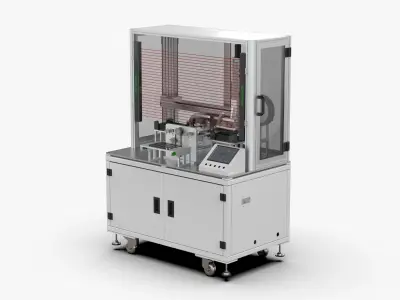

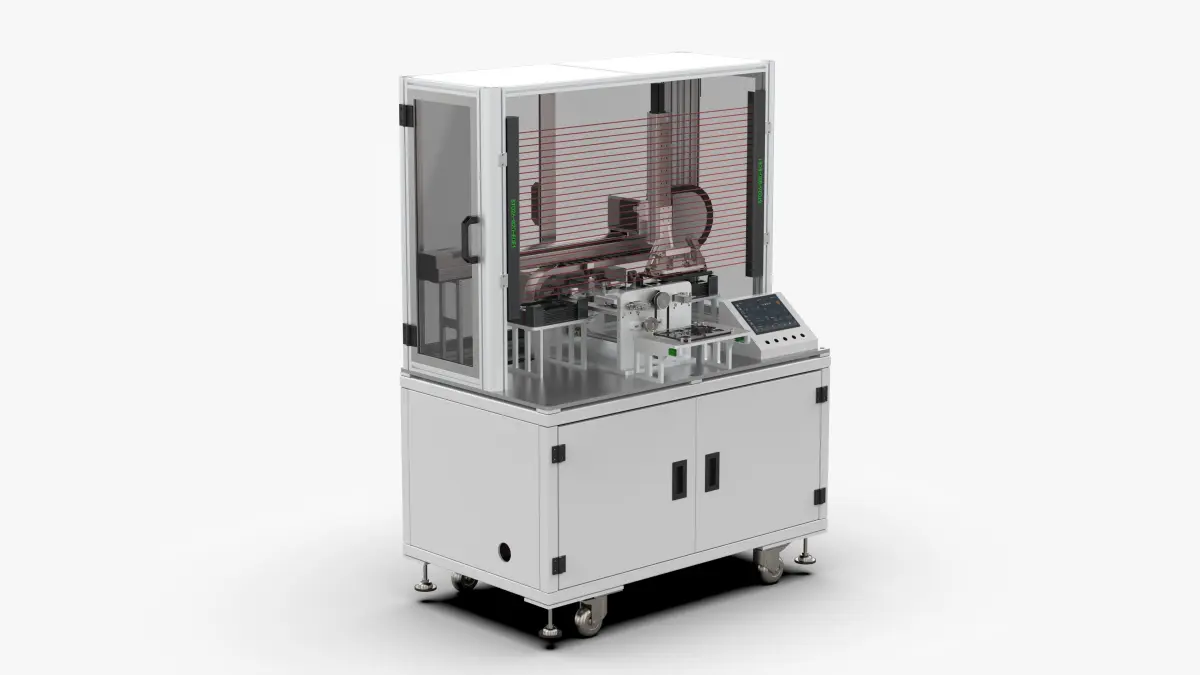

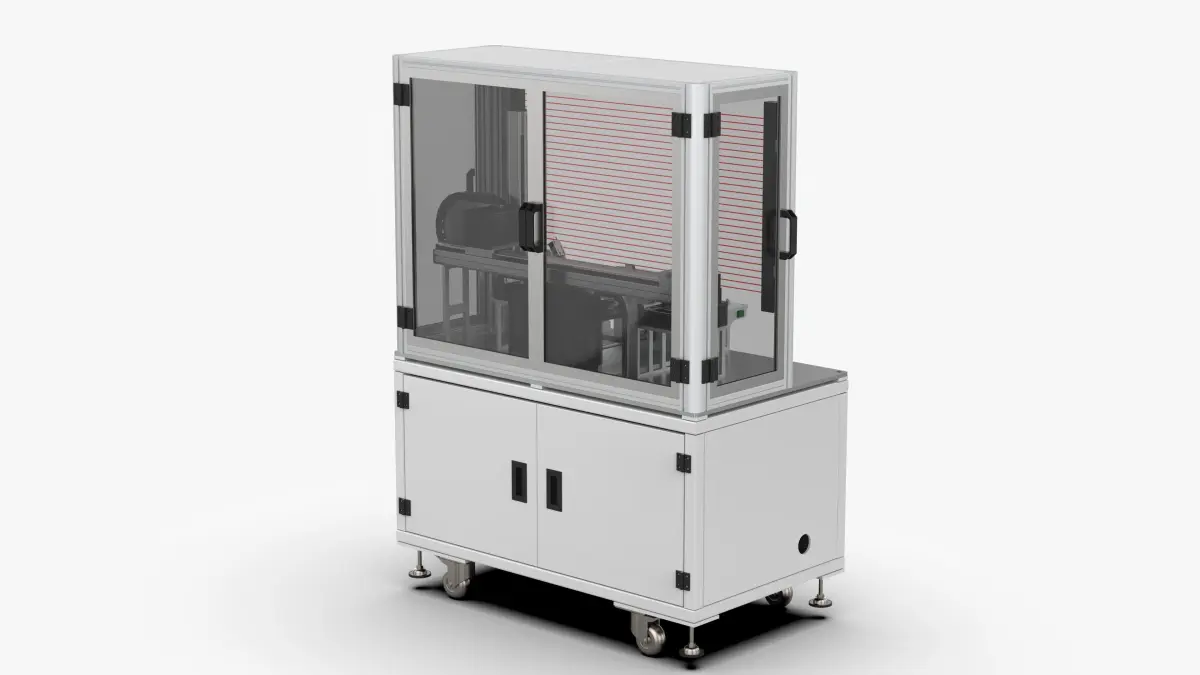

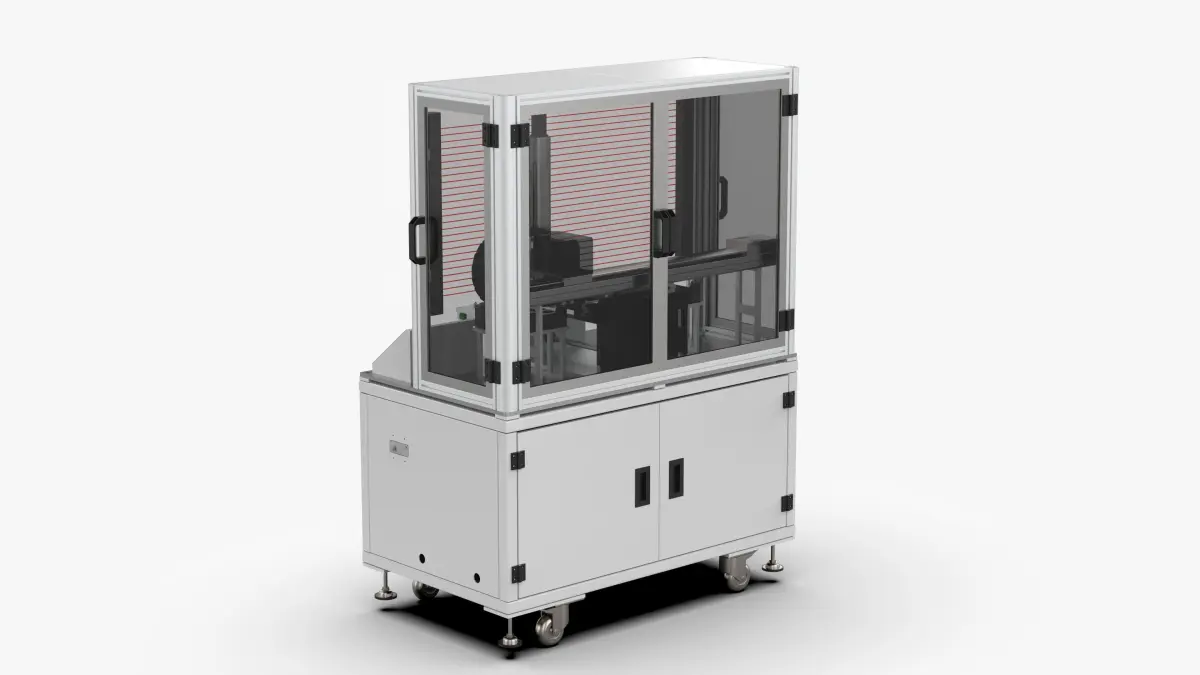

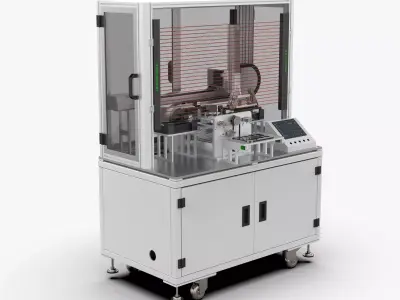

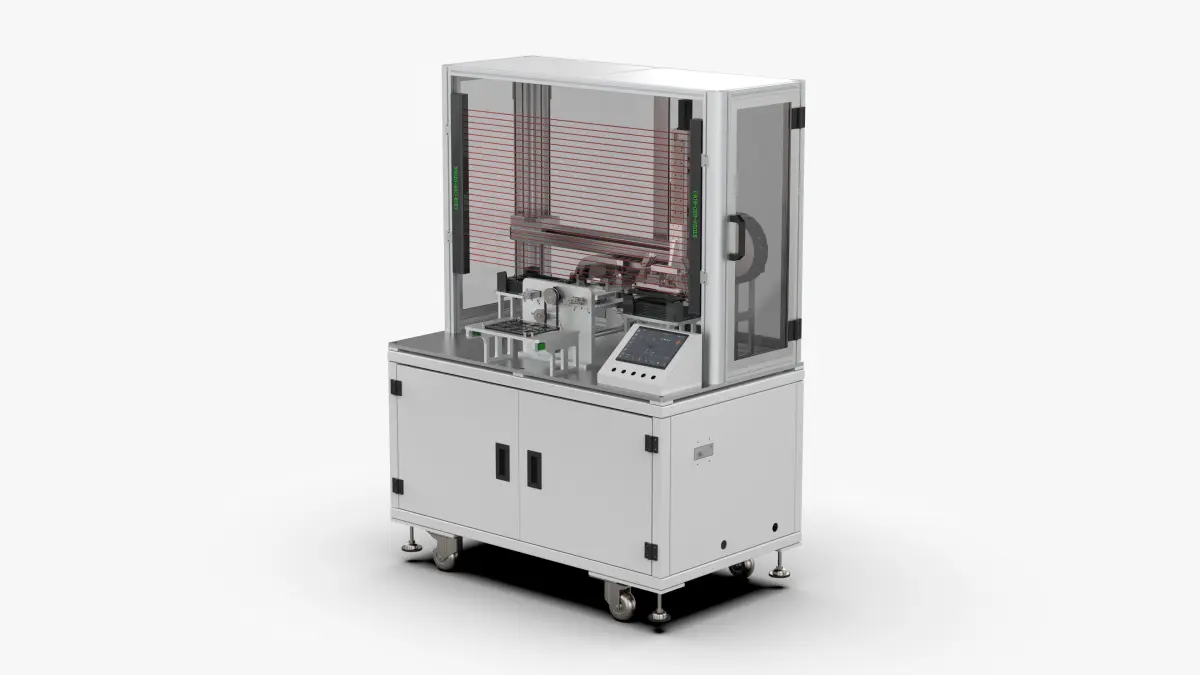

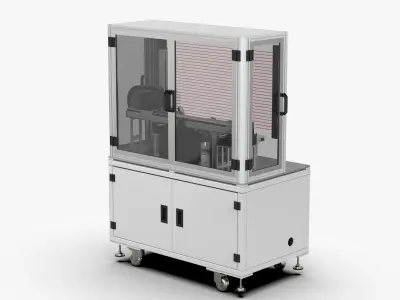

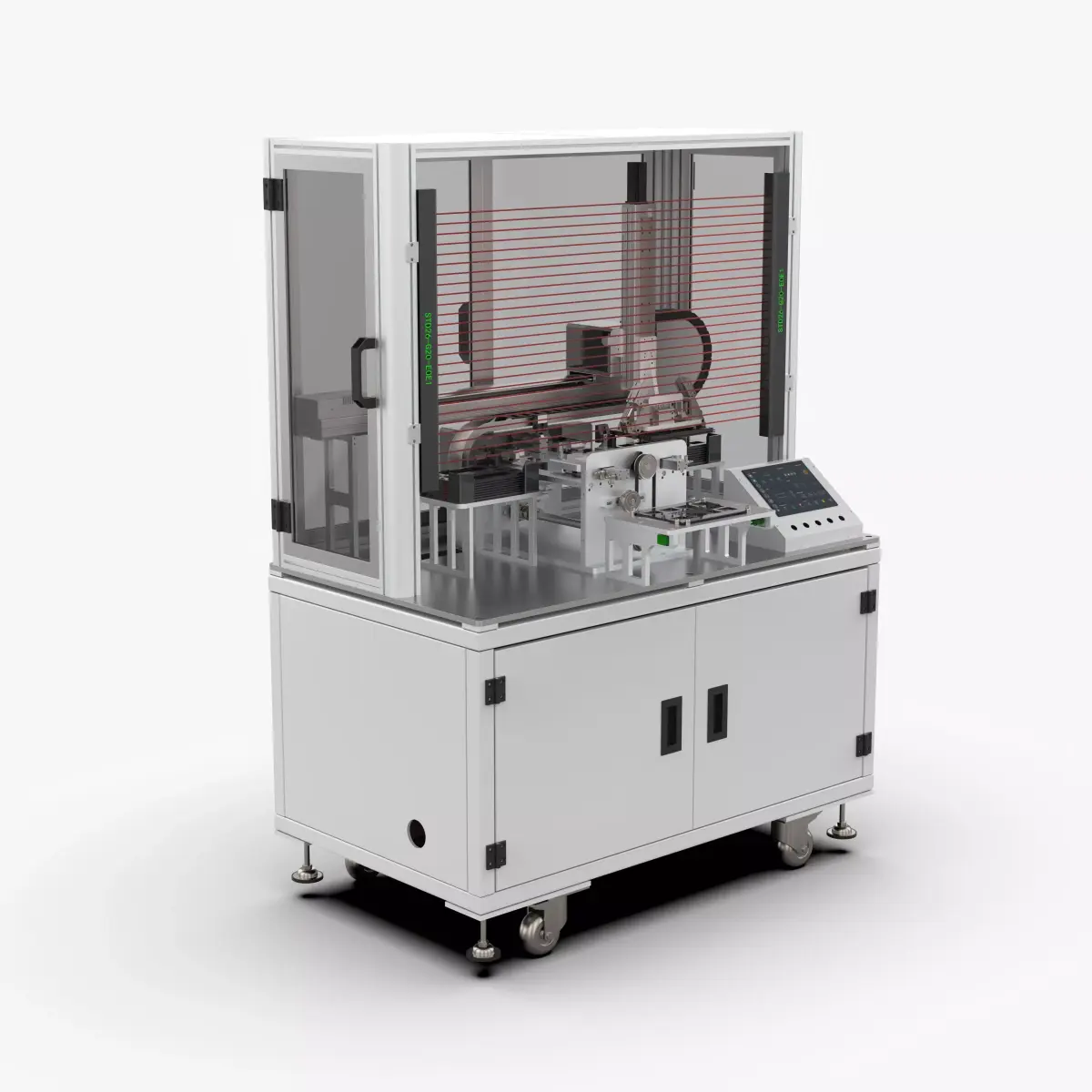

Semi Automatic Turning Machine

- Mass Production -

Introduction

The equipment process of the semi-automatic turnover equipment for the vehicle:

  1. Manually put the vehicle into the transfer area to be processed.
  2. Put the stacked material of the vehicle into the vehicle feeding and wait for the positioning in the turning module.
  3. The vehicle grabbing module Then pick up 1PCS of the vehicle from the vehicle feeding area.
  4. Put it into the vehicle turning mechanism, clamp and position it and turn it over 180 degrees.
  5. The grab module will move the vehicle to the vehicle unloading area after the turning is completed Remind the operator to unload.

File Formats

  • SolidWorks 2018 | Keyshot 10
  • STEP (Standard for the Exchange of Product Data)
  • IGES (Initial Graphics Exchange Specification)
  • STL (Standard Tessellation Language )
  • OBJ (Object Files)

Geometry

  • Polygons: 1,876,047
  • Vertice: 5,628,141

Features

  • Animated
  • Rigged
  • Ready for 3D Printing
  • VR / AR / Low-poly
  • PBR
  • Textures
  • Materials
  • UV Mapping
  • Unwrapped UVs: Unknown
  • Geometry: Polygon mesh
  • Polygons: 1,876,047
  • Vertices: 5,628,141
  • Plugins used

Tags

Semi Automatic Turning Machine Solidwork Design Assembly Modeling Automation Machinery Part Mechanism Line Production Robot Manufacture Drawing Industrial Industrial machine
All content related to this 3D asset—including renders, descriptions, and metadata—is
credited to its original author, «Lovano». CGhub does not claim copyright ownership over the content used.
Native
  • SolidWorks 2018 ()52.5 MBVersion: 2018Renderer: Mental Ray 3.0
Exchange
  • IGES ()86.3 MB
  • OBJ ()131 MB
  • STEP () (2 files)43.4 MB
