Sheet Metal Elbow Free 3D model
Home Catalog Sheet Metal Elbow Free 3D model
Sheet Metal Elbow Free 3D model

Publication date: 2014-12-24

Download Sheet Metal Elbow Free 3D model

free

License: Royalty Free No Ai

author:

rick-girt

All content related to this 3D asset—including renders, descriptions, and metadata — is credited to its original author, «rick-girt». CGhub does not claim copyright ownership over the content used.
Download at www.cgtrader.com Add to Wishlist
  • Description
  • Formats

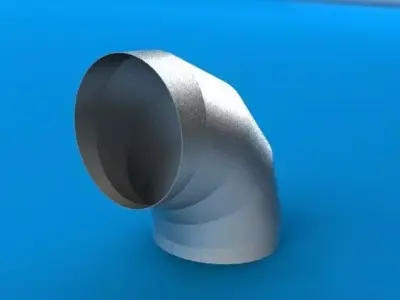

Occasionally I generate some flat patterns for the fab shop guys to make elbows with. They make a 90 degree in 5 parts, with the seams opposite of eachother. With this model I can just edit the radius and diameter in the sketches for the application needed, and generate a new flat pattern. For a 45 degree, I'll just extrude cut halfway though the center piece.Enjoy.
